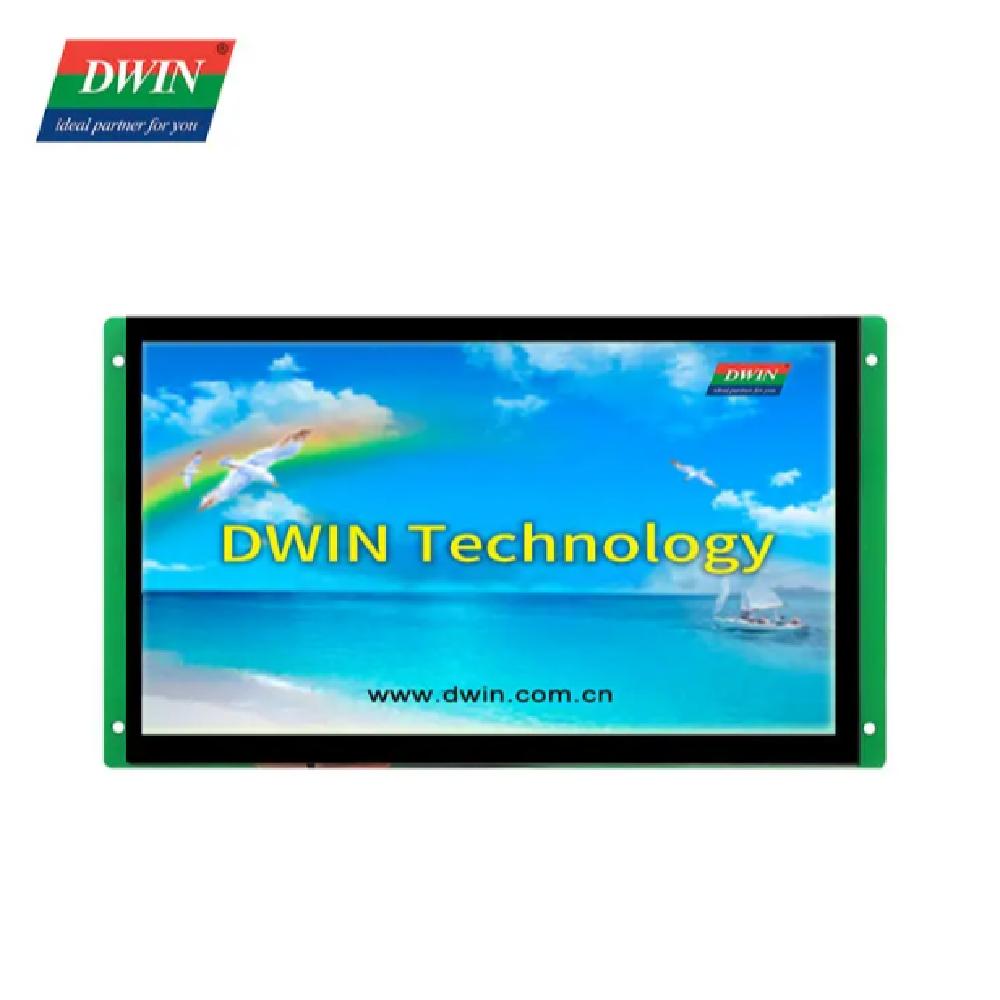

10.1 Inch HMI Touch Monitor DMG10600C101_03W(Commercial Grade)

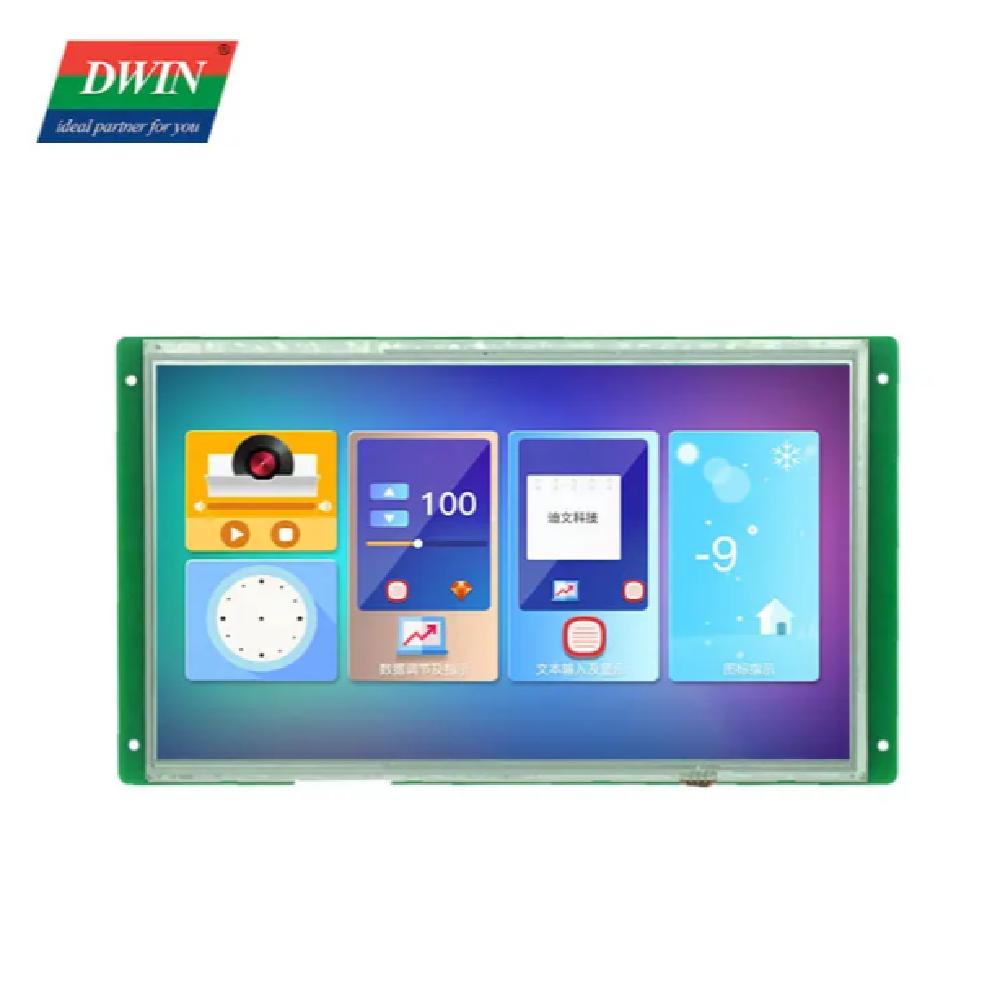

The LCD is integrated with a running DGUS II system, a GUI (Graphical User Interface) development software. The pre-installed UI user interface development software can be used to develop your own design and customised features like buttons, text display, graph and slider etc. The T5L1 DWIN development software is a human-machine interface dedicated to ASIC designed by DWIN Technology for AIoT application applications. This software is based on a T5L chip that is a low-power, cost-effective dual-core 8051 processor.
Features: : 10.1 Inch Smart LCD Display Module
- No/Resistive/Capacitive touch screen Optional;
- Based on self-designed T5L ASIC, 10.1 Inches, 16.7M Colors, 1024*600 Pixel TFT LCD;

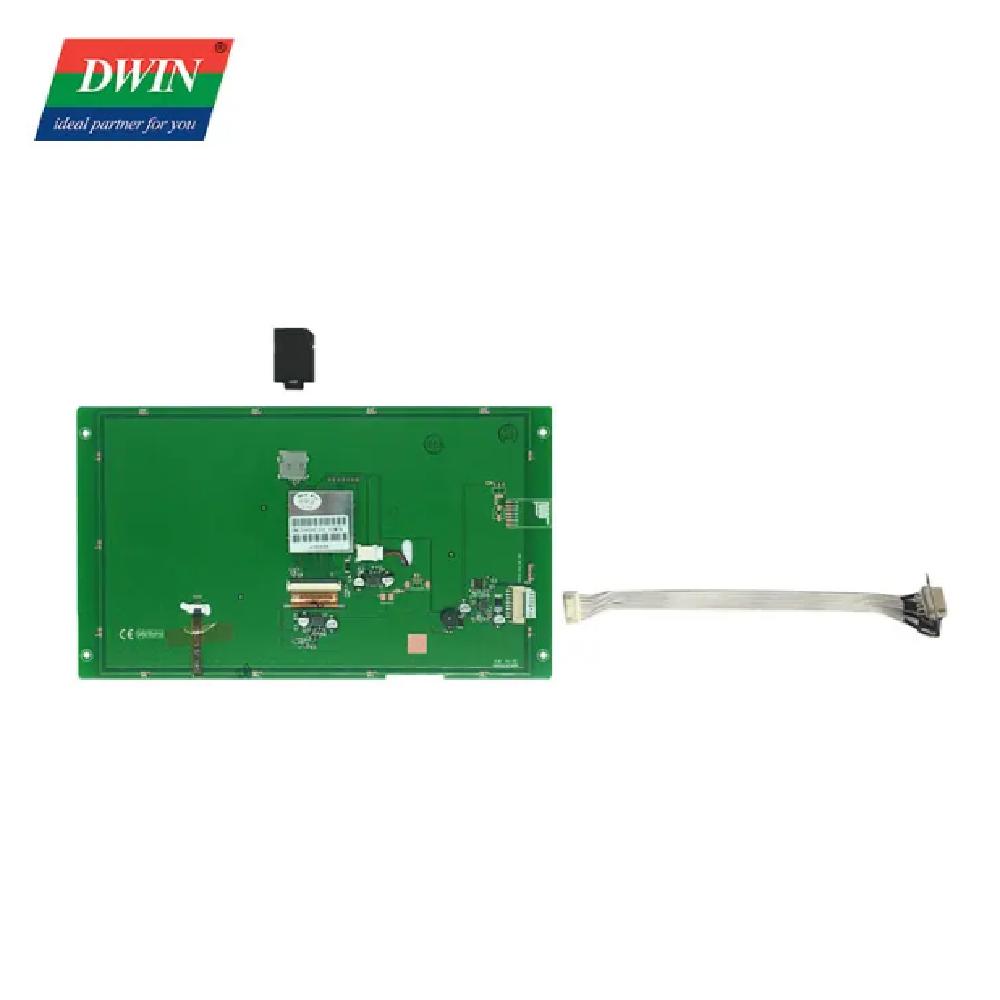

- 8Pin_2.0mm connection wire,TTL/COMS available;
- Download via SD card or on-line serial port;
- Dual Development System: DGUS II/ TA(Instruction set);
- No coding skills required, easy-to-use DWIN DGUS V7.6 GUIs Development;
- Net Weight: DMG10600C101_03WN:501g / DMG10600C101_03WTR: 530g / DMG10600C101_03WTC:545g
- Widely used witd Arduino,STM32,Microchip ,ESP8266 and so on.
Package Includes - 1 x 10.1 Inch DMG10600C101-03WTR DWIN Display
Frequently Asked Questions - 10.1 Inch DMG10600C101-03WTR DWIN Display
How shall I program the display?
Step 1: Connect the smart display to the PC with the accessory (wire, adapter etc).
Step 2: Create the UI project based on DGUS software tool.
Step 3: Store project file in SD card using SD card reader. Then insert SD card in the display.
Step 4: Restart the display once you will get message as a "SD card process end" then switch off the display remove SD card.
Ensure you have the guide manual, factory demo, software tool and others at hand, which are useful to your development.
What kind of interface does the smart display have?
The display is based on UART Serial port communication. TTL/RS232/RS485 is available.
How do you guarantee the quality?
The factory is under ISO9001 quality management. And the product may pass the CE, Rohs certificate.
Do you have any MOQ limit?
No limitation on MOQ. 1 Piece sample is also welcome. If you're a fresh user, interested into our smart display, 2.8Inch, 3.5Inch, 4.3Inch may be a good choice, which is cheaper, with the required function.
I wanna to prefer a smart display used in medical equipment. Do you have such type?
Yes, we have. Our smart display can be split into several type, including commercial grade, industrial grade, medical grade, Automotive grade, Military grade, to meet the quality requirement on different industry.
Can your smart display connect to PLC?
Yes. The smart display contains the DWIN protocol, also support Modbus protocol. It can be connected to PLC, any MCU etc. It has wifi facility. User can communicate via wifi as well.
Except for smart display, what else do you have?
Rajguru Electronics in partnership DWIN has been continuously researching and promoting the new product each year. On one hand, upgrade the design of smart display. On the other hand, promote other products including Android LCD display, HDMI HD display, Thermostat etc. You may check with the sales engineer for more information.
