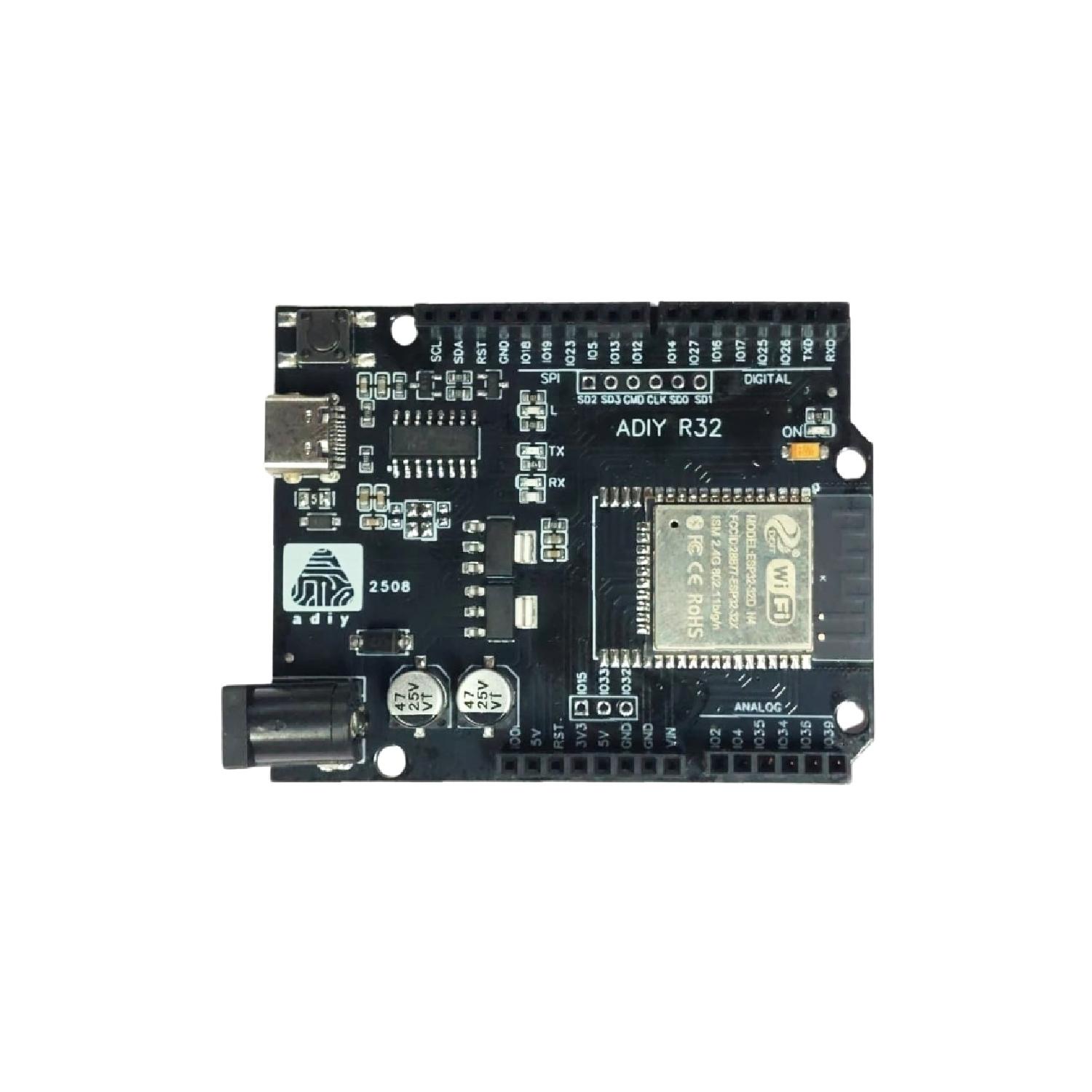

ADIY ESP32 Development Board Compatible with UNO Image 1

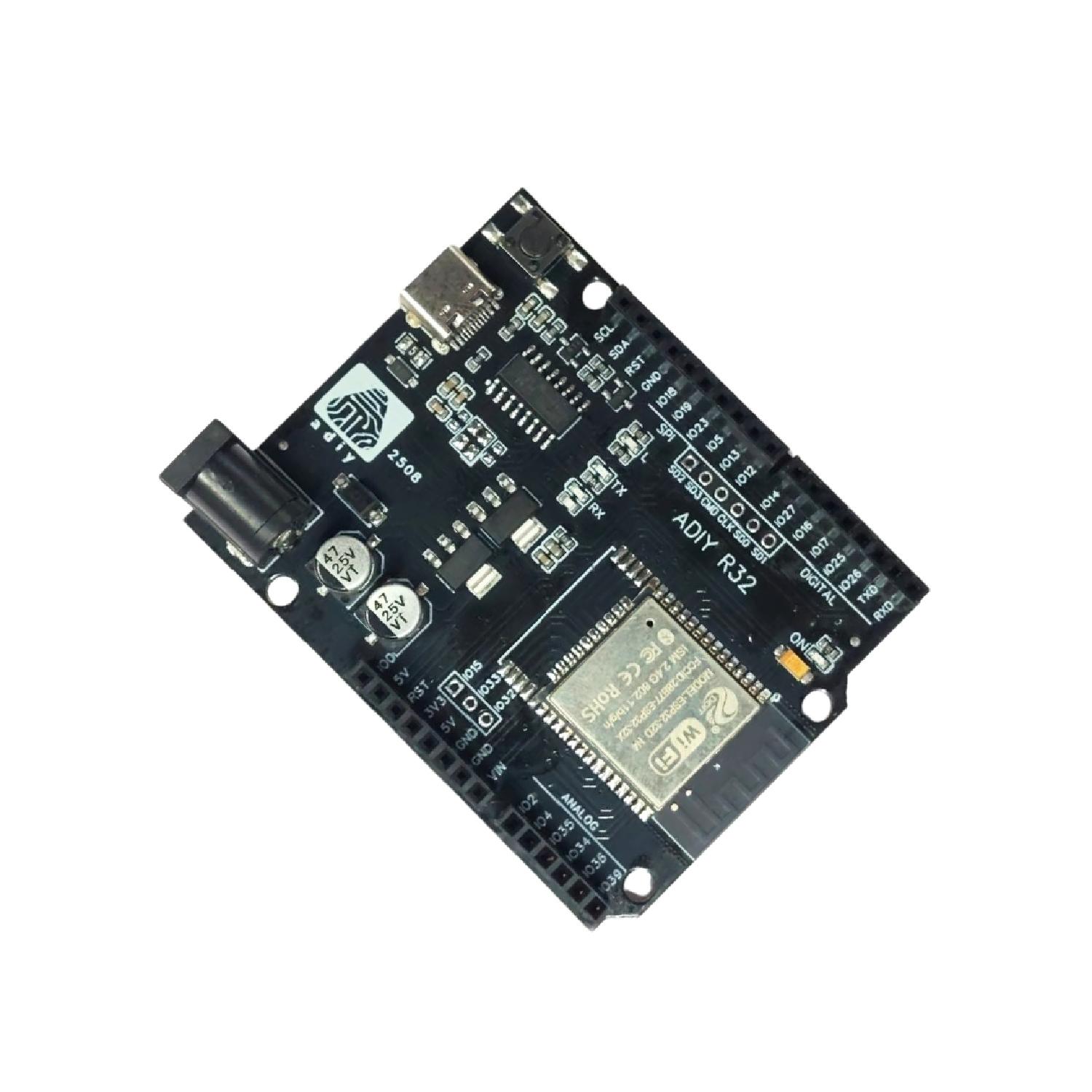

ADIY ESP32 Development Board Compatible with UNO Image 2

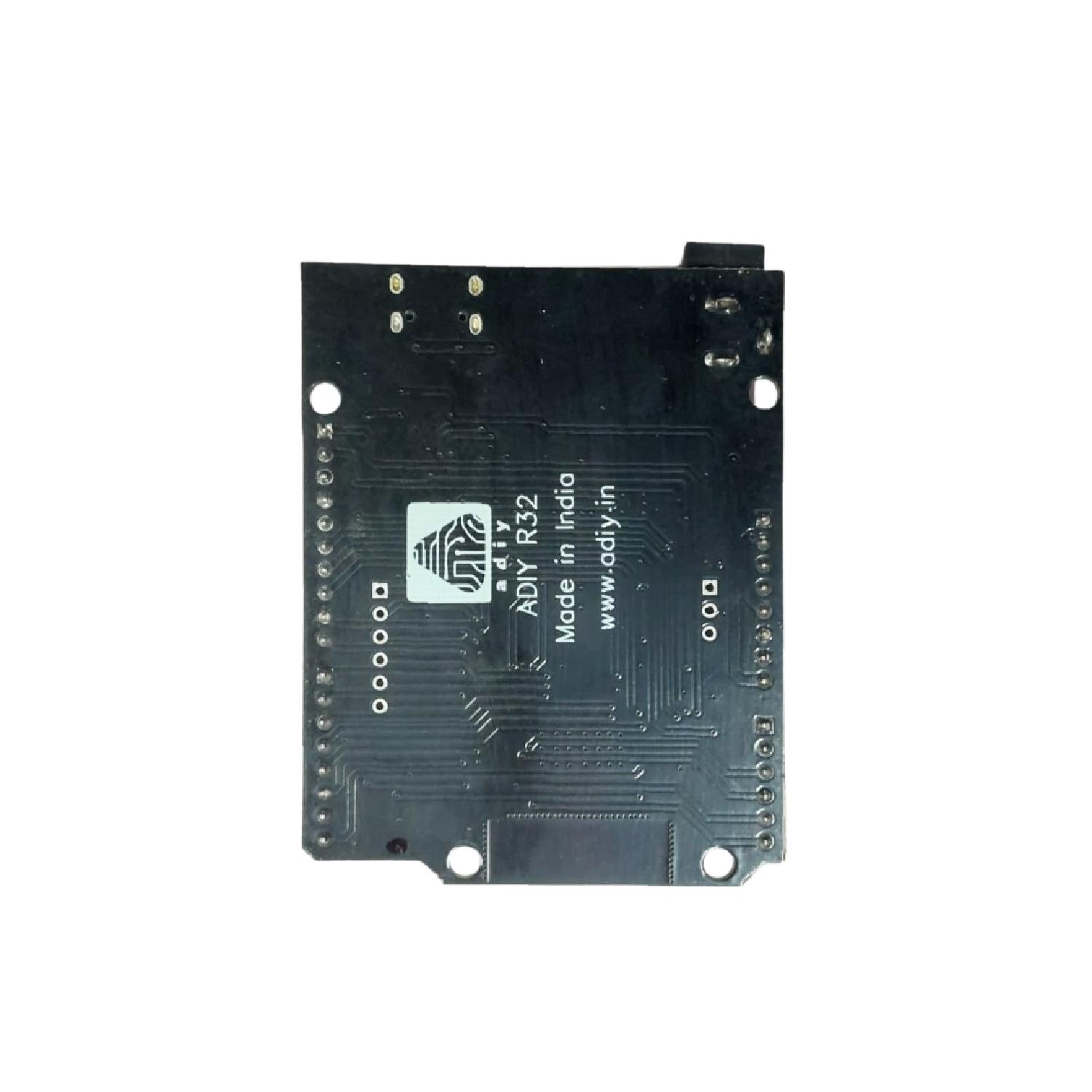

ADIY ESP32 Development Board Compatible with UNO Image 3

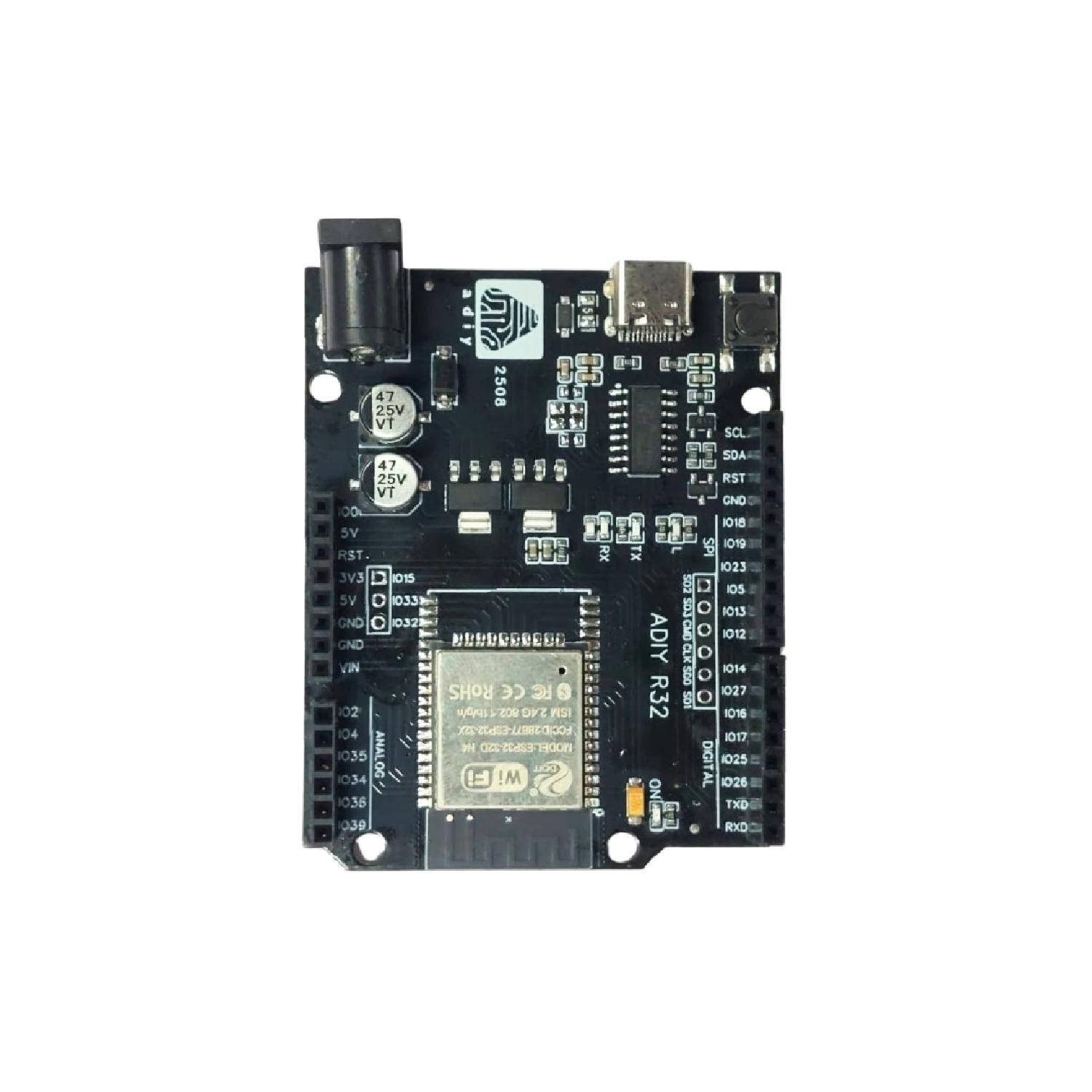

ADIY ESP32 Development Board Compatible with UNO Image 4

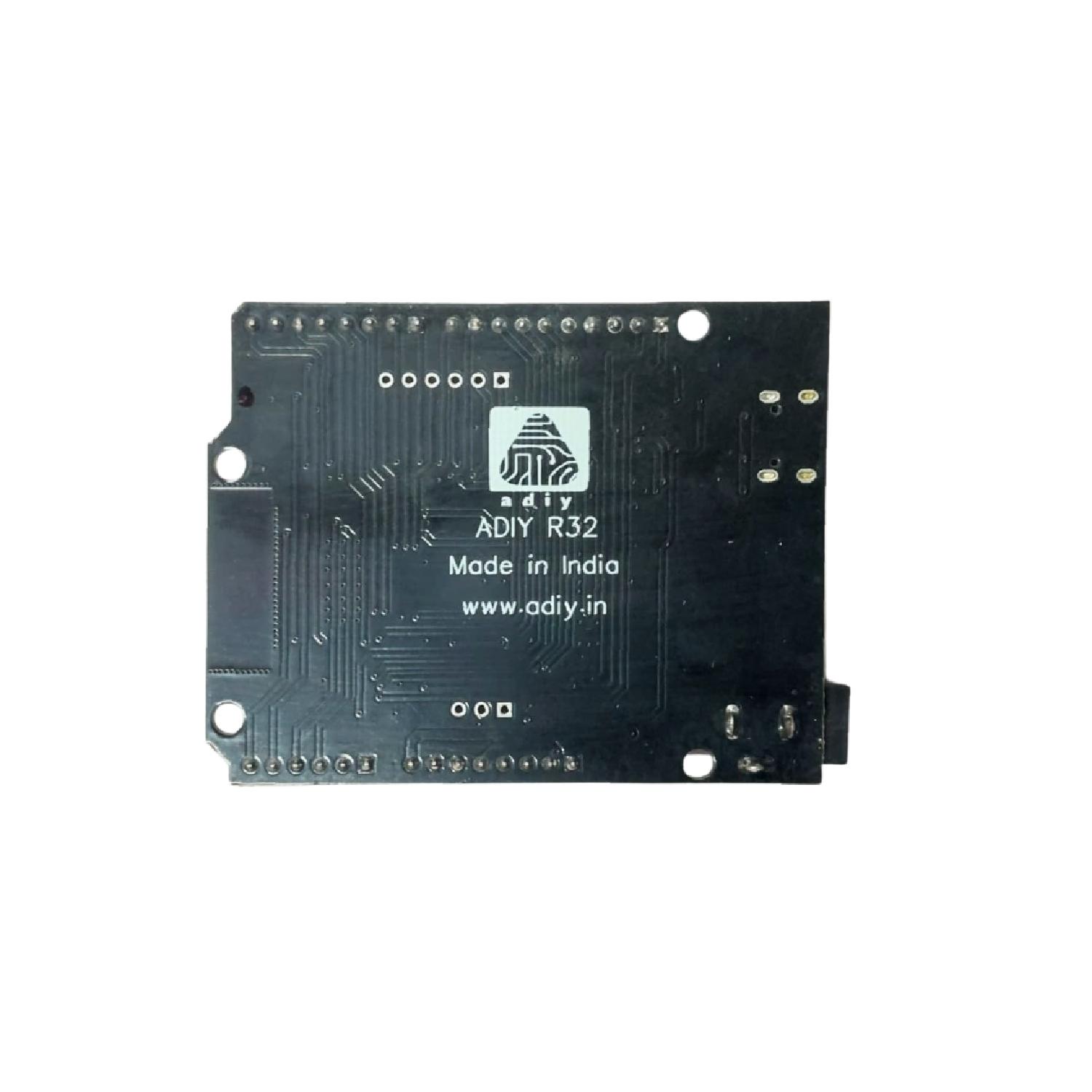

ADIY ESP32 Development Board Compatible with UNO Image 5

ADIY ESP32 Development Board Compatible with UNO

The ADIY ESP32 Development Board Compatible with UNO (D1 R32) is a high-performance microcontroller board built around the ESP32-WROVER-32 module, offering advanced wireless connectivity and exceptional processing power. Designed in the Arduino Uno form factor, it ensures compatibility with a wide range of shields and accessories while providing the flexibility of ESP32’s robust architecture.

Equipped with Wi-Fi (802.11 b/g/n/e/i) and Bluetooth 4.2 (Classic + BLE), this board is ideal for IoT, automation, and robotics applications. It supports USB Type-C for programming, a CH340C USB-to-UART bridge, and a 3.3V onboard regulator for reliable operation. With 38 multifunctional GPIO pins, it supports a full range of peripherals including ADC, DAC, PWM, I²C, SPI, UART, and capacitive touch inputs.

The modular design allows users to swap the ESP32-WROVER module with an ESP32-WROOM variant, offering flexibility in performance and memory configurations. Whether for students, makers, or engineers, the ADIY D1 R32 offers a powerful yet user-friendly platform for embedded projects.

Price : 378.00 excl. GST

Qty	Price
1 >	378.00
50 >	366.00
200 >	357.00
500 >	351.00
1000 >	345.00
1001 >	345.00

Description
Datasheet

Features: ADIY ESP32 Development Board Compatible with UNO

Microcontroller: ESP32-WROVER-32 (replaceable with ESP32-WROOM-32)
CPU: Dual-core Tensilica LX6 @ up to 240 MHz (~600 DMIPS)
Memory: 520 KB SRAM
Flash: 4 MB onboard
Optional PSRAM: 8 MB (WROVER module)
Wireless: Wi-Fi 802.11 b/g/n/e/i (2.4 GHz, up to 150 Mbps), Bluetooth v4.2 (Classic + BLE)
Operating Voltage: 3.3V logic
Power Input: 5V (USB Type-C) or 7–12V (DC jack)
GPIO Pins: 38 multifunctional I/O
Analog Inputs: Up to 16 channels (12-bit ADC)
DAC Outputs: 2 channels (8-bit)
Capacitive Touch Inputs: 10 channels
PWM Channels: Up to 16 (LEDC hardware support)
Interfaces: I²C, SPI, UART, I²S
Other Features: Onboard reset button, PCB antenna, boot/flash strapping pins

Applications: ADIY ESP32 Development Board Compatible with UNO

Internet of Things (IoT): Smart homes, energy management, and remote monitoring
Wireless Sensor Networks: Transmit and collect real-time sensor data
Home Automation: Control lighting, fans, and other appliances
Web Servers & Dashboards: Create web-based hardware control panels
Robotics & Motor Control: Build autonomous vehicles and robotic systems
Wearables: Bluetooth-enabled health and activity trackers
Data Logging: Collect and store sensor data locally or on cloud servers

Package Includes:

1 × ADIY ESP32 Development Board Compatible with UNO (D1 R32)
