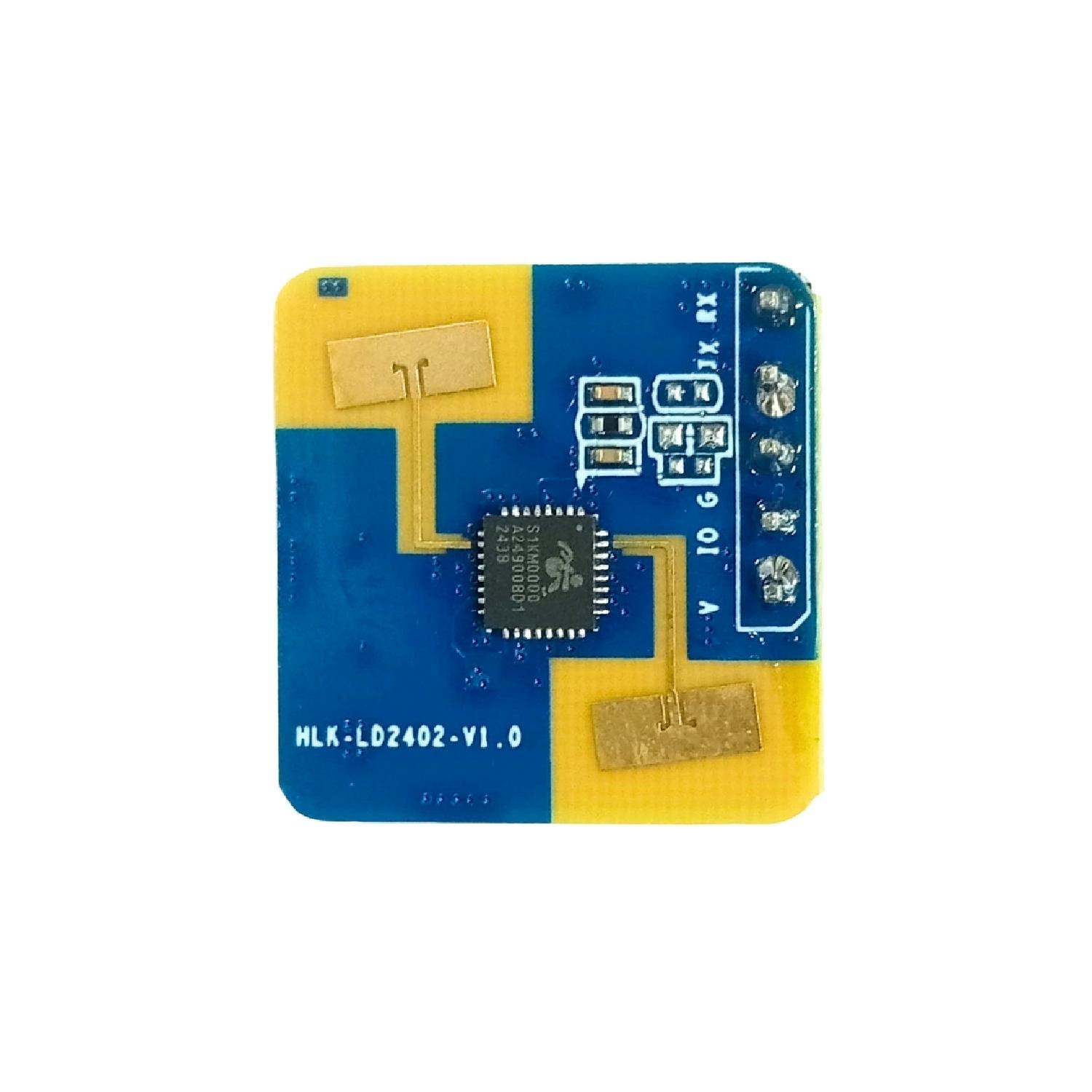

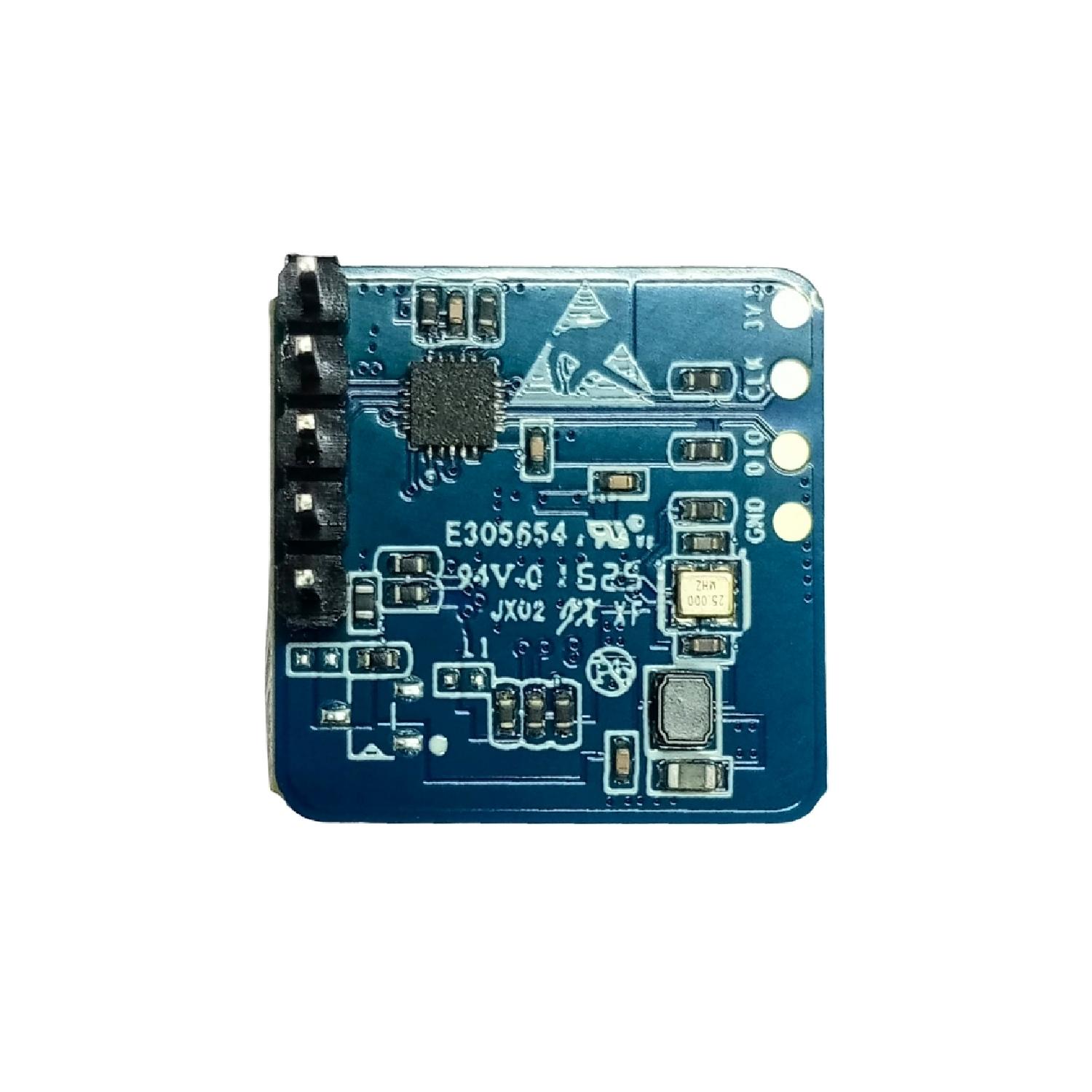

The Hi-Link HLK-LD2402 is an advanced 24GHz millimeter-wave (mmWave) human presence radar sensor module engineered for indoor occupancy and motion detection. Leveraging FMCW (Frequency Modulated Continuous Wave) radar technology, the HLK-LD2402 precisely detects human motion, micro-motion, and stationary presence with high sensitivity and stability.
Unlike conventional PIR sensors, this mmWave radar sensor can detect static human presence, making it ideal for applications that require continuous awareness rather than simple motion triggers. With configurable sensing parameters and support for both UART and Bluetooth configuration, users can easily tailor detection distance, sensitivity, and delay times to match their specific use case.
Key Features
- 24GHz FMCW radar technology for precise human presence detection
- High sensitivity to detect motion and stationary human presence
- Wide detection angle: ±60° coverage
- Configurable parameters: Distance, sensitivity & delay time
- UART & Bluetooth configuration support
- GPIO & UART interfaces for easy system integration
- Visual configuration tools for quick setup & tuning
- Reliable indoor performance with strong anti-interference capability
Technical Specifications
- Operating Frequency: 24GHz ISM band
- Radar Technology: FMCW (Frequency Modulated Continuous Wave)
- Detection Targets: Human motion & micro-motion (static presence)
- Detection Angle: ±60°
- Configuration Interfaces: UART, Bluetooth
- Output Interfaces: GPIO, UART
- Parameter Adjustment: Sensing distance, sensitivity, delay time
- Application Environment: Indoor human presence detection
(Refer to the datasheet for complete electrical, mechanical, and configuration details.)
Applications
- Smart home automation (lighting, HVAC, security)
- Occupancy monitoring in offices & conference rooms
- Energy management & space utilization systems
- People counting in retail & public spaces
- Robotics & automated systems for human interaction
- IoT presence detection devices
Package Includes
-
1 × Hi-Link HLK-LD2402 24GHz Human Presence Radar Sensor Module
