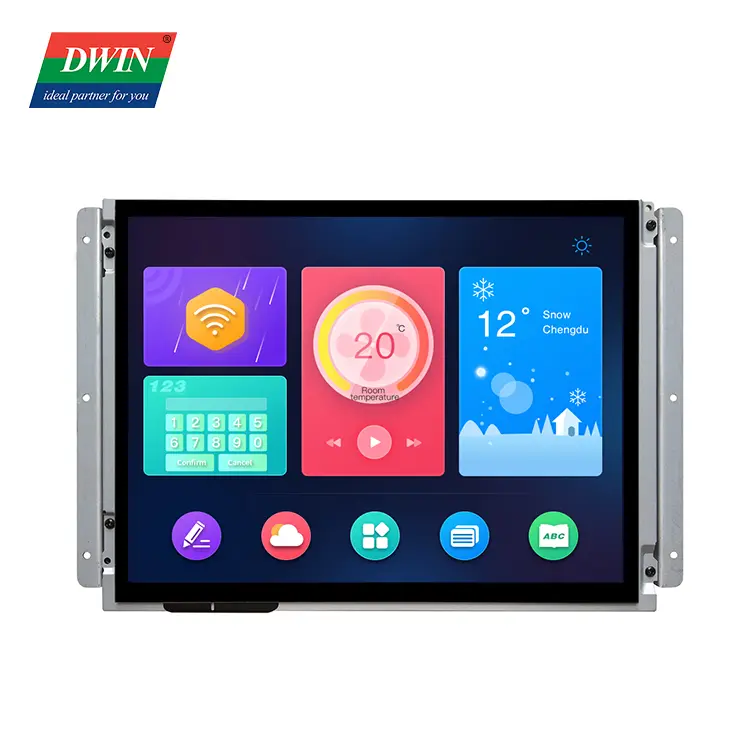

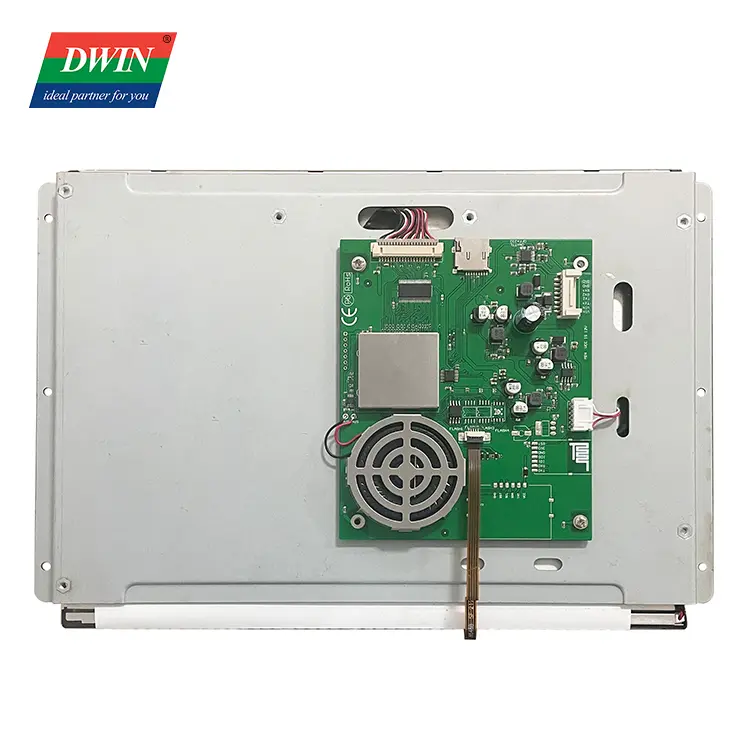

12.1 Inch DMG80600C121-03WTC DWIN Display
The DMG80600C121_03W model is the intelligent capacitive touch screens with UART PORT which can be controlled by ANY MCU via Simple Powerful Command Set, so it can be used as TFT Display & Touch controller in various electronic equipment. The lcd display screen panel, touch lcd screen, DWIN display is your best choice for HMI project.
Features: 12.1 Inch TFT LCD Display Module
- Based on self-designed T5L1 ASIC, 16.7M Color, 24bit.
- 800*600 Pixel TFT LCD.
- Has onboard speakers and the Power should be <2W
- TA(Instruction set)/ DGUSⅡdevelopment system
- No touch screen/Resistive touch screen/Capacitive touch screen Optional;
- TTL and 232 Interface available, user use 8 Pin2.0mm FCC connection wire connect Products
- The finished project will be downloaded by SD card or UART port
- Using DWIN DGUS V7.6 GUl Development tool , no coding skills required. Easy to develop
- IPS wide view Angle:85/85/85/85 (URUD);
- Reserved WIFI and USB module interface
- Wi-Fi module: connect to the cloud platform to update remotely
- USB module: download files by USB flash disk
- With GUI &OS dual-core GUI with functional controls. DWIN OS kemel is open to the user for the second-development, vie DWIN OS language or KEIL C51
Spacifications: 12.1 Inch TFT LCD Display Module
- LCD Type: TN, TFT LCD
- Viewing Angle: Normal viewing angle, 70°/70°/50°/70°（L/R/U/D）
- Resolution: 800×600 pixels (support 0°/90°/180°/270°)
- Color: 24-bit 8R8G8B
- Active Area (A.A.): 246.00mm (W)×184.50mm (H)
- View Area (V.A.): -
- Backlight Mode: LED
- Backlight Service Life: >20000 hours (Time of the brightness decaying to 50% on the condition of continuous working with the maximum
- Brightness: 250nit
- Brightness Control: 0~100 grade (When the brightness is adjusted to 1%~30% of the maximum brightness, flickering may occur and is not recommended to use in this range)
Package Includes - 1 x 12.1 Inch DMG80600C121-03WTC DWIN Display
Frequently Asked Questions - 12.1 Inch DMG80600C121-03WTC DWIN Display
How shall I program the display?
Step 1: Connect the smart display to the PC with the accessory (wire, adapter etc).
Step 2: Create the UI project based on DGUS software tool.
Step 3: Store project file in SD card using SD card reader. Then insert SD card in the display.
Step 4: Restart the display once you will get message as a "SD card process end" then switch off the display remove SD card.
Ensure you have the guide manual, factory demo, software tool and others at hand, which are useful to your development.
What kind of interface does the smart display have?
The display is based on UART Serial port communication. TTL/RS232/RS485 is available.
How do you guarantee the quality?
The factory is under ISO9001 quality management. And the product may pass the CE, Rohs certificate.
Do you have any MOQ limit?
No limitation on MOQ. 1 Piece sample is also welcome. If you're a fresh user, interested into our smart display, 2.8Inch, 3.5Inch, 4.3Inch may be a good choice, which is cheaper, with the required function.
I wanna to prefer a smart display used in medical equipment. Do you have such type?
Yes, we have. Our smart display can be split into several type, including commercial grade, industrial grade, medical grade, Automotive grade, Military grade, to meet the quality requirement on different industry.
Can your smart display connect to PLC?
Yes. The smart display contains the DWIN protocol, also support Modbus protocol. It can be connected to PLC, any MCU etc. It has wifi facility. User can communicate via wifi as well.
Except for smart display, what else do you have?
Rajguru Electronics in partnership DWIN has been continuously researching and promoting the new product each year. On one hand, upgrade the design of smart display. On the other hand, promote other products including Android LCD display, HDMI HD display, Thermostat etc. You may check with the sales engineer for more information.
