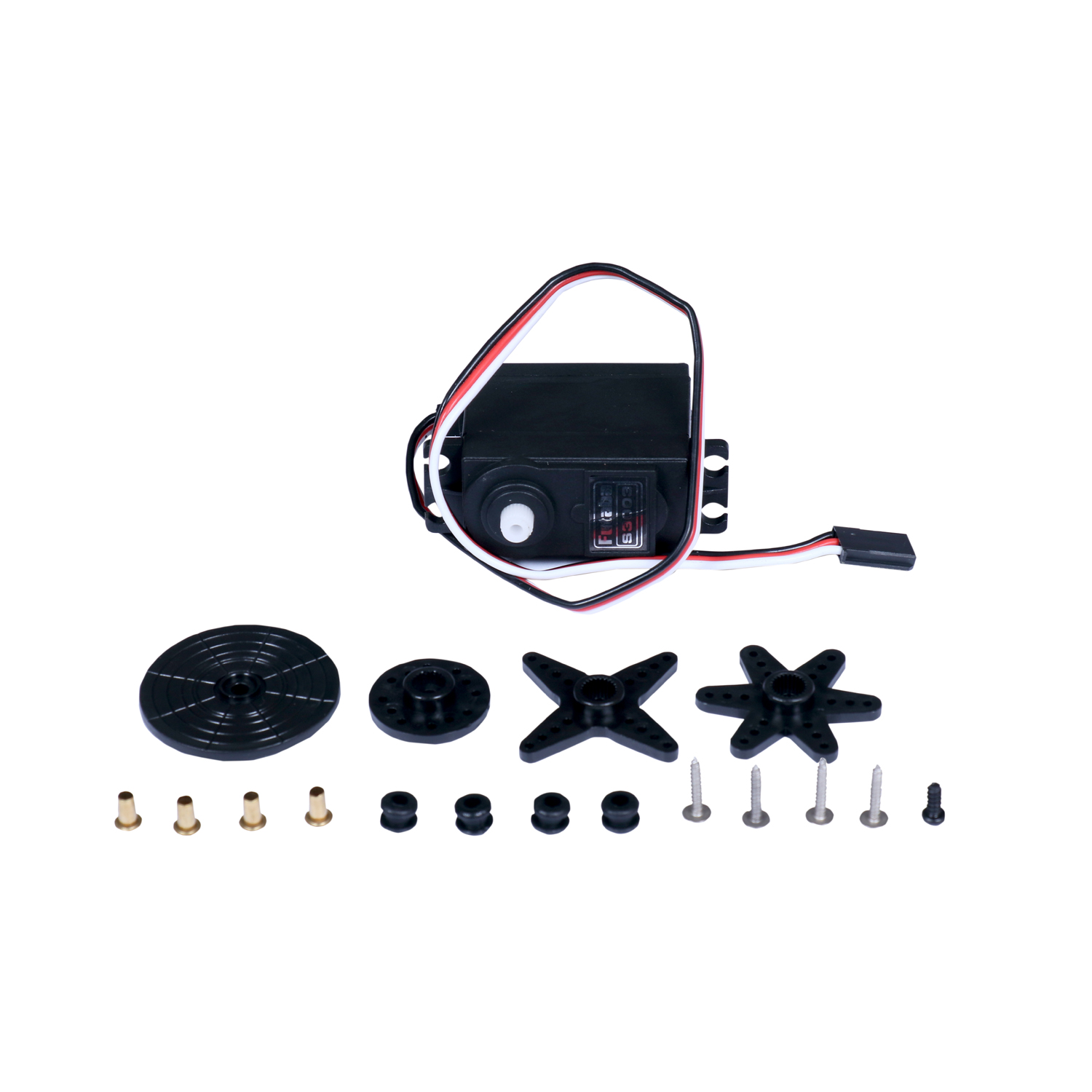

S3003 Servo Motor
Futaba S3003 standard size Servo for general applications. Like DIY robots, car etc. The power is supplied through external adapter. It is stable and shock proof. It is compliant with most standard receiver connector.
Specification:
- Control System: +Pulse Width Control 1520usec Neutral
- Current Drain (4.8V): 7.2mA/idle
- Required Pulse: 3-5 Volt Peak to Peak Square Wave
- Current Drain (6.0V): 8mA/idle
- Operating Voltage: 4.8-6.0 Volts
- Direction: Counter Clockwise/Pulse Traveling 1520-1900usec
- Operating Temperature Range: -20 to +60 Degree C
- Motor Type: 3 Pole Ferrite
- 400usec Dimensions: 1.6" x 0.8"x 1.4" (41 x 20 x 36mm)
- 360 Modifiable: Yes
- Weight: 1.3oz. (37.2g)
