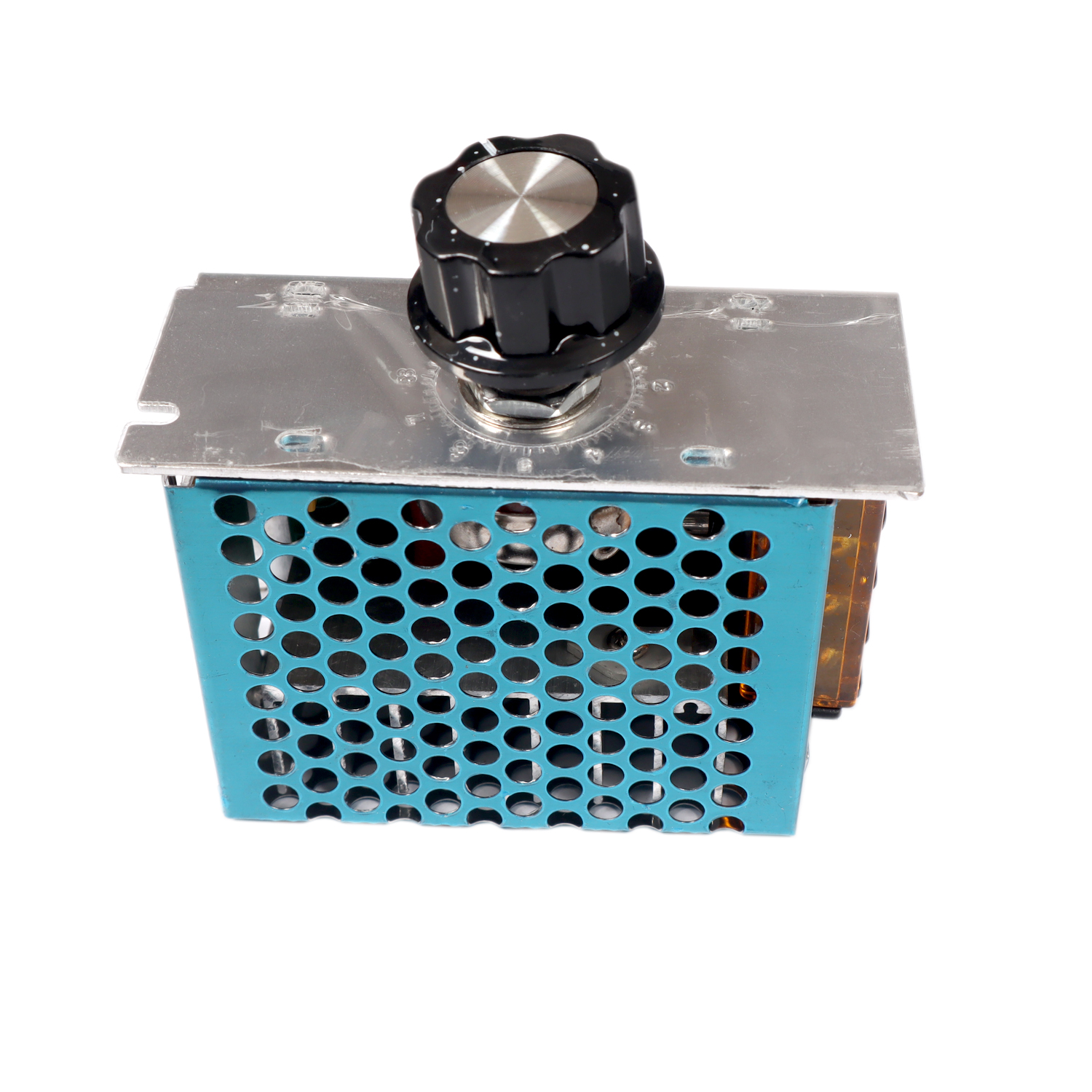

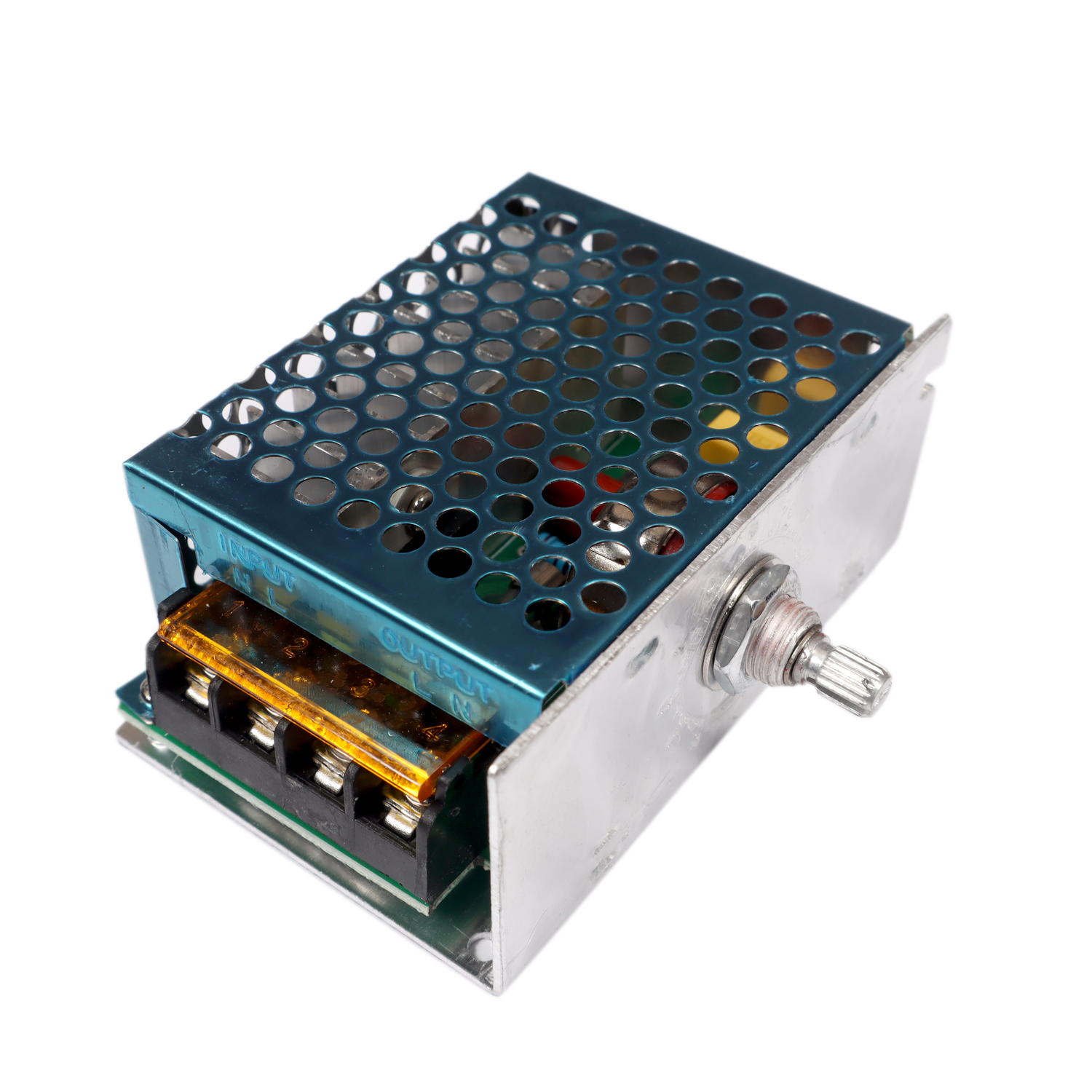

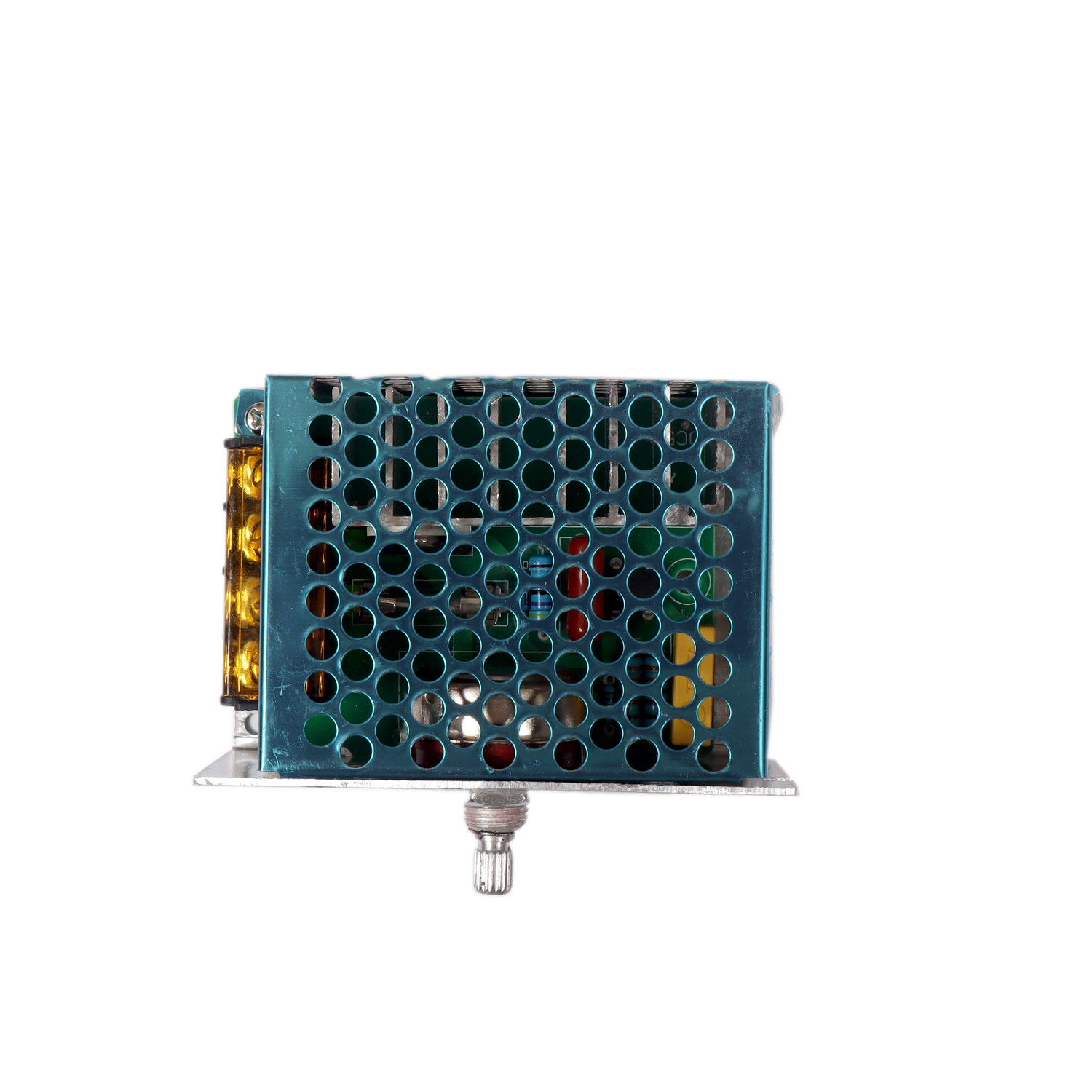

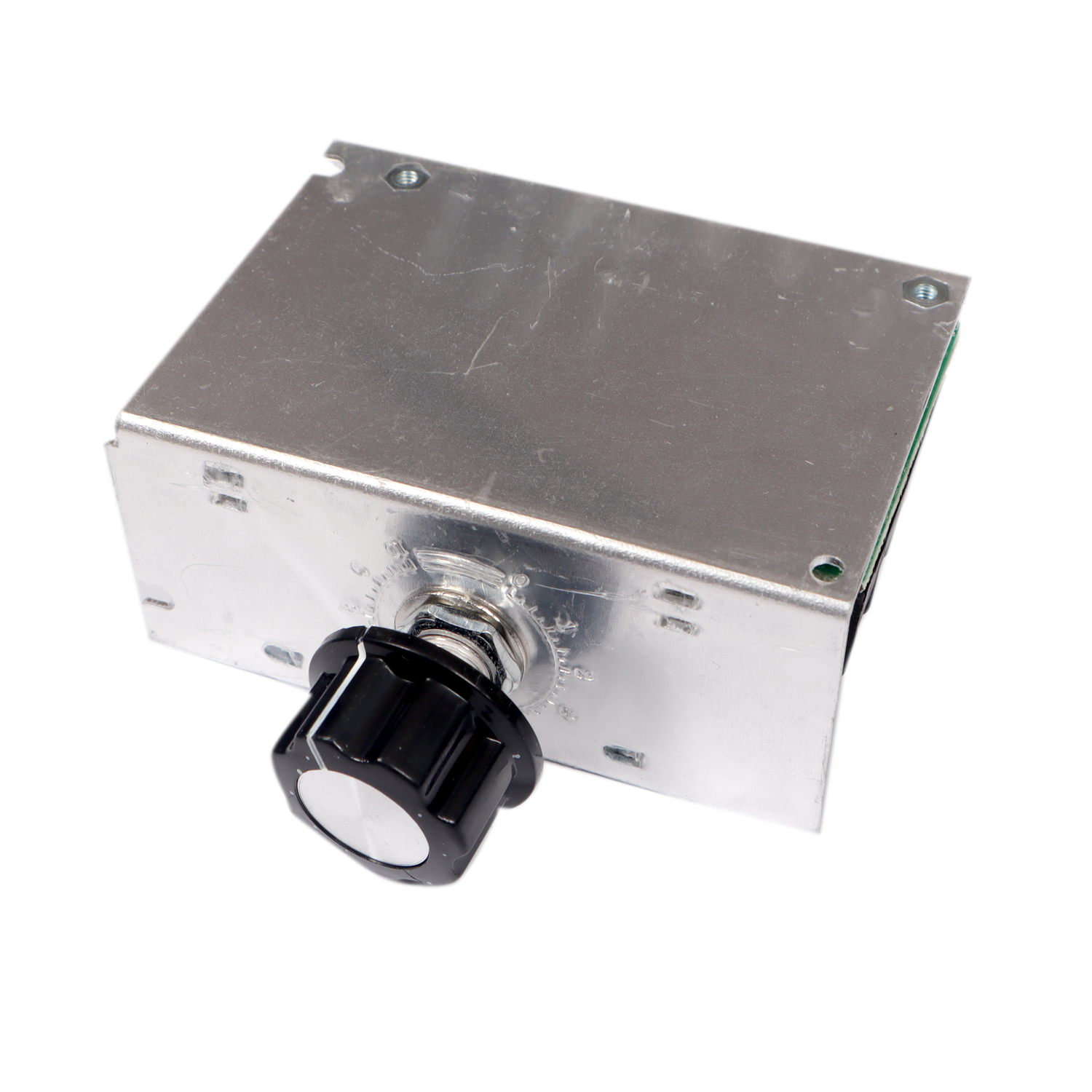

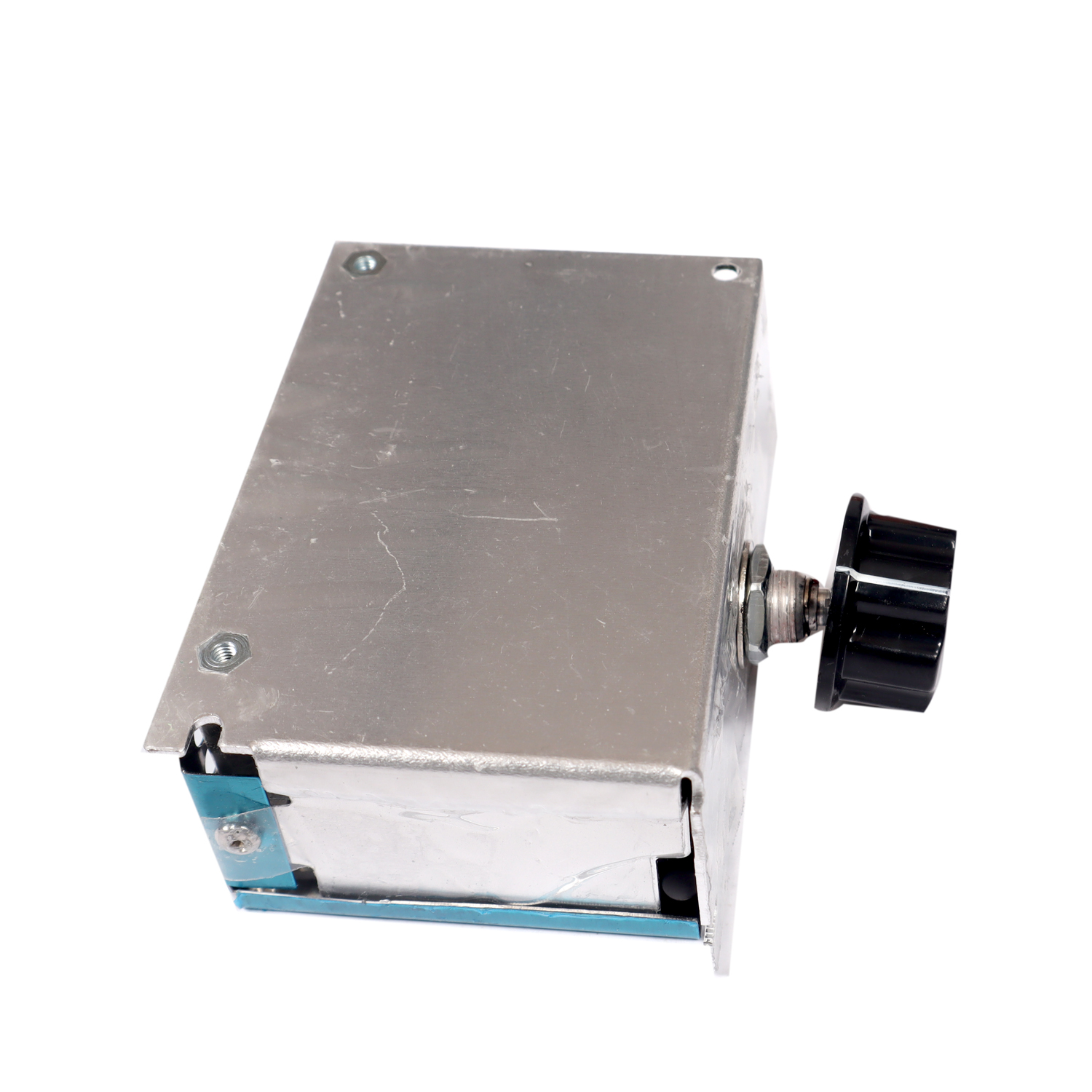

Description: SCR Motor Controller - 4000W
This is a Micro AC 220V 4000W Voltage Regulator SCR 220VAC Voltage Regulator Dimmer Electric Motor Speed Controller. This product uses the new two-way High Power SCR, because the design of the current max up to 20A a good solution to cool down the situation in the electric wire. Resistance is too small to cause over-flow problem can easily adjust the output voltage 0-220V. It is using the new two-way high-power thyristor, because the design maximum current can reach 20A, a good solution to the problem of over-current electric wire in the case of cooling caused by the resistance is too small, can easily adjust the output voltage at DC0 ~ any adjustment between DC220V.
SCR Motor Controller - 4000Wis a 4000W Thyristor SCR Voltage Regulator Temperature Dimmer for Speed / Light (AC 220V). 4000W Thyristor SCR Voltage Regulator is SCR Dimmer which can be used to control 220V Appliances. It can be used as a light dimmer, fan speed controller, stove temperature controller. It is easy and simple to use and can control appliances up to 4000W.
Specifications: SCR Motor Controller - 4000W
- Working Voltage: AC 220V
- Maximum Power: 4000W (connected resistive load)
- Voltage Regulation: AC 0-220V, Start from AC 10V
Features:SCR Motor Controller - 4000W
- Anti-spike and anti-surge protection, RC absorption, fuse all enhance usage safety
- Aluminum case prevents it from easy damagement
- Filled tin stops it from heating when in huge current
- With safety cap and connection post
- Thicker and larger heat sink
How To Use:
The input is connected with AC 220V, the output is connected to the electric stove wire or motor appliances, then rotate the knob for speed, voltage, temperature control.
Application: SCR Motor Controller - 4000W
- Electric furnace
- Water heater
- Lamps
- Small motor
- Electric iron, etc.
Attention:
Load does not exceed the maximum power, otherwise it will burn module and electrical appliances;, use the resistive load as far as possible; reduce inductive and capacitive load power greatly. (it is best to leave more than half of them)
Package Included:
1 x 4000W 220V AC SCR Voltage Regulator Dimmer Motor Speed Controller Module
