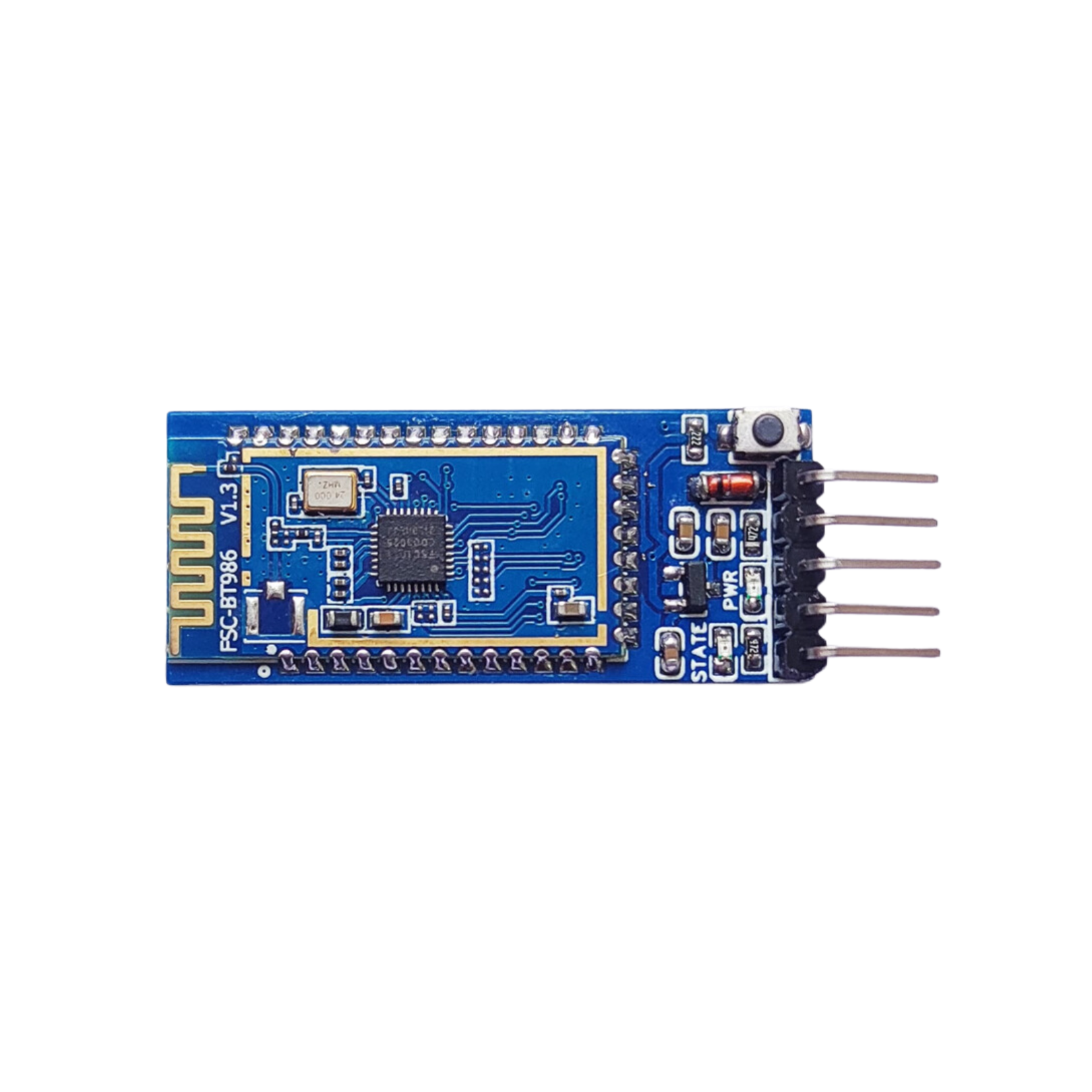

ADIY BT986 TTL is a high-performance, highly integrated Bluetooth 5.2 BR/EDR/BLE, designed to operate on the 2400MHz to 2480 Mhz ISM frequency band.Abundant peripherals, power-on reset and UART, arithmetic accelerators further reduce the cost and size of the entire system.Support communicating with the FeasyBlue app and many other Bluetooth apps.By default, Feasycom standard firmware is built-in, and customized firmware is also available.
Features:
-
5VDC input power (Recommended)
- Bluetooth 5.2 Classical/BLE Proprietary double-mode RF SOC
- UART programming and data interface (baudrate can up to 921600 bps) -
Digital Peripherals
- UART , up to 400 kbps
- LED drive capability
- AES256 HW encryption
- USB2.0 full speed,4Eps, support host mode
-
Dual Core Digital Architecture
- ARM Cortex-M0 Core for application
- CPU clock speed up to 192 Mhz
-
2.4GHz Transceiver
- Single-end RFIO -95dBm in BLE mode
- Support 250kbps, 1/2/3 Mbps data rates
