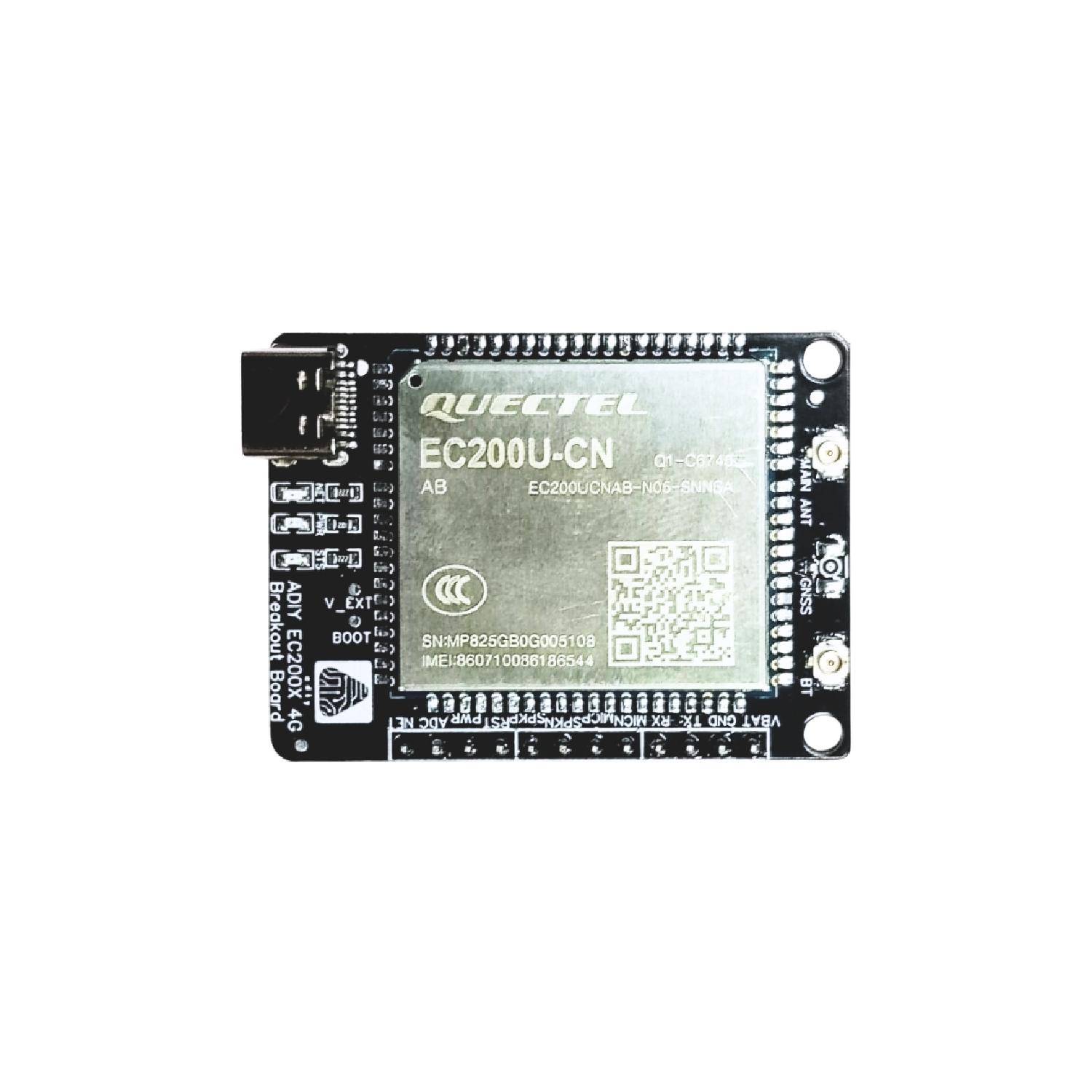

The ADIY GSM EC200U 4G/2G Breakout Board is a powerful cellular communication platform built around the Quectel EC200U LTE Cat 1 module, designed for IoT, M2M, industrial automation, and remote connectivity applications.
Supporting LTE-FDD, LTE-TDD, and GSM networks, the module ensures seamless communication by automatically falling back to 2G when 4G coverage is unavailable. This guarantees reliable connectivity for devices operating in diverse network environments.
The board is available in two variants:
- EC200U Standard Version – High-speed 4G LTE communication without positioning functionality.
- EC200U + GNSS Version – Combines LTE connectivity with integrated GNSS support for location tracking, navigation, and fleet management applications.
With data speeds of up to 10 Mbps download and 5 Mbps upload, the EC200U delivers efficient data transmission for modern connected devices. The onboard USB Type-C interface enables direct connection to computers for internet access, debugging, firmware updates, and AT command communication.
Its compact design, low power consumption, and versatile connectivity options make it ideal for developers, system integrators, and engineers building next-generation connected products.
Application: -
- IoT Devices: modem can be commonly used in IoT applications, such as smart metres and remote sensors, to provide these devices with data transfer capabilities.
- Wireless Routers: modem can be integrated into portable routers and mobile hotspots to create Wi-Fi networks wherever a cellular signal is available.
- Automotive Telematics: modem can be used in vehicles for services like
- in-car entertainment systems.
- Point-of-Sale (POS) Systems: Mobile POS systems can use modem for wireless payment processing and data communication.
- Remote Monitoring and Control: Industrial and infrastructure applications, such as remote monitoring of equipment or control systems, can use modems to transmit data over long distances.
Advantages
- Reliable LTE connectivity with GSM fallback
- Easy USB Type-C integration
- Supports direct AT command communication
- Available with GNSS for location-aware applications
- Ideal for both development and production deployments
- Suitable for industrial and commercial environments
Key Features
- Based on Quectel EC200U LTE Cat 1 Module
- Supports LTE-FDD, LTE-TDD, and GSM networks
- Automatic 2G fallback for uninterrupted connectivity
- Available with or without GNSS positioning
- Download speeds up to 10 Mbps
- Upload speeds up to 5 Mbps
- USB Type-C interface for easy PC connectivity
- AT command support for configuration and control

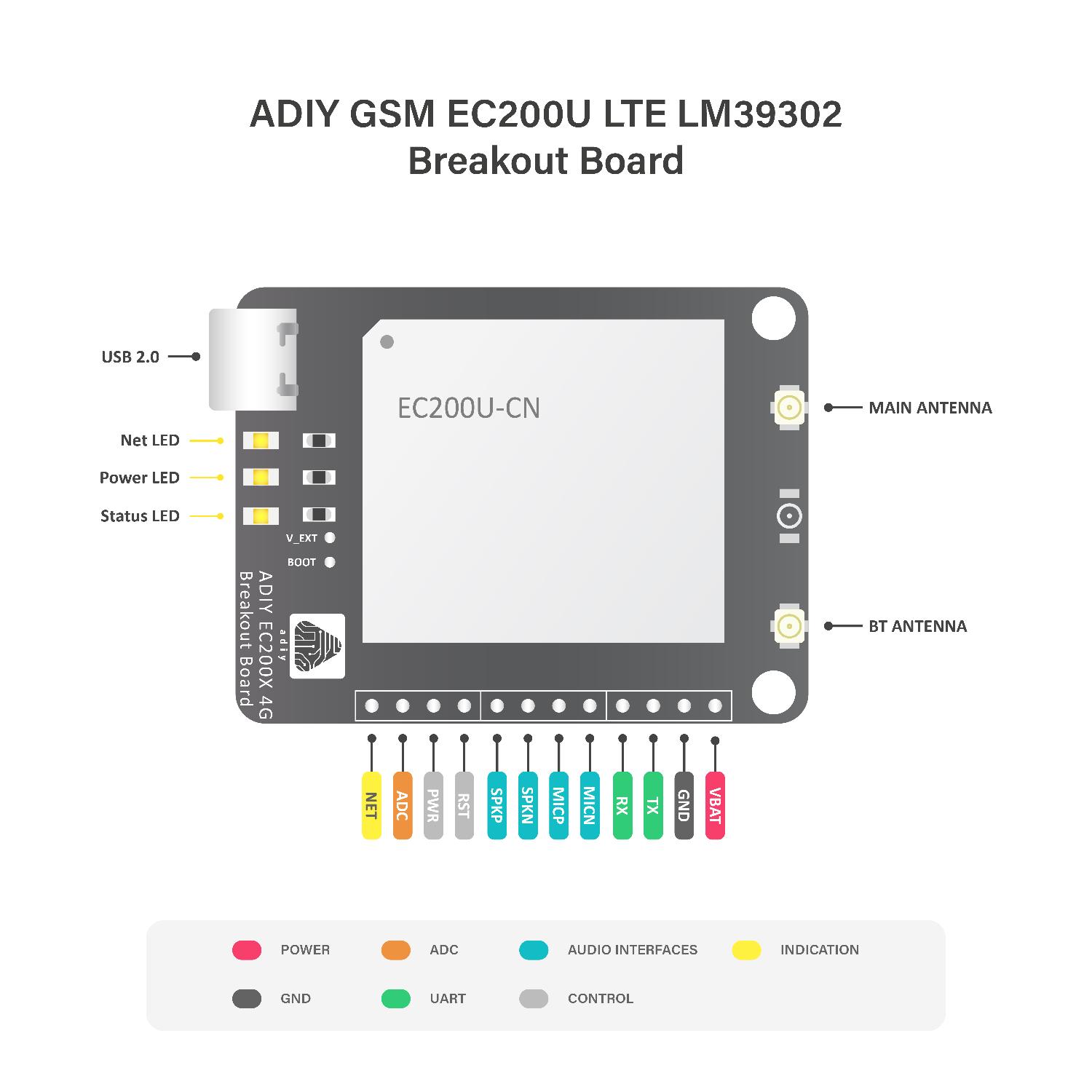

- Serial UART communication interface
- Compact breakout board design
- Optimized for IoT and M2M applications
- Reliable industrial-grade cellular communication
Technical Specifications
| Parameter | Specification |
|---|---|
| Module | Quectel EC200U |
| Network Technology | LTE Cat 1 / GSM |
| LTE Support | LTE-FDD / LTE-TDD |
| GSM Support | 2G Fallback |
| Download Speed | Up to 10 Mbps |
| Upload Speed | Up to 5 Mbps |
| Interface | UART, USB Type-C |
| GNSS Support | Optional (GNSS Variant) |
| Control Method | AT Commands |
| Application Type | IoT, M2M, Tracking, Telematics |
Applications
Internet of Things (IoT)
- Smart metering
- Environmental monitoring
- Connected sensors
- Smart agriculture
Fleet Management & Tracking
- Vehicle tracking systems
- Asset tracking
- Logistics monitoring
- Real-time location services
Industrial Automation
- Remote equipment monitoring
- Industrial telemetry
- Machine-to-machine communication
- SCADA systems
Wireless Networking
- Portable Wi-Fi routers
- Mobile hotspots
- Backup internet connectivity
Automotive Telematics
- Vehicle diagnostics
- Connected vehicle systems
- Fleet communication
Retail & Payment Systems
- POS terminals
- Wireless payment systems
- Remote transaction devices
Package Includes
- 1 × ADIY GSM EC200U 4G/2G Breakout Board
Why Choose ADIY EC200U Breakout Board?
The ADIY EC200U 4G/2G Breakout Board provides a complete cellular communication solution for IoT and industrial applications. With LTE Cat 1 performance, 2G fallback reliability, USB Type-C connectivity, and optional GNSS support, it enables developers to rapidly build connected devices for tracking, automation, remote monitoring, and smart infrastructure projects.
