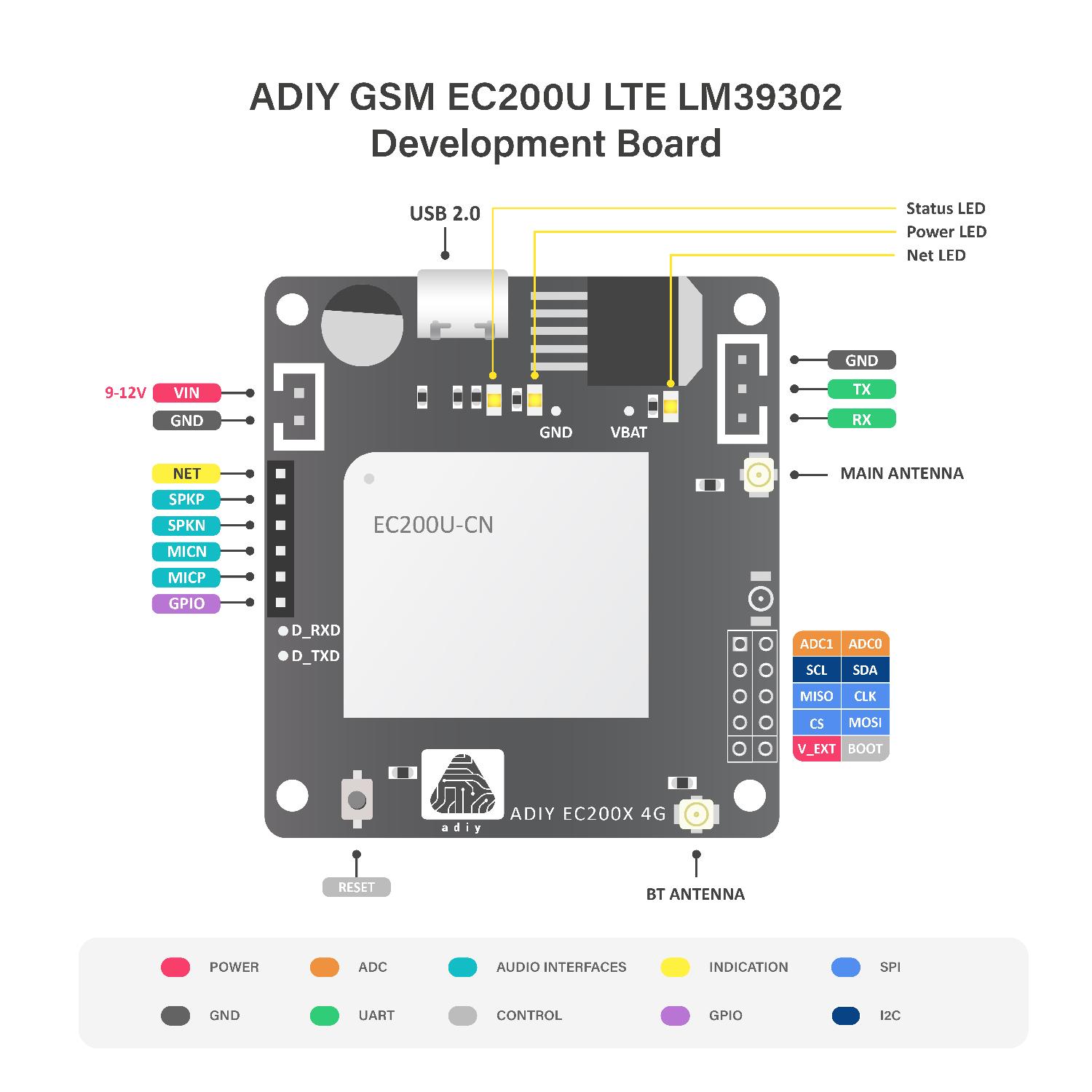

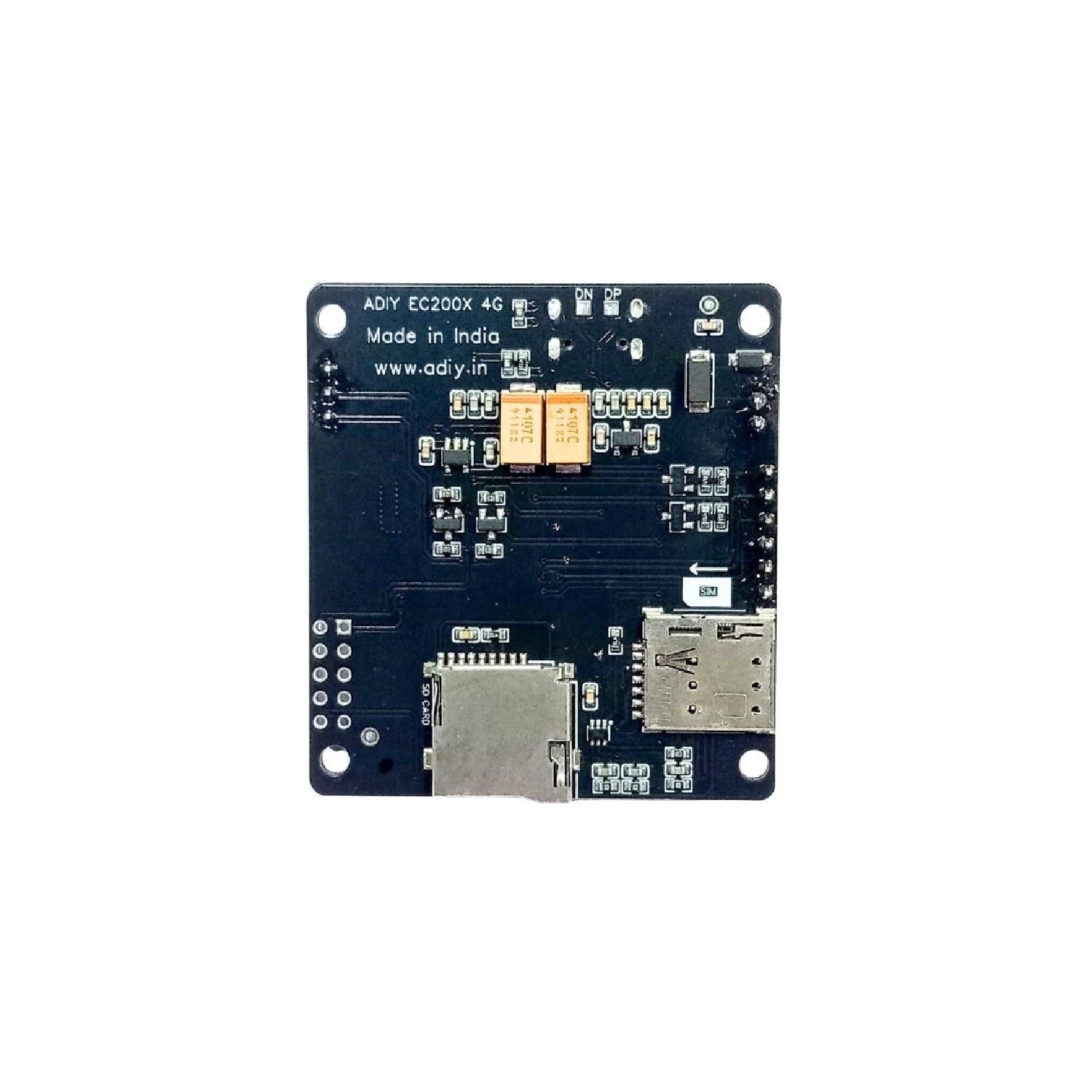

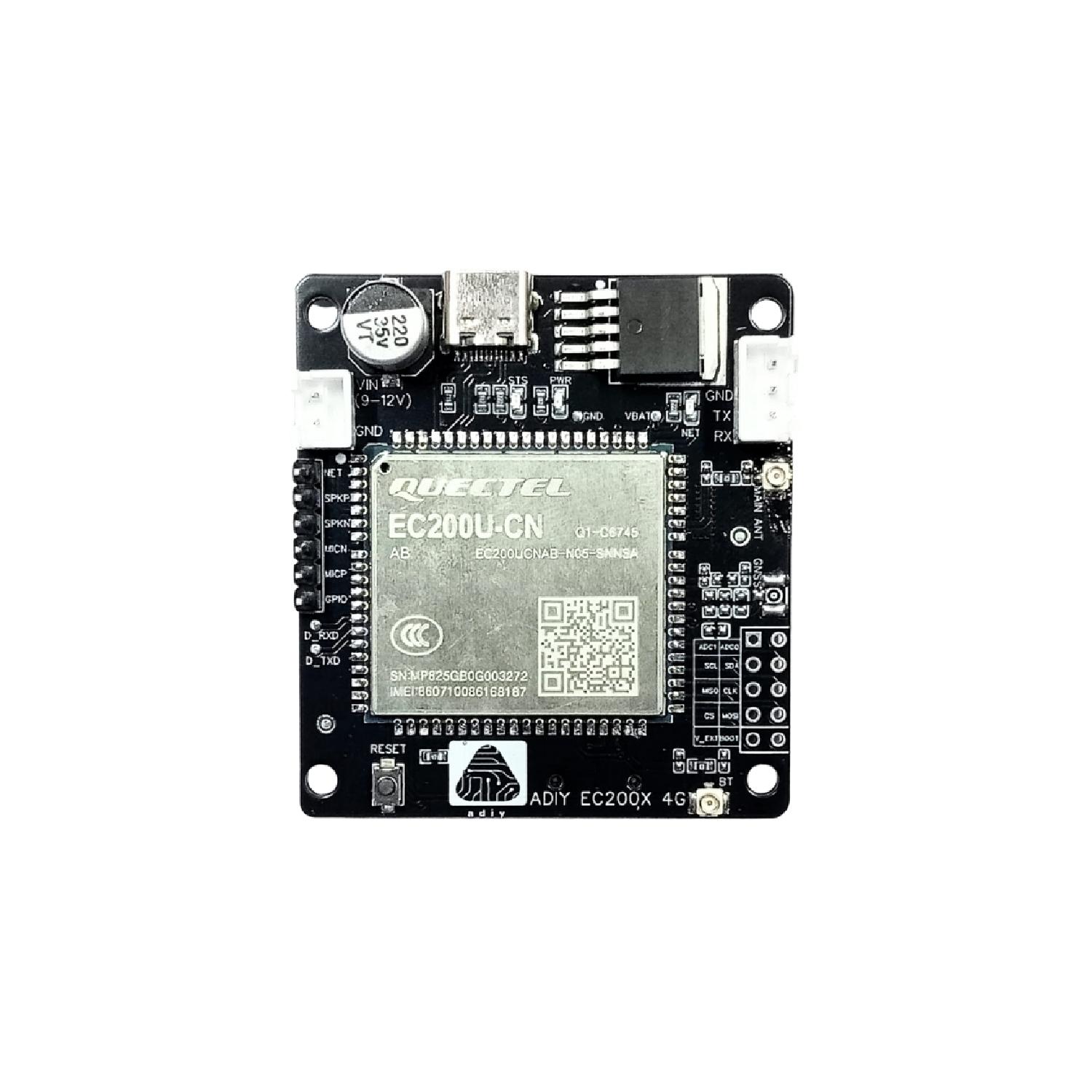

ADIY GSM EC200U 4G/2G Development Board - LM39302


The ADIY EC200U 4G LTE GSM Development Board is a high-performance Cat 1 solution designed for reliable wireless communication. It supports multiple modes, including LTE TDD, LTE-FDD, GSM and EDGE, with 2G fallback capability to ensure uninterrupted connectivity when 4G is unavailable.

Two variants are available: -
•EC200U 4G Module (without GNSS): Ideal for applications that only require stable LTE/2G connectivity.
•EC200U 4G Module with GNSS: Combines high-speed 4G LTE communication with integrated GNSS for precise positioning and timing, making it well-suited for asset tracking, fleet management, and navigation systems.

The EC200U-CN supports data rates up to 10 Mbps downlink and 5 Mbps uplink. It provides both a serial interface and an on-board USB Type-C port enabling users to connect directly to a computer for internet access or send AT commands conveniently over USB. Compact, versatile, and powered by Quectel’s proven LTE technology, this board is engineered for IoT and M2M applications that demand seamless connectivity, flexibility, and efficiency.

Price :  excl. GST
Qty Price
1 > 1,263.00
50 > 1,215.00
200 > 1,185.00
500 > 1,166.00
1000 > 1,147.00
1001 > 1,147.00

Application: -

•IoT Devices: modem can be commonly used in IoT applications, such as smart metres, asset tracking, and remote sensors, to provide these devices with data transfer capabilities.
•Wireless Routers: modem can be integrated into portable routers and mobile hotspots to create Wi-Fi networks wherever a cellular signal is available.
•Automotive Telematics: modem can be used in vehicles for services like vehicle diagnostics, and in-car entertainment systems.
•Point-of-Sale (POS) Systems: Mobile POS systems can use modem for wireless payment processing and data communication.
•Remote Monitoring and Control: Industrial and infrastructure applications, such as remote monitoring of equipment or control systems, can use modems to transmit data over long distances.
