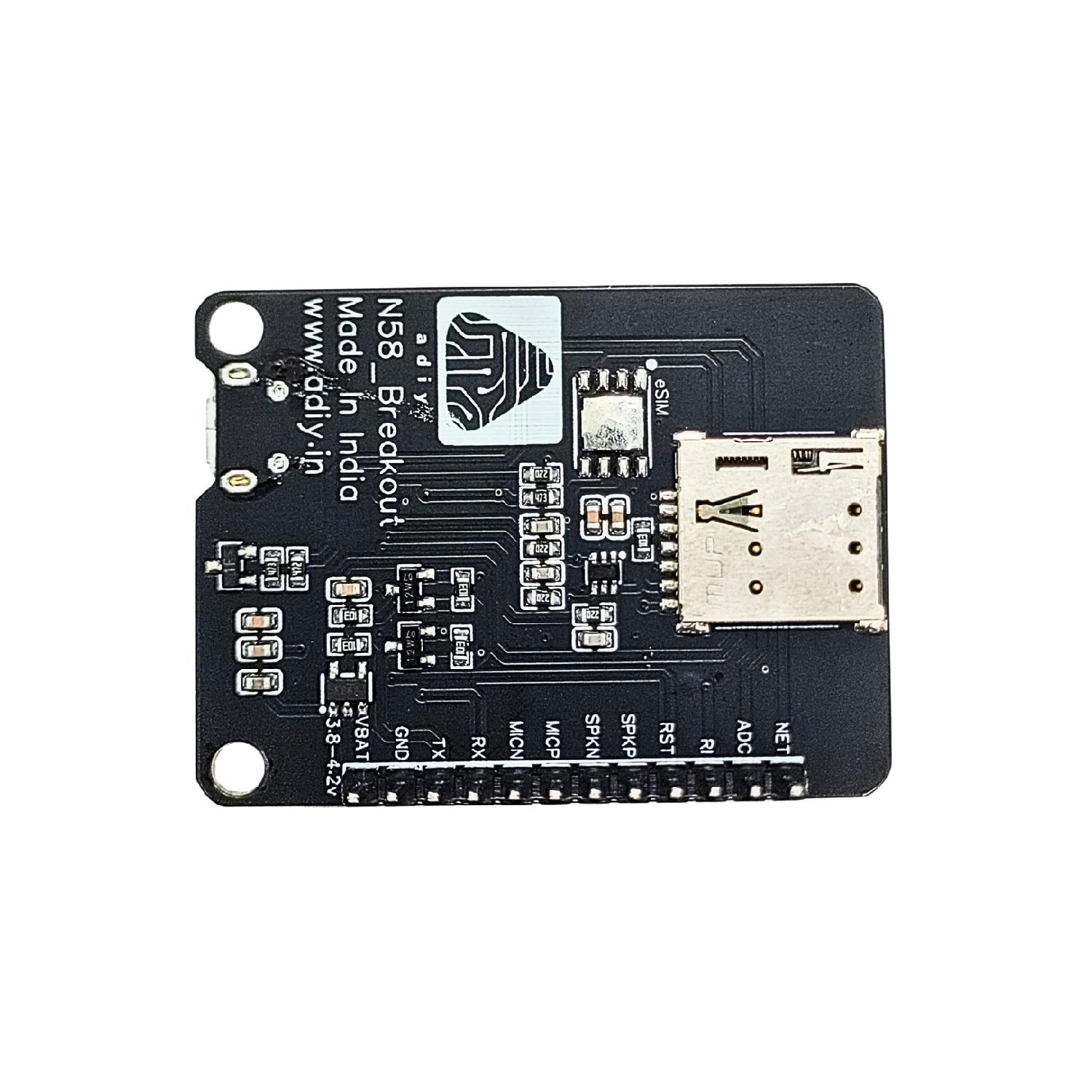

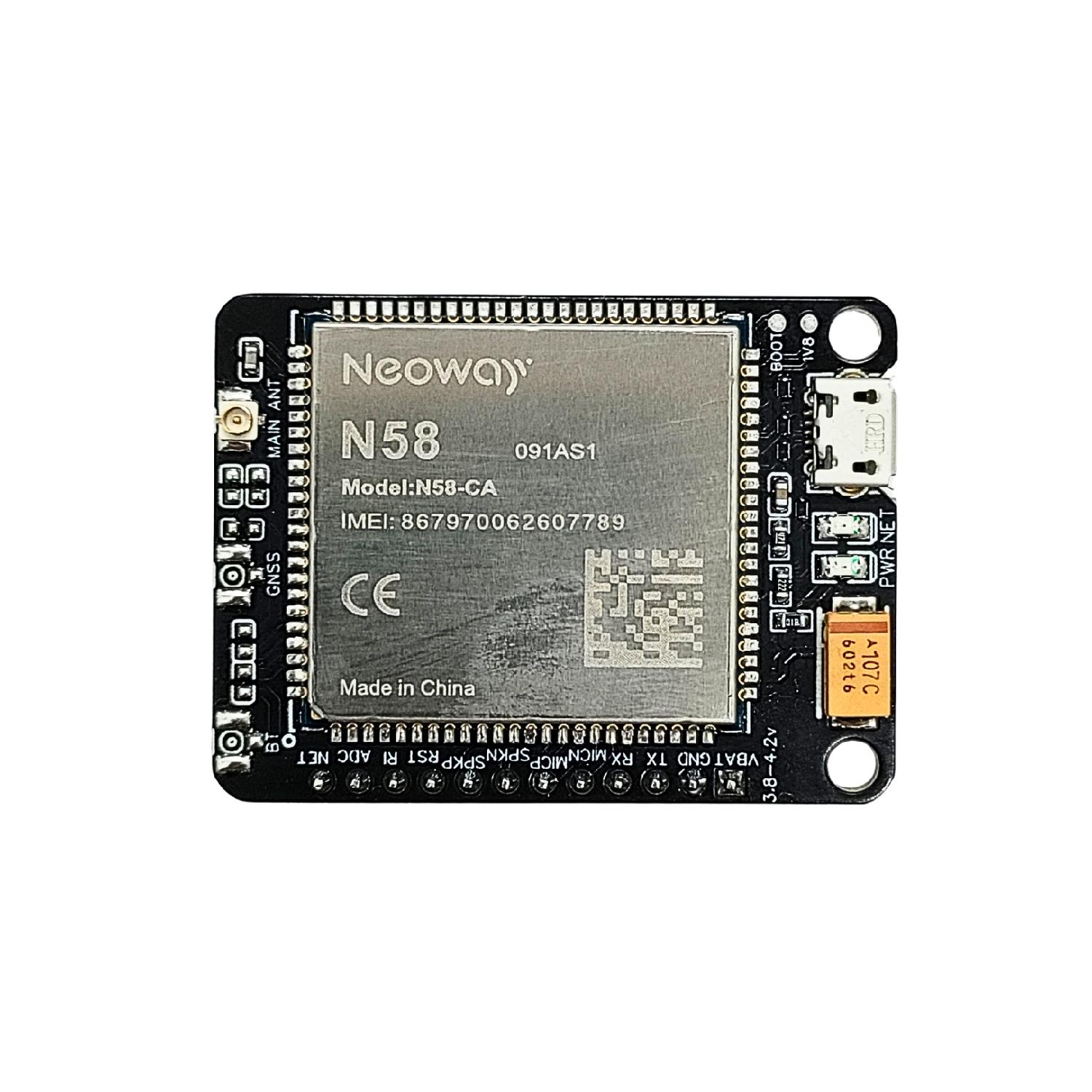

N58 LTE Breakout Board – Ideal for M2M and IoT Applications
N58 LTE Breakout Board is an industrial-grade LTE module based on the powerful UNISOC UIS8910DM platform, offering exceptional performance for M2M and IoT applications. Supporting GSM, FDD-LTE (Cat 1), and TDD-LTE (Cat 1) networks, this module provides a wide range of hardware interfaces and supports advanced features such as audio, video, and Wi-Fi positioning, making it the perfect solution for various IoT communication devices.
This versatile module is suitable for wireless meter reading terminals, in-vehicle terminals, handheld POS systems, and industrial routers. With excellent RF performance, low power consumption, and a wide operating temperature range, the Neoway N58 ensures reliable operation in extreme environments. It integrates multiple network protocols and offers industry-standard interfaces for seamless connectivity.
Compatible with Windows (7/8/8.1/10), Linux, and Android platforms, the N58 module is ideal for energy metering, telematics, industrial routers, video surveillance, and environmental monitoring systems.
Key Features of the Neoway N58 Breakout Board:
- Baseband chip unit
- 26 MHz crystal
- Power manager
- RF functional unit
- Digital interfaces: USIM, UART, USB
- Analog interfaces: ADC, MIC, SPK
Basic Specifications:
- Operating voltage: 3.4 V to 4.3 V (typical 3.8 V)
-
Current consumption:
- Sleep mode: < 3 mA
- Idle mode: < 16 mA
- LTE mode: < 600 mA
- Application processor: ARM Cortex-A5, 500 MHz with 32 KB L1 cache
-
Memory:
- RAM: 128 Mb
- ROM: 64 Mb
-
Wireless rates:
- GPRS: Max 85.6 kbps (DL/UL)
- FDD-LTE Cat 1: Max 10 Mbps (DL)/5 Mbps (UL)
- TDD-LTE Cat 1: Max 8 Mbps (DL)/2 Mbps (UL)
-
Data rates:
- LTE: Max 10 Mbps (DL)/5 Mbps (UL)
- GPRS: Max 85.6 kbps (DL/UL)
Advanced Features:
- ESIM support (optional)
-
Application interfaces:
- 2G/4G antenna
- UART, USIM (1.8V/3V), USB 2.0
- 10-bit ADC
- Audio input/output
- Firmware Over-the-Air (FOTA)
- VoLTE and MCU software OTA
- Open CPU support
-
AT commands:
- 3GPP Release 13
- Neoway extended commands
- SMS support (PDU, TXT)
- Network protocols: TCP, UDP, MQTT, FTP, HTTP/HTTPS, SSL, TLS
