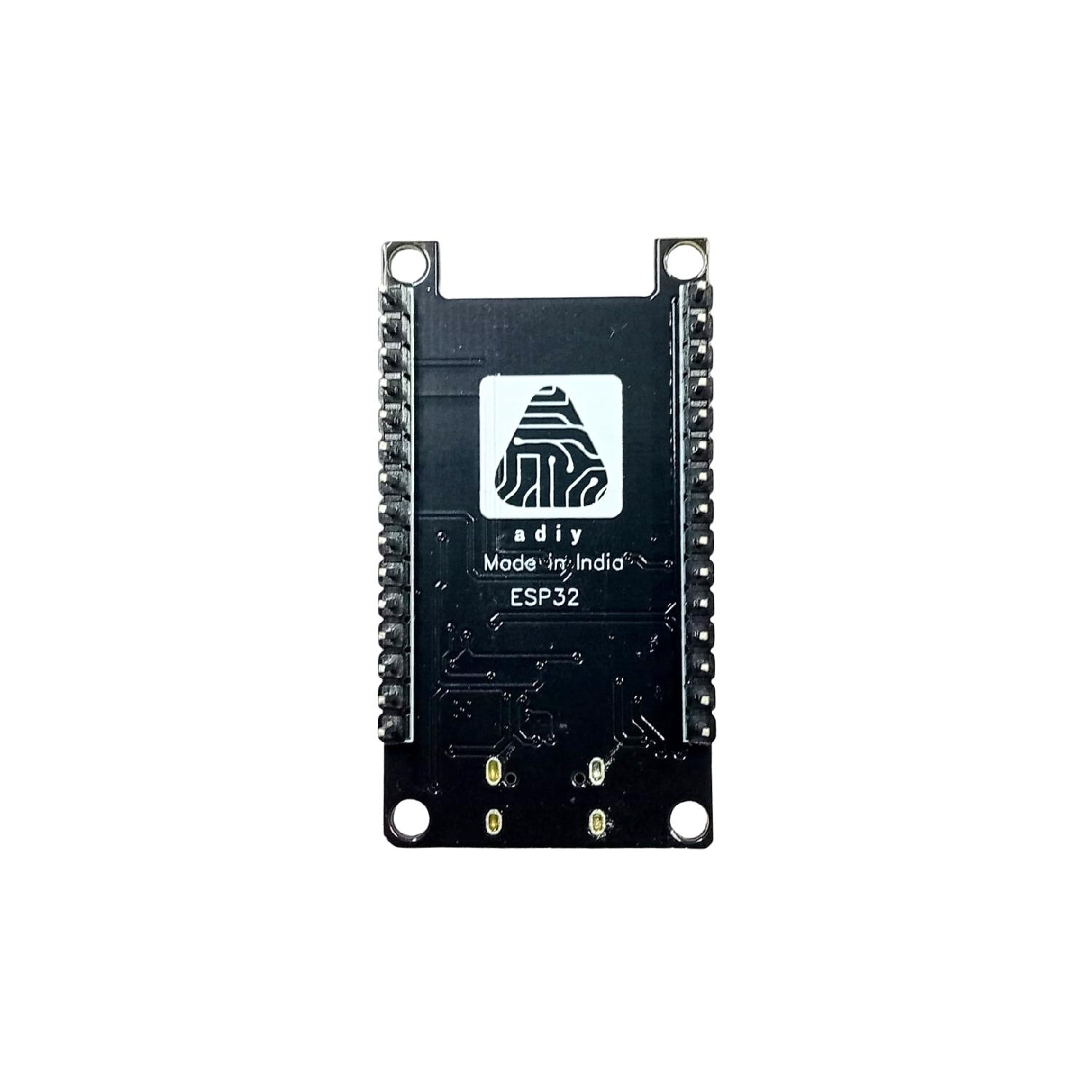

ADIY Nodemcu Esp32UE - CP21012 Board Image 1

ADIY Nodemcu Esp32UE - CP21012 Board Image 2

ADIY Nodemcu Esp32UE - CP21012 Board Image 3

ADIY Nodemcu Esp32UE - CP21012 Board

ADIY NodeMCU ESP32UE CP2102 Type-C WiFi Bluetooth Development Board

The ADIY NodeMCU ESP32UE CP2102 is a 30-pin ESP32 development board based on the ESP32-WROOM-32UE module. Featuring Wi-Fi, Bluetooth, BLE, a Type-C USB interface, and U.FL external antenna support, it is ideal for long-range and high-reliability IoT applications.

ESP32 Development board is based on the ESP32-WROOM-32UE Module, which consists of ESP32 series microcontroller from DOIT. It is a Wi-Fi + Bluetooth + BLE development board. The module has a 32-Bit Dual Core MCU, ultra-low power, based on 40 nm. technology. The module supports 802.11 b/g/n along with Bluetooth v4.2 BR/EDR and BLE specification. It has integr- ated 4/8/16 MB Flash, and up to 512 KB RAM. It can operate at up to 240 MHz Frequency. The ESP32 Development board is 30 pin board, with all the interfaces accessible. It sports a TypeC USB Connector, and USB to UART Bridge, reset and boot mode buttons, and an LDO regulator. Most of the important GPIOs are accessible on board. This board is useful to add high-capacity Wi-Fi, Bluetooth or BLE in any existing projects very rapidly. It also supports Lua scripting language, thereby making it easier to develop for the developers.

Features:- ADIY Nodemcu Esp32UE - CP21012 Board

1. Operating voltage/Power supply 3.0 V ~ 3.6 V (Typical 3.3V)
2. Operating current Average: 80 mA
3. UFL connector for Antenna
4. Wi-Fi protocol - 802.11 b/g/n (802.11n up to 150 Mbps)
5. Bluetooth Protocols - Bluetooth v4.2 BR/EDR and Bluetooth LE specification
6. ROM 448 KB
7. SRAM 520 KB
8. Crystal 40 MHz crystal
9. SPI flash 4/8/16 MB
10. Operating temperature range –40 °C ~ +85 °C
11. Module interfaces- SD card, UART, SPI, SDIO, I2C, LED PWM, Motor PWM, I2S, IR, pulse counter, GPIO, capacitive touch sensor, ADC, DAC.

Price : 354.00 excl. GST

Qty	Price
1 >	354.00
50 >	345.00
200 >	337.00
500 >	334.00
1000 >	331.00
1001 >	331.00

Description
Datasheet

The ADIY NodeMCU ESP32UE CP2102 is a powerful ESP32 development board built around the ESP32-WROOM-32UE module from DOIT. It combines Wi-Fi, Bluetooth, and BLE connectivity with a 32-bit dual-core MCU, manufactured using 40 nm ultra-low-power technology, delivering high performance with excellent energy efficiency.

This 30-pin NodeMCU board exposes most critical GPIOs and interfaces, enabling rapid prototyping and seamless integration into embedded designs. It features a Type-C USB connector, CP2102 USB-to-UART bridge, reset and boot buttons, and an onboard LDO regulator for stable power delivery.

A key advantage of the ESP32UE variant is the U.FL connector for an external antenna, allowing improved RF performance, extended wireless range, and flexible antenna placement—ideal for industrial, commercial, and long-range IoT deployments. The board also supports Arduino IDE, ESP-IDF, and Lua scripting, simplifying development for beginners and professionals alike.

Key Features

ESP32-WROOM-32UE based development board
32-bit dual-core MCU up to 240 MHz
Wi-Fi 802.11 b/g/n (up to 150 Mbps)
Bluetooth v4.2 BR/EDR + BLE
External antenna support via U.FL connector
Type-C USB interface for modern connectivity
CP2102 USB-to-UART bridge
30-pin NodeMCU layout with accessible GPIOs
Low-power, high-performance design
Supports Arduino, ESP-IDF & Lua scripting
Wide industrial temperature range

Technical Specifications

Operating Voltage: 3.0 V – 3.6 V (Typical 3.3 V)
Average Operating Current: 80 mA
Processor: 32-bit Dual-Core ESP32 MCU
Maximum Clock Frequency: Up to 240 MHz
Wi-Fi Protocol: 802.11 b/g/n
Bluetooth: v4.2 BR/EDR & BLE
ROM: 448 KB
SRAM: 520 KB
Crystal Oscillator: 40 MHz
SPI Flash: 4 MB / 8 MB / 16 MB
Operating Temperature: –40 °C to +85 °C

Supported Interfaces:
SD card, UART, SPI, SDIO, I2C, LED PWM, Motor PWM, I2S, IR, Pulse Counter, GPIO, Capacitive Touch Sensor, ADC, DAC

Applications

Long-range IoT and smart home devices
Wireless sensor networks
Industrial automation & monitoring
Robotics and motor control
Bluetooth & Wi-Fi gateways
Embedded system development
DIY electronics & education projects

Package Includes

1 × ADIY NodeMCU ESP32UE CP2102 Development Board
