USB to Serial RS232 Converter by ADIY

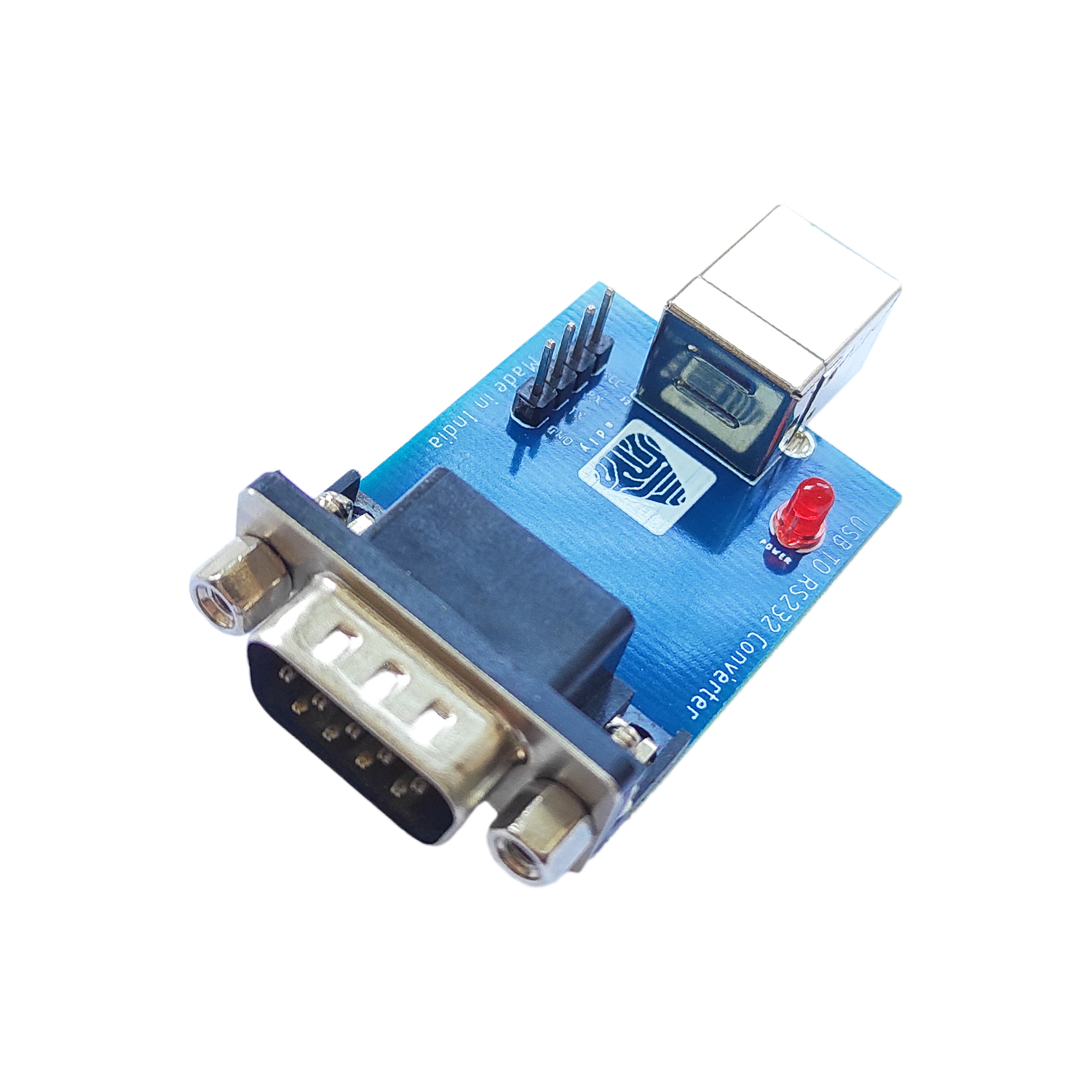

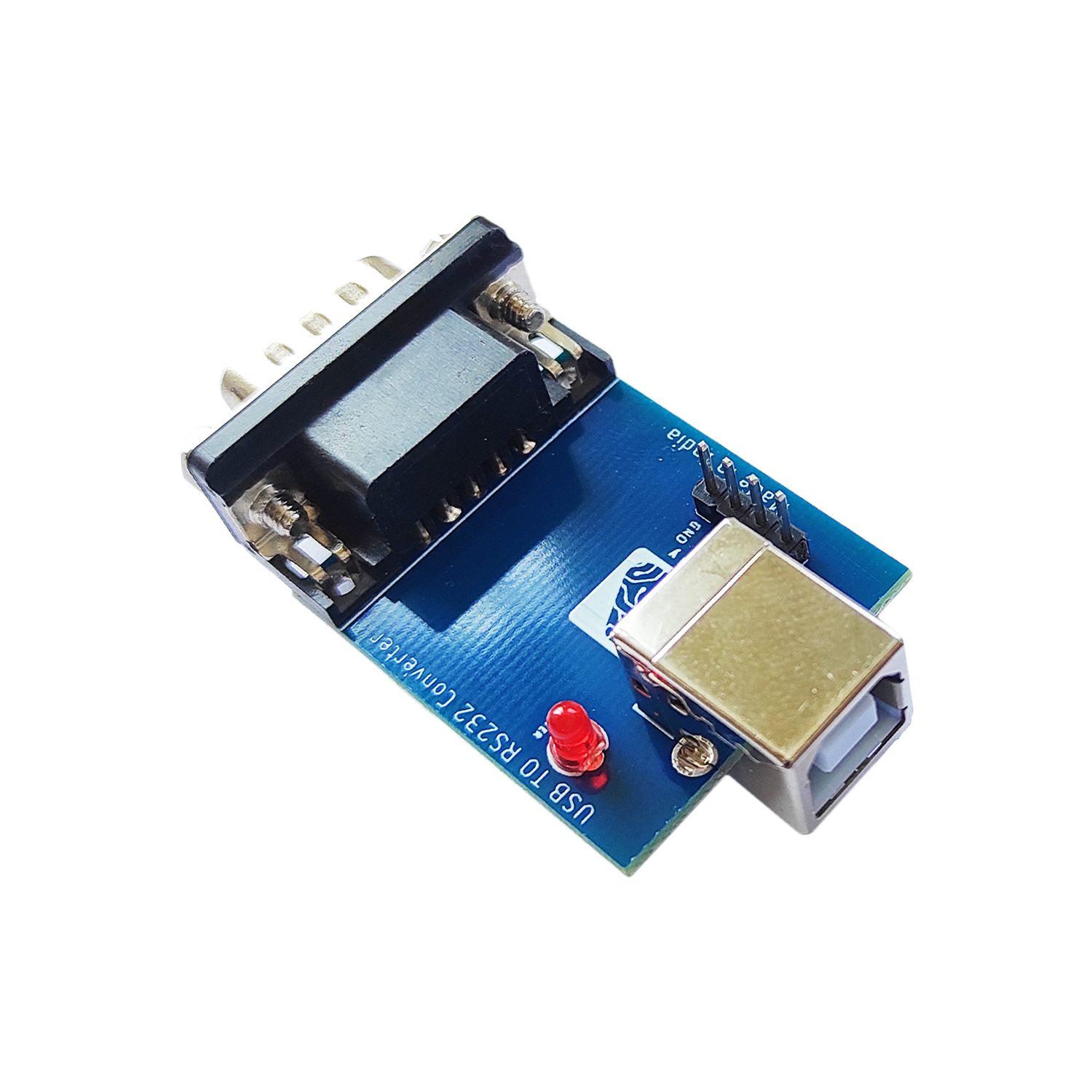

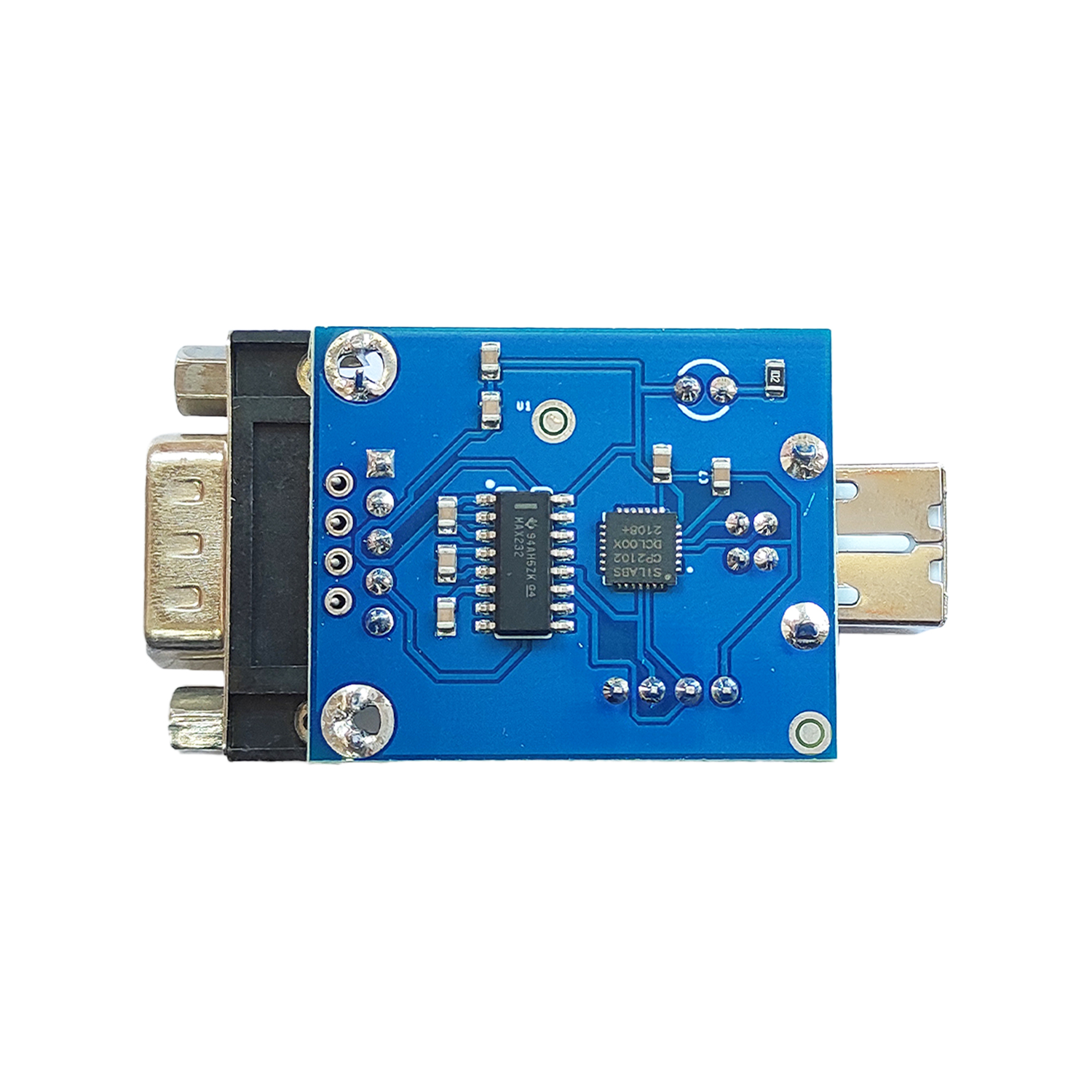

ADIY CP2102 USB to Serial Interface Module is a plug-and-play module based on Max232 IC to convert RS232 level to USB via CP2102 easily. The board has got 1 LED for power indication.

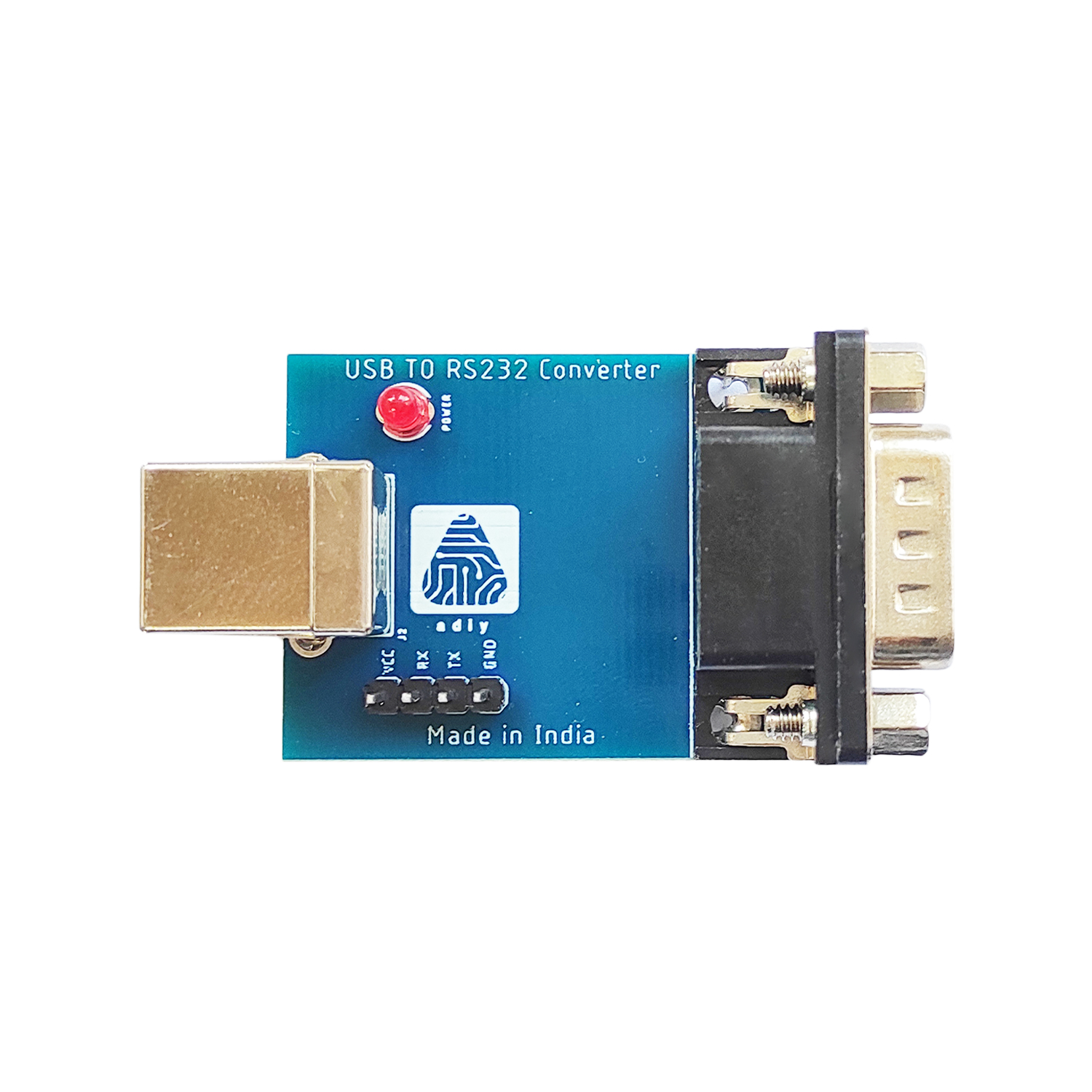

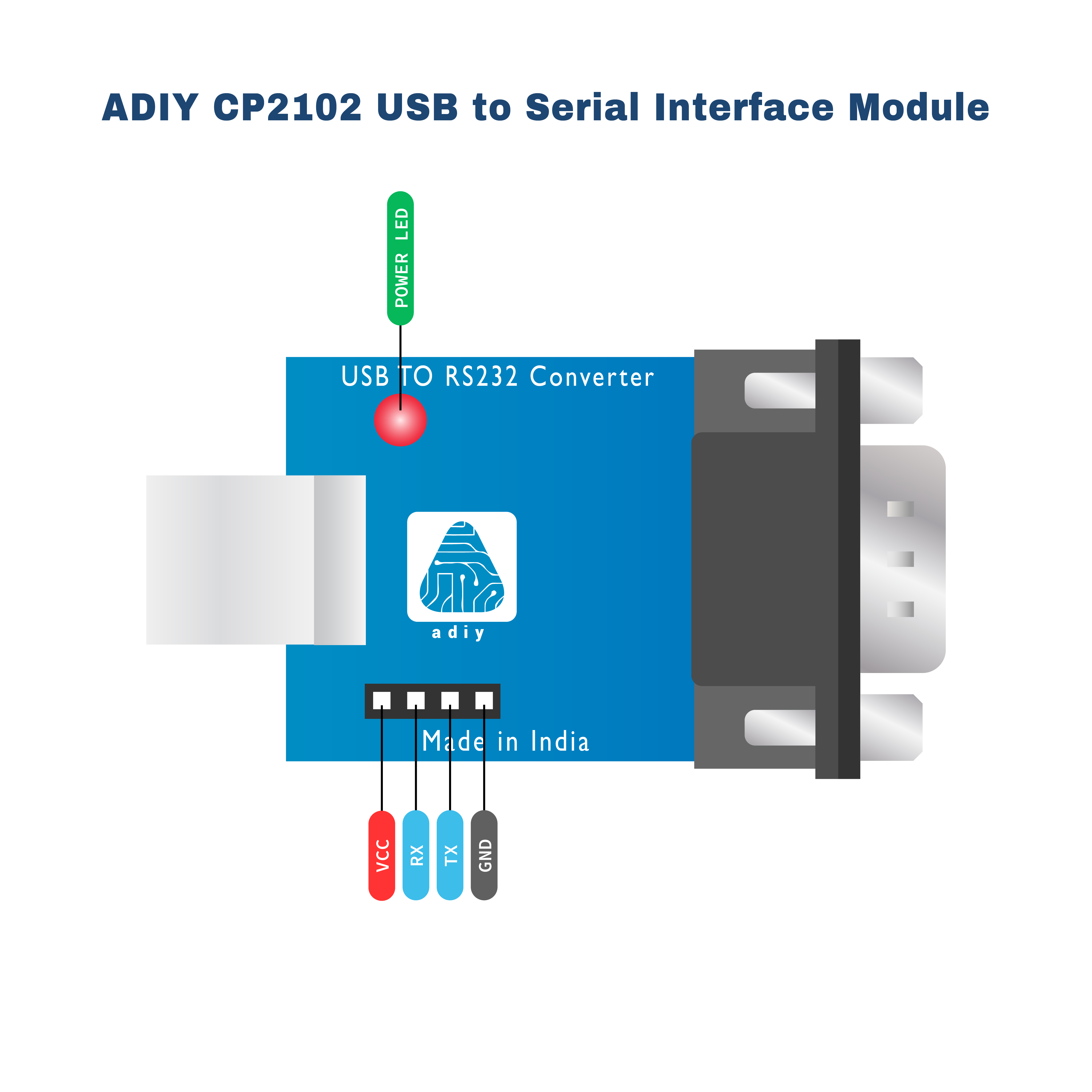

Installs virtual Serial COM Port on your PC through USB so any software can connect to your end device having UART/RS232 port. The UART port is exposed via a 4-pin 0.1″ standard vertical header, and the RS232 port is exposed via a DB9 Male connector just like what you can find on the back of old PC’s motherboards. Note that the UART port uses 3.3V logic
Features and Specifications - CP2102 USB to Serial Interface Module
- USB Specification 2.0 compliant; full speed (12 Mbps)
- Supports Windows 8/7/Vista/Server 2003/XP/2000, Mac OS-X/OS-9, Linux
- Standard RS232 interface
- Bidirectional UART serial data transfer at various baud rates
- Easy to use, Works out of the box without any configuration
- Power LED indication
- Output header is standard DB9 Male
- UART Header, 4 pin, 3.3V logic
- USB Type B Connector
Applications - CP2102 USB to Serial Interface Module
- Easily connect computer with all Micro-controller Units (MCU) (Supports 3.3V & 5V)
- All kinds of satellites set-top box upgrade
- Router, HDD, ADSL, broad band modem firmware upgrade or cracked upgrade
- Cellphone, XBOX360, GPS serial communication, vehicle inspection and test, DVD flash, etc
- Burn write STC MCU, NXP MCU, renesas MCU, NEC MCU, etc
- Simple UART communication, used in UART debugging tools like putty, hyper terminal, etc
- USB signal can be transferred to both RS232 & TTL signals, may be used by electronic enthusiasts
Package Includes – 1 x USB to Serial RS232 Converter
