Ai-Thinker RA-01S SX1268 LoRa Module – Long Range Wireless Transceiver

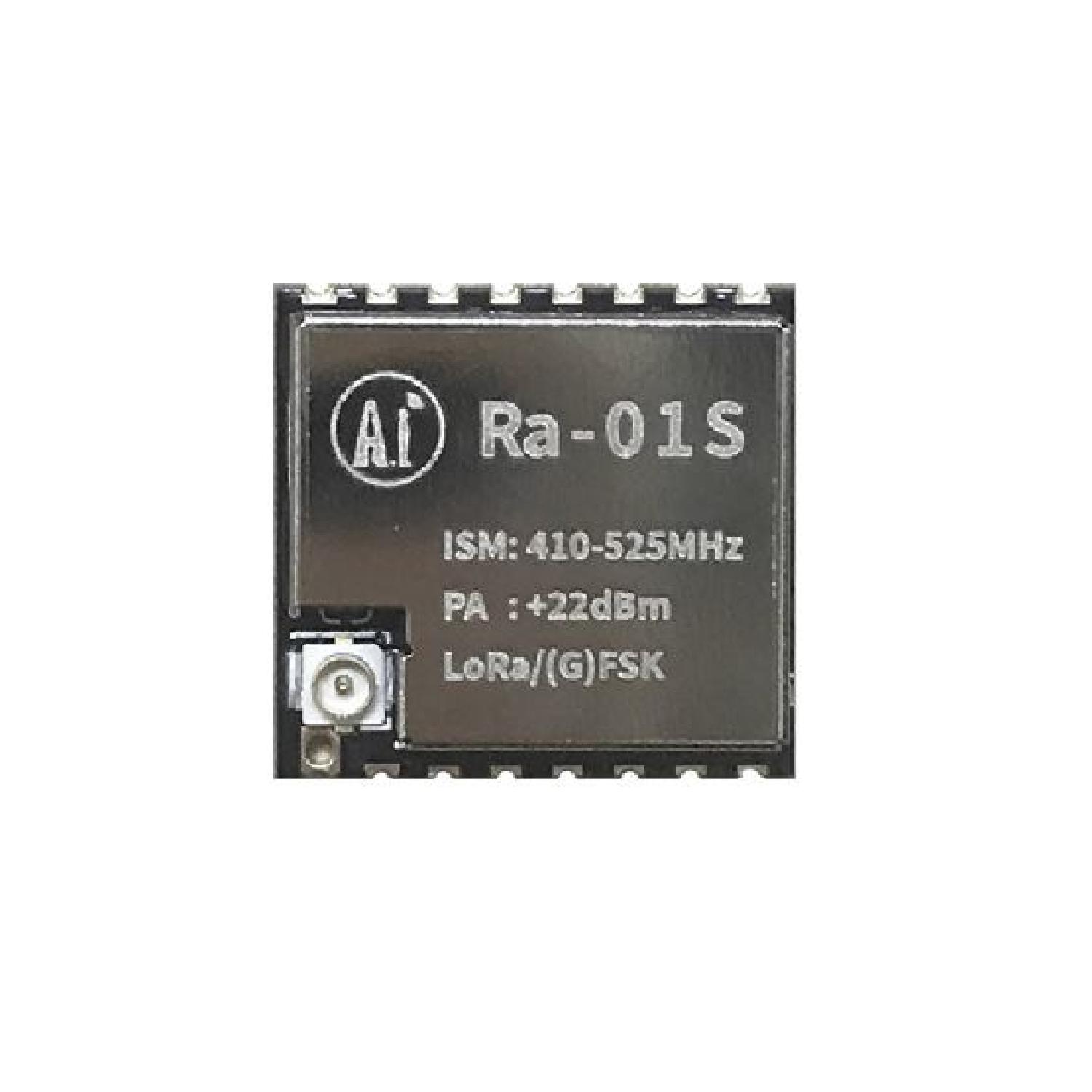

The Ai-Thinker RA-01S is a compact and powerful LoRa™ wireless module designed for ultra-long-range communication, integrating Semtech’s SX1268 transceiver chip. It offers robust signal transmission with a +22dBm RF output power and high sensitivity of -140dBm, enabling long-range and highly reliable data transfer.
The RA-01S supports multiple modulation schemes including FSK, GFSK, MSK, GMSK, LoRa™, and OOK, making it versatile for various wireless communication environments. Its SPI interface allows easy integration with microcontrollers and embedded platforms.
Designed with a small SMD-16 package and available in a 17×16mm form factor, this module is ideal for use in automated meter reading, smart home devices, security systems, and remote irrigation applications. It is built for power-efficient operation with just 4.5mA in receive mode and 1.6mA in standby.
Thanks to LoRa™’s spread spectrum technology, the RA-01S overcomes the limitations of traditional wireless designs, offering greater anti-interference, low power consumption, and signal robustness, even in noisy environments.
Key Features: Ai-Thinker RA-01S Lora Module
- LoRa™ Modem with SX1268 chip
- +22dBm output power, long-range transmission
- -140dBm sensitivity for robust performance
- 410MHz ~ 525MHz frequency range
- Supports: FSK, GFSK, MSK, GMSK, OOK, LoRa™
- SPI interface, CRC check, 256-byte packet engine
- Low power: RX: 4.5mA, Standby: 1.6mA

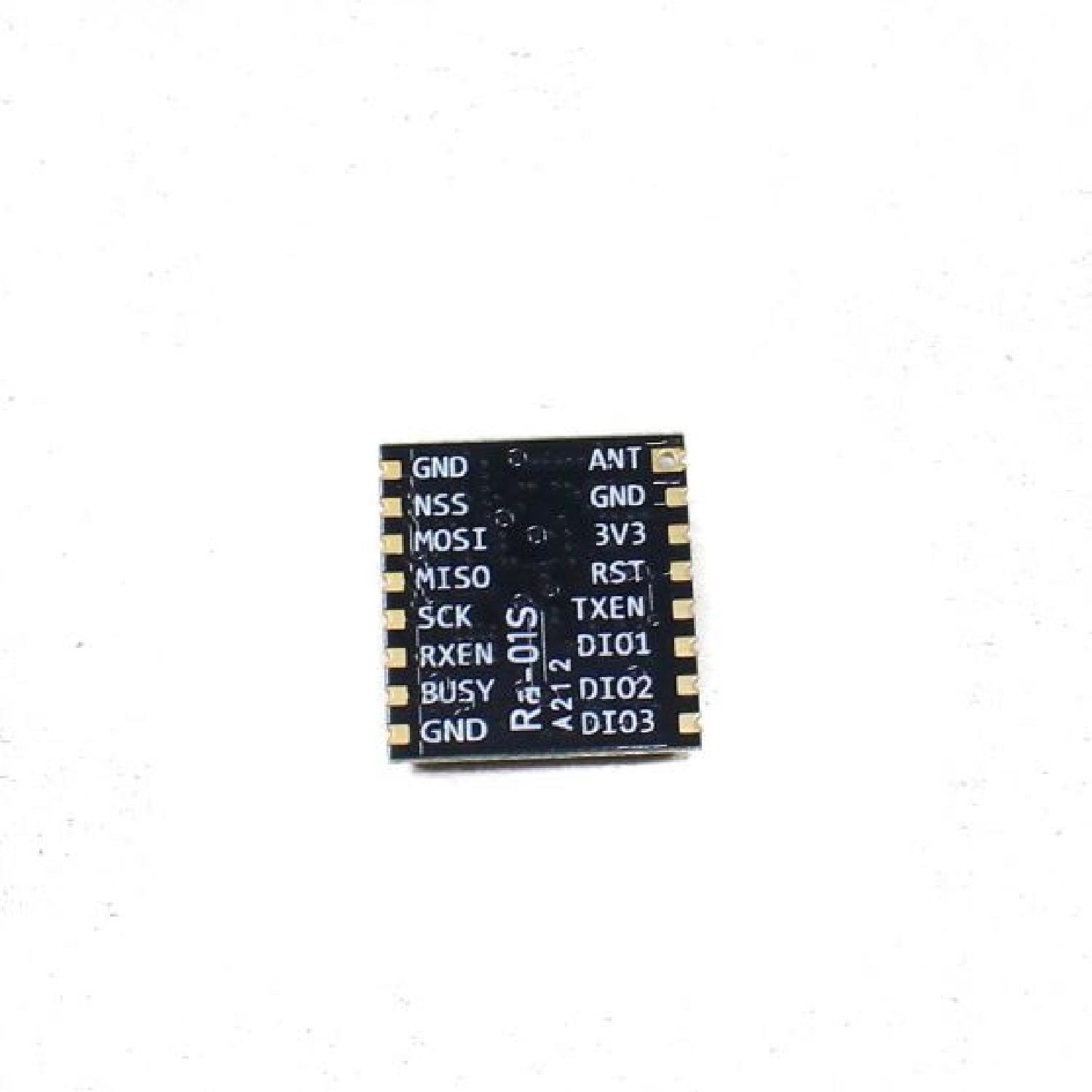

- Compact SMD-16 module: 17×16×3.2mm
- Wide operating temp: -40°C to +85°C
- Compatible with half-hole, through-hole, and IPEX antenna interfaces
Specifications: Ai-Thinker RA-01S Lora Module
- Model: RA-01S
- Chipset: Semtech SX1268
- Modulation: LoRa™, FSK, GFSK, MSK, GMSK, OOK
- Frequency Band: 410MHz–525MHz
- Interface: SPI, Half-Duplex
- Package Type: SMD-16
- Size: 17×16×3.2mm (±0.2mm)
- Power Supply: 2.7V–3.6V (typical 3.3V)
- Max Output Power: +22dBm
- Sensitivity: As low as -140dBm
- Receiving Current: ~4.5mA
- Standby Current: ~1.6mA
- Operating Temp: -40°C to +85°C
- Storage Temp: -40°C to +125°C, <90%RH
- Antenna Options: Half-hole, Through-hole, IPEX
- Max Bit Rate: Up to 300kbps
Applications: Ai-Thinker RA-01S Lora Module
🔹 Automatic Meter Reading
🔹 Smart Home Automation
🔹 Wireless Security Systems
🔹 Long-range IoT Communication
🔹 Remote Monitoring & Irrigation
🔹 Embedded RF Projects
