Ai-Thinker RA-01SCH – Compact, High-Power LoRa® Module with LLCC68

The RA-01SCH from Ai-Thinker is a robust LoRa module designed for ultra-long-range wireless communication. It integrates SEMTECH’s LLCC68 LoRa™ transceiver chip, known for its excellent anti-interference, low power consumption, and high sensitivity features. With a +22 dBm transmission output and -129 dBm sensitivity, the RA-01SCH ensures strong signal penetration and long-range coverage, even in challenging environments.

Supporting multiple modulation types including LoRa®, FSK, and GFSK, and a broad frequency range from 803MHz to 930MHz, this module is suited for versatile regional deployments. It features a compact stamp hole SMD design with an SPI interface for half-duplex communication, integrated CRC, and a 256-byte packet engine.

Thanks to its low RX current of 4.2mA and standby current of just 0.6mA, it is ideal for battery-powered and embedded IoT applications, such as smart metering, home automation, wireless sensor networks, remote irrigation, and security systems.

Key Features: Ai-Thinker RA-01SCH Lora Module

1. LLCC68 LoRa® Chip from Semtech
2. +22 dBm Output Power for Extended Range
3. High Sensitivity: -129 dBm
4. Frequency Range: 803MHz–930MHz
5. Supports LoRa®, FSK, GFSK Modulation
6. Low RX Current: 4.2mA | Standby: 0.6mA
7. SPI Interface for Half-Duplex Communication
8. 256-byte Packet Engine with CRC

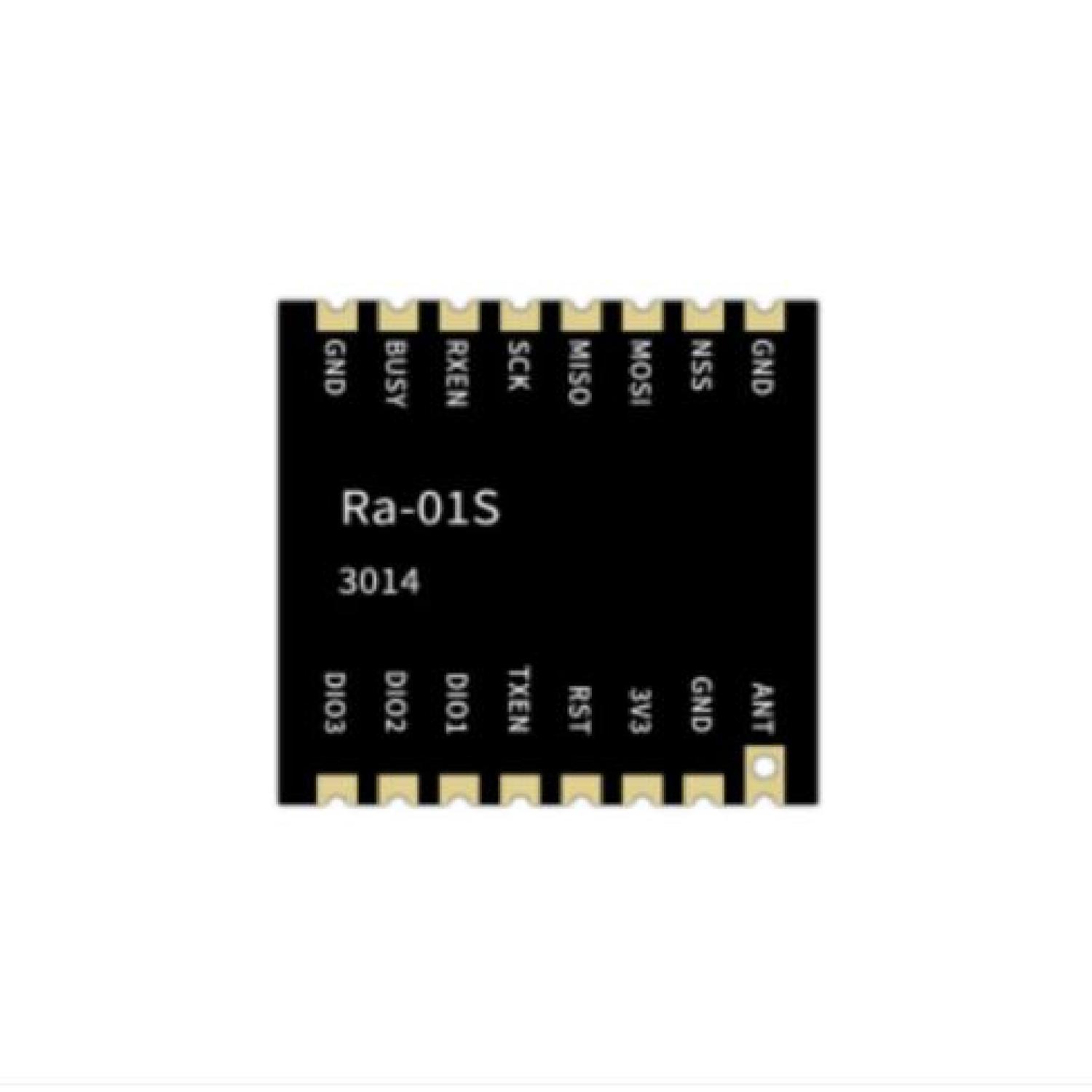

9. Compact Stamp Hole SMD Design
10. Antenna Options: Stamp Hole, Through-Hole, or IPEX
11. Wide Application in Smart IoT Solutions

Specifications: Ai-Thinker RA-01SCH Lora Module

1. Model: RA-01SCH
2. Frequency Range: 803 MHz – 930 MHz
3. Modulation Support: LoRa®, FSK, GFSK
4. Output Power: +22 dBm
5. RX Sensitivity: -129 dBm
6. Working Voltage: 3.3V
7. Max Current: 120 mA
8. RX Current: 4.2 mA
9. Standby Current: 0.6 mA
10. Spreading Factors Supported: SF5–SF11
11. Communication Interface: SPI
12. Packet Size: Up to 256 bytes
13. Antenna Interface: Stamp hole, through-hole, IPEX
14. Package: SMD Stamp Hole

Applications: Ai-Thinker RA-01SCH Lora Module

🔹 Smart Metering (AMR)
🔹 Wireless Sensor Networks
🔹 Remote Irrigation Systems
🔹 Home and Building Automation
🔹 Long-Range Industrial IoT
🔹 Smart Agriculture and Remote Monitoring

Download Datasheet: Click here to download Ai-Thinker RA-01SCH Datasheet (PDF)

Package Includes: 1 x Ai-Thinker RA-01SCH LoRa Module
