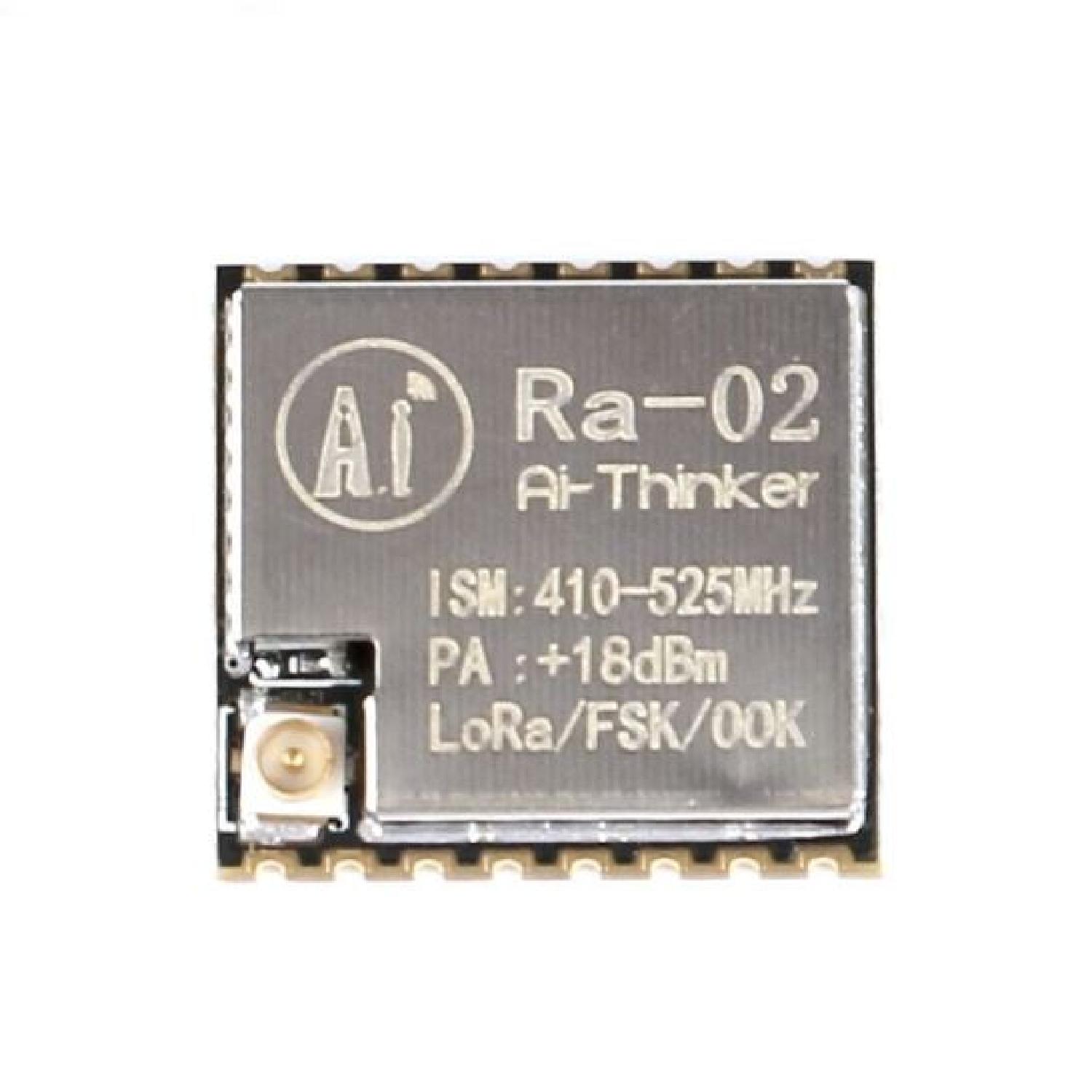

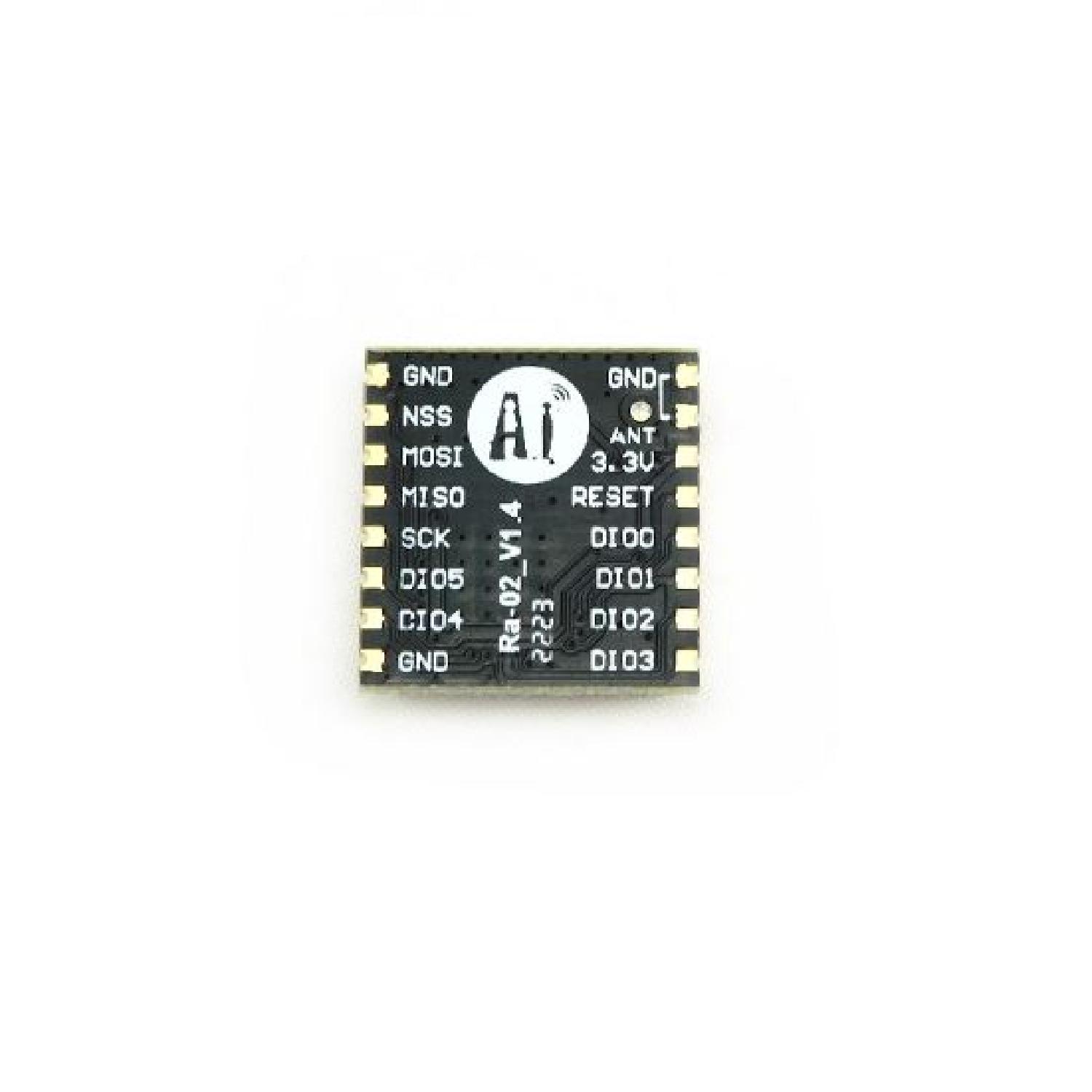

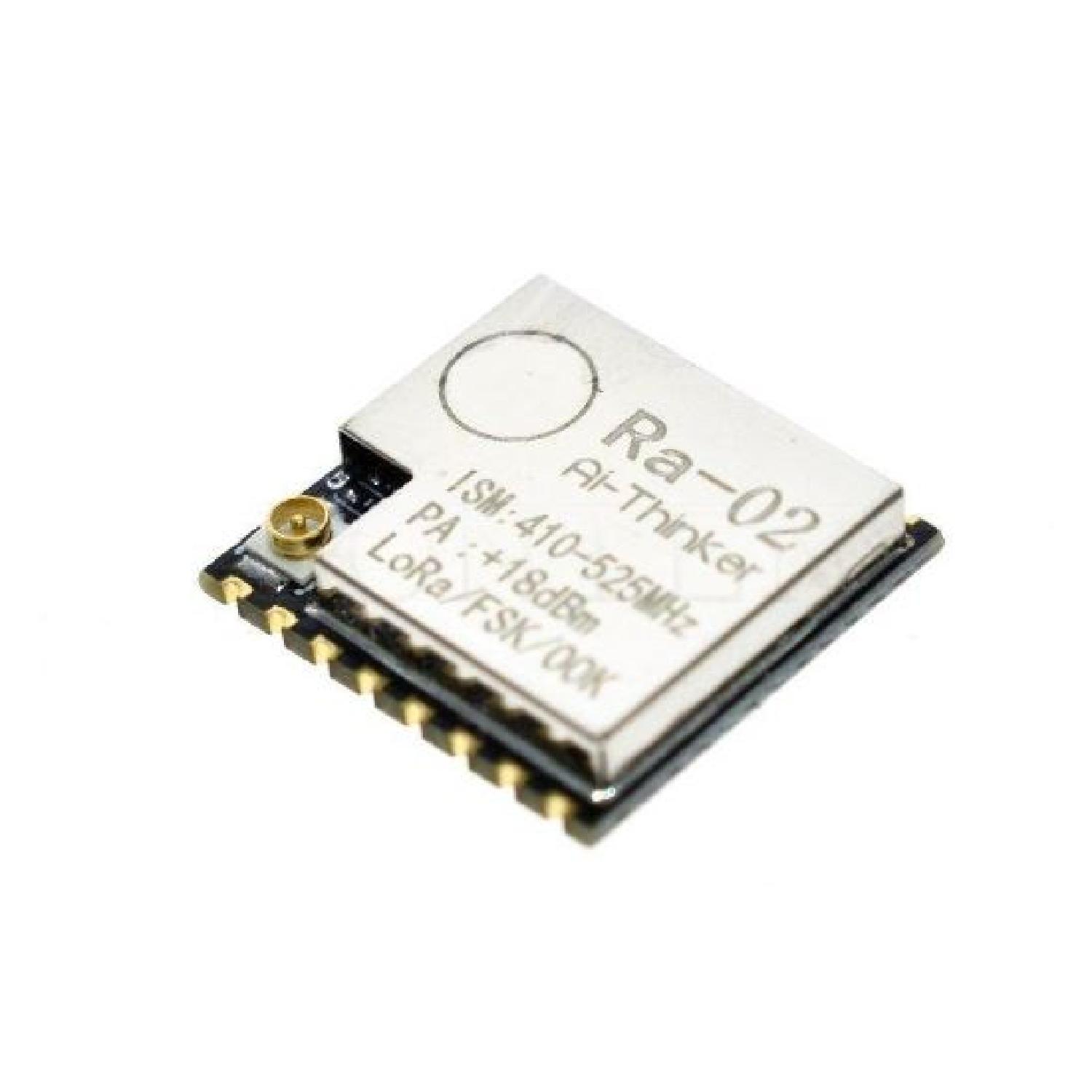

Ai-Thinker RA-02 – High Sensitivity LoRa Module for Long-Range Wireless Communication

The RA-02 LoRa Module by Ai-Thinker is a high-performance RF transceiver designed for ultra-long-range wireless communication in the 433MHz and 470MHz ISM bands. Powered by LoRa™ spread spectrum modulation, it achieves exceptional receiver sensitivity down to -141dBm while maintaining low power consumption and excellent interference resistance.

Supporting various modulation techniques like FSK, GFSK, MSK, GMSK, OOK, and LoRa™, the RA-02 provides flexibility for many wireless networking applications. It is equipped with a half-duplex SPI interface, automatic RF signal detection, CAD mode, and AFC for dynamic frequency stability.

With its small SMD footprint (17x16 mm) and IPEX antenna interface, the module is easy to integrate into compact embedded designs using SMT production lines. The RA-02 is ideal for automatic meter reading, remote irrigation, home automation, security systems, and other IoT applications requiring reliable and efficient long-distance wireless connectivity.

Key Features: Ai-Thinker RA-02 LoRa Module

1. LoRa™ spread spectrum technology
2. Receiver sensitivity as low as -141dBm
3. Operating frequency: 433MHz / 470MHz
4. Maximum output power: 18±1 dBm
5. Half-duplex SPI interface
6. Supports FSK, GFSK, MSK, GMSK, OOK, LoRa™
7. Supports CAD mode and fast AFC
8. CRC & packet engine up to 256 bytes
9. Small SMD package with IPEX antenna
10. Wide operating temperature: -30°C to +85°C
11. Ideal for low power & long-range applications

Specifications: Ai-Thinker RA-02 LoRa Module

1. Model: RA-02
2. Package: SMD-16
3. Size: 17 × 16 × (3.2 ± 0.1) mm
4. Interface: SPI
5. Bit Rate: Up to 300 Kbps
6. Frequency Range: 410–525 MHz (Supports 433/470 MHz)
7. Antenna Interface: IPEX
8. Max Transmit Power: 18±1 dBm
9. Power Consumption (Typical):
10. 433MHz: TX – 93mA | RX – 12.15mA | Standby – 1.6mA
11. 470MHz: TX – 97mA | RX – 12.15mA | Standby – 1.5mA
12. Supply Voltage: 2.5V – 3.7V (Typical 3.3V)
13. Operating Temp: -30°C ~ +85°C
14. Storage Temp: -40°C ~ +90°C, <90%RH
15. Weight: 0.45g
16. Sensitivity (433/470 MHz):
17. SF7: -125/-126 dBm
18. SF10: -134/-135 dBm
19. SF12: -141 dBm

Applications: Ai-Thinker RA-02 LoRa Module

🔹 Smart Meter Reading (AMR)
🔹 Home & Building Automation
🔹 Security & Alarm Systems
🔹 Wireless Sensor Networks
🔹 Remote Irrigation Systems
🔹 Industrial Monitoring
🔹 Long Range IoT Gateways

Download Datasheet: Click here to download Ai-Thinker RA-02 Datasheet (PDF)

Package Includes: 1 x Ai-Thinker RA-02 LoRa Module
