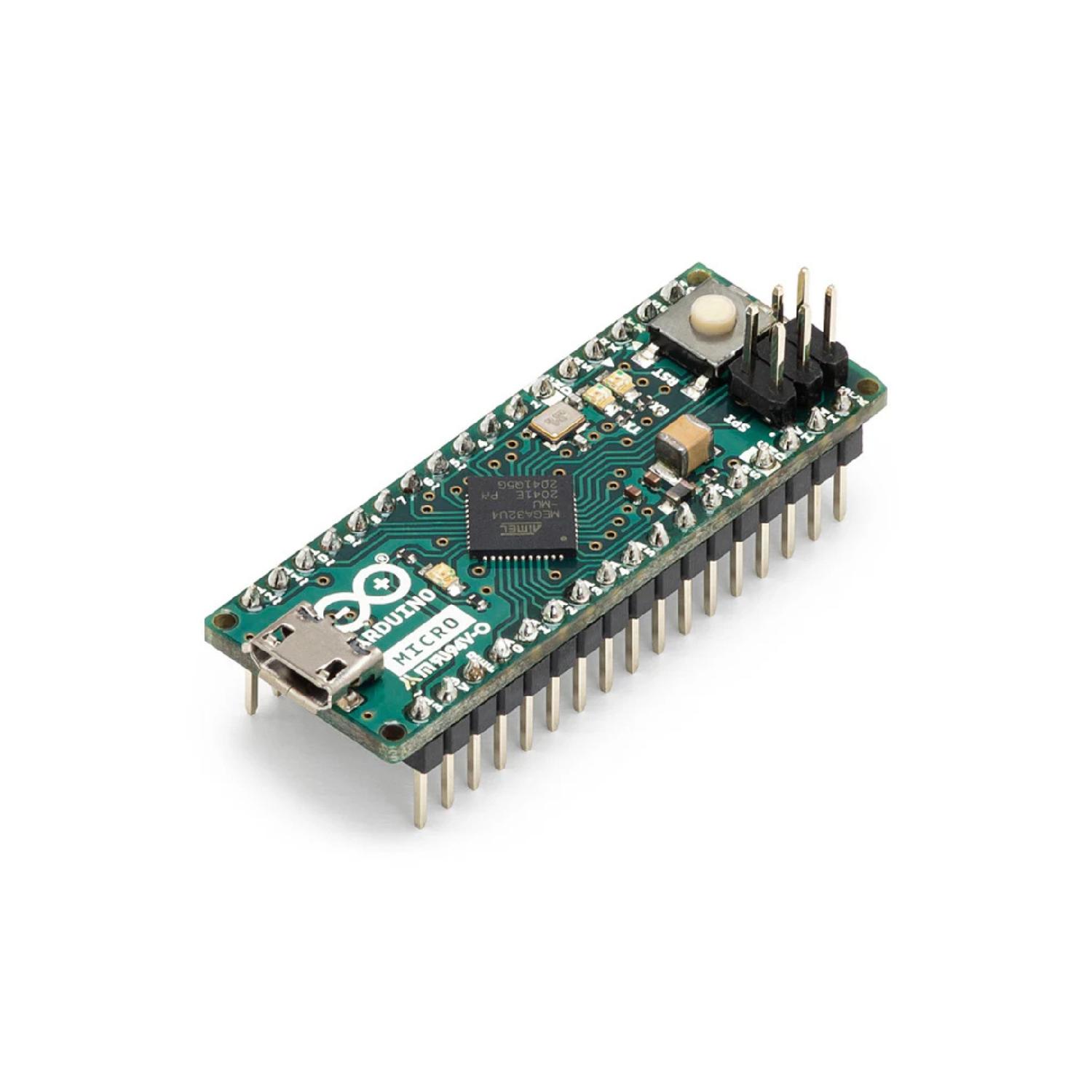

Arduino Micro A000053 Original Image 1

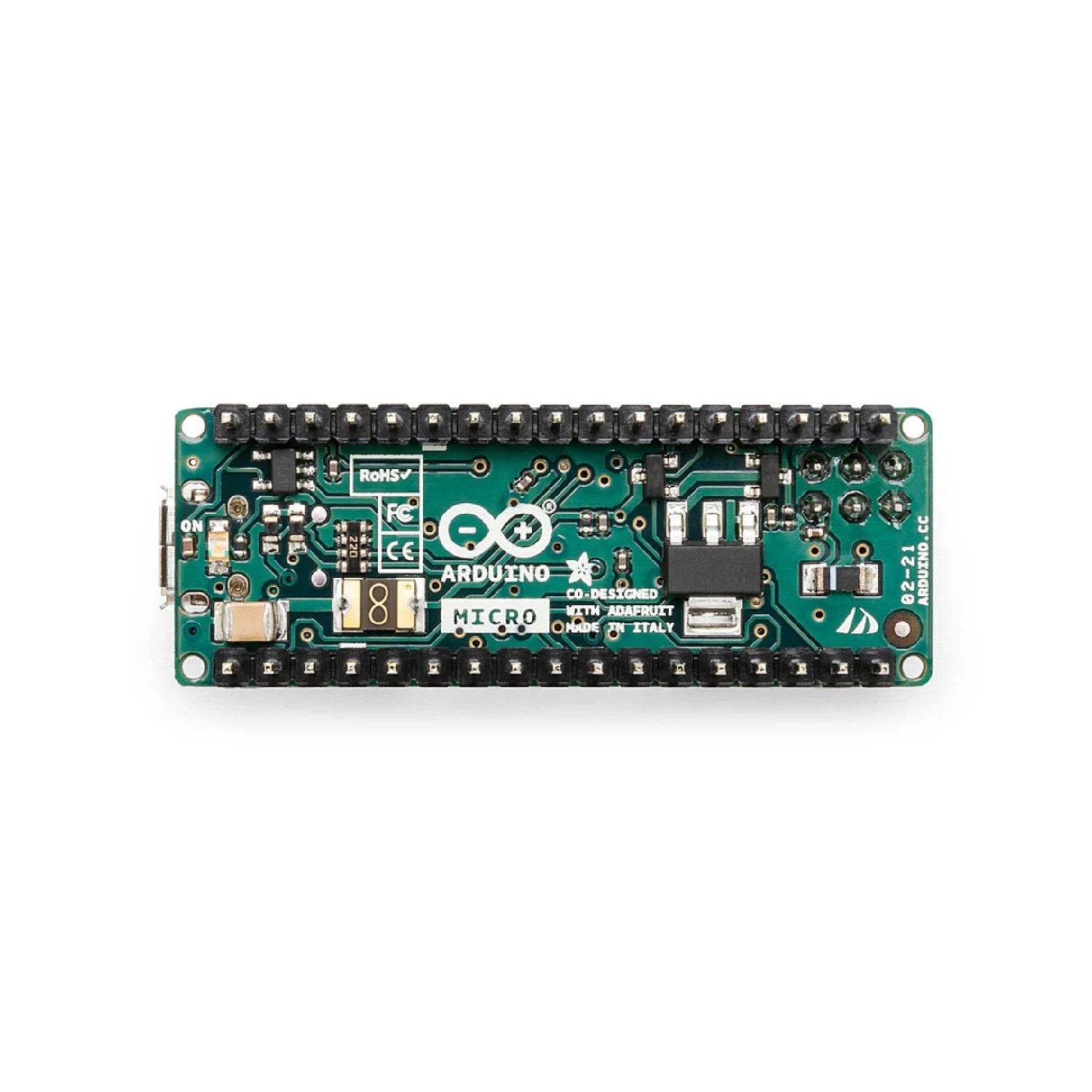

Arduino Micro A000053 Original Image 2
Arduino Micro A000053 Original Image 3

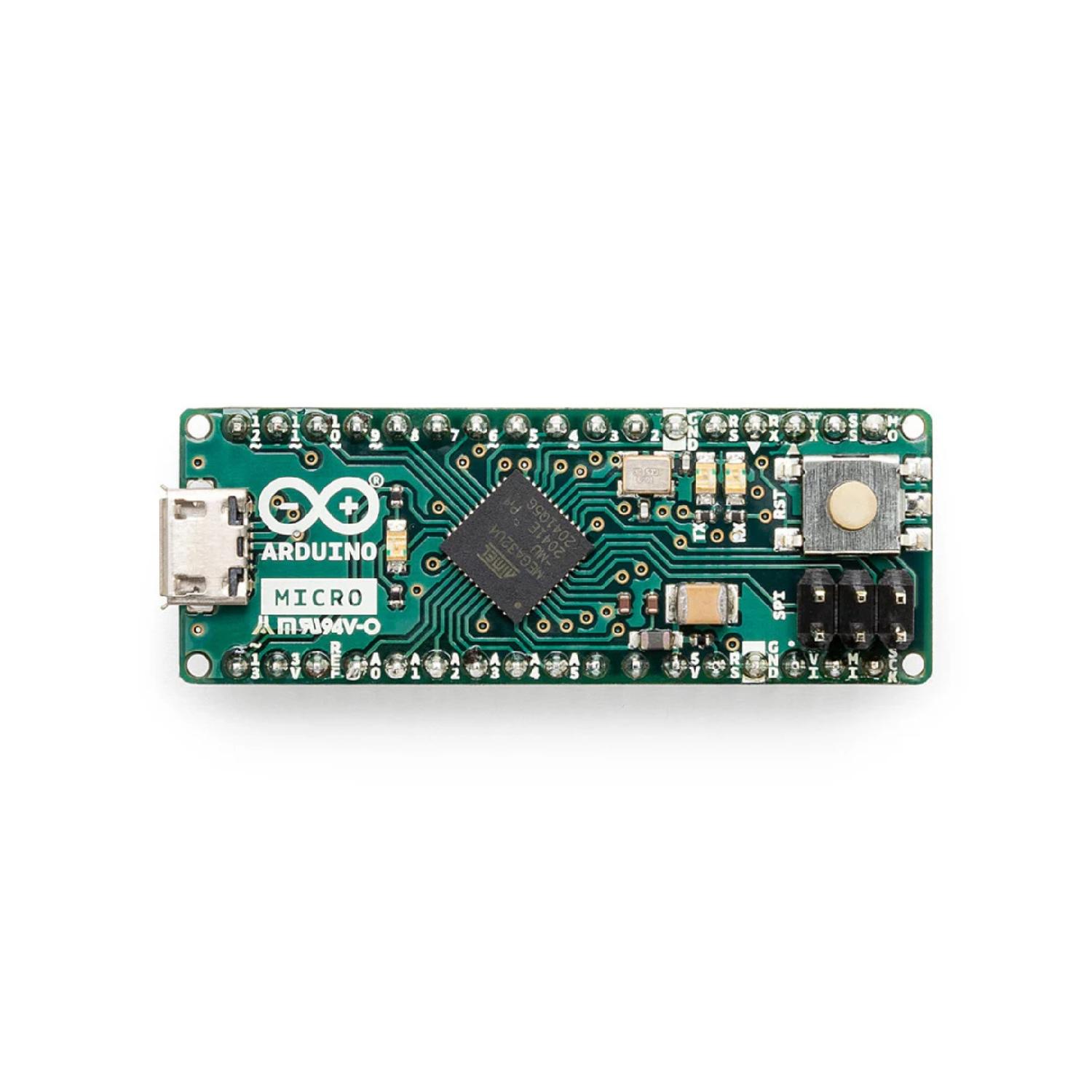

Arduino Micro A000053 Original Image 4

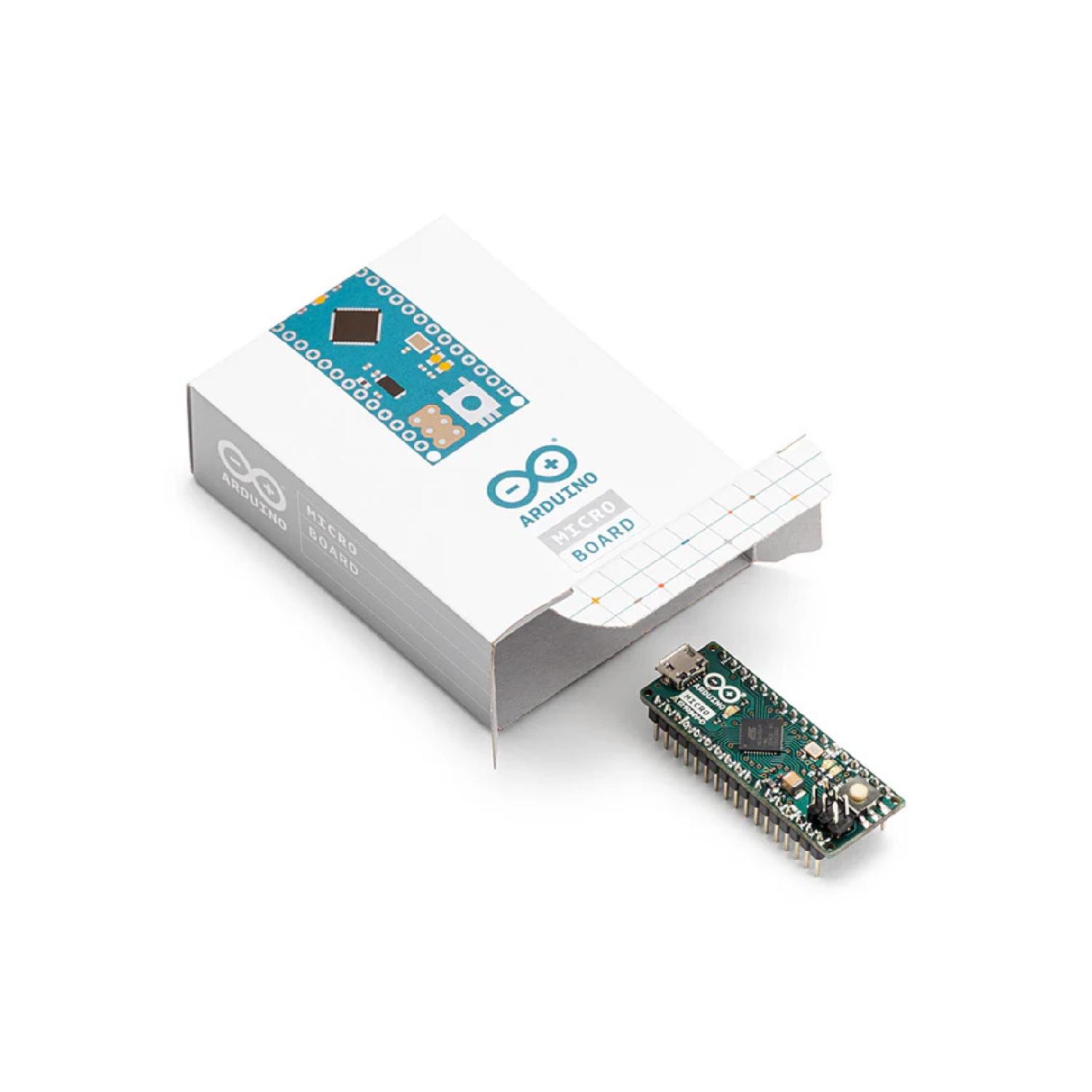

Arduino Micro A000053 Original Image 5
Arduino Micro A000053 Original Image 1
Arduino Micro A000053 Original Image 2
Arduino Micro A000053 Original Image 3
Arduino Micro A000053 Original Image 4
Arduino Micro A000053 Original Image 5

Arduino Micro A000053 Original

SKU: 325973

The Micro is a microcontroller board based on the ATmega32U4 (datasheet), developed in conjunction with Adafruit. It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a micro USB cable to get started. It has a form factor that enables it to be easily placed on a breadboard.

The Micro board is similar to the Arduino Leonardo in that the ATmega32U4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Micro to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port.

Price :  excl. GST
Qty Price
1 > 1,594.00
50 > 1,580.00
200 > 1,566.00
500 > 1,552.00
1000 > 1,538.00
1001 > 1,538.00

Tech specs : -

Microcontroller - ATmega32U4

Operating Voltage - 5V

Input Voltage (recommended) -7-12V

Digital I/O Pins - 20

PWM Channels - 7

Analog Input Channels - 12

DC Current per I/O Pin - 20 mA

DC Current for 3.3V Pin - 50 mA

Flash Memory - 32 KB (ATmega32U4) of which 4 KB used by bootloader

SRAM - 2.5 KB (ATmega32U4)

EEPROM - 1 KB (ATmega32U4)

Clock Speed - 16 MHz

LED_BUILTIN - 13

Length - 48 mm

Width - 18 mm

Weight - 13 g
