Features

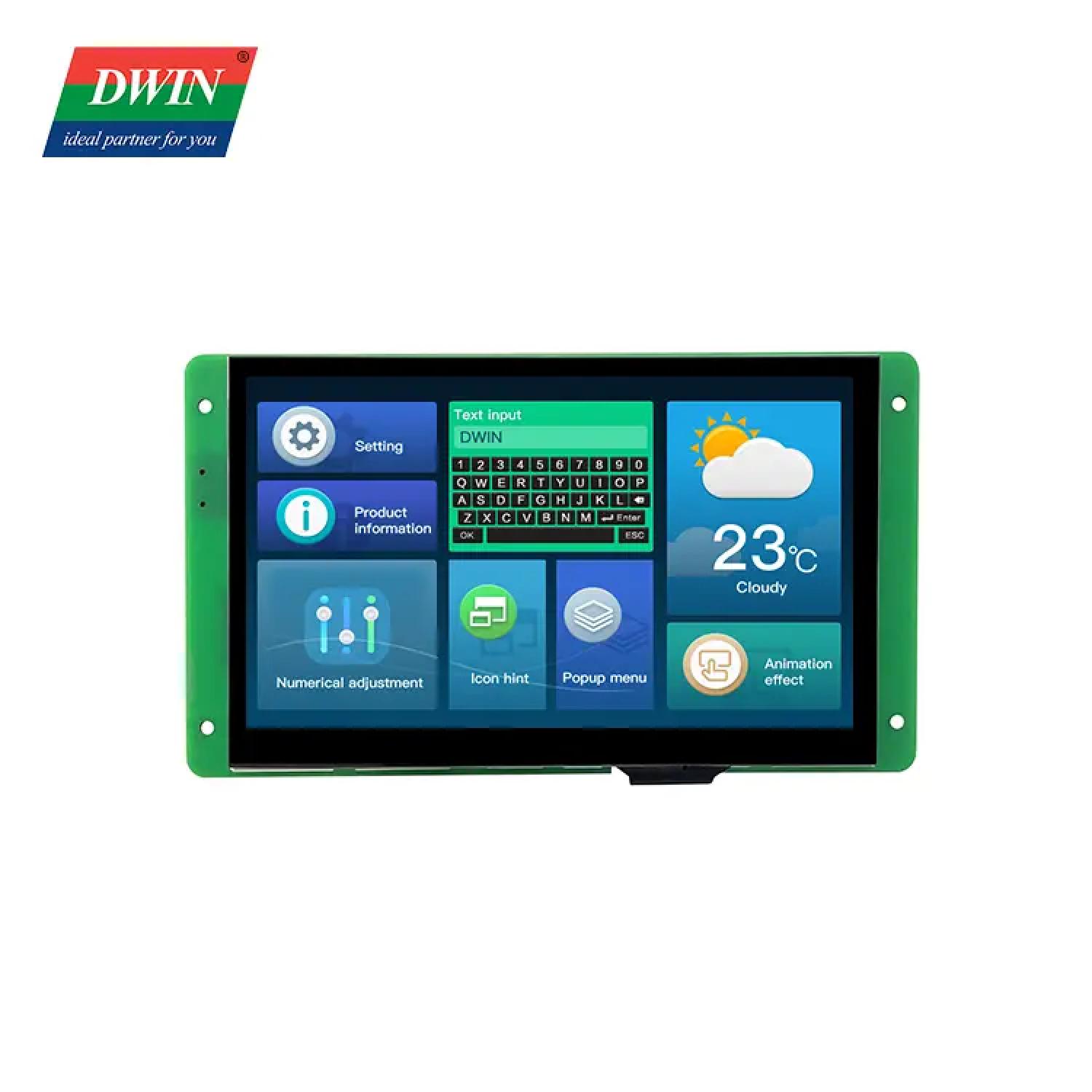

- Based on T5L ASIC 7.0 Inches, 1024xRGBx600, 16.7M Colors, IPS screen
- Resistive touch panel
- UART2: ON=TTL/CMOS; OFF=RS232;UART4: ON=TTL/CMOS; OFF=RS232; 10Pin_1.0mm FCC Socket
- Download methods:via SD card or on-line serial port
- Easy-to-use DWIN DGUS V7.6 GUIs Development.no coding skills required
- Dual Development System:DGUSⅡ/TA(Instruction set)
- LCD:IPS View Angle:85/85/85/85(L/R/U/D)
- With GUI & OS dual-core, GUI with rich controls. DWIN OS kernel is open to the user for the second-development, via DWIN OS language or KEIL C5
