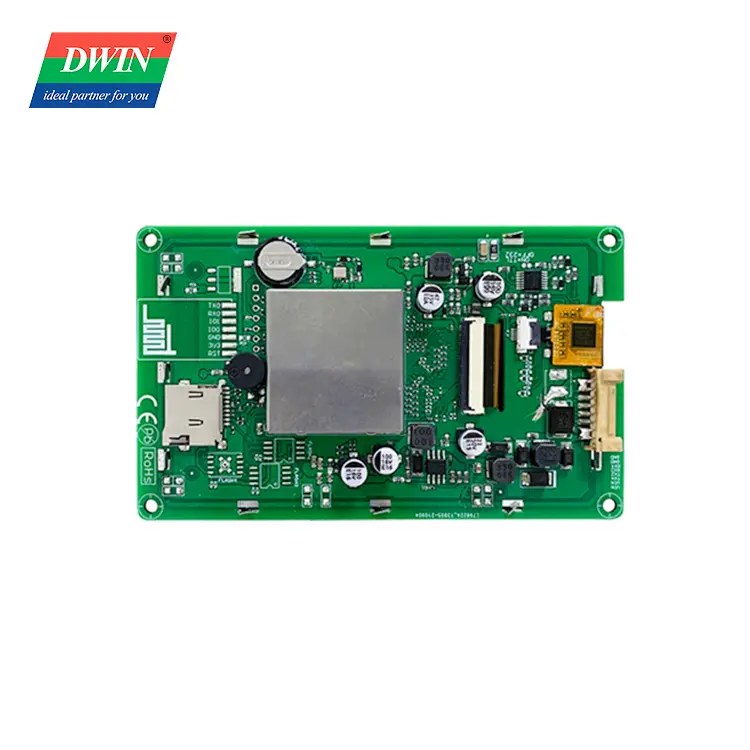

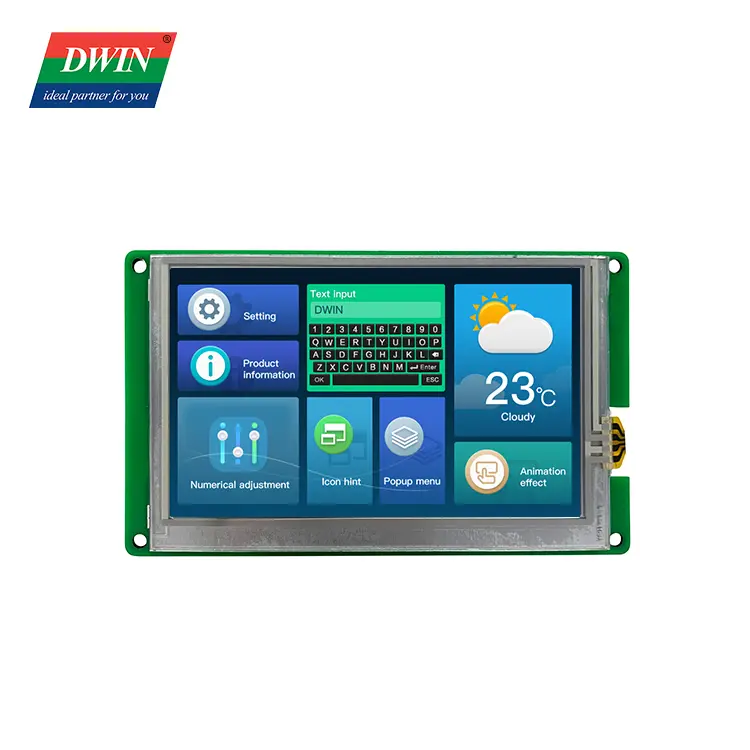

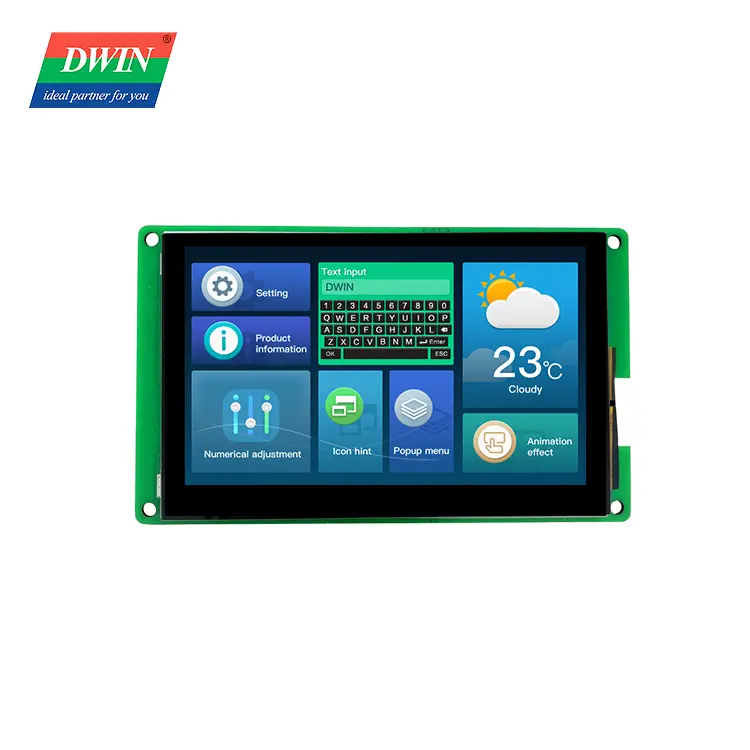

The DWIN DMG80480T043_09WN is a high-performance 4.3-inch Human Machine Interface (HMI) TFT display module designed for industrial and embedded control systems. It features an 800×480 RGB IPS TFT LCD panel with 262K colors (18-bit), delivering sharp visuals and excellent color reproduction.

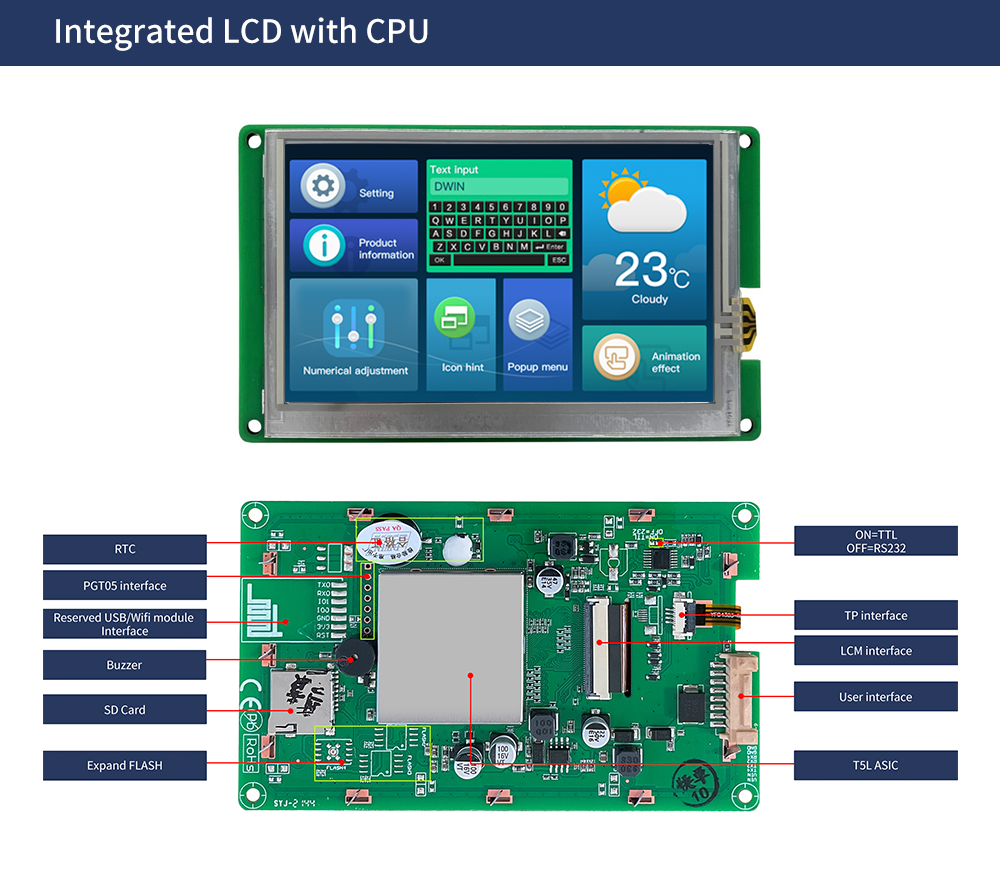

Powered by DWIN’s self-designed T5L0 dual-core architecture, the display integrates both GUI processing and OS kernel, enabling smooth graphics performance and flexible secondary development. The module supports UART and RS232 communication, allowing simple integration with PLCs, microcontrollers, and embedded controllers.
With support for DGUS II / TA instruction systems, users can develop professional HMI interfaces using DWIN DGUS V7.6 software without writing complex code. GUI designs can be downloaded easily via SD card or serial port, making development fast and efficient.
Key Features - DWIN DMG80480T043_09WN 4.3 Inch HMI Display
-
4.3-inch IPS TFT LCD display
-
Resolution: 800 × 480 pixels (RGB)
-
262K colors, 18-bit color depth
-
High brightness options:
-
No touch: 900 nits
-
Capacitive touch: 810 nits
-
Resistive touch: 720 nits
-
-
Wide viewing angle: 85° / 85° / 85° / 85°
-
UART & RS232 interface with 8-pin 2.0 mm connector
-
DGUS V7.6 GUI development – no coding required
-
Supports DGUS II & TA instruction systems
-
SD card & serial download support
-
Dual-core architecture: GUI + OS kernel
-
Open OS kernel for secondary development using DWIN OS language or KEIL C51
Technical Specifications - DWIN DMG80480T043_09WN 4.3 Inch HMI Display
-
Model: DMG80480T043_09WN
-
Display Size: 4.3 inch
-
Resolution: 800 × 480 pixels
-
Display Type: IPS TFT LCD
-
Color Depth: 262K colors (18-bit)
-
Brightness: Up to 900 nits (variant dependent)
-
Viewing Angle: 85° (L/R/U/D)
-
Communication Interface: TTL UART, RS232
-
Connector: 8-pin, 2.0 mm pitch
-
Development Software: DWIN DGUS V7.6
-
System Support: DGUS II / TA
-
Firmware Download: SD card / Serial port
-
Kernel: DWIN OS (open for secondary development)
(Refer to datasheet for mechanical dimensions and electrical characteristics.)
Applications
-
Industrial automation HMI panels
-
PLC and controller interfaces
-
Smart home control panels
-
Medical equipment displays
-
Instrumentation & measurement systems
-
Embedded control systems
-
IoT device user interfaces
-
Touch screen control terminals
Package Includes
-
1 × DWIN DMG80480T043_09WN 4.3 Inch HMI Display Module
