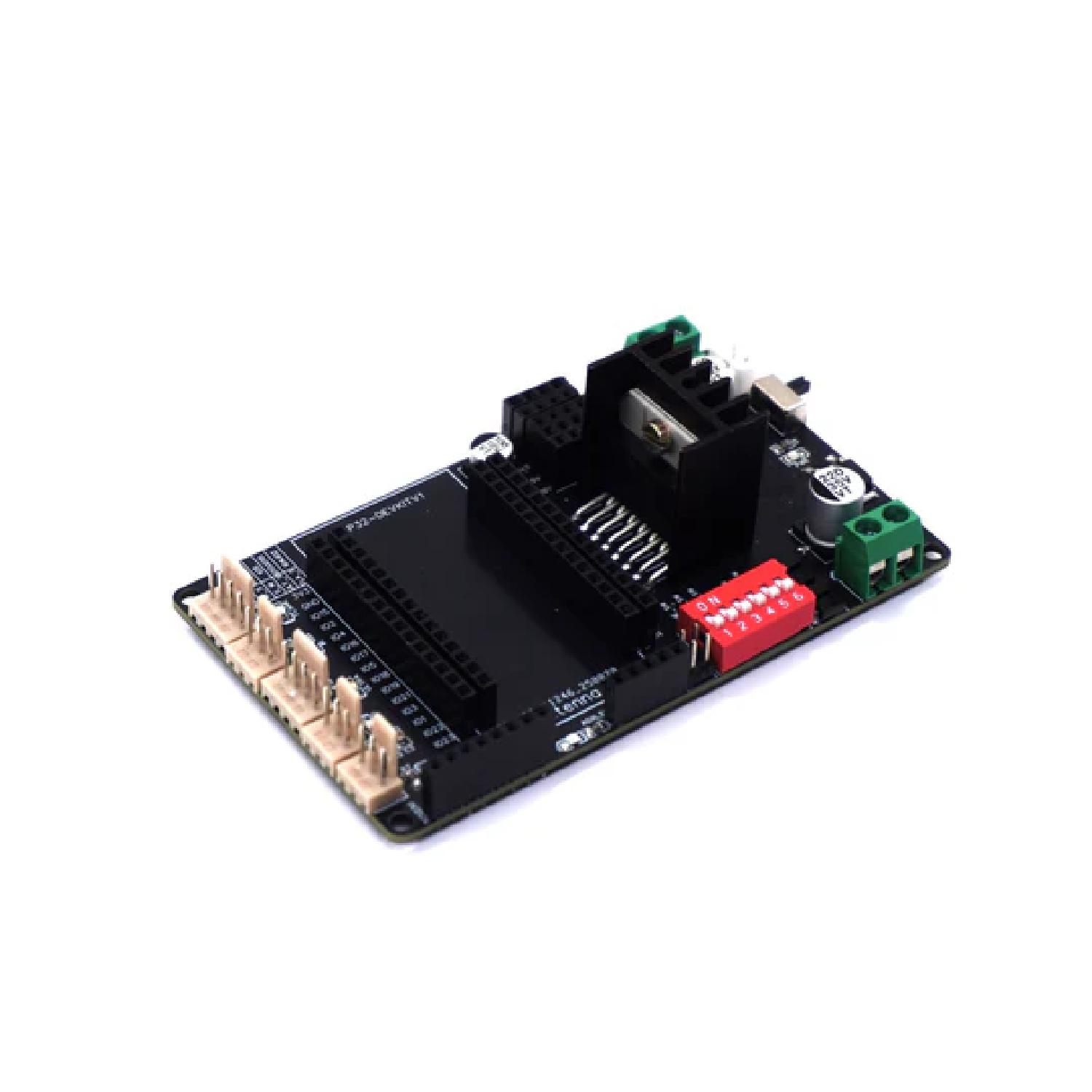

Unlock the full potential of your Robotics and IoT projects with this all-in-one ESP32 carrier board. It is specifically designed with a 30-pin port for seamless compatibility with 30-pin ESP32 boards and NodeMCU modules. This board serves as a comprehensive solution for motor control, sensor integration, and robust power management. It includes a detachable holder for a 3-cell 18650 Li-ion battery pack, providing a portable and long-lasting power source. The board includes dedicated ports for IR sensors, an Ultrasonic sensor (HC-SR04), a Flame sensor, an ADXL335 Accelerometer, a TCS230 Color Sensor, and servo motors. The onboard 6-pin DIP switch allows you to easily enable or disable individual sensors for simplified testing and debugging. Motor control is made possible using an integrated L298N H-Bridge Driver with Flyback Protection. This versatile platform is a perfect foundation for a wide range of embedded electronics applications.
Package Includes:

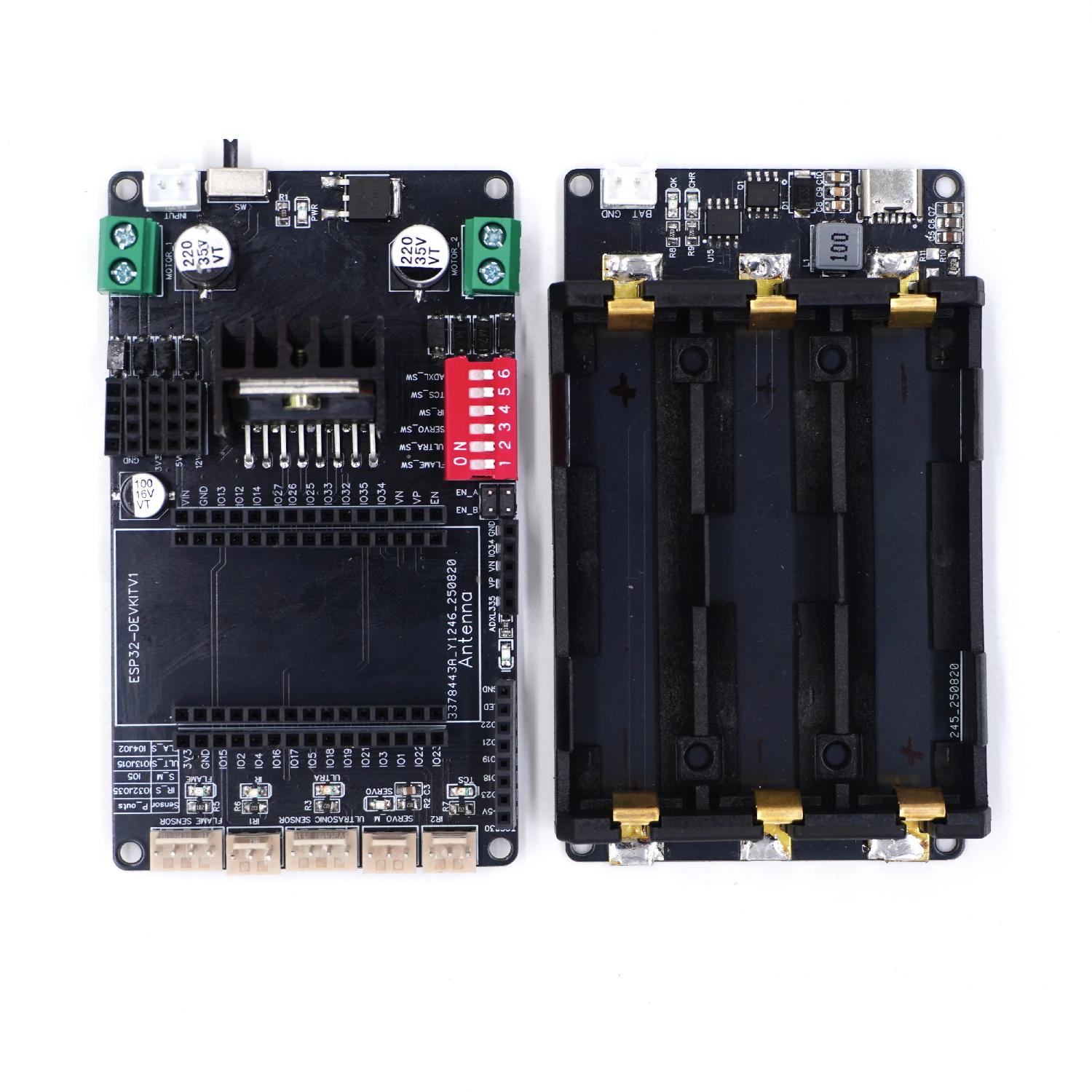

- 1x ESP32 Carrier Board with Integrated Electronics

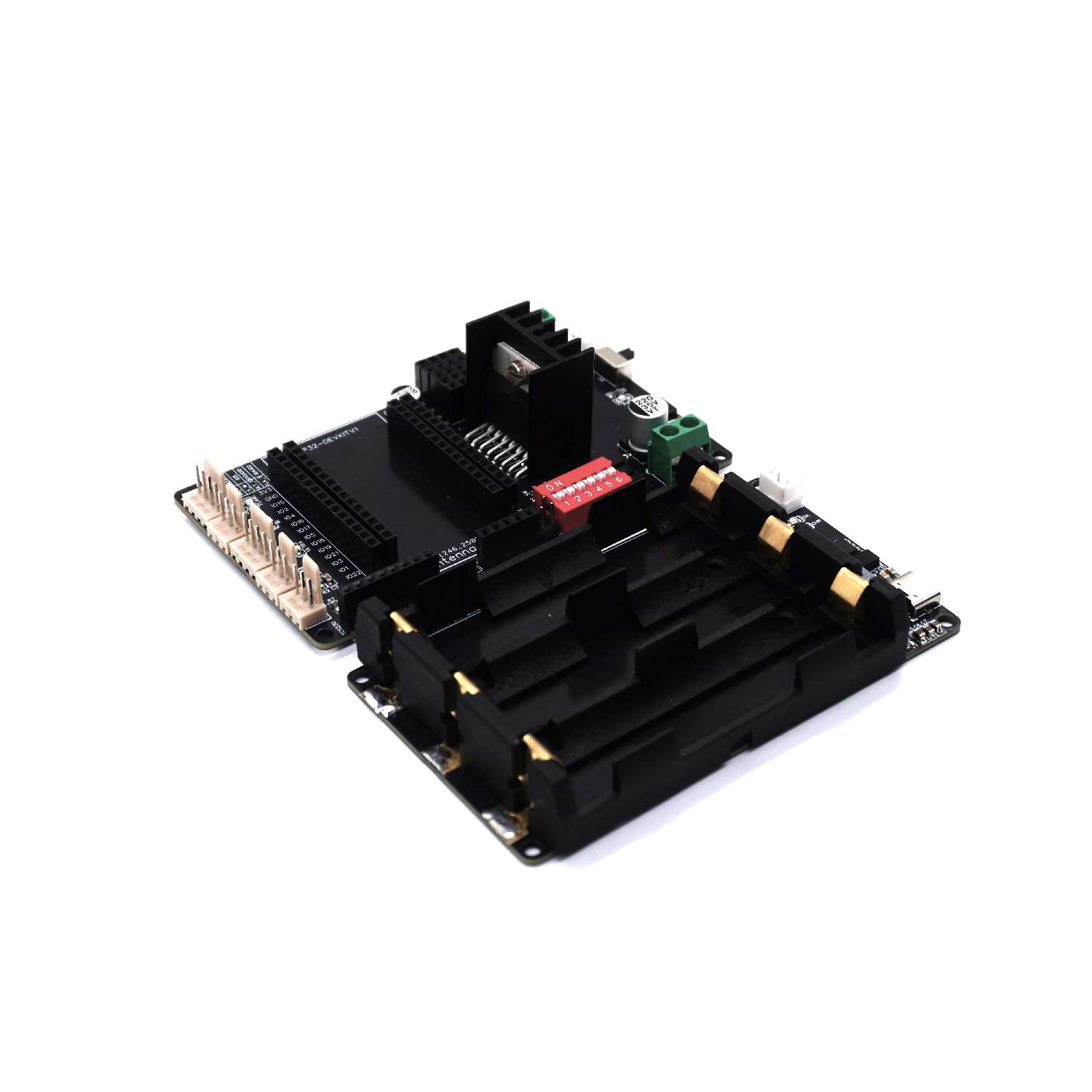

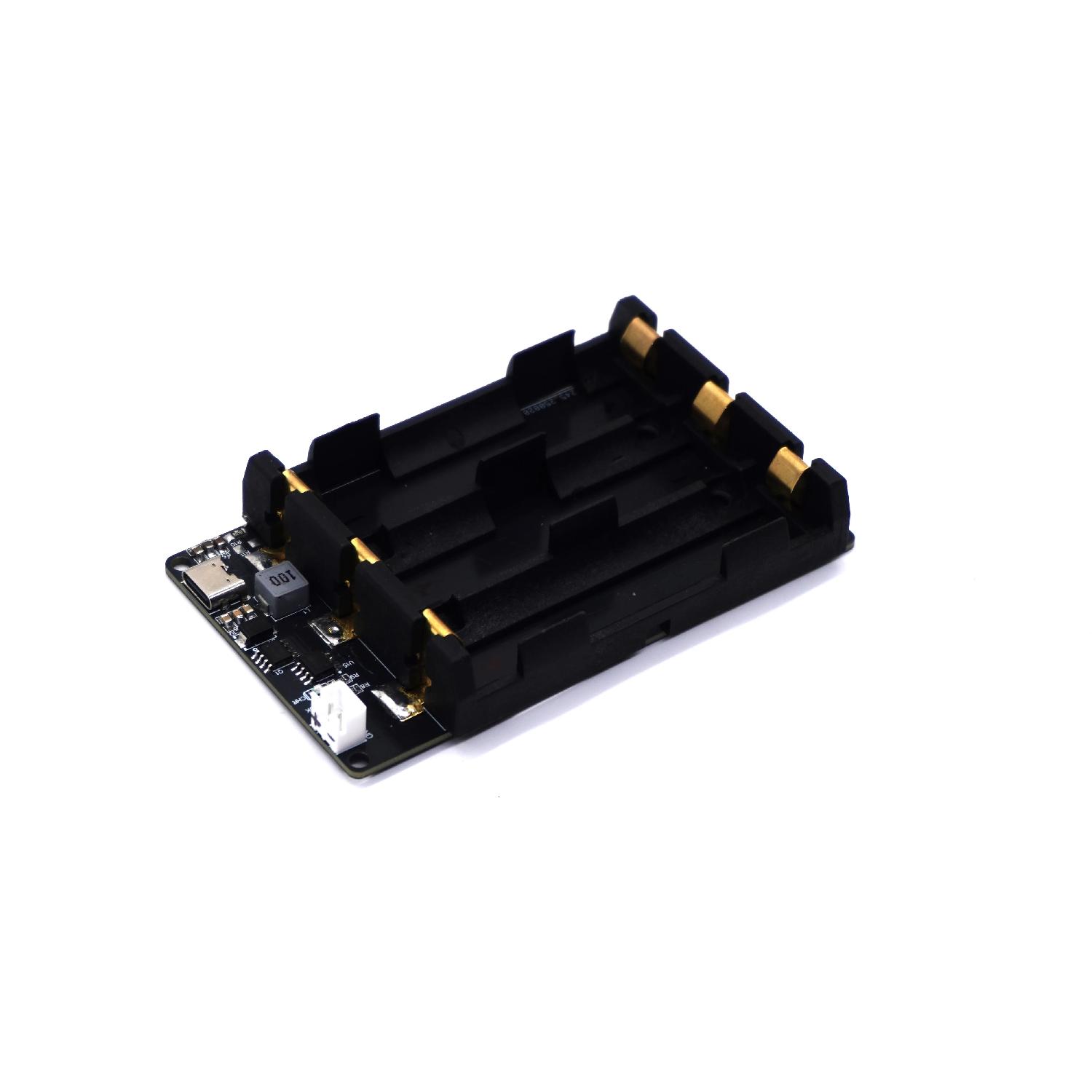

- 1x Detachable 3-Cell 18650 Battery Holder with UC connector cable
Specifications:
- Compatibility: 30-pin port for ESP32 and NodeMCU modules
- Microcontrollers supported: ESP32 (Dual-core MCU with Wi-Fi & Bluetooth connectivity)/ NodeMCU/ ESP32 Devkit V1
- Motor Driver: L298N Dual H-Bridge driver IC
- Sensor Ports Included: IR Sensors, Ultrasonic Sensor (HC-SR04), Flame Sensor, ADXL335 Accelerometer, TCS230 Color Sensor
- Power Management: CN3303 Li-ion charger IC with over-voltage and over-discharge protection
- Power Input: Detachable 3-cell 18650 Li-ion battery pack (~11.1V nominal, 12.6V max)
- Voltage Regulators: Onboard 5V and 3.3V regulators for peripherals and logic
- I/O Control: 6-pin DIP switch for selective sensor activation
- Connectivity: Dedicated pin headers for all supported sensors and modules
Applications:
- Ideal for building autonomous robotics with obstacle avoidance and line-following capabilities.
- The board is an excellent resource for educational kits and hands-on learning in embedded systems and IoT.
- Use it to prototype safety systems for fire detection and rescue robots, and advanced projects requiring remote monitoring and control via Wi-Fi and Bluetooth.
Usage Note:
- The board is designed to work with a 3-cell 18650 Li-ion battery pack.
- The CN3303 IC handles the charging and discharging, ensuring balanced charging and protection.
- The 6-pin DIP switch allows you to toggle individual sensors like the Flame, Ultrasonic, and IR sensors.

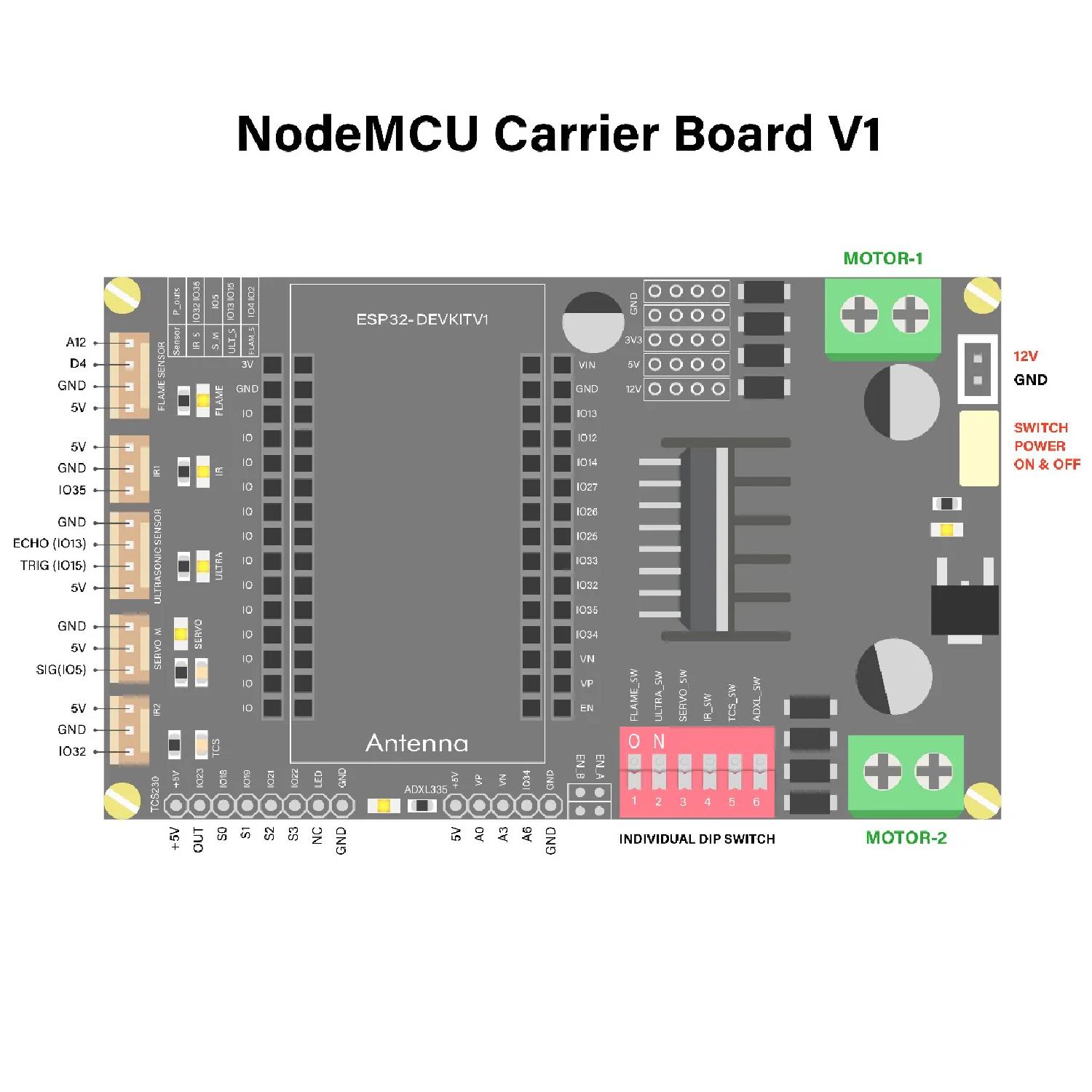

- Connect your compatible ESP32 module to the carrier board and use the recommended pin mapping for easy integration with your code.
