Description- HC 12 SI4463 Bluetooth Module
HC-12 wireless RF UART communication module is a new generation of multi-channel embedded wireless data transmission module. Wireless Serial Module: • Frequency range : 119–1050 MHz • Receive sensitivity : –126 dBm • Serial TTL (RX, TX, GND) interface.
Content- HC-12 wireless RF UART communication module is a new generation of multi-channel embedded wireless data transmission module. The Radio frequency of 433.4 – 473.0MHz, can be setting a communication channel, step is 400kHz, a total of 100 channels. The module maximum transmit power is 100mW (20dBm), and -116dBm receiver sensitivity air of the 5000bps baudrate.

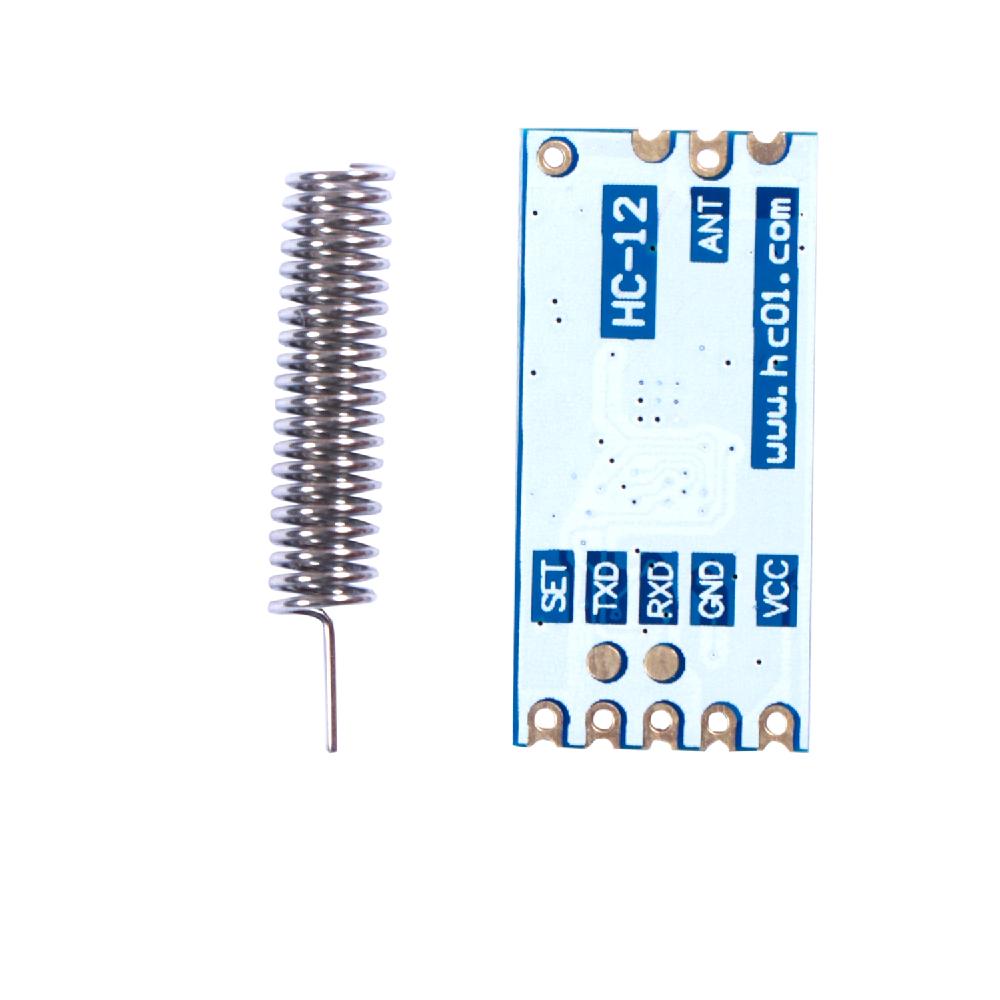

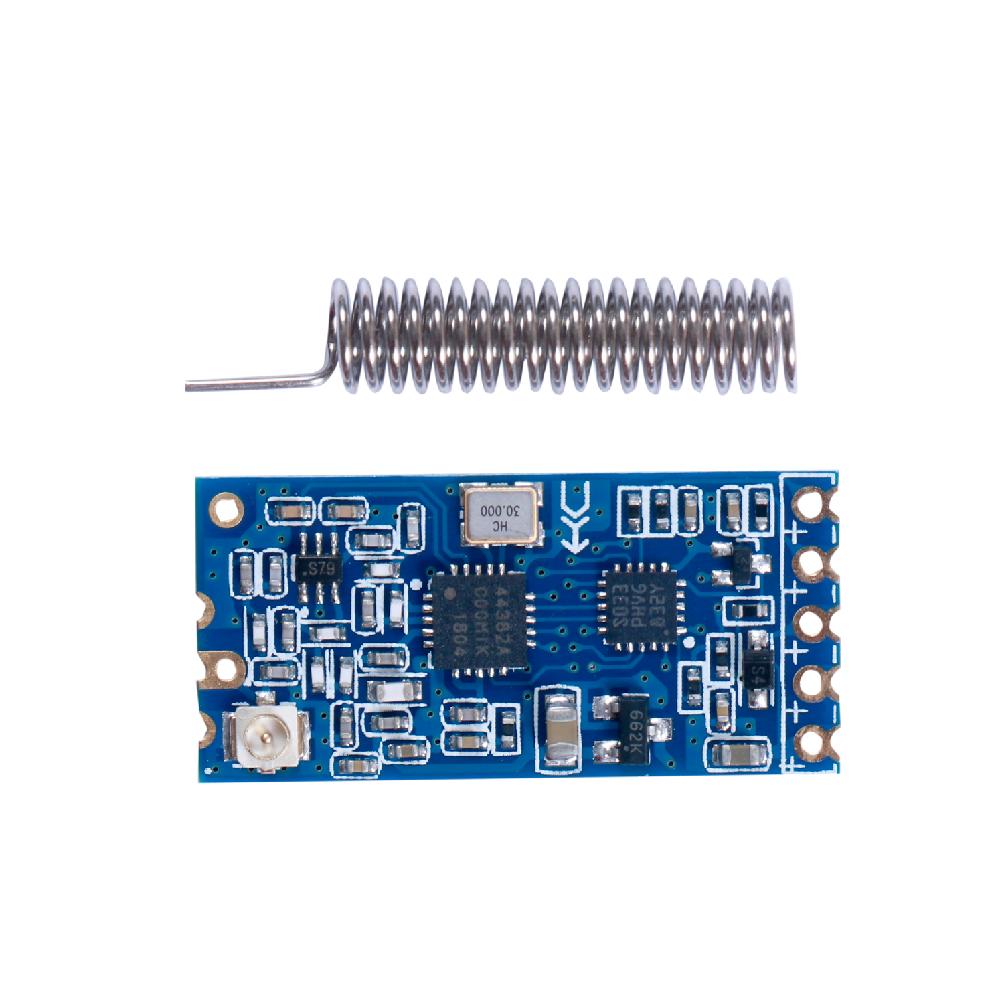

The module adopts a stamped hole encapsulation method, which can be welded. The module size is 27.4mm*13.2mm *4mm (including antenna seat, not including the spring antenna), which is convenient for the customer to be embedded in the application system. The module has a PCB antenna seat ANT1, users can use the coaxial cable, the use of 433MHz band external antenna.

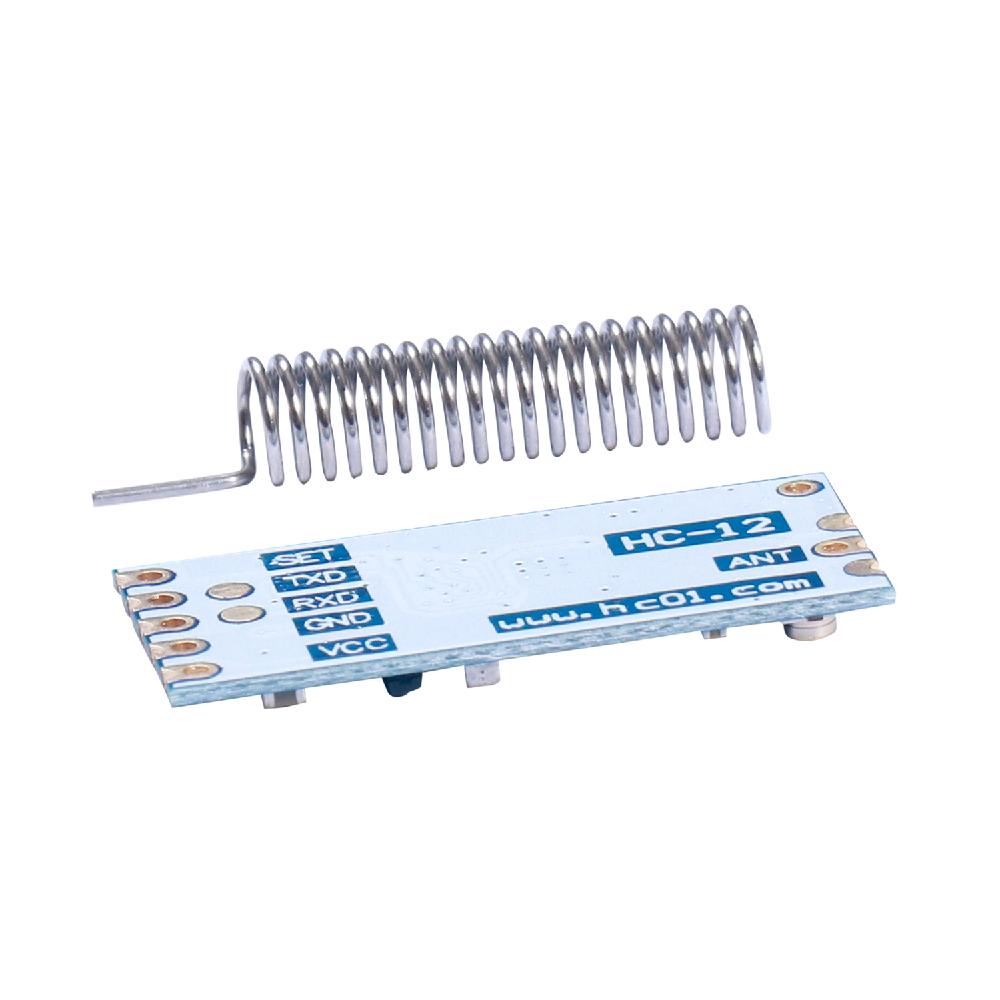

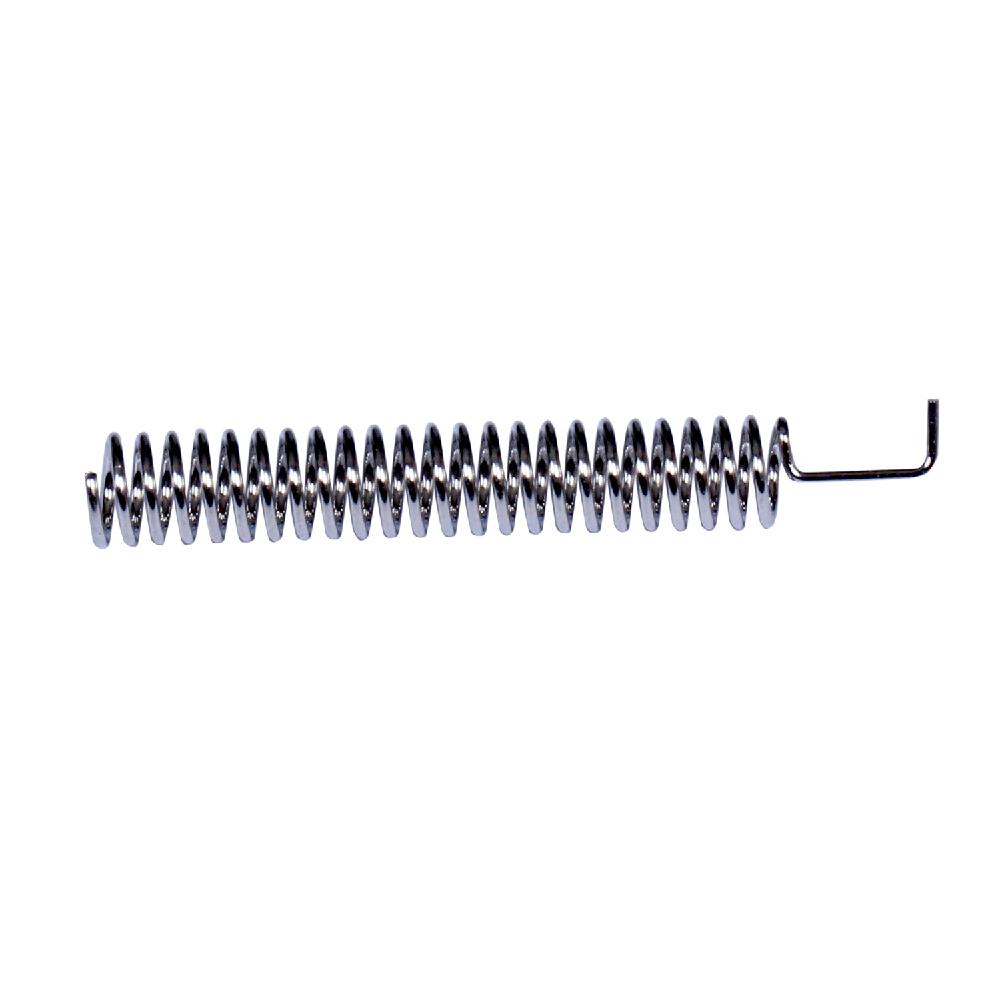

The module also has antenna welding hole ANT2, convenient user welded spring antenna. The user can choose one kind of antenna according to the request. The module contains MCU, users do not need to program in addition, just send and receive
UART data. The module uses a variety of UART transmission mode, the user can choose
according to the requirements of the use of AT command. The four UART modes of FU1, FU2, FU3, FU4, the average operating current is 3.6mA, 80μA, 16mA and 16mA, the maximum operating current is 100mA (full power transmit state) HC12 Module is based on the SI4463 EZRadioPro family chip by SiLabs. This module offers a wireless data transmission and reception range of approximately 1 km in the open air. It’s a low power radio chip that is ultra-easy to use.
This module has an onboard STM8S003F3P6 MCU which is communicating with the SI4463 so that the user can communicate with the HC12 module using a simple TTL 2 wire serial interface (RX, TX, GND). If you are looking for cheaper RF modules, check this 434 Mhz RF Module.This module offers a wireless data transmission and reception range of approximately 1 Km in open air. It's a low power radio chip which is ultra easy to use.This module has an onboard STM8S003F3P6 MCU which is communicating with the SI4463 so that the user can communicate with the module using a simple TTL two wire serial interface (RX, TX, GND).
Product Details:
| Operating Temperature | -40 to +85 Deg C |
| Supply Voltage | 3.2V to 5.5VDC |
| Working Frequency | 433.4MHz to 473.0MHz |
| Communication Distance | 1,000 m in the open space |
| Serial Baud Rate | 1.2Kbps to 115.2Kbps default 9.6Kbps) |
| Receiving Sensitivity | -117dBm to -100dBm |
| Transmit Power | -1dBm to 20dBm |
| Interface Protocol | UART/TTL |
| Dimensions | 27.8 x 14.4 x 4 mm |
