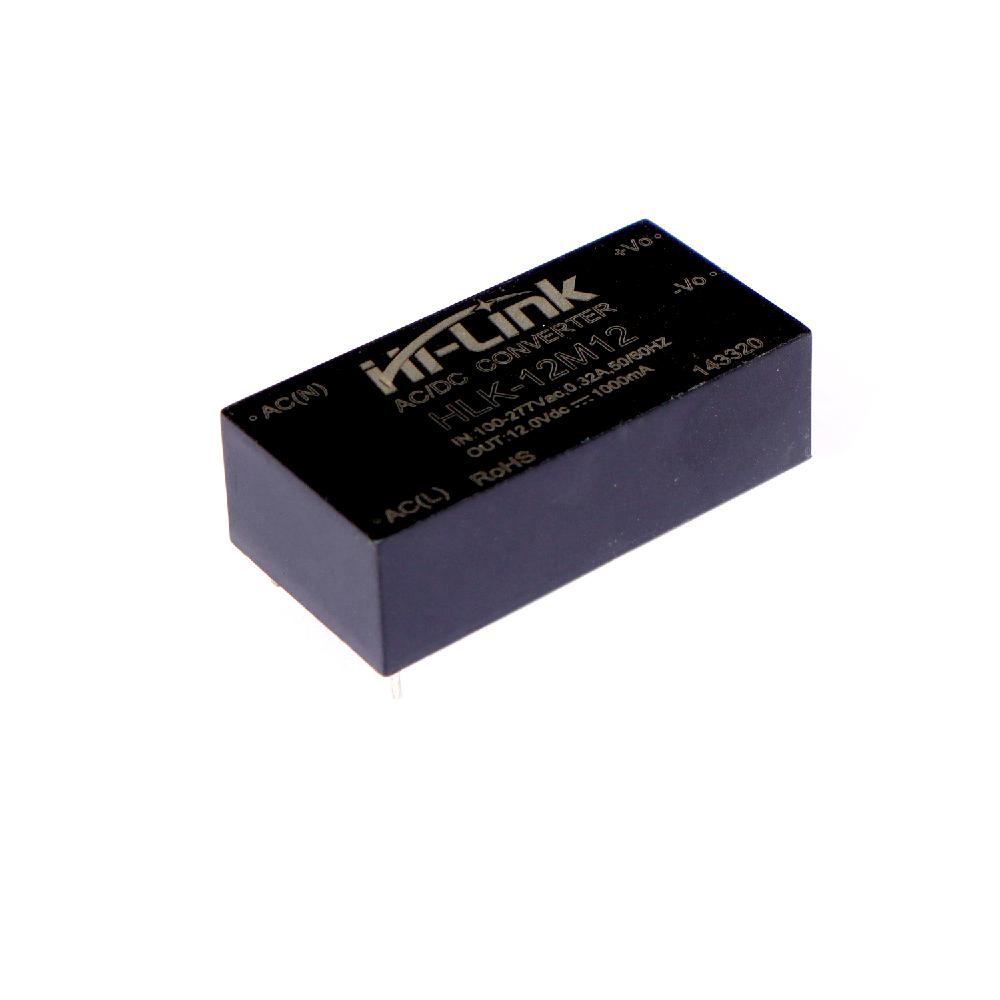

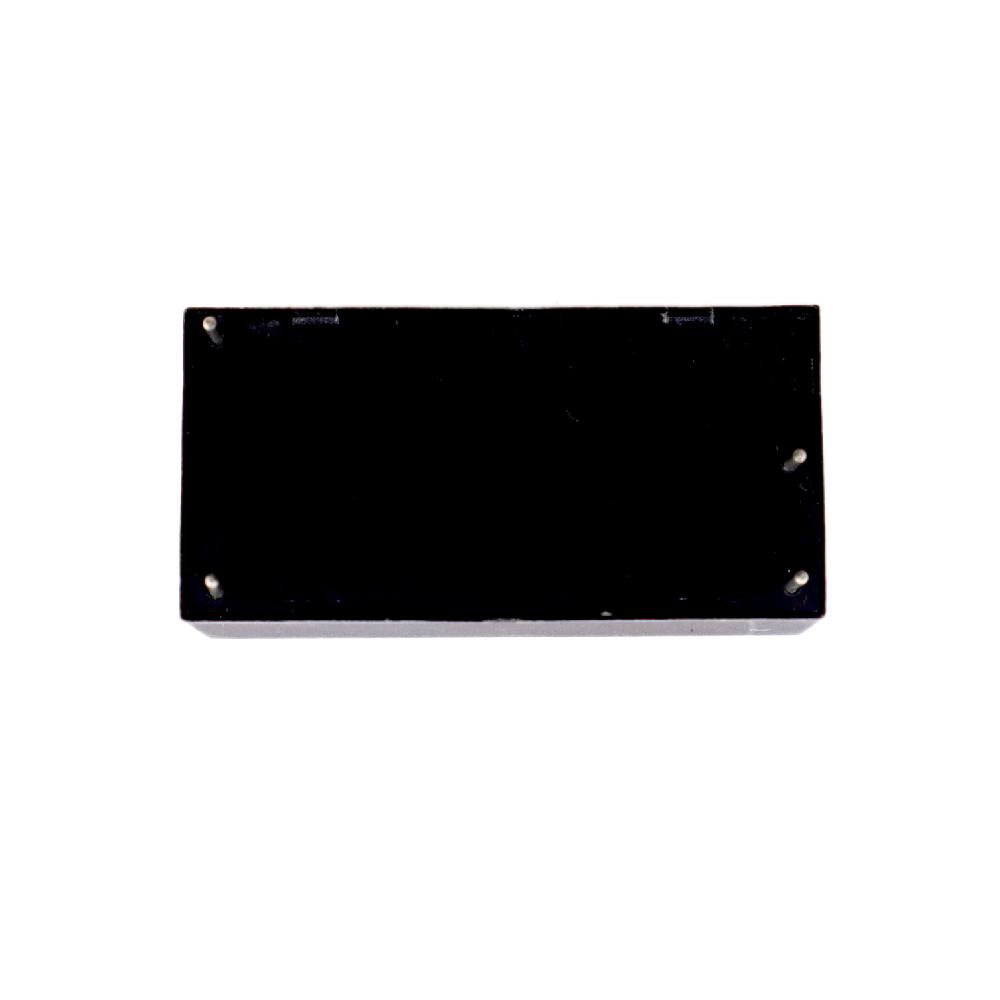

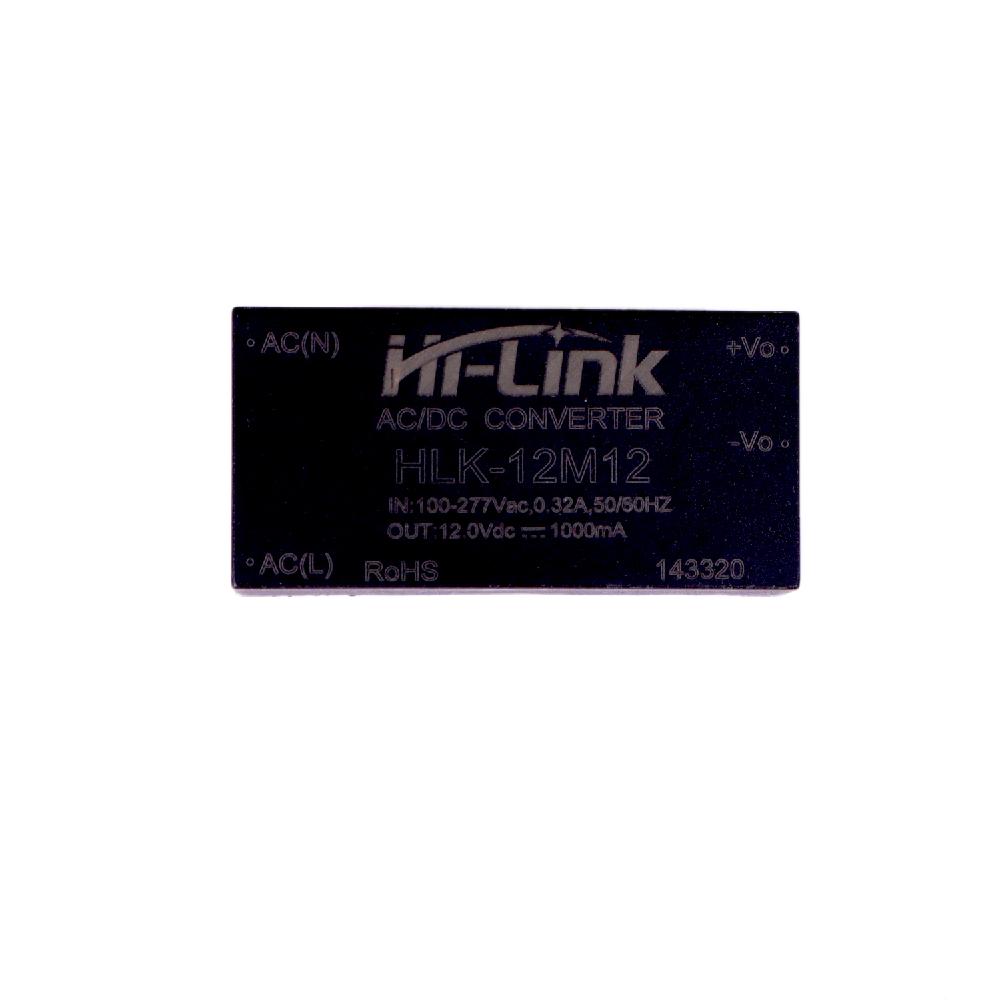

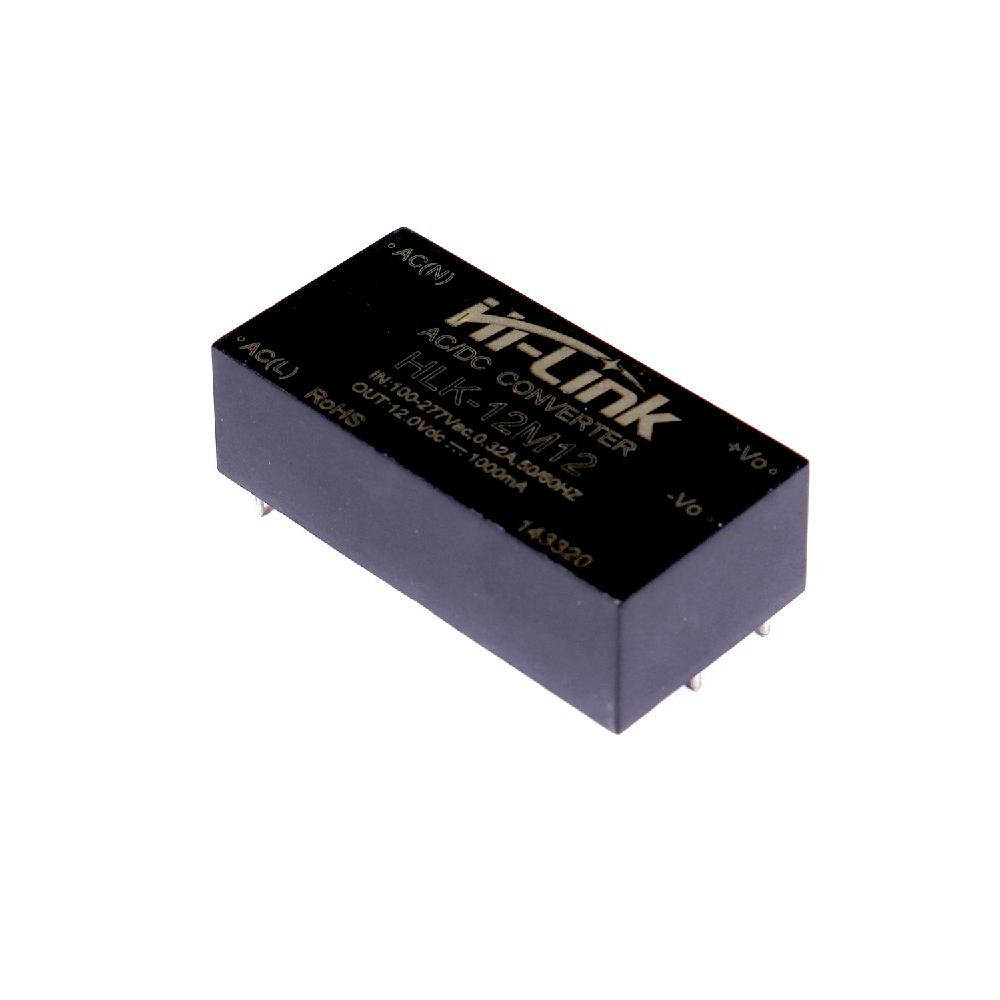

Product Features - Hi-Link Power Module - HLK 12M12
- Wide range input: 85-305VAC/120-432VDC
- Input and output isolation withstand voltage 3000VAC
- No-load power consumption ≤0.1W
- High efficiency, conversion efficiency up to 86% (Typ)
- Operating temperature range: -25°C~+75°C
- Fully enclosed plastic housing, in line with UL94V-0 level
- Good output short circuit and over current protection and self-recovery
- International standard pin, PCB board in-line installation
- Potting and sealing with high-quality environmentally friendly waterproof and thermal conductive glue, dustproof, moistureproof, shockproof and flame retardant
- Meet UL/CE/EMC and safety testing requirements
- Can be used in medical, industrial control, electric power, instrumentation, communication, railway and other fields
| Environmental conditions | |
| Operating temperature | -40~+75℃ |
| storage temperature | -40~+85℃ |
| Relative humidity | 10~90%RH |
| Cooling method | Natural cooling |
| Atmospheric pressure | 80~160Kpa |
| Altitude | ≤2000m |
| vibration | Vibration coefficient 10~500Hz, 2G10min./1cycle60min.each along X,Y,Z axes |
| Meet the requirements of secondary road transportation | |
| Input characteristics (normal temperature test) | |
| Rated input voltage | 220VAC/310VDC |
| Input voltage range | 85-305VAC/120-432VDC |
| Input frequency range | 50Hz(typical) |
| Input Current(max) | 0.30A(115VAC)/0.15A(220VAC) |
| Inrush current | 10A(115VAC)/20A(220VAC) |
| Leakage current | 0.5mA TYP/230VAC/50Hz |
| Recommended value of external fuse | 3.15A/250VAC slow break fuse |
| Hot swap | not support |
| Remote | No remote control |
| Output characteristics | |
| Output voltage accuracy | ±1.0%（Tpy, input full voltage, any load） |
| Linear adjustment rate(max) | ±0.5 %（Nominal load） |
| Load Regulation(max) | ±1.0 %（Nominal voltage, 20%~100% load） |
| No-load power consumption | 0.1W(Input 115/220VAC) |
| Start delay time | 100mS(Input nominal voltage/full load) |
| Power-down hold time | 10mS(115VAC)/60mS(220VAC) |
| Output short circuit protection | Sustainable, self-healing |
| Ripple & noise | ≤100mVp-p(Tpy:50) |
Package Includes: 1 x HLK-HLK-12M12 Hi-Link 12V 12W AC to DC Power Supply Module
