A power supply is an electrical device that supplies electric power to an electrical load. The primary function of a power supply is to convert electric current from a source to the correct voltage, current, and frequency to power the load. As a result, power supplies are sometimes referred to as electric power converters.

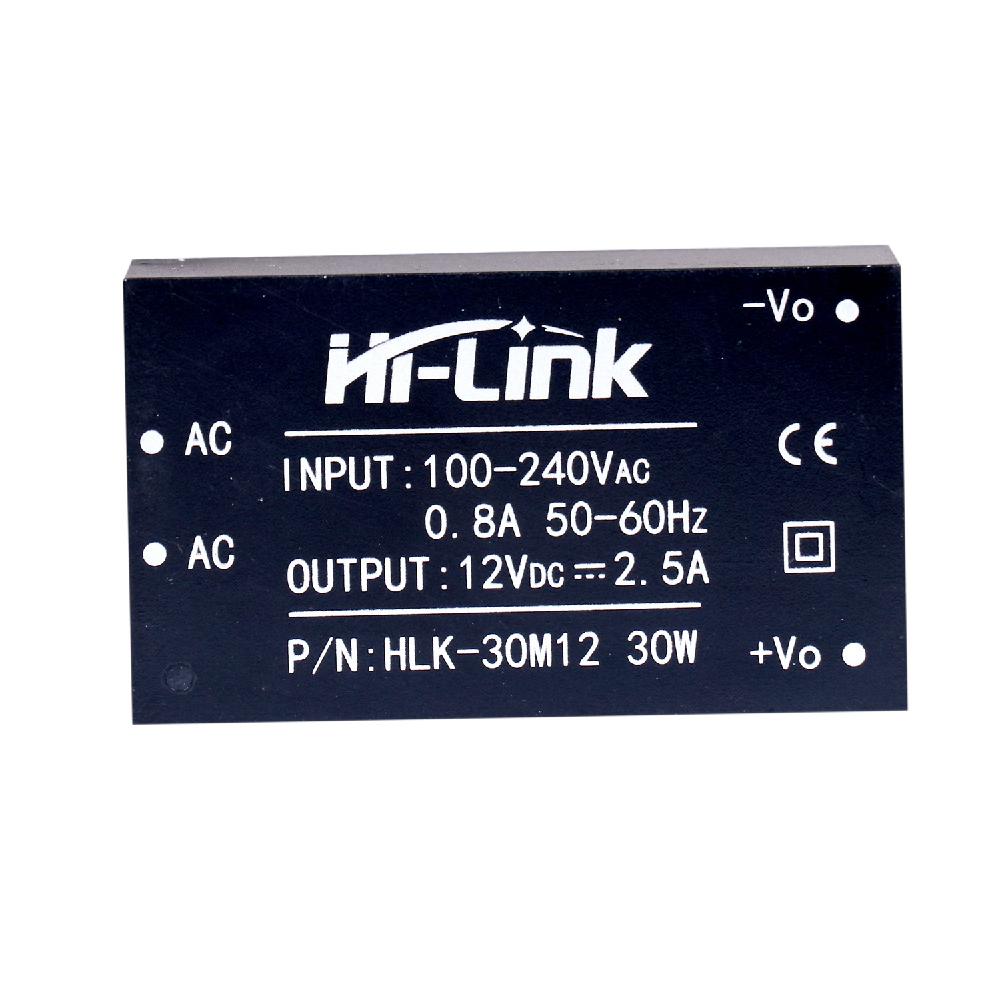

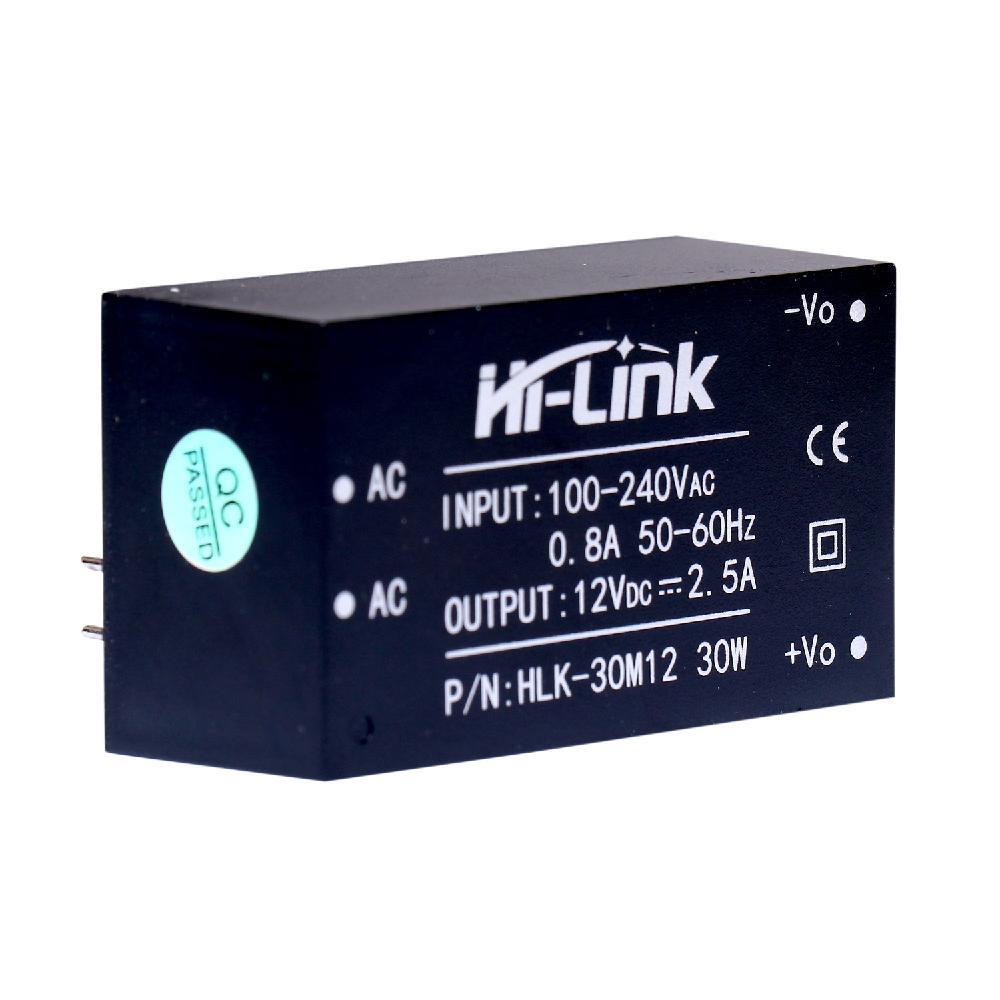

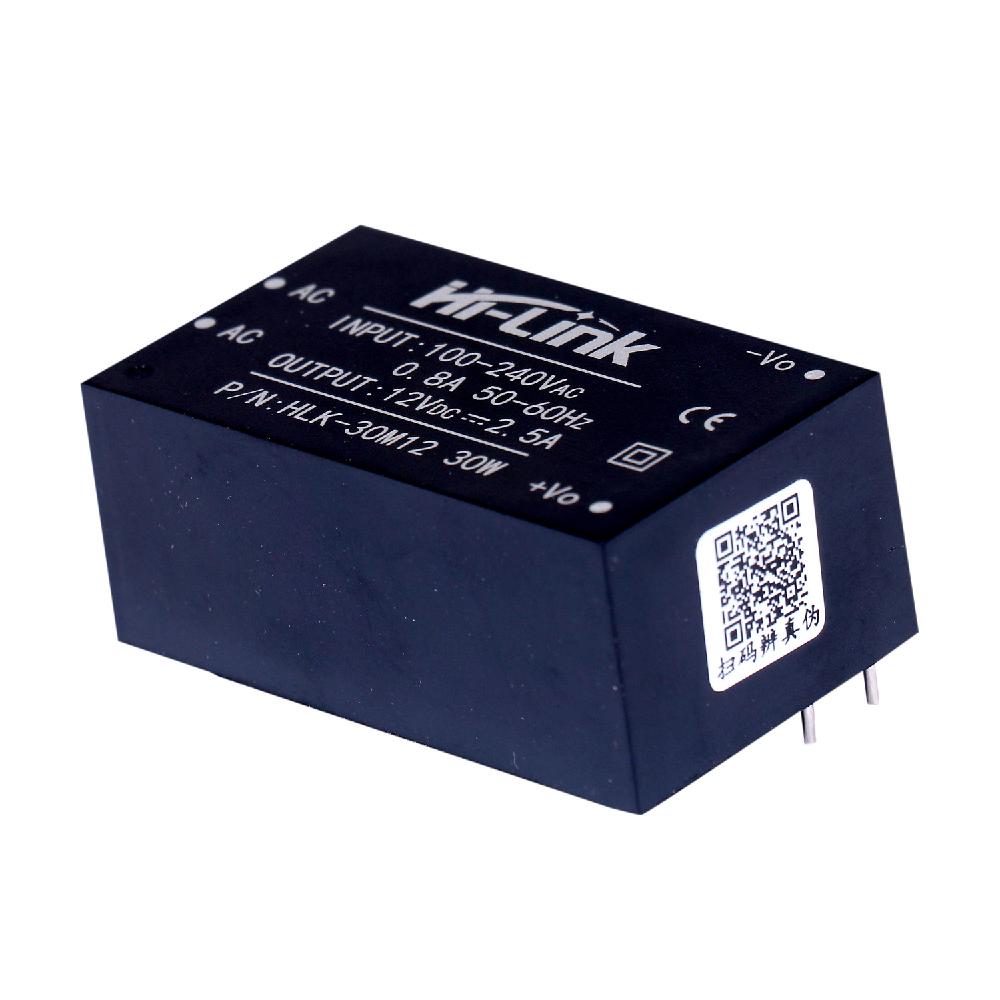

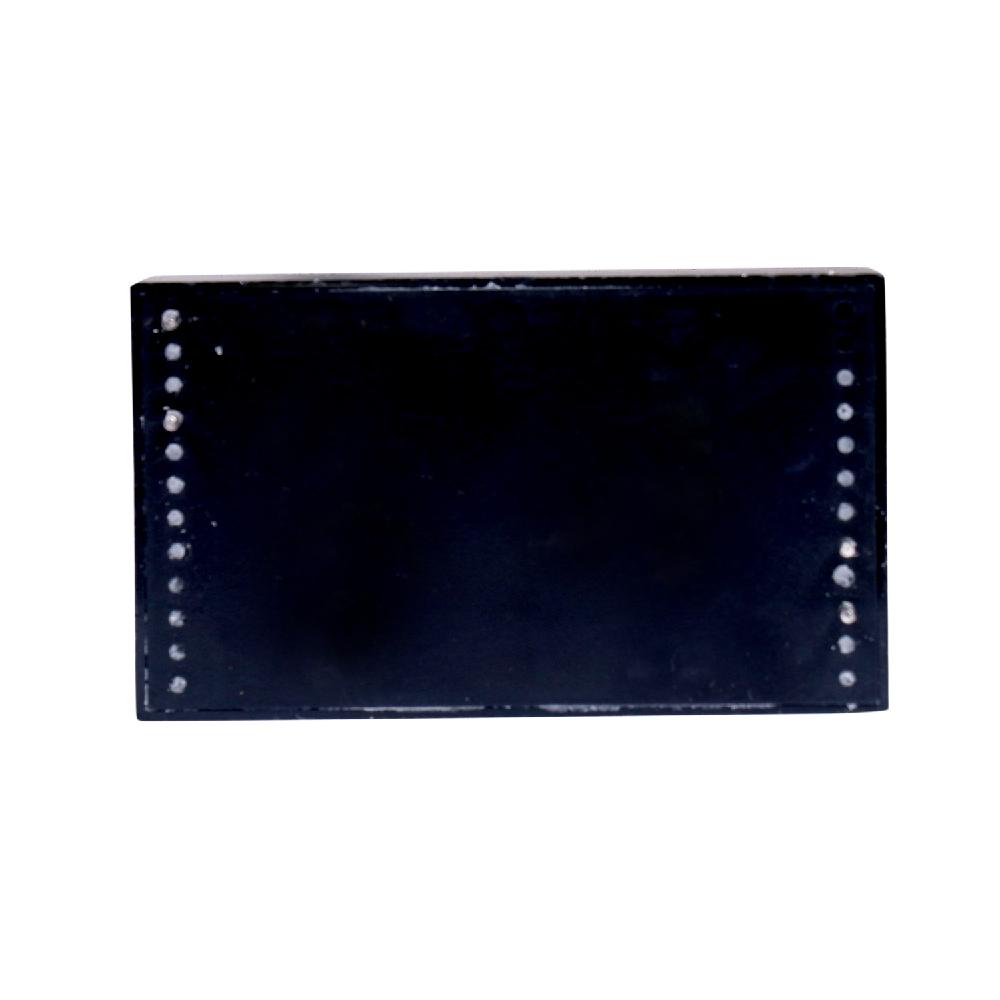

The Hi-Link Power Supply Module is a plastic enclosed PCB mounted isolated power supply module. It is widely used in a smart home, automation and control, communication equipment, instrumentation, and other industries.
PRODUCT FEATURES - Hi- link 30M12 power Supply module
- Global universal input voltage 90~265VAC
- Input and output isolation withstand voltage 3000VAC
- Low power consumption, environmental protection, no-load loss < 0.1W
- High efficiency, high power density
- High reliability, long life design, continuous working time> 100,000 hours
- Good output short circuit and over current protection and self-recovery
- National standard pin, PCB board in-line installation
- Potting and sealing with high-quality environmentally friendly waterproof and thermal conductive glue, dustproof, moistureproof, shockproof and flame retardant
- Meet UL/CE/EMC and safety testing requirements
- Can be used in medical, industrial control, electric power, instrumentation, communication, railway and other fields
Hi- link 30M12 |
|
| Environmental conditions | |
| Operating temperature | -25~+60℃ |
| storage temperature | -40~+85℃ |
| Relative humidity | 5~95%RH |
| Cooling method | Natural cooling |
| Atmospheric pressure | 80~160Kpa |
| Altitude | ≤2000m |
| vibration | Vibration coefficient 10~500Hz, 2G10min./1cycle60min.each along X,Y,Z axes |
| Meet the requirements of secondary road transportation | |
| Input characteristics (normal temperature test) | |
| Rated input voltage | 100-240VAC |
| Input voltage range | 85-264VAC/70-350VDC |
| Maximum input current | ≤0.8A |
| Input surge current | ≤50A(typical) |
| Input slow start | ≤50mS |
| Long-term reliability | MTBF≥100,000 H |
| External fuse recommendation | 2A/250V(Slow blow) |
| Output characteristics | |
| Output load | Load percentage 100%MAX |
| Voltage regulation rate | ±0.2 %（Tpy） |
| Load Regulation | ±0.5 %（Tpy） |
| Output overcurrent protection | 150%-200%（Maximum load） |
| Output short circuit protection | Sustainable, self-healing (do not damage the host) |
| Ripple & noise | ≤100mVp-p |
1 x HLK-30M12 Hi-Link 30V 12W AC to DC Power Supply Module
