HLK module or power electronic module provides the physical containment for several power components, usually power semiconductor devices. These power semiconductors (so-called dies) are typically soldered or sintered on a power electronic substrate that carries the power semiconductors, provides electrical and thermal contact and electrical insulation where need.
A power supply is an device that supplies electrical power to an electrical load. ... The input and output are usually hardwired circuit connections, though some power supplies employ wireless energy transfer to power their loads without wired connections.

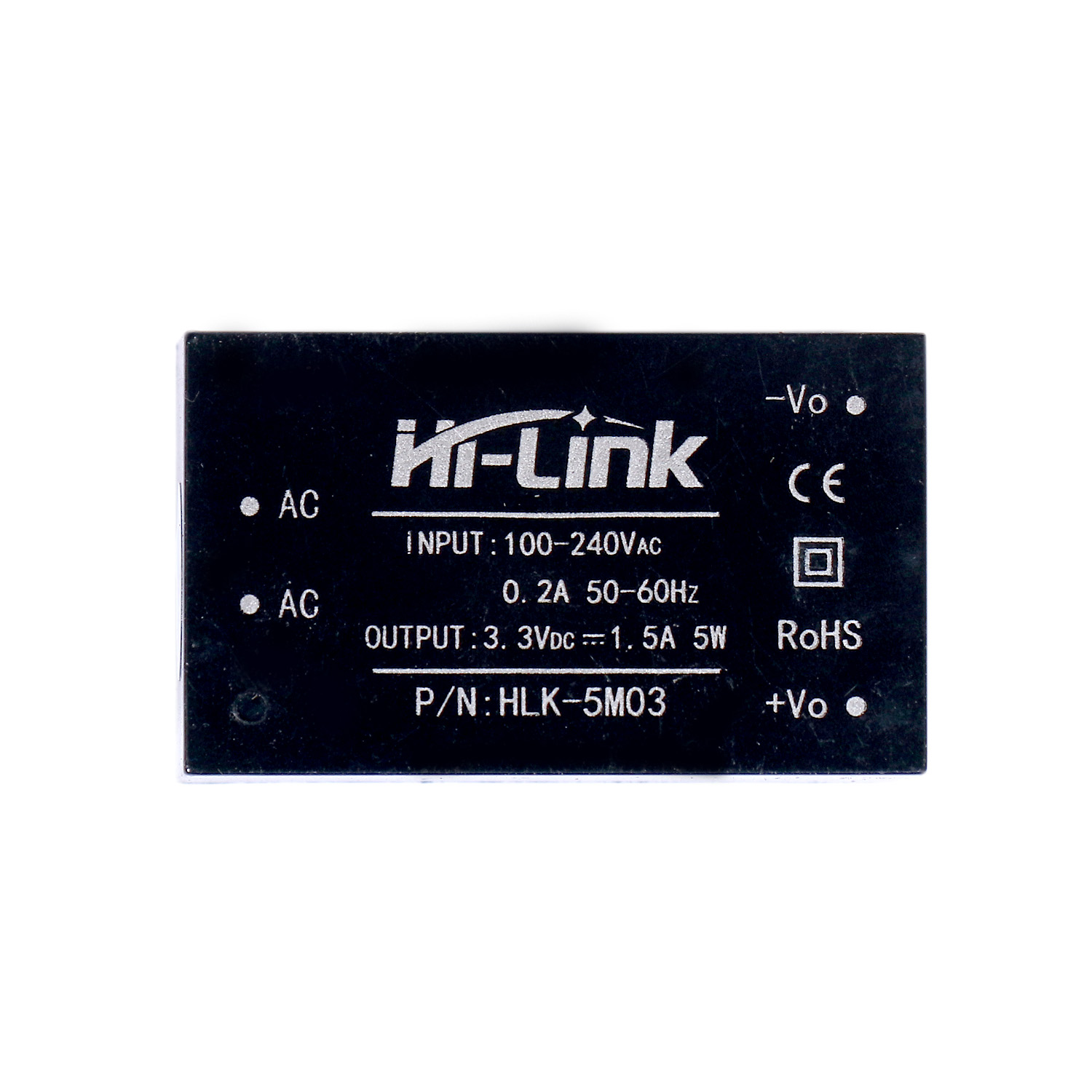

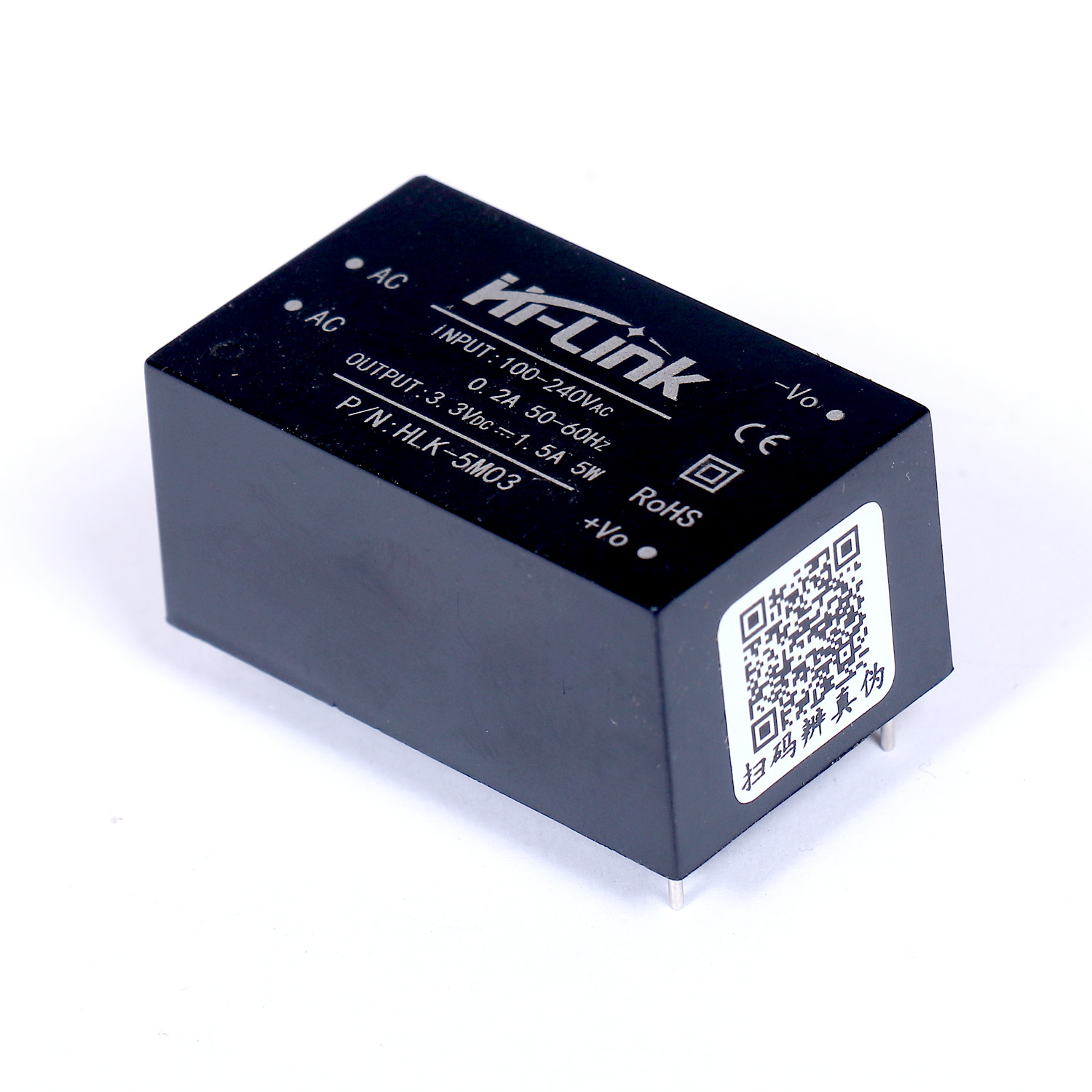

HLK-5M03 3.3V/5W Power Supply Module may be a plastic enclosed PCB mounted isolated power supply module. It can supply 3.3V DC from 100V AC – 240V AC and features a power rating of 5Watt.
You are doing not need to worry about fluctuations within the voltage grid. It is designed to be mounted on the PCB and is that the ideal solution to power pads that you simply take. It is widely utilized in a sensible home, automation and control, communication system , instrumentation, and various other industries. This makes it perfect for little projects that require a 3.3 volt supply from mains. This power supply module replaces many parts from the normal power supply like diodes, transformer and transformers. Therefore there are many advantages for these modules, like low-temperature rise, low power, high efficiency, high reliability, high-security isolation, etc.
Product Details:
| Atmospheric Pressure | 80 - 106 Kpa |
| Relative Humidity | 5 - 95 % |
| Brand | Hi-Link |
| Color | Black |
| Store Temperature | -40 to +80 Deg C |
| Sea Level Elevation | 2000 m |
| Rated input voltage | 100-240 VAC |
| Operation Temperature | -20 to +60 deg C |
| Input Voltage Range | 90-264 VAC |
| Full rated output voltage | +3.3V +/-0.2 |
