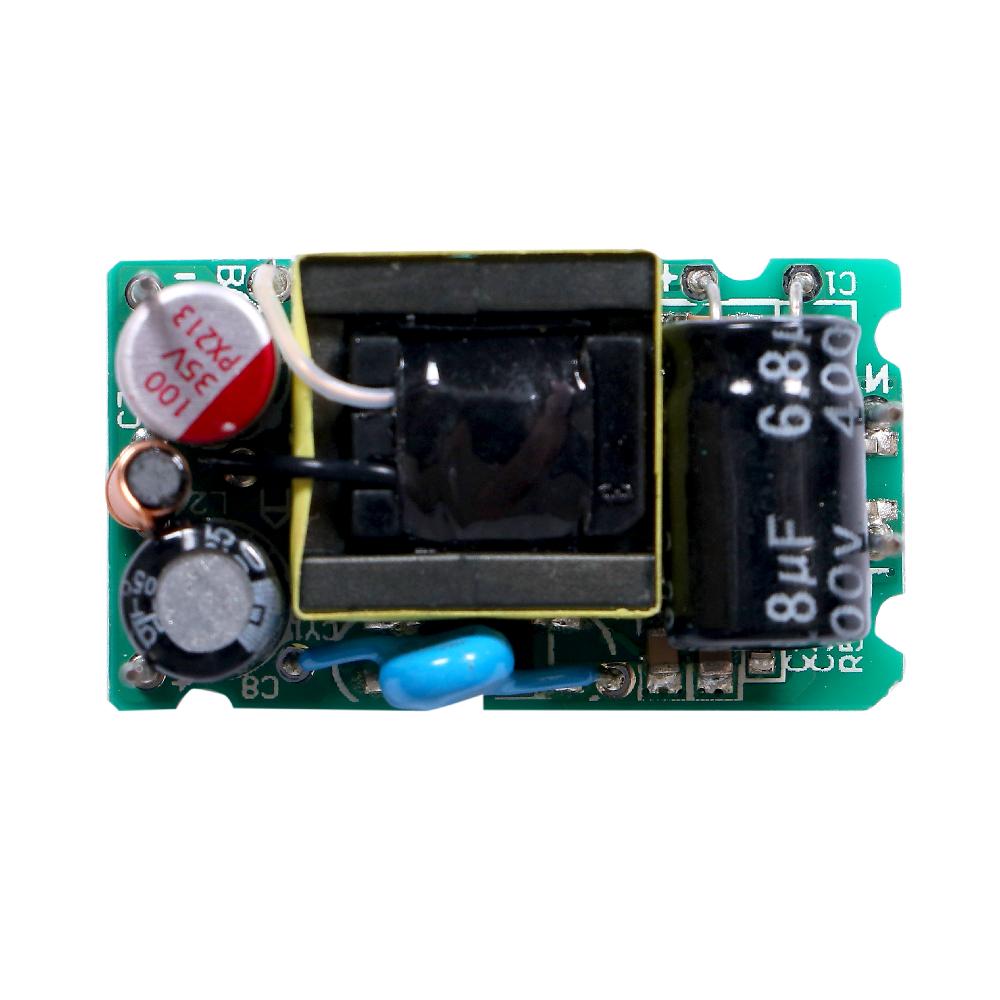

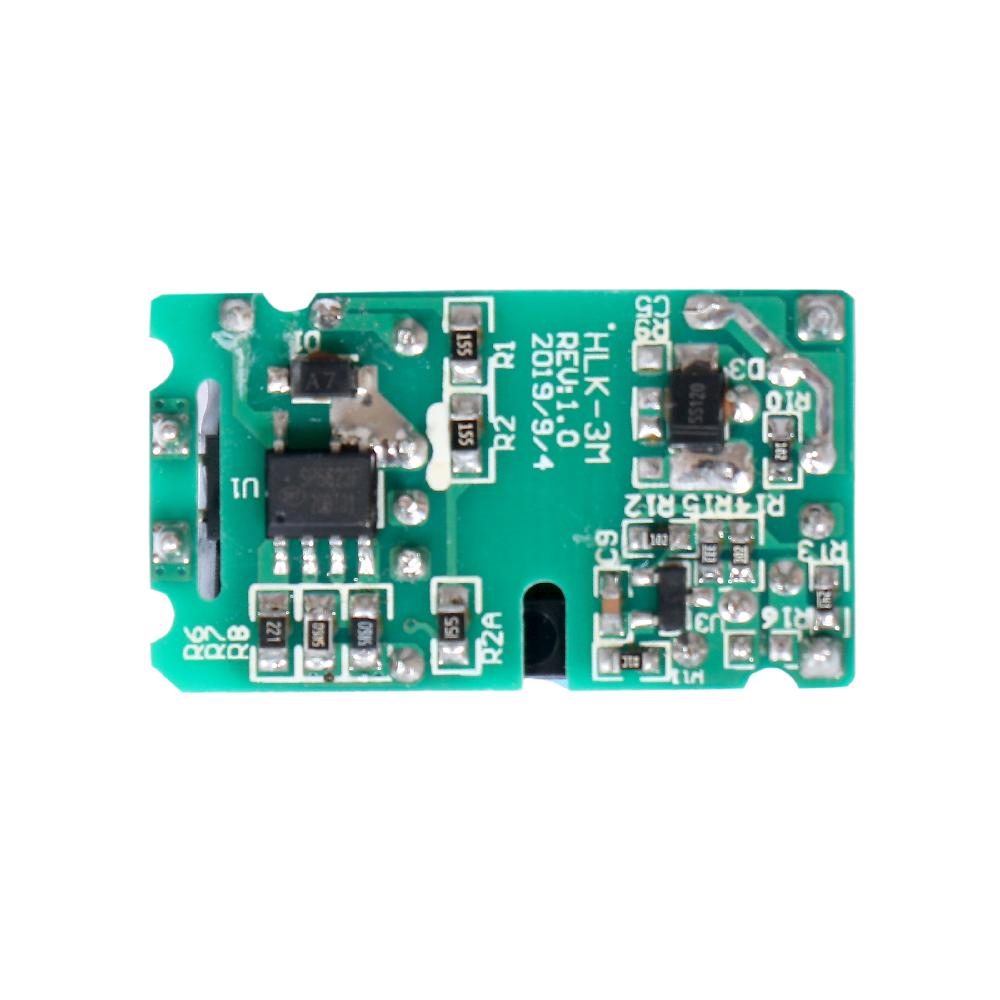

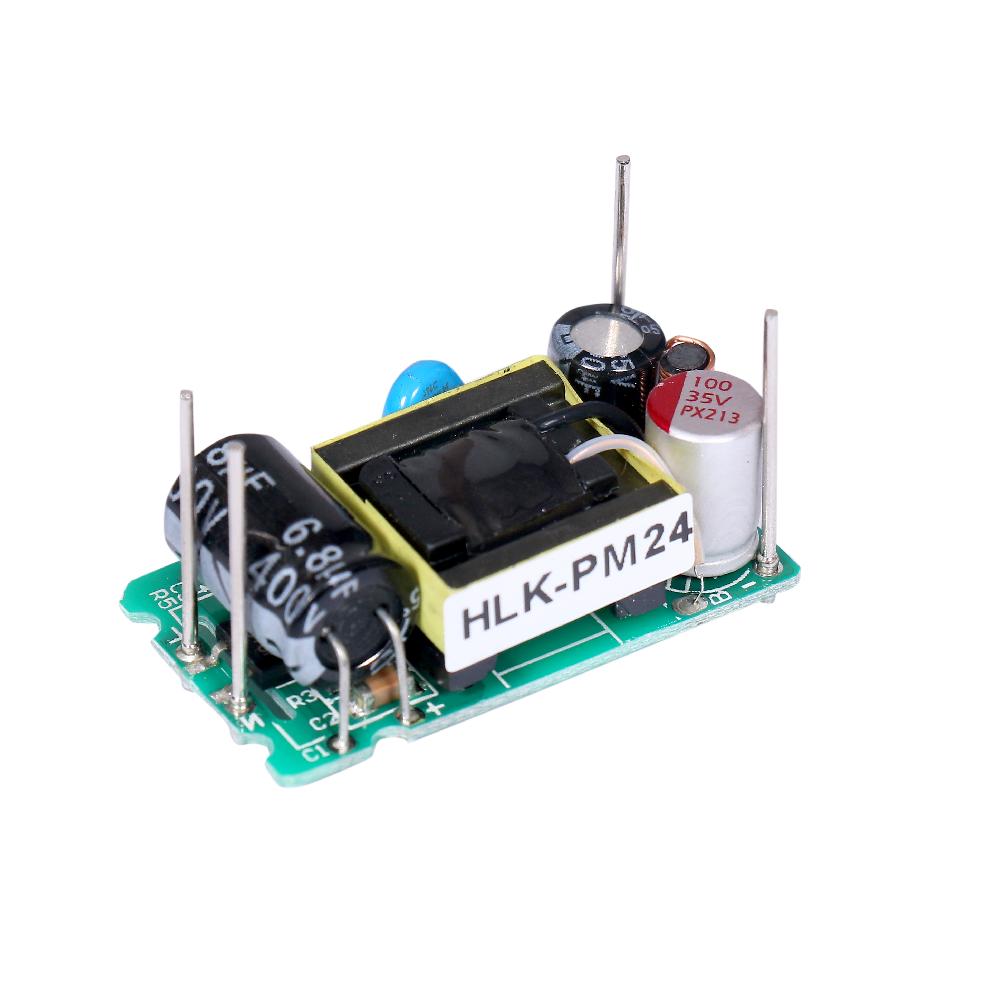

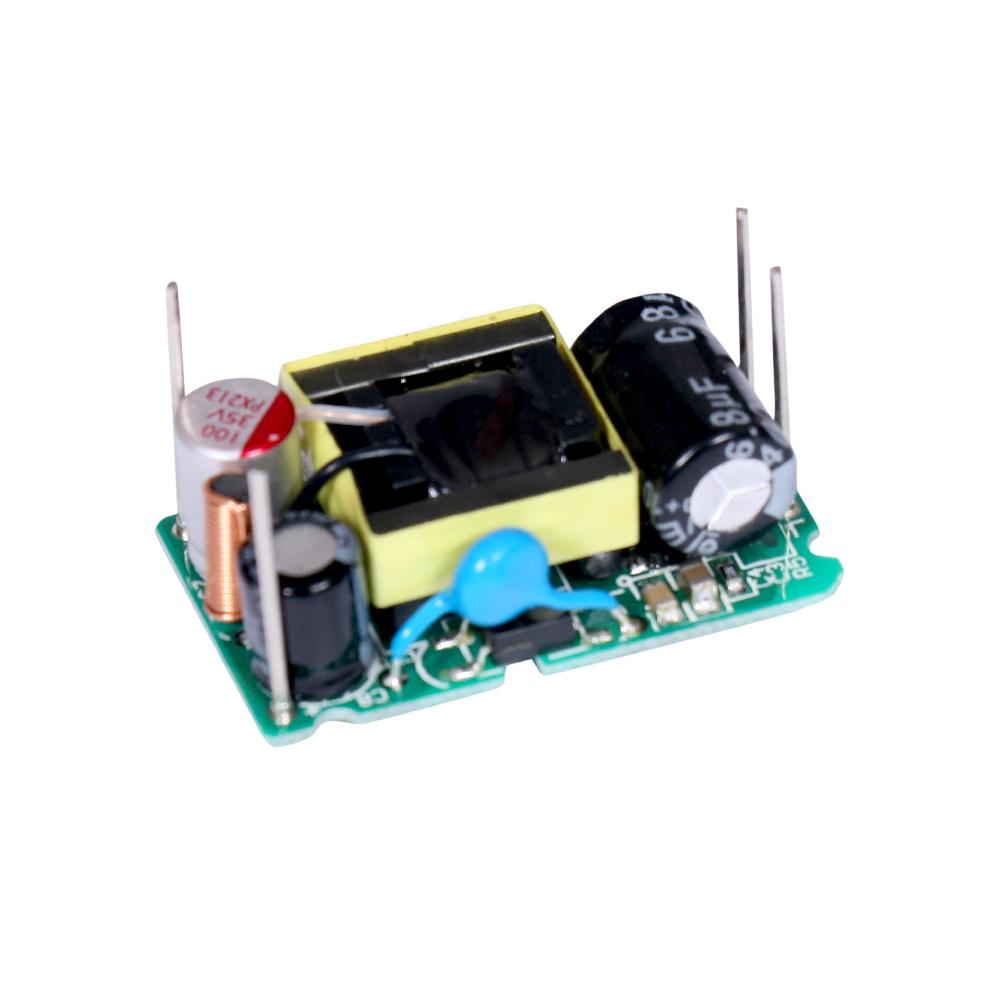

HLK PM24L Open Frame Power Module - 3W ultra-small series of power module is a small volume, high efficiency module power supply designed by Hi-Link Electronics. With the global input voltage range, low temperature rise, low power consumption, high efficiency, high reliability, high security isolation and so on. Has been widely used in smart home, automation, communications equipment, instrumentation and other industries.This Power Supply Module voltage source is a switching source, so you do not have to worry about fluctuations in the voltage grid. It is designed to be mounted on the PCB and is the ideal solution to power pads that you take. It is widely used in a smart home, automation and control, communication equipment, instrumentation, and other industries.
FEATURES: HLK PM24L Open Frame Power Module
- Ultra-thin, ultra-small, minimum volume in the industry
- Universal input voltage ((90~245Vac)
- Low power consumption, environmental protection, no-load loss <0.1W
- Low ripple and low noise
- Good output short circuit and over-current protection and self-recovery
- High efficiency, high power density
- Input-output isolated voltage-proof 3000Vac
- 100% full load aging and testing
- High reliability, long life design, continuous working time more than 100000 hours
- Meet UL,CE requirements; product design meets EMC and safety test requirements
- Adopt high quality environmental protection waterproof heat conduction glue to fill seal,moisture-proof, anti-vibration, meet the IP65 standard of waterproof and dust proof
- Economic solution, cost-effective
- Work without an external circuit
SPECIFICATIONS: HLK PM24L Open Frame Power Module
- Hi-link part number: HLK-PM024L
- Morsun part number: LD0-2B24R2
- Power: 3W
- Package size: 44.5*25.4*20mm
- Input voltage range: 85¬264V
- Output voltage: 24V
- Output current: 125mA
- Connection mode: Series switching power supply
- Isolation voltage: 3000Vdc
Package includes : 1 X HLK PM24L Open Frame Power Module
