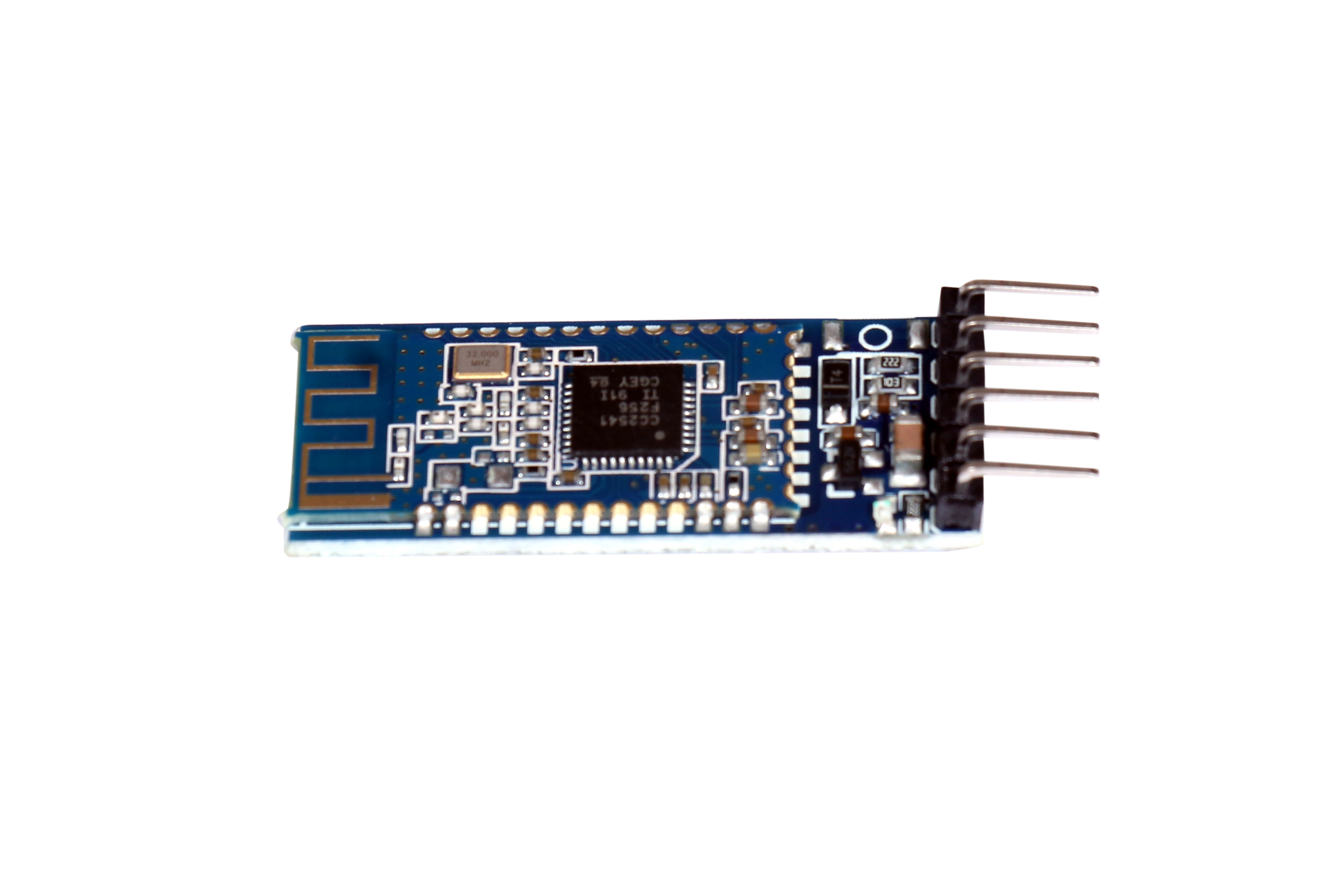

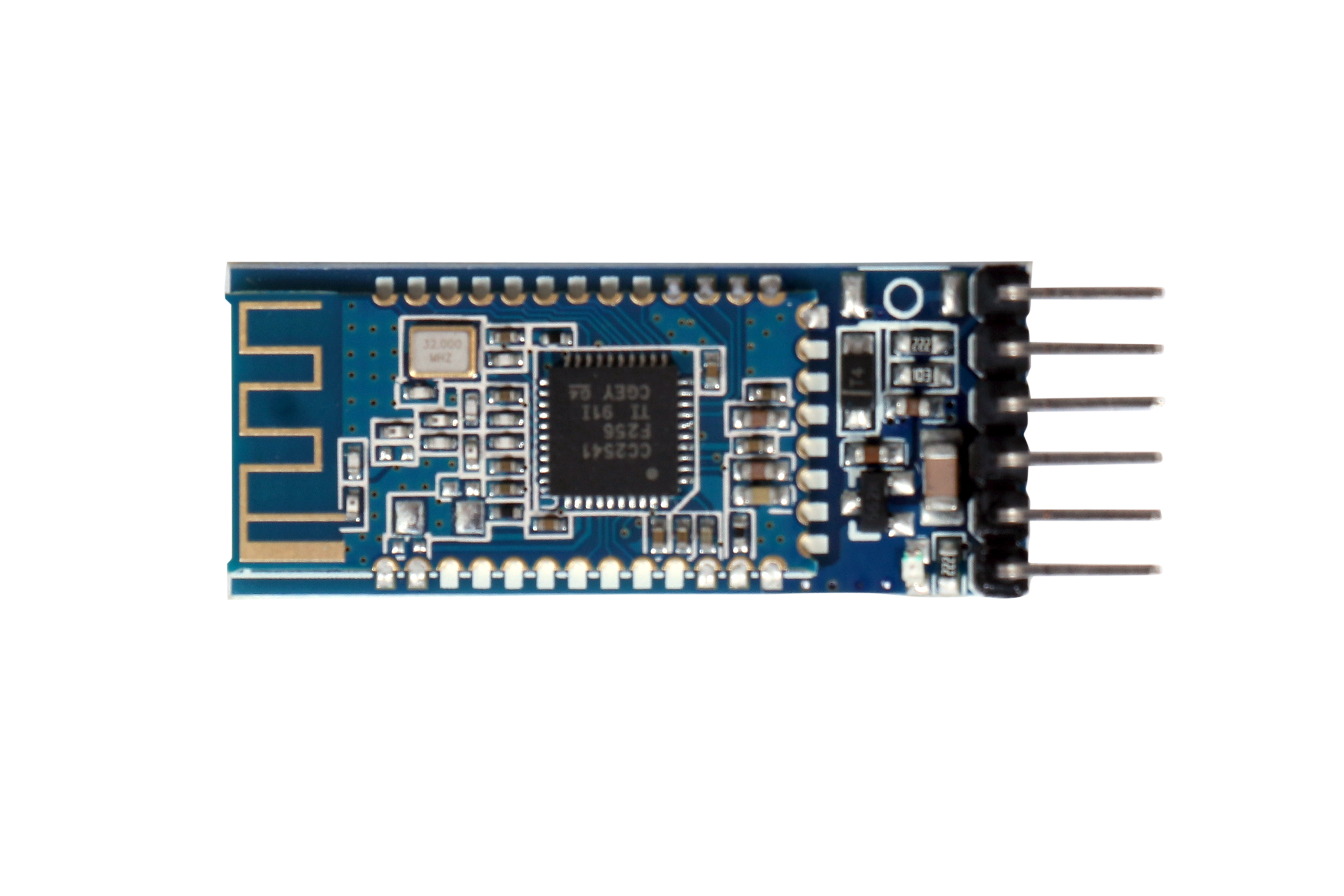

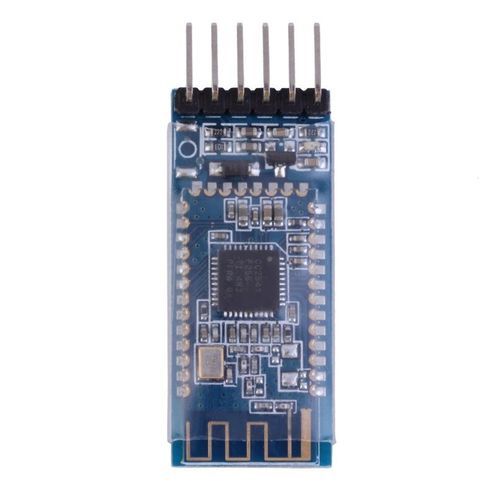

HM-10 BLE Bluetooth Module with TTL
With BLE 4.0 support, Internal with logic level conversion circuit. The module offers an on-board voltage regulator and is TTL-level and 5 V tolerant. The HM 10 BLE 4.0 Bluetooth Module SoC can be accessed via UART interface
The Bluetooth-SoC are often accessed via UART interface and supports AT-Commands for setup. It supports full Bluetooth 4.0 standard and can be used for your Arduino or microcontroller to Android or iOS communication projects.
If you're in need of such a 4.0 BLE Bluetooth module, MCU are often found out , can also controlled by a foreign Bluetooth device for setting, can transfer data, and can remotely control 10 PIO pins,so the best choice is HM-10 Bluetooth module.
Support remote mode, remote device can control PIO pin or modify settings by AT commander when Connected. (Such as Iphone4s/5 ipad, Note2 etc.)
HM TTL Module Support Central and Peripheral mode switch, modify by AT commander Bluetooth module use CSR BlueCore or TI CC2540, Master and slave roles in one, transmission version and remote control version and PIO stateacquisition functions in one, Support the AT command modify moduleparameters, Convenient and versatile .Transmission version are often wont to transmit data between two Bluetoothdevices.
Remote Control version are often wont to Control PIO ports output high orlow level with none other MCU.The PIO state acquisition version are often wont to acquisition PIO ports state without any other MUC. (Only support Bluetooth V2.1)HM-01, HM-02, HM-03, HM-04, HM-05, HM-06, HM-07, HM-08, HM-09 isBluetooth V2.1 version. Use CSR Chip. High-performance TI CC2541 Bluetooth Low Energy SOC built andEasy to use because of 5 V/TTL exposure level Tolerant inputs. It isConfigurable with at commands per UART
Ideal for wireless communication between Arduino or Micro controllers and Android or iOS devices
Operating voltage: 5 V, modes: Master/Slave (adjustable), baud rate: 9600 – 115200 (adjustable), Interface: UART, Bluetooth 4.0. It can Send and receive no bytes limit.
Its Working frequency: 2.4GHz ISM band and Modulation method: GFSK(Gaussian Frequency Shift Keying). Incorporated with RF Power: -23dbm, -6dbm, 0dbm, 6dbm, can modify through AT Command AT+POWE.
Its Speed : Asynchronous : 6K Bytes and Synchronous : 6K Bytes
HM BLE TTL module Power range : +3.3VDC 50mALong range : Open space have 100 Meters with iphone4s
Power : In sleep mode 400uA~1 .5mA, Active mode 8.5mA.Incorporated with Working temperature: –5 ~ +65 Centigrade and Size : HM-10 26.9mm x 1 3mm x 2.2 mm.
Product Details:
| Asynchronous Speed | 2.1Mbps(Max) / 160 kbps |
| Power Supply | 3.3VDC 50mA |
| Sensitivity | Less Than -84dBm at 0.1% BER |
| Working Temperature | -5 ~ 65 Deg Centigrade |
| Working Frequency | 2.4 GHz ISM band |
| Synchronous Speed | 1Mbps/1Mbps(Max) |
| Size | 26.9mm x 13mm x 2.2 mm |
| Service | Bluetooth SPP(Master & Slave) |
| RF Power | Less than 4dBm, Class 2 |
| Modulation Method | GFSK(Gaussian Frequency Shift Keying) |
| Flash | 256Kb |
