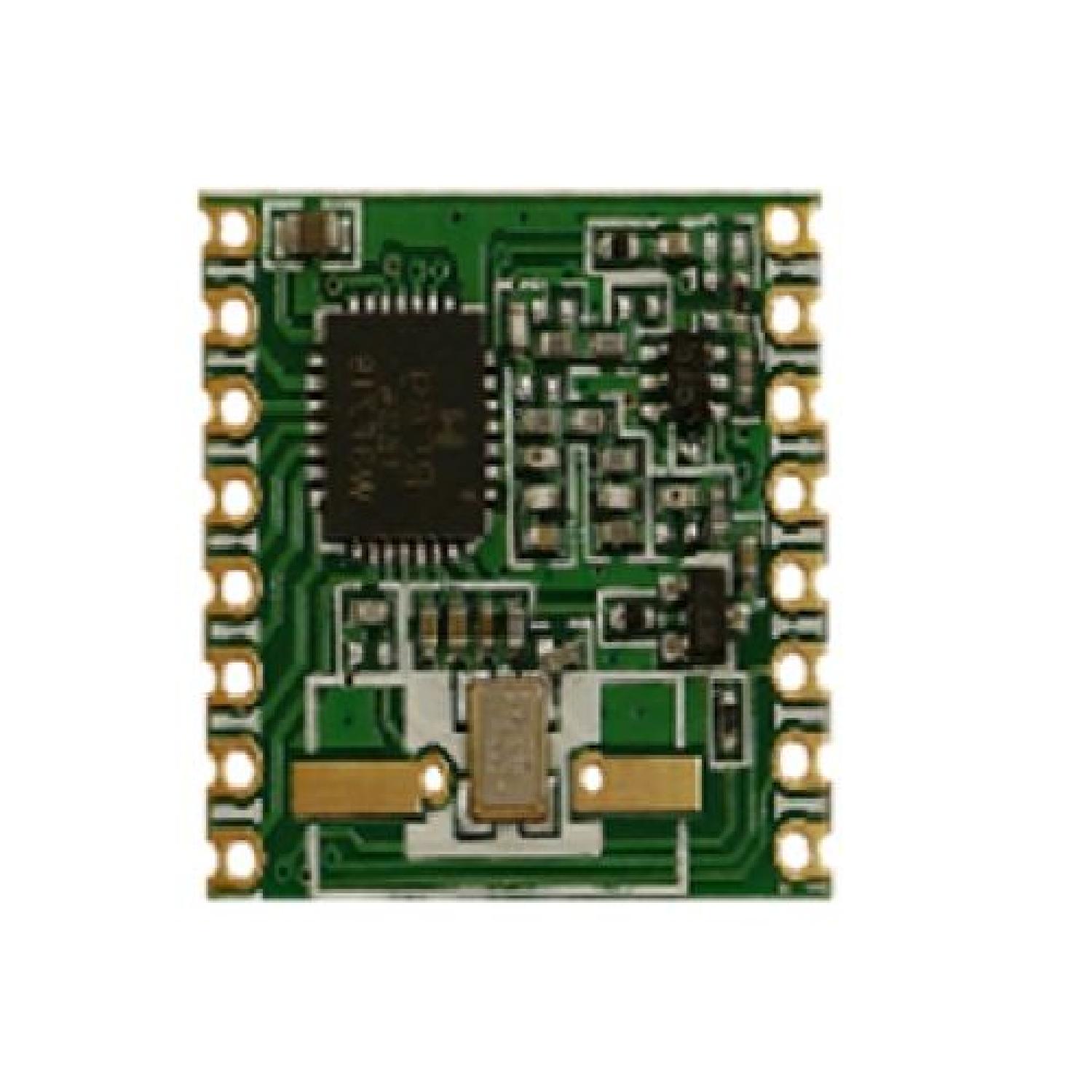

HOPERF RFM69HW-868S2R – High Power 868MHz ISM Transceiver Module
The RFM69HW-868S2R from HOPERF is a compact and efficient RF transceiver module that operates in the license-free ISM bands, including 868 MHz, making it suitable for European wireless applications. It features programmable communication parameters, high sensitivity, and narrow/wide-band support, providing the flexibility needed for complex RF applications.
With an RF output power of up to +20 dBm, and receiver sensitivity down to -120 dBm, the RFM69HW ensures robust and long-range wireless communication. Its 16-tap FIR filter, 80 dB blocking immunity, and built-in AES-128 encryption make it secure and resilient, even in harsh RF environments.
Thanks to its low RX current of 16 mA and register retention at just 100 nA, it’s also ideal for battery-powered devices. The module is suitable for a wide range of wireless applications including automated meter reading, home automation, wireless alarms, M-Bus, and industrial control systems.
Key Features: HOPERF RF module RFM69HW-868S2R
- +20 dBm Output Power (100 mW)
- High Sensitivity: Down to -120 dBm at 1.2 kbps
- Wide Frequency Support: 315/433/868/915 MHz ISM Bands
- Modulation Types: FSK, GFSK, MSK, GMSK, OOK
- Ultra-Low Power Consumption: 16 mA RX, 100 nA standby
- Built-in Bit Synchronizer & Clock Recovery
- AES-128 Encryption & CRC-16 for Data Integrity
- Programmable Output Power (-18 to +20 dBm)
- Automatic RF Sense with Fast AFC
- 115+ dB Dynamic Range RSSI
- Packet Engine with 66-Byte FIFO
- Built-in Temperature Sensor
- Compact Size: 19.7 x 16 mm
Applications: HOPERF RF module RFM69HW-868S2R
- Automated Meter Reading (AMR)
- Wireless Sensor Networks
- Home & Building Automation
- Wireless M-Bus Communication
- Industrial Monitoring and Control
- Wireless Alarm and Security Systems
Technical Specifications: HOPERF RF module RFM69HW-868S2R
- Model: RFM69HW-868S2R
- Frequency Band: 868 MHz
- Output Power: +20 dBm (programmable in 1 dB steps)
- Receiver Sensitivity: -120 dBm
- Current Consumption (RX): 16 mA
- Standby Current: 100 nA (register retention)
- Bitrate: Up to 300 kbps
- Modulations Supported: FSK, GFSK, MSK, GMSK, OOK
- Synthesizer Resolution: 61 Hz
- Built-in Functions: Bit synchronizer, AES-128, CRC-16, temperature sensor
- Size: 19.7 x 16 mm
- Compliance: ETSI, FCC
Comparison Chart: LoRa vs RFM69HW Modules
| Feature / Parameter | HOPERF RFM69HW-868S2R | HOPERF RFM95W-868S2R (LoRa) |
|---|---|---|
| Technology | FSK / GFSK / OOK / MSK / GMSK | LoRa™, FSK, GFSK, OOK |
| Frequency Band | 868 MHz (ISM) | 868 MHz (ISM) |
| Output Power | +20 dBm | +20 dBm |
| Sensitivity | -120 dBm | -144 dBm |
| Max Bitrate | 300 kbps | 300 kbps |
| Dynamic Range RSSI | 115 dB+ | 127 dB |
| Packet Engine | 66-byte FIFO with CRC & AES-128 | 256-byte with CRC |
| RX Current Consumption | 16 mA | 10.3 mA |
| Standby Current | 100 nA | 200 nA |
| Synthesizer Resolution | 61 Hz | 61 Hz |
| Security | AES-128 encryption | No built-in encryption |
| Range (Line of Sight) | Medium Range | Ultra Long Range |
| Best Use Cases | Sensor networks, industrial RF | LoRaWAN, smart agriculture, IoT |
| Module Size | 19.7 x 16 mm | 16 x 16 mm |
