To meet the challenge of designing power sub-systems, many designers are considering using power modules instead of traditional discrete POL designs, with time to market, size constraints, reliability and design capabilities being motivating factors.Today's power systems for communications and computing infrastructure support high current loads from increasingly power hungry FPGAs, ASICs and microprocessors.
To supply these high current circuits, equipment makers often believe discrete power solutions that are complicated, take up valuable real-estate and should have significant power output limitations.
Power modules are commonly used diode, SCr, or SCR/Diode circuit configurations and ratings. Power modules often power semiconductor devices, and also provide a simple thanks to cool the device also as connect them to the outer circuit. Power Modules are mechanically and thermally optimized for simple assembly, long life and reliable operation. There are several common structures that power modules are available in, like IGBT or MOSFET.

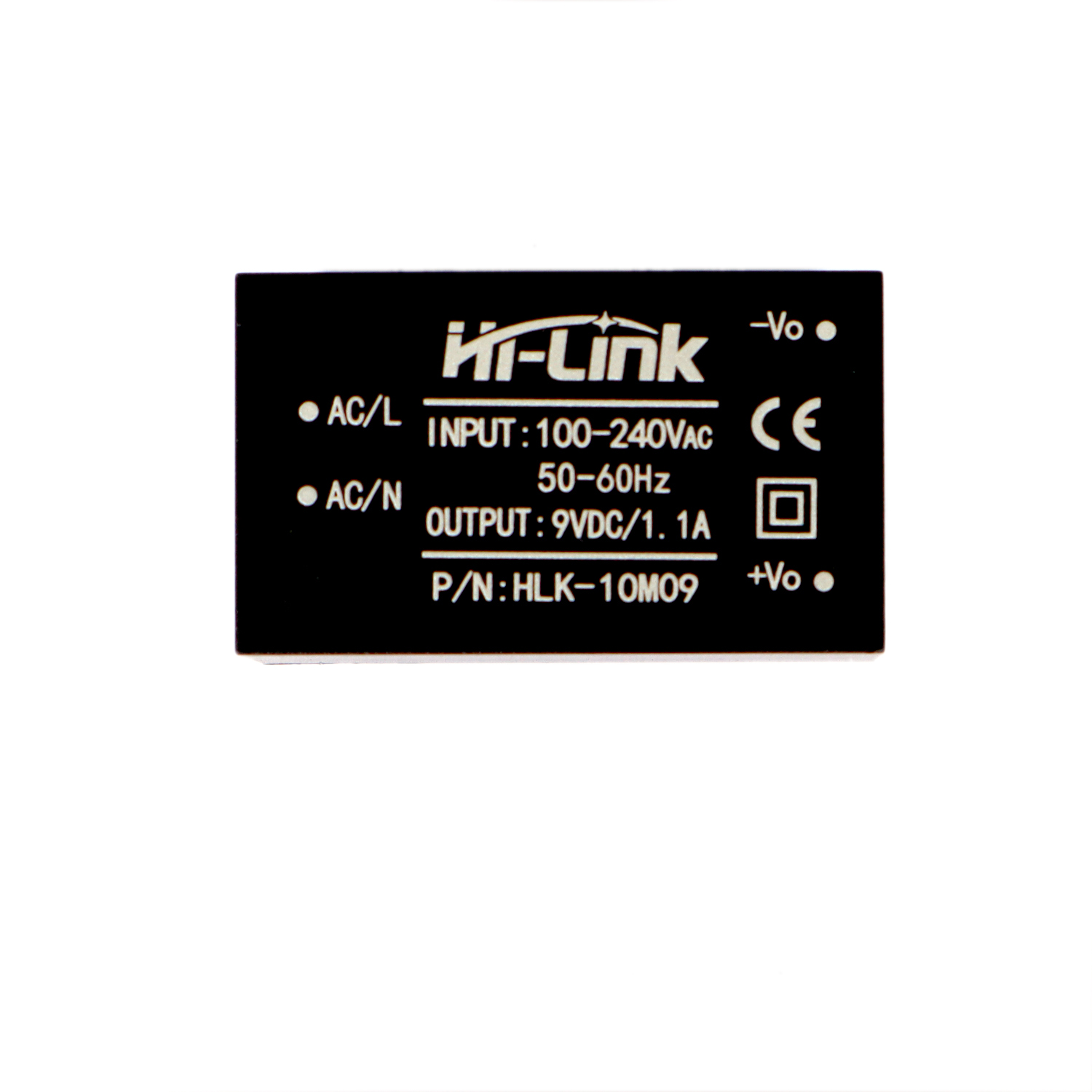

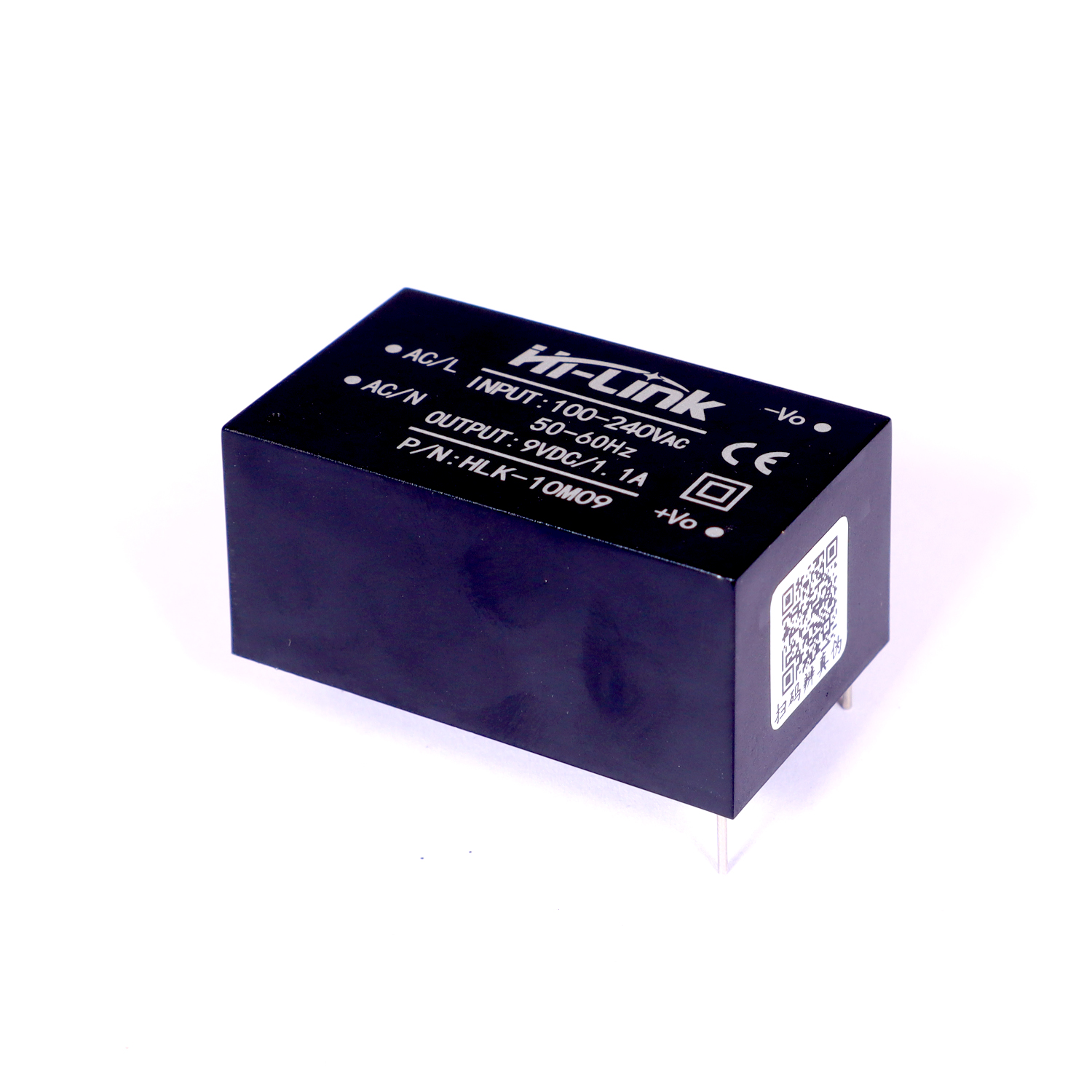

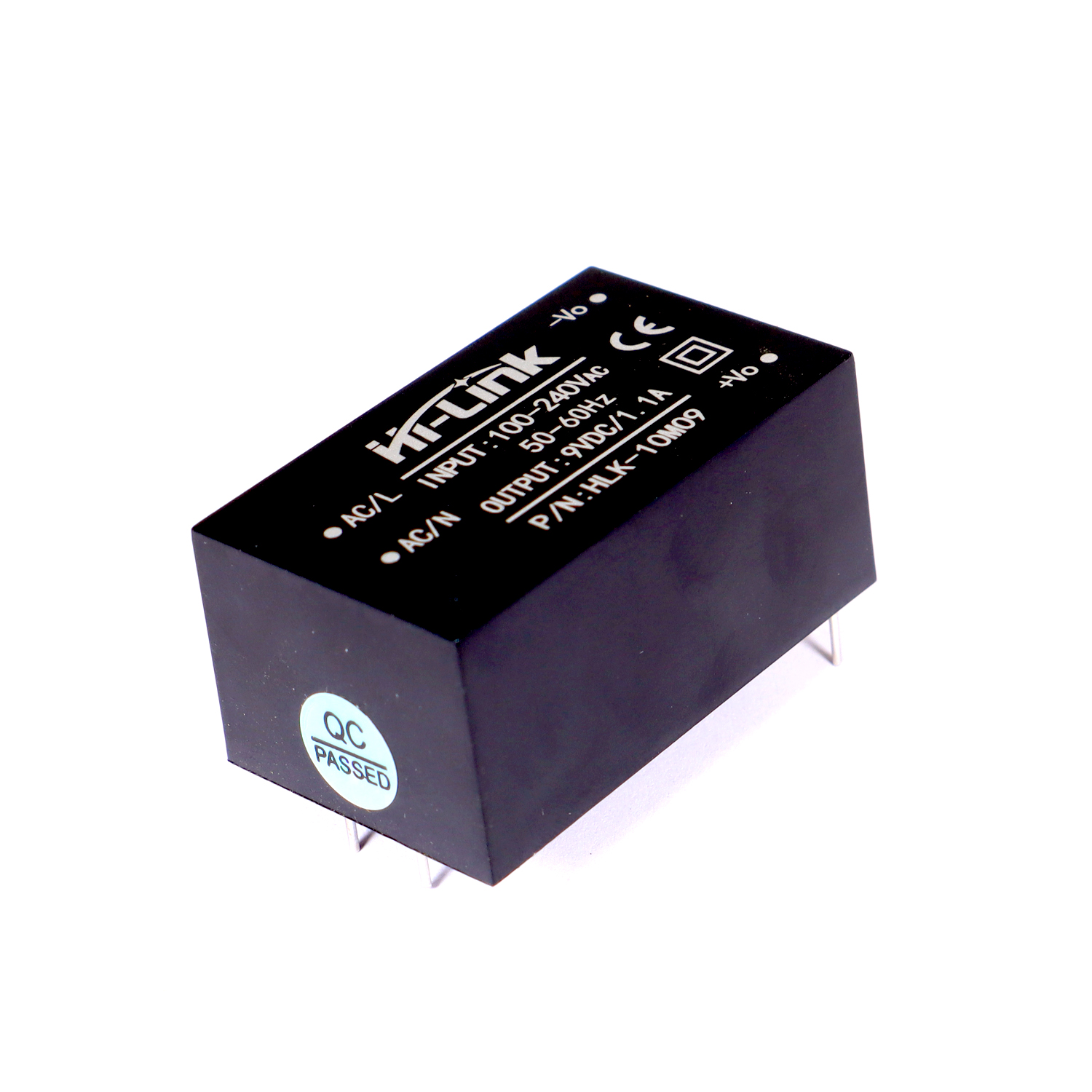

Power Modules share many qualities with diodes, and are often classified by the diode that they feature (Fast recovery, Hybrid SCR-High Voltage, Schottky, Standard, Standard Hybrid SCR, Standard SCR, etc), for instance . The Zener and Avalanche effects are still applicable in the appropriate diode configurations.The 10W ultra-small series power supply module is a small volume, high efficiency power module designed for customers by Hi-Link. It has the advantage of global input voltage range, low-temperature rise, low power consumption, high efficiency, high reliability, high-security isolation etc. and has been widely used in the smart home, automation control, communication system , instruments and other industries.
It is designed to be mounted on the PCB and is that the ideal solution to power pads that you simply take. It is widely utilized in a sensible home, automation and control, communication equipment, instrumentation, and other industries.
Its features involve: Ultra-thin, ultra-small, minimum volume in the industry, Universal input voltage (90~245Vac), Low power consumption, environmental protection, no-load loss.
