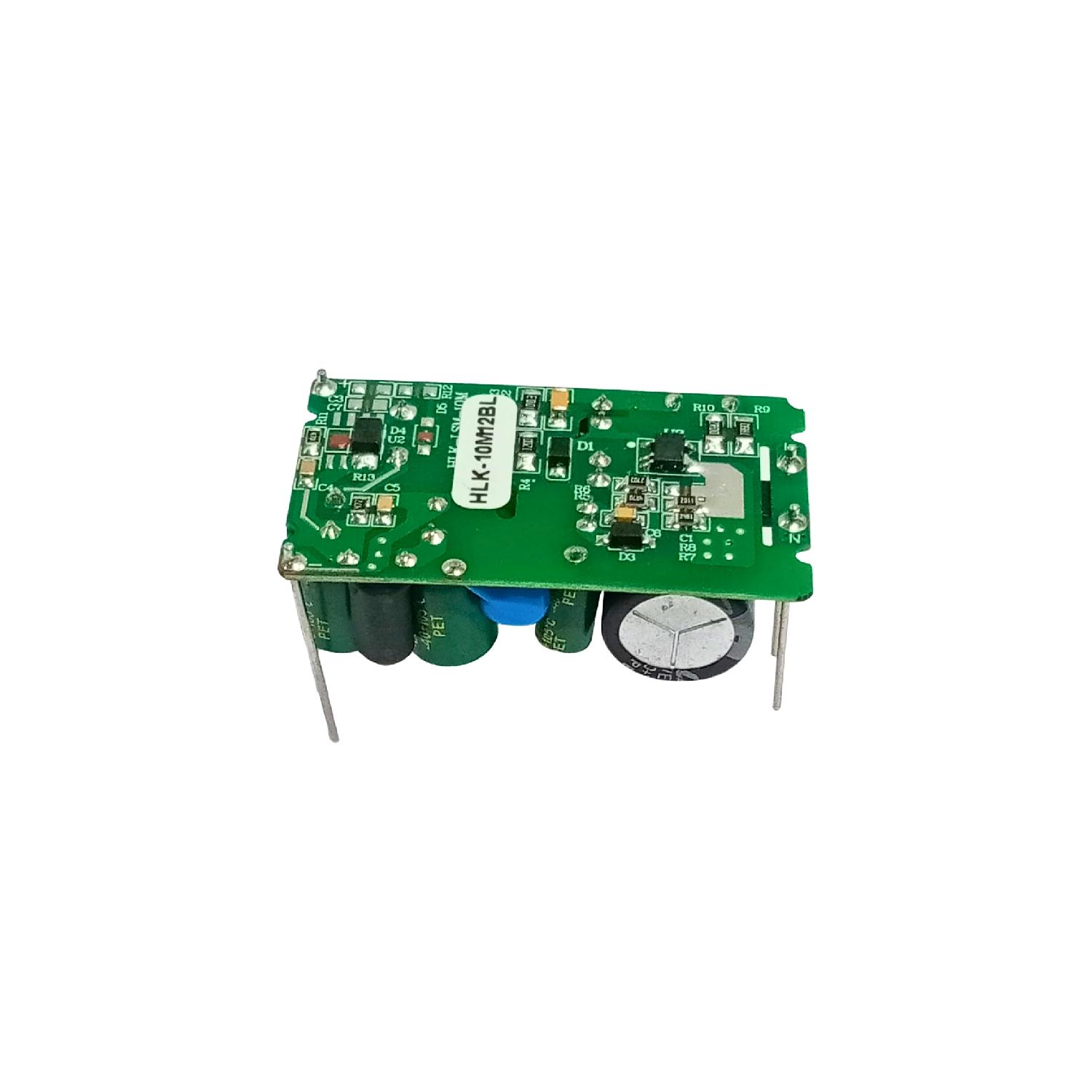

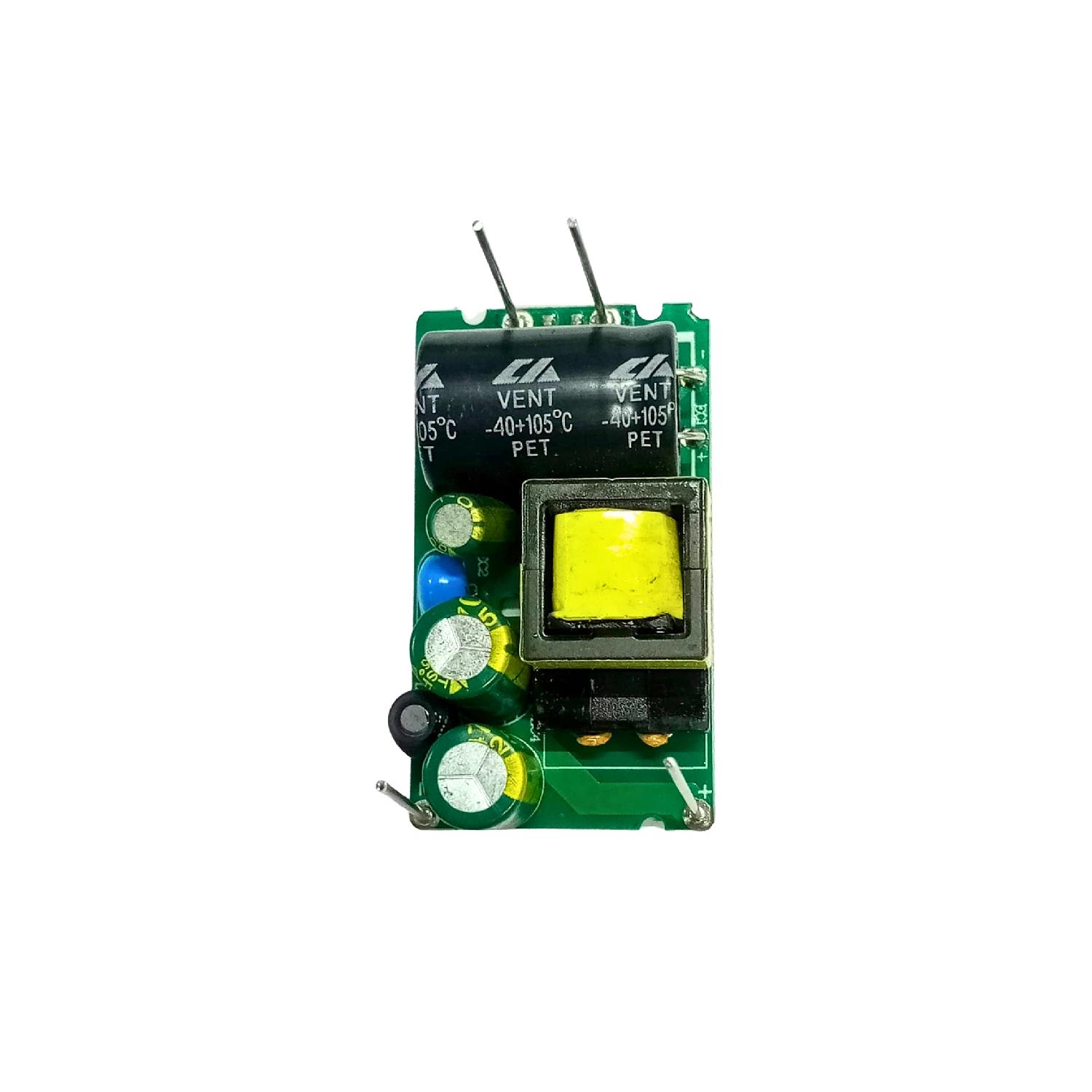

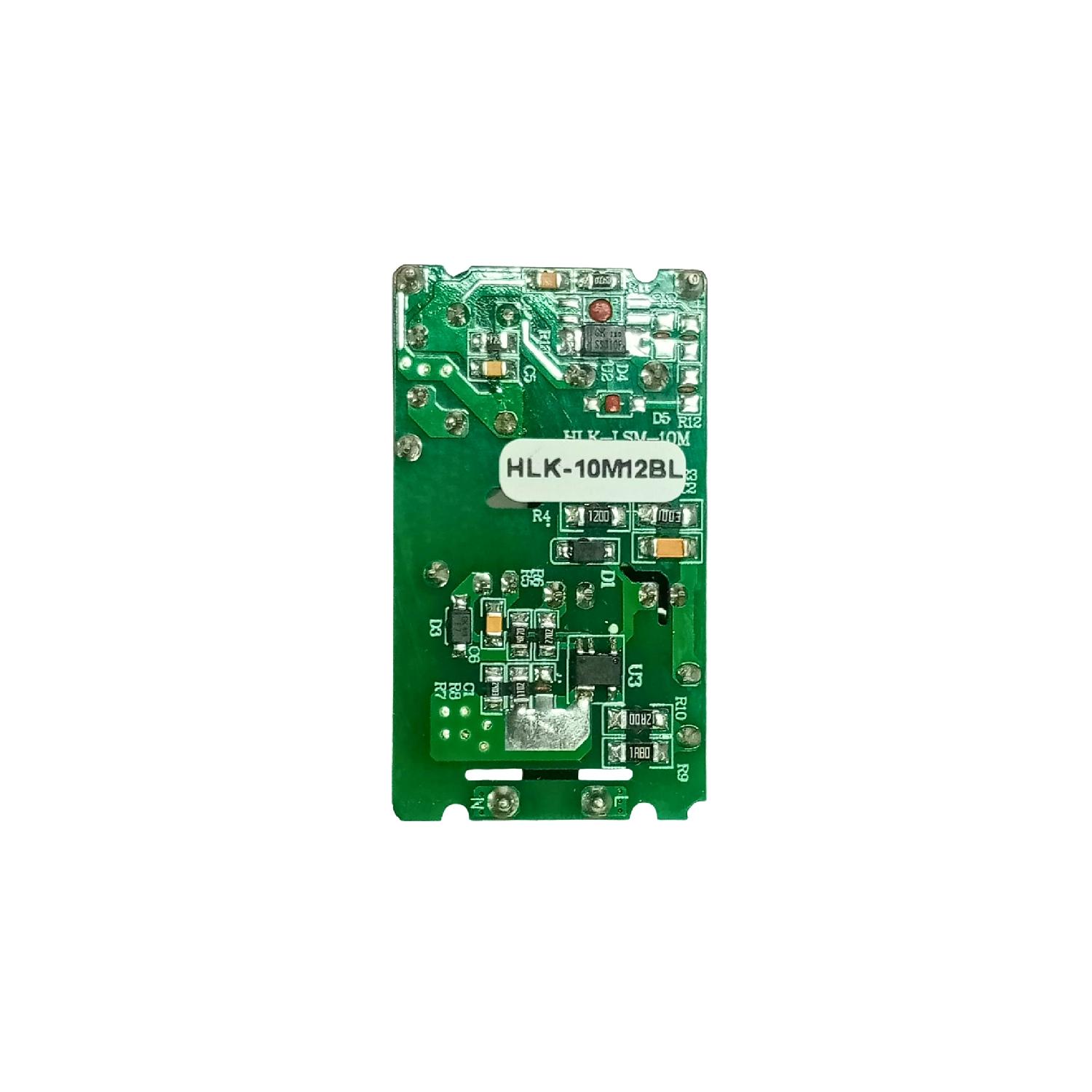

The Hi-Link HLK-10M12BL is a high-performance open-frame AC to DC switching power supply module designed for direct PCB integration. It converts a wide-range AC mains input (85–264VAC) into a stable, isolated 12V DC output, delivering up to 10W of output power.
This module is ideal for applications requiring a compact, efficient, and electrically isolated power source. The BL / open-frame variant omits a plastic enclosure, allowing easy integration into custom housings and space-constrained or cost-sensitive designs while maintaining strong insulation and safety characteristics.
With built-in protection features, low no-load power consumption, and robust isolation, the HLK-10M12BL is well suited for continuous operation in embedded systems, automation equipment, and smart electronics.
Key Features - Hi-link HLK-10M12BL
- Wide AC input range: 85–264 VAC (global mains compatibility)
- Regulated DC output: 12V DC at 0.8–0.83A (≈10W)
- Low no-load power consumption: < 0.1W
- High isolation safety: Input-to-output isolation up to ~3000 VAC
- Built-in protection: Overcurrent & short-circuit with auto-recovery
- Compact open-frame design: Ideal for PCB mounting
- Low ripple & noise: Suitable for sensitive electronics
- Designed for long-term, reliable operation
- EMC & safety-ready design for compliant system integration
Technical Specifications -Hi-link HLK-10M12BL
- Input Voltage: 85 – 264 VAC
- Input Frequency: 50 / 60 Hz
- DC Input Support: 70 – 350 VDC (in some versions)
- Output Voltage: 12V DC
- Maximum Output Current: 0.8 – 0.83A
- Output Power: ~10W
- Isolation Voltage: ~3000 VAC (input to output)
- No-Load Power Consumption: < 0.1W
- Ripple & Noise: Low (tens of mV with external filtering)
- Operating Temperature: –25°C to +60°C (up to +70°C in some cases)
- Dimensions: Approx. 46.9 × 27.8 × 21.8 mm
- Mounting Type: PCB mount
- Module Type: Open-frame AC to DC SMPS
(Refer to the datasheet for exact electrical and mechanical details.)
Applications - Hi-link HLK-10M12BL
- Embedded systems & controller boards
- IoT devices & smart electronics
- Home & building automation
- Industrial control systems
- Instrumentation & measurement devices
- Communication equipment
- DIY electronics & prototyping
Package Includes
-
1 × Hi-Link HLK-10M12BL AC to DC Power Supply Module
