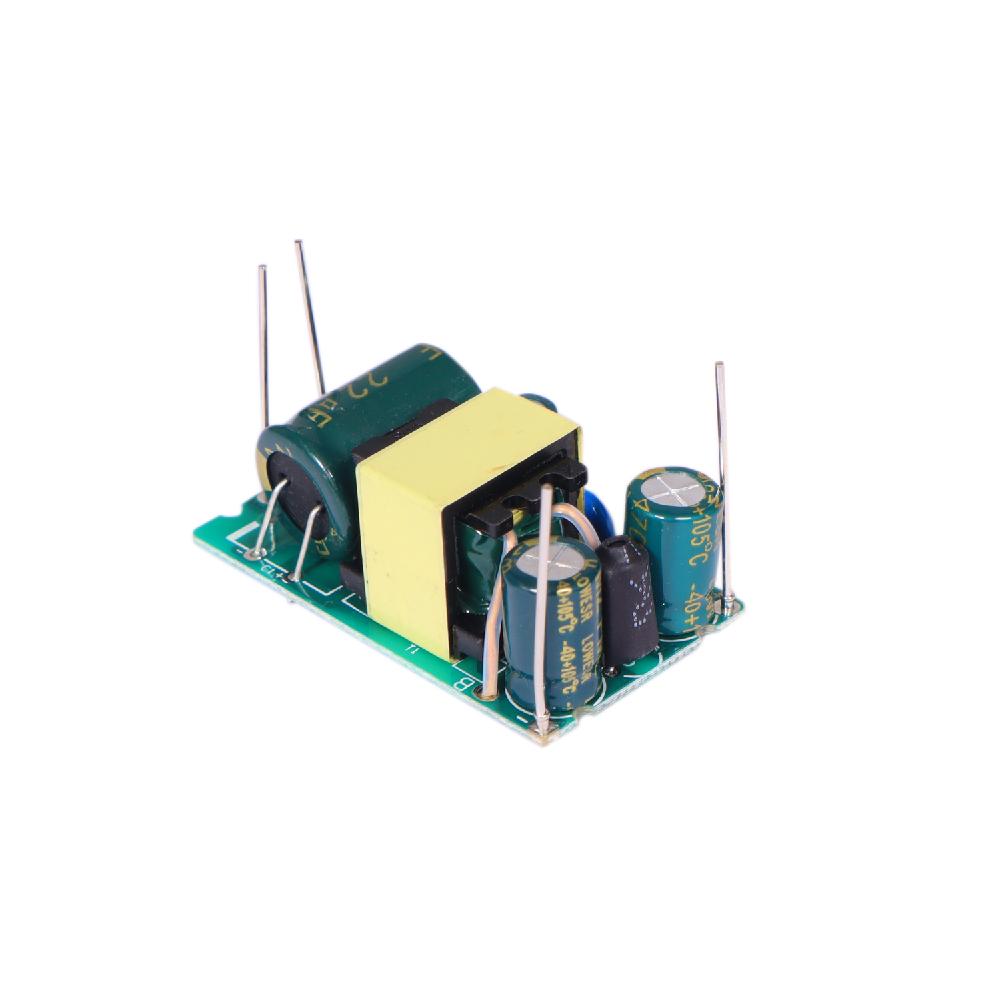

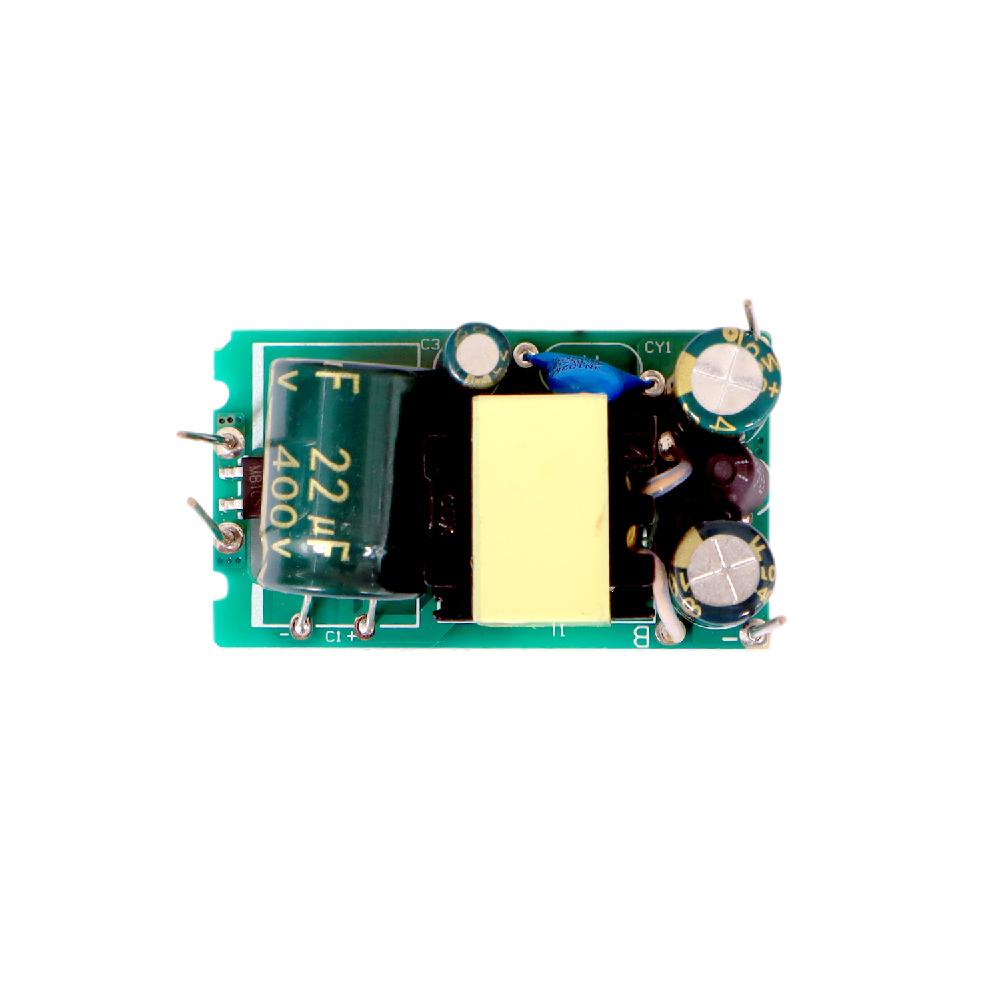

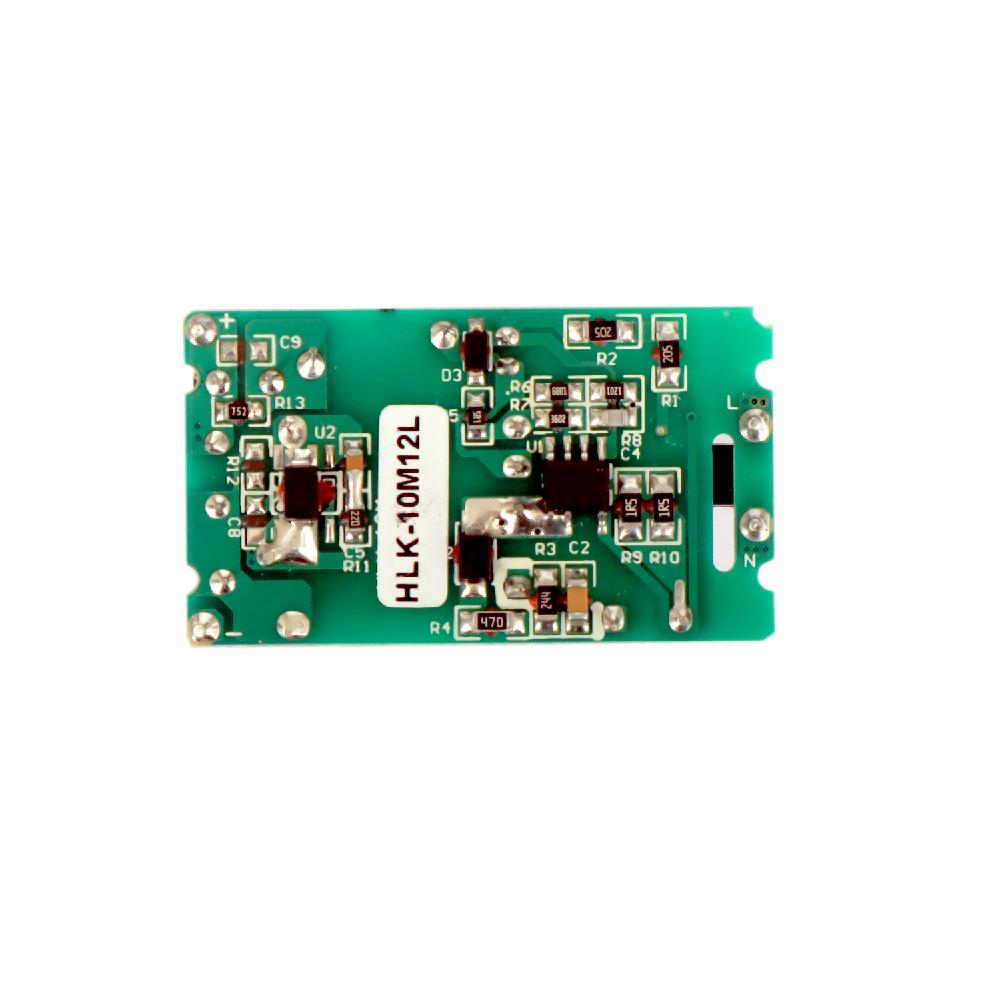

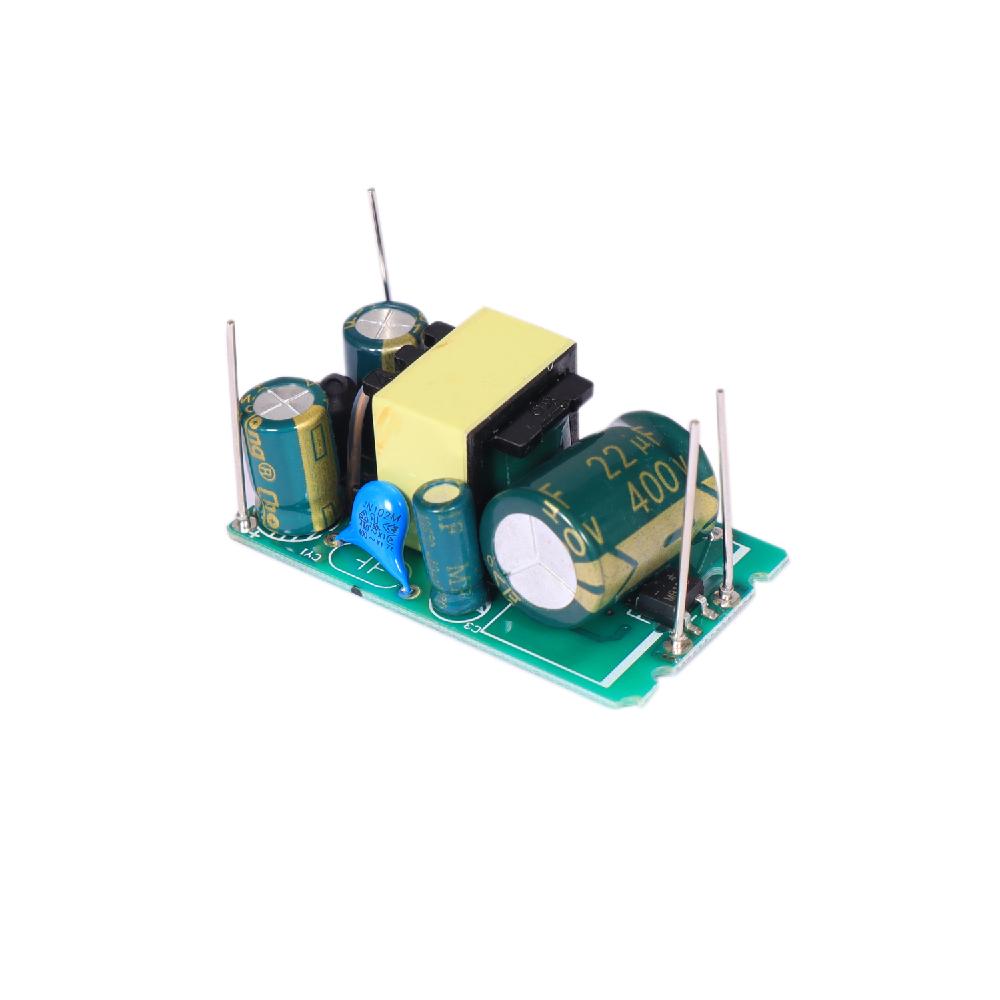

HLK-10M12L is an open frame type power supply module from Hi-Link. This module is same as Hi-Links HLK-10M12 the only difference is HLK-10M12L is open frame type power Supply.
HLK-10M12L 12 volts 10 watt AC to DC Step Down PCB Mount Board HLK-10M12L from Hilink is a isolated switching step-down power supply module and can supply 12 volts DC from 120 Volts to 230 Volts AC input and has a power rating of 10 watts. This compact size power module makes it perfect to use in places where size is a constraint. HLK AC to DC power supply modules is a compact PCB mountable plastic enclosed power supply module. HLK-10M12L Power Supply Module replaces lots of parts from the traditional power supply like diodes, voltage regulator, transformer. HLK Power Supply modules are perfect solutions if you want your power supply on PCB. Hi-link AC to DC Power supply modules are widely used in various applications like smart homes, communication equipments, automation and control and various other industries.
Features of HLK-10M12L Power Supply Module
- • Ultra-thin, ultra-small, minimum volume in the industry
- • Universal input voltage ((90~245Vac)
- • Low power consumption, environmental protection, no-load loss <0.1W
- • Low ripple and low noise
- • Good output short circuit and over-current protection and self-recovery
- • High efficiency, high power density
- • Input-output isolated voltage-proof 3000Vac
- • 100% full load aging and testing
- • High reliability, long life design, continuous working time more than 100000 hours
- • Meet UL,CE requirements; product design meets EMC and safety test requirements
- • Adopt high quality environmental protection waterproof heat conduction glue to fill seal, moisture-proof, anti-vibration, meet the IP65 standard of waterproof and dust proof
- • Economic solution, cost-effective
- • Work without an external circuit
Specification of HLK-10M12L Power Supply Module
- • Hi-link part number: HLK-10M12L
- • Morsun part number:LH10-13B012
- • Power: 10W
- • Package size: 44.5*25.4*20 mm
- • Input voltage range: 85¬264V
- • Output voltage: 12Vdc
- • Output current: 830mA
- • Connection mode: Series switching power supply
- • Isolation voltage: 3000Vdc
Package Includes : 1x HLK-10M12L Power Supply Module
