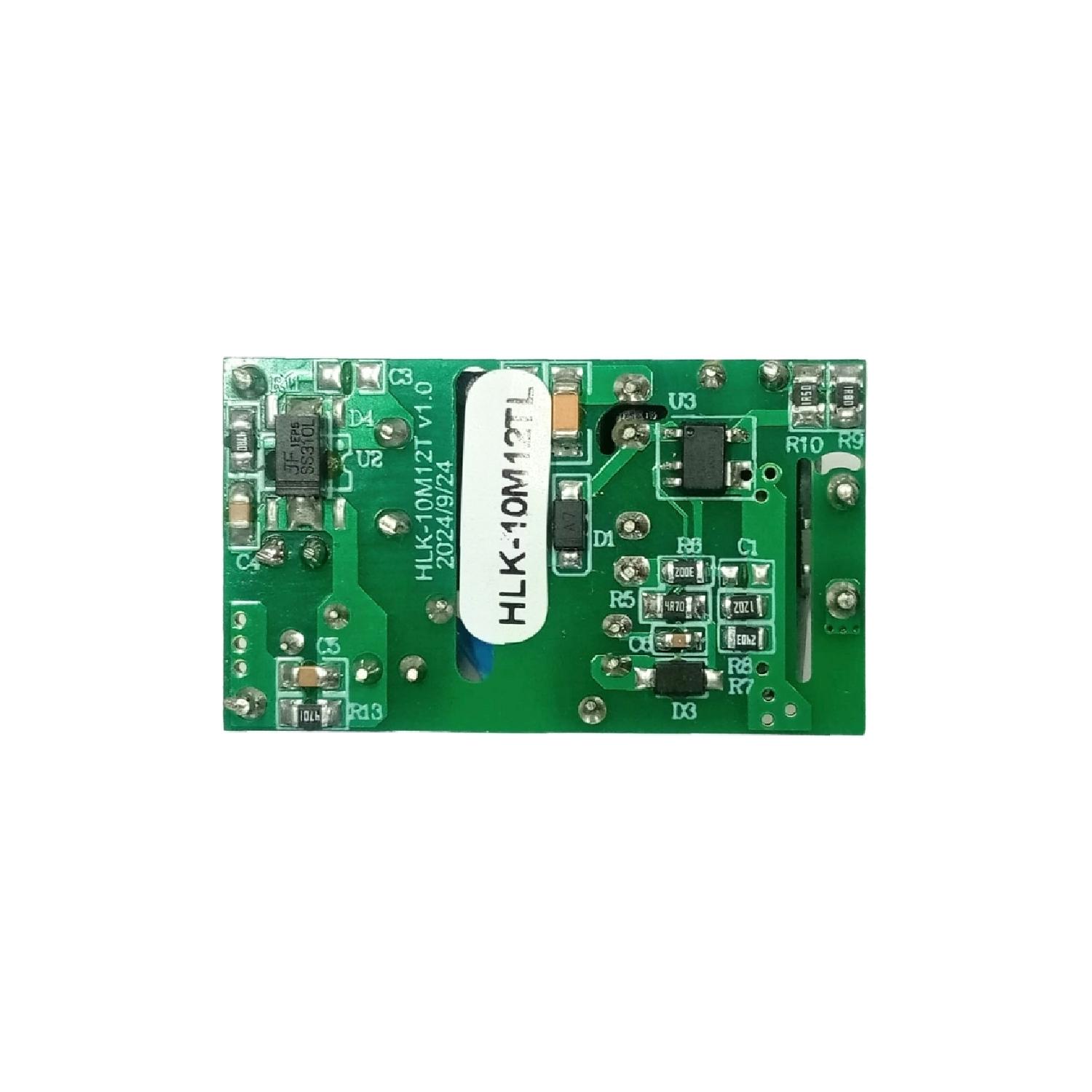

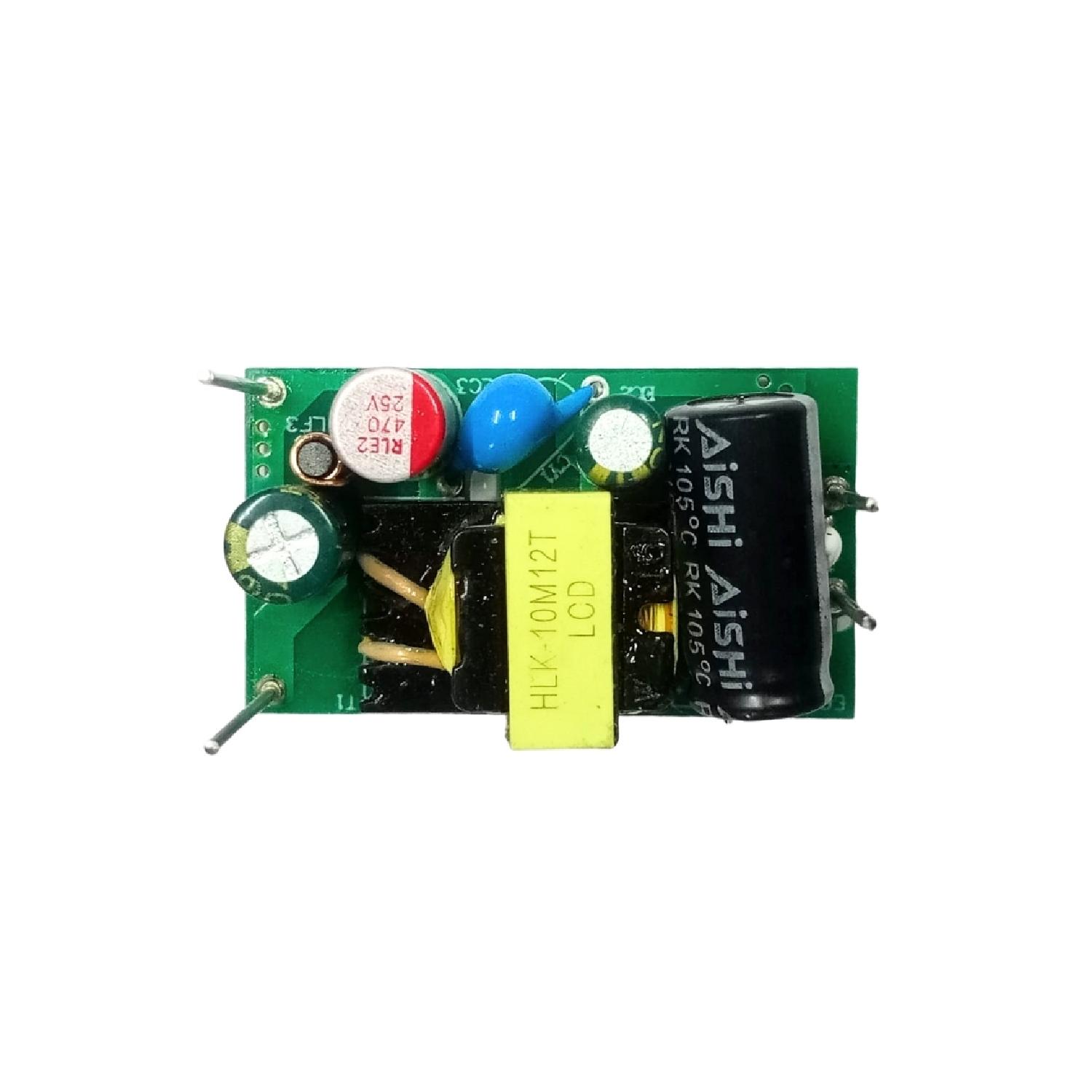

The Hi-Link HLK-10M12TL is a compact, isolated AC to DC switching power supply module engineered for direct PCB integration. It converts a wide-range AC mains input (85–264VAC) into a stable 12V DC output, delivering up to 10W of power in a small open-frame form factor.

This module eliminates the need for bulky transformer-based power supplies, making it ideal for space-constrained and cost-sensitive designs. The TL / open-frame variant omits an external plastic enclosure, allowing easier thermal dissipation and seamless integration into custom housings.

With robust input-to-output isolation and built-in protection features, the HLK-10M12TL ensures safe, efficient, and long-term operation in a wide range of electronic applications.

Key Features - Hi-link HLK-10M12TL

• Wide AC input voltage: 85–264 VAC
• Regulated DC output: 12V DC up to 0.83A (≈10W)
• Low no-load power consumption: < 0.1W
• High isolation safety: ~2.5kV–3kV AC input-to-output isolation
• Built-in protection: Overcurrent & short-circuit protection with auto-recovery
• High efficiency: Typically up to ~90% under normal load
• Compact open-frame design: Ideal for PCB mounting
• Designed for continuous operation with long service life
• EMC & safety-ready design (external EMI filtering recommended)

Technical Specifications - Hi-link HLK-10M12TL

• Input Voltage: 85 – 264 VAC
• Input Frequency: 50 / 60 Hz
• Output Voltage: 12V DC
• Maximum Output Current: ~0.83A
• Output Power: ~10W
• No-Load Power Consumption: < 0.1W
• Isolation Voltage: ~2.5kV – 3kV AC
• Efficiency: High (typically ~90% under rated load)
• Protection: Overcurrent, short-circuit (self-recovery)
• Operating Temperature: –25°C to +60°C (up to +70°C in some cases)
• Dimensions: Approx. 46.9 × 27.8 × 21.8 mm
• Mounting Type: PCB mount
• Module Type: Open-frame AC to DC SMPS

(Refer to the datasheet for precise electrical, mechanical, and thermal characteristics.)

Applications - Hi-link HLK-10M12TL

• Embedded electronics & controller boards
• IoT devices & smart systems
• Industrial automation & control circuits
• Sensor modules & instrumentation
• Home & building automation
• Communication equipment
• DIY electronics & prototyping

Package Includes

• 1 × Hi-Link HLK-10M12TL AC to DC Power Supply Module
