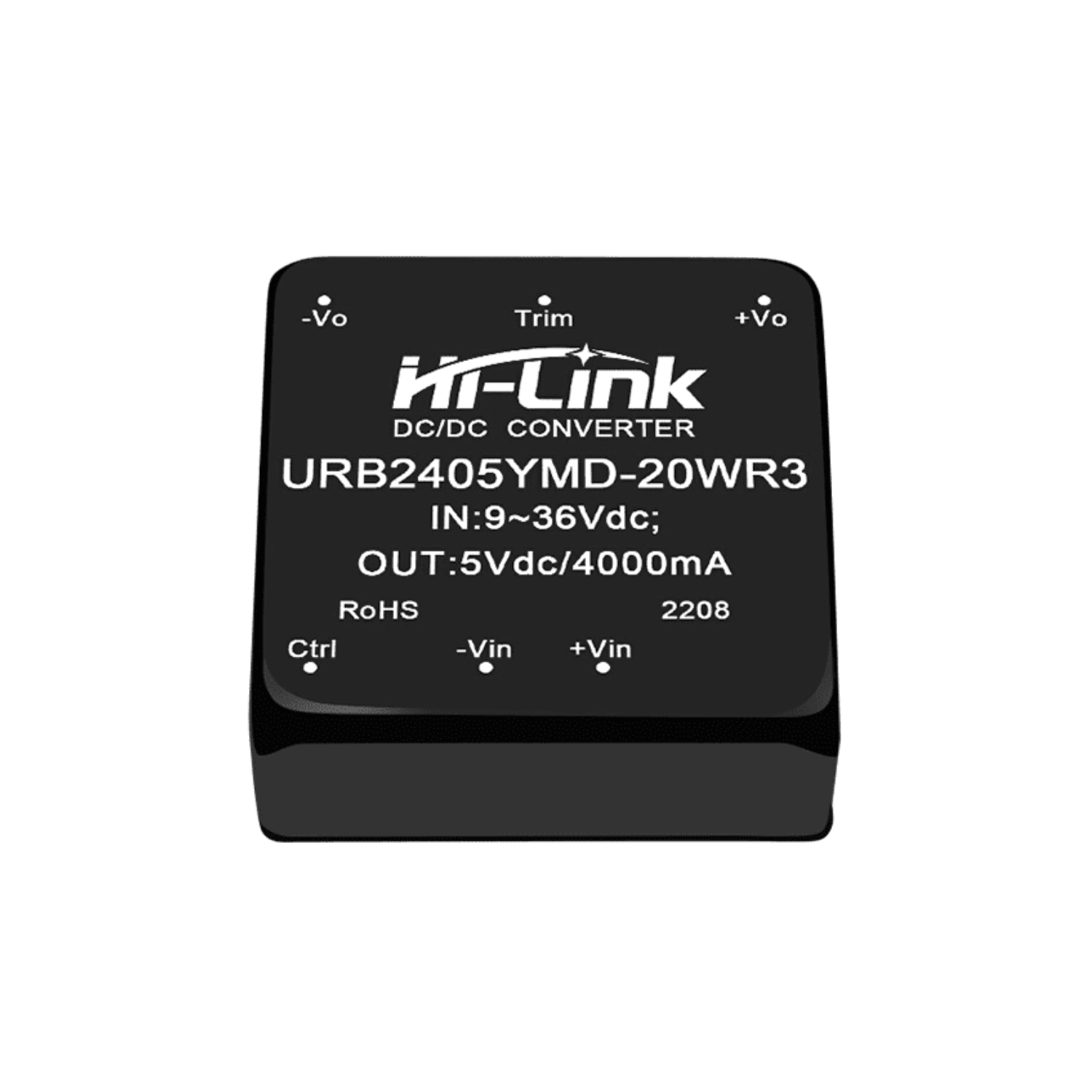

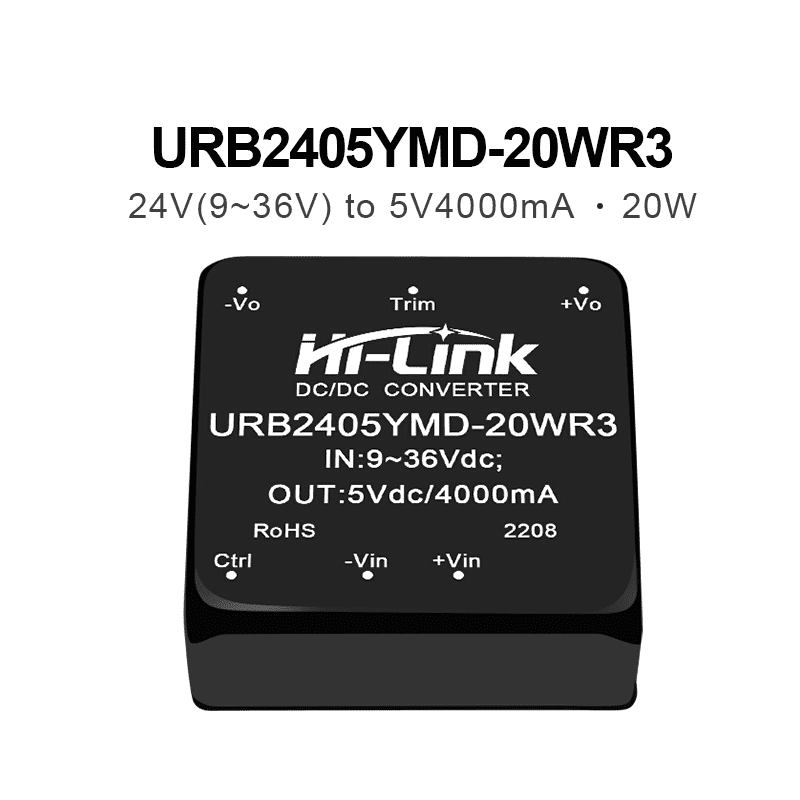

HLK-URB2405YMD DC-DC Switch Power Supply Module
HLK-URB2405YMD 20WR3 is 5V 4A 9-36Vdc DC-DC Switch Power Supply Module, 10W DC / DC power module A series products output power is 10W, 4: 1 wide voltage input range, efficiency up to 91%, 1500VDC conventional isolation voltage, allowable operating temperature -40 ℃ to +85 ℃, with input under-voltage protection, The output over-voltage, over-current, and short-circuit protection functions, bare metal meets CISPR32 / EN55032 CLASS A
Applications - Hi-Link URB2405YMD 20WR3 DC-DC Switch Power Supply Module
HLK-URB2405YMD 20WR3 DC-DC Switch Power Supply Module is widely used in medical, industrial control, power, instrumentation, communication, railway, and other fields.
Basic Characteristics: HLK-URB2405YMD 20WR3
- Ultra wide range input (4:1), output 20W
- Conversion efficiency: 91% (Typ)
- Isolation voltage: 1500Vdc
- Ultra low standby power consumption: 0.036W (typical)
- Ultra fast start: 1mS (typical)
- Operating temperature range: -40 ° C ~ +85 ° C
- Output protection: short circuit protection, over current protection, over voltage protection
- Metal case, low output ripple
- International standard pin, PCB board in-line installation
- It is sealed with high quality environmental protection waterproof and thermal conductive glue, moisture proof and vibration proof, and meets the requirements of waterproof and dustproof IP65.
- High reliability, long life design, long continuous working time
