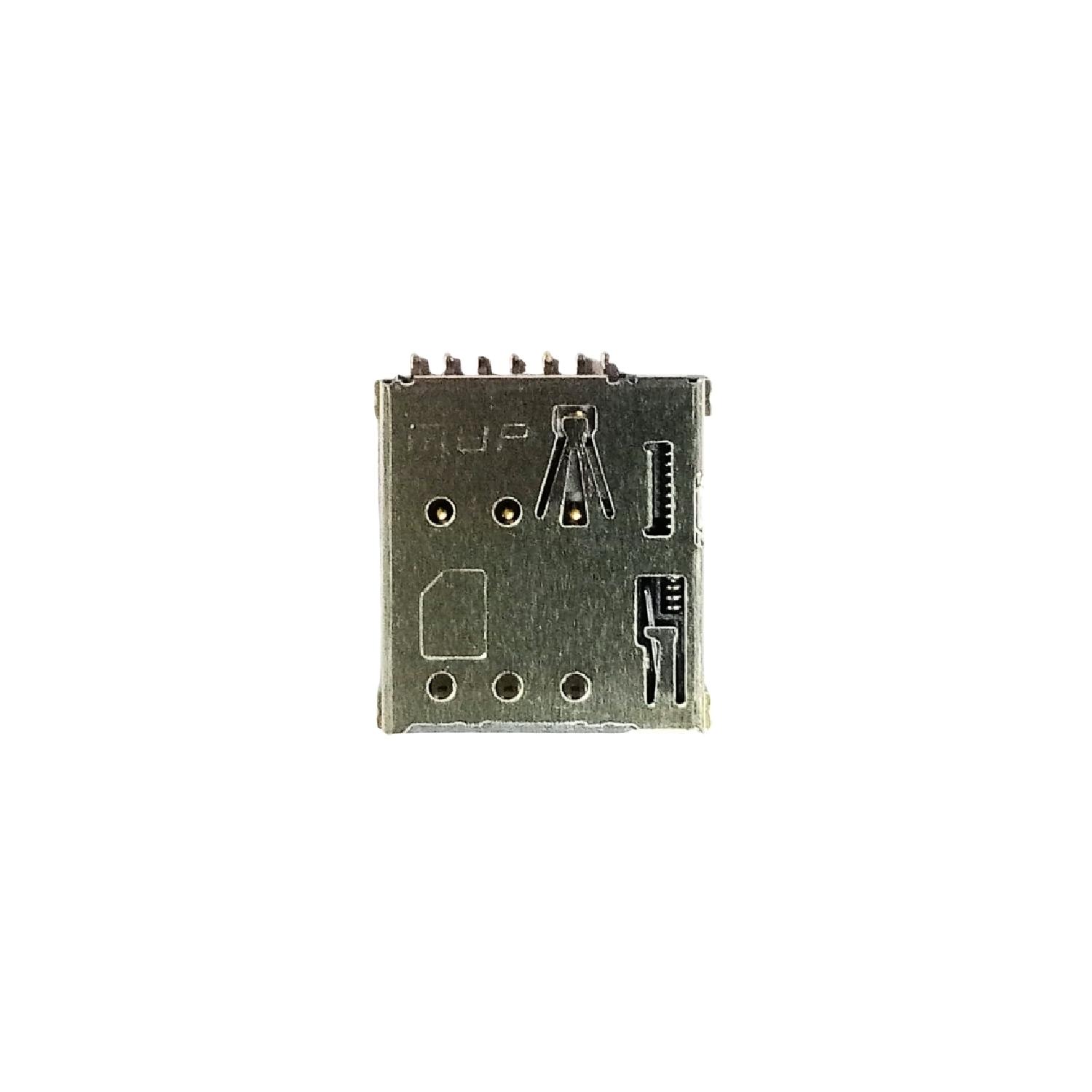

MUP C7801-21 Push NANO Sim Card Holder Image 1

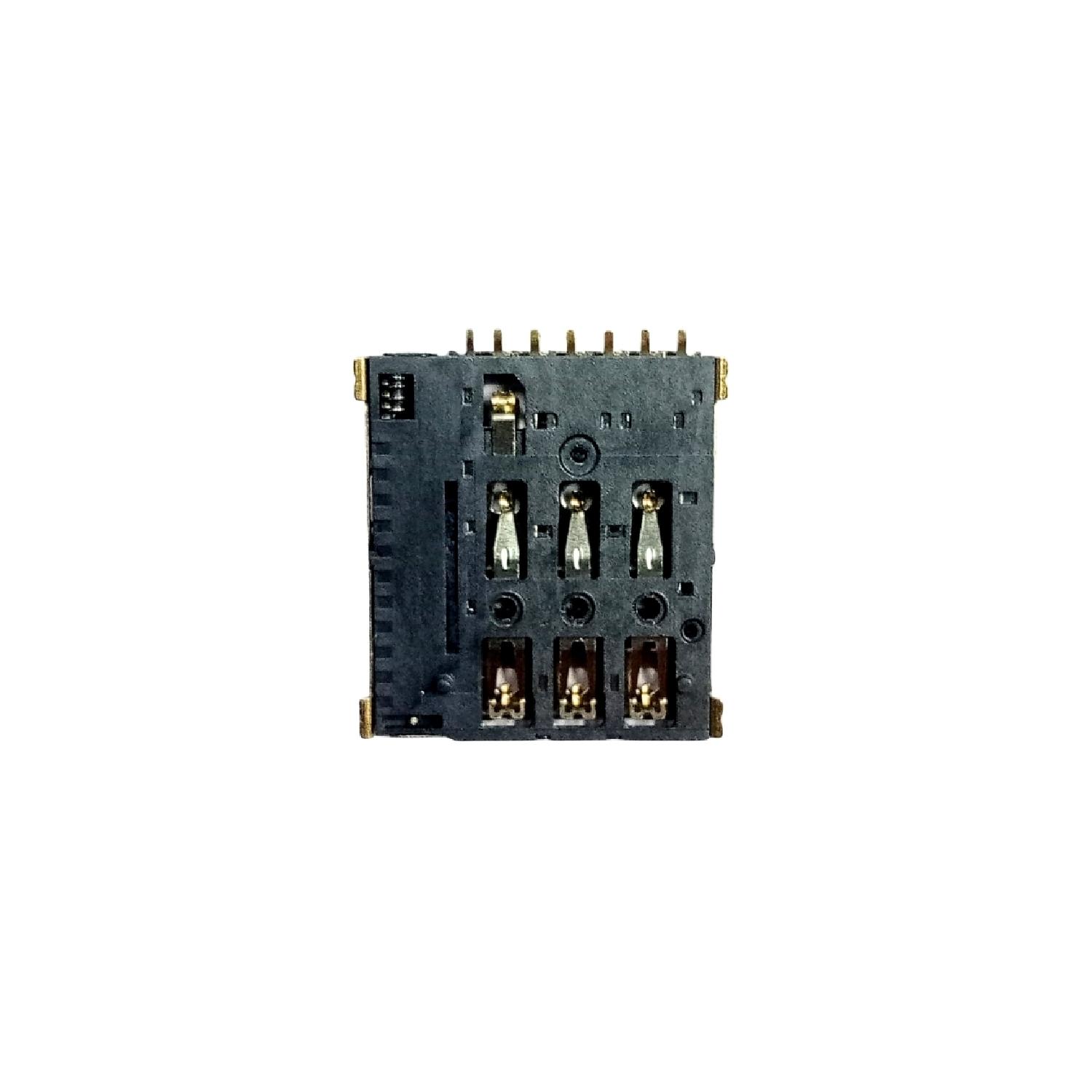

MUP C7801-21 Push NANO Sim Card Holder Image 2

MUP C7801-21 Push NANO Sim Card Holder

The C7801-21 is a specific model of a MUP brand Push-Push Nano SIM Card Holder, designed for surface mount (SMT), featuring 7 pins, a secure normally closed (no post) mechanism, and uses a spring-loaded push-to-insert/eject system for Nano SIM cards, commonly found in compact electronic devices. It offers stable contact and is suitable for applications needing reliable, compact SIM card integration.

Price : 20.00 excl. GST

Qty	Price
1 >	20.00
50 >	18.00
200 >	18.00
500 >	18.00
1000 >	17.00
1001 >	17.00

Description
Datasheet

TECHNICAL CHARACTERISTICS

1.General Characteristics:

Dimensions 13.50LX13.0WX1.35H mm

WelghtiApprox 0.50±0.2g

Durablllty:3,000 cycles mln.

2.Electrical Characteristics

Contact resisitancel 100mQMax

Insulatlon reslstance!>1000M0/500V DC

3.Solderability

Vaporphasei215°C, 30sec.Max

IR reflowi260°C,5sec.Max

Manual solderIng:370°C.3sec.Max

4.Environmental Characteristics

Operating remperaturei-40°C~+85C

Operating humldlty:10%~+95%RH

030126150901.pdf
