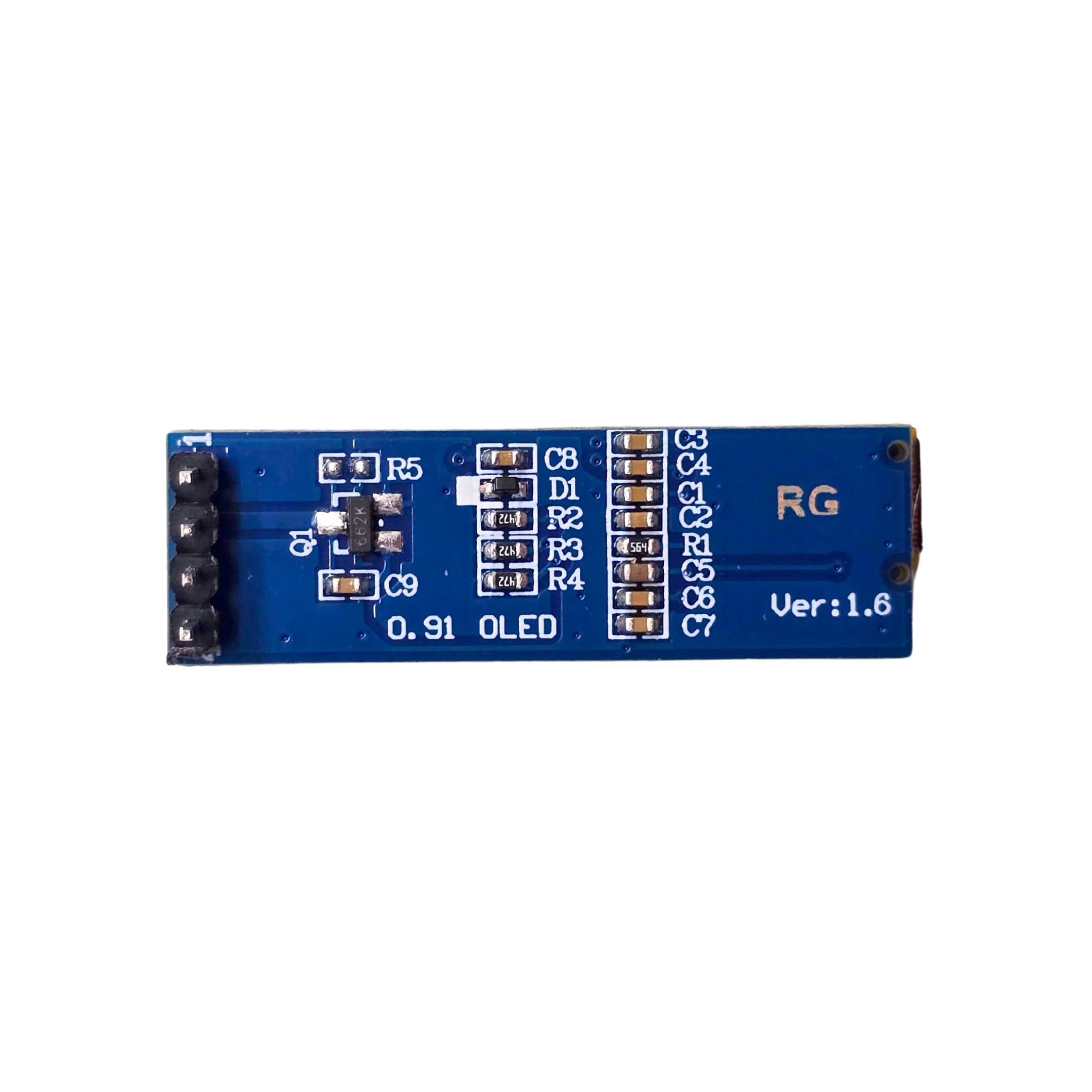

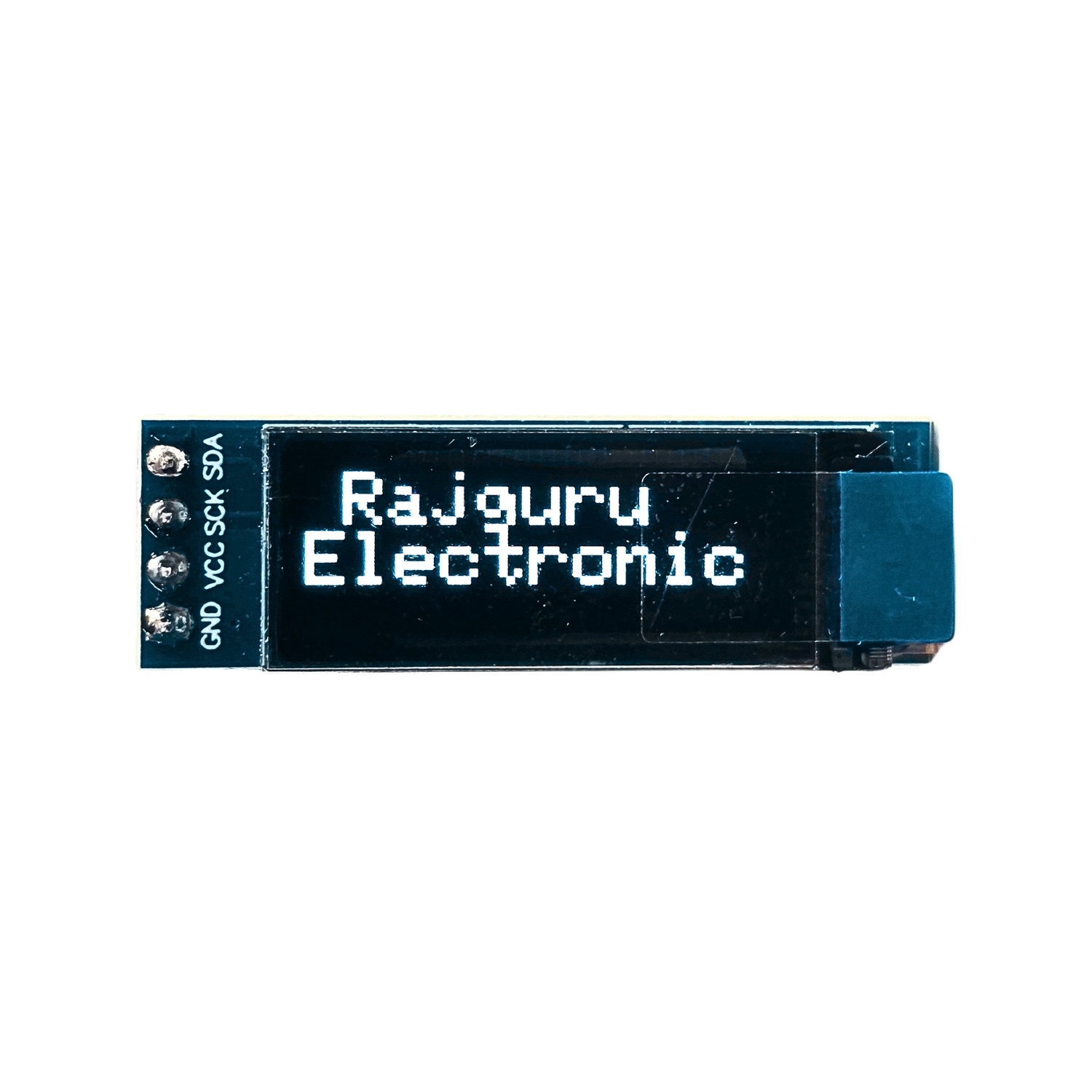

This 0.91 inch 128×32 Blue OLED Display Module offers 128×32 Pixel resolution. The most attractive thing about using the OLED displays is that they do not need a backlight like conventional LCD/LED screens. This OLED Display Module is very compact and will add a great ever user interface experience to your Arduino project. The connection of this display with Arduino is made through the I2C(also called as IIC) serial interface. The 0.91 inch 128×32 White OLED Display Module produces blue text on black background with very good contrast. The OLED Display Modules also offers a very wide viewing angle.
The 0.91 Inch 128×32 OLED Display Module is a high-quality graphic OLED screen designed for compact electronic projects and embedded systems. Unlike traditional LCD displays, OLED technology does not require a backlight, resulting in higher contrast, lower power consumption, and slimmer design.
This module features a 128×32 pixel resolution, delivering crisp white text on a black background with excellent readability. The display connects using the I2C (IIC) serial interface, requiring only two communication wires, which makes wiring simple and convenient for microcontroller projects.
With its ultra-compact size and wide viewing angle, the 0.91 inch OLED display is perfect for status indicators, menus, sensor data visualization, and UI elements in Arduino and IoT applications.
Key Features
- OLED technology – no backlight required
- High contrast white text on black background
- 128×32 pixel resolution
- Ultra-compact 0.91 inch display size
- I2C (IIC) serial interface – only two wires needed
- Wide viewing angle
- Low power consumption
- Lightweight and thin design
- Easy integration with Arduino, ESP32, ESP8266, Raspberry Pi
- Compatible with popular OLED libraries (SSD1306 based)
Technical Specifications
- Display Size: 0.91 inch
- Resolution: 128 × 32 pixels
- Display Color: White
- Background Color: Black
- Interface: I2C (4 Pin)
- PCB Size: 38 × 12 mm
- Weight: 0.004 g
- Shipping Weight: 0.01 kg
- Viewing Angle: Wide
- Display Type: OLED
(Refer to datasheet for electrical and pin configuration details.)
Applications
- Arduino and Raspberry Pi projects
- IoT display panels
- Wearable electronics
- Embedded system interfaces
- Sensor data display
- Portable electronic devices
- DIY electronics projects
Specification:
- Pixel Resolution: 128 x 32
- Character Color: White
- Background Color: Black
- PCB Size (mm): 38×12
- Weight (g): 0.004
- Shipping Weight 0.01 kg
- Shipping Dimensions 10 × 4 × 2 cm
Package Includes
-
1 × 0.91 Inch 128×32 I2C OLED Display Module (White)
