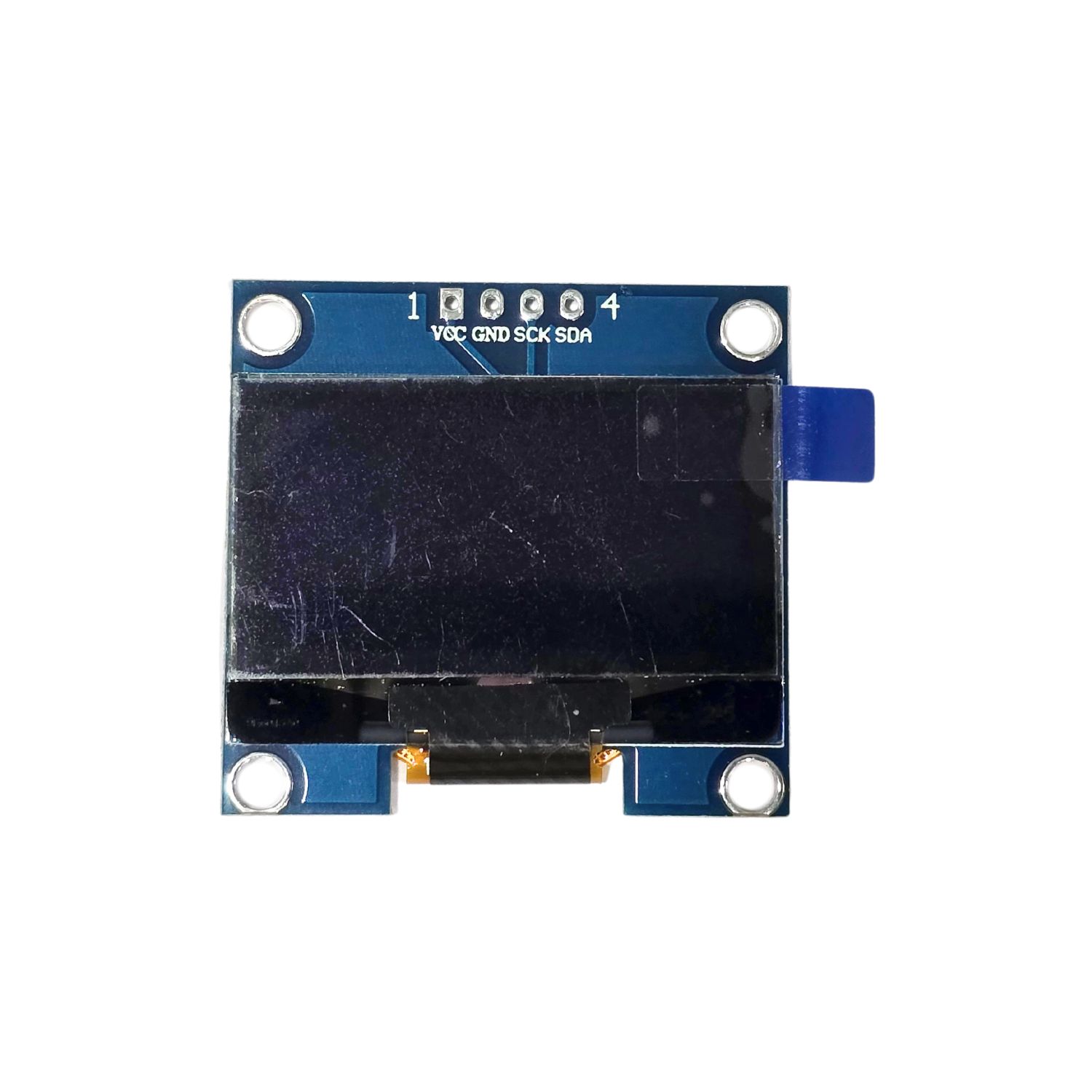

OLED 1.3 inch 4pin RG128x64 Display White Image 1

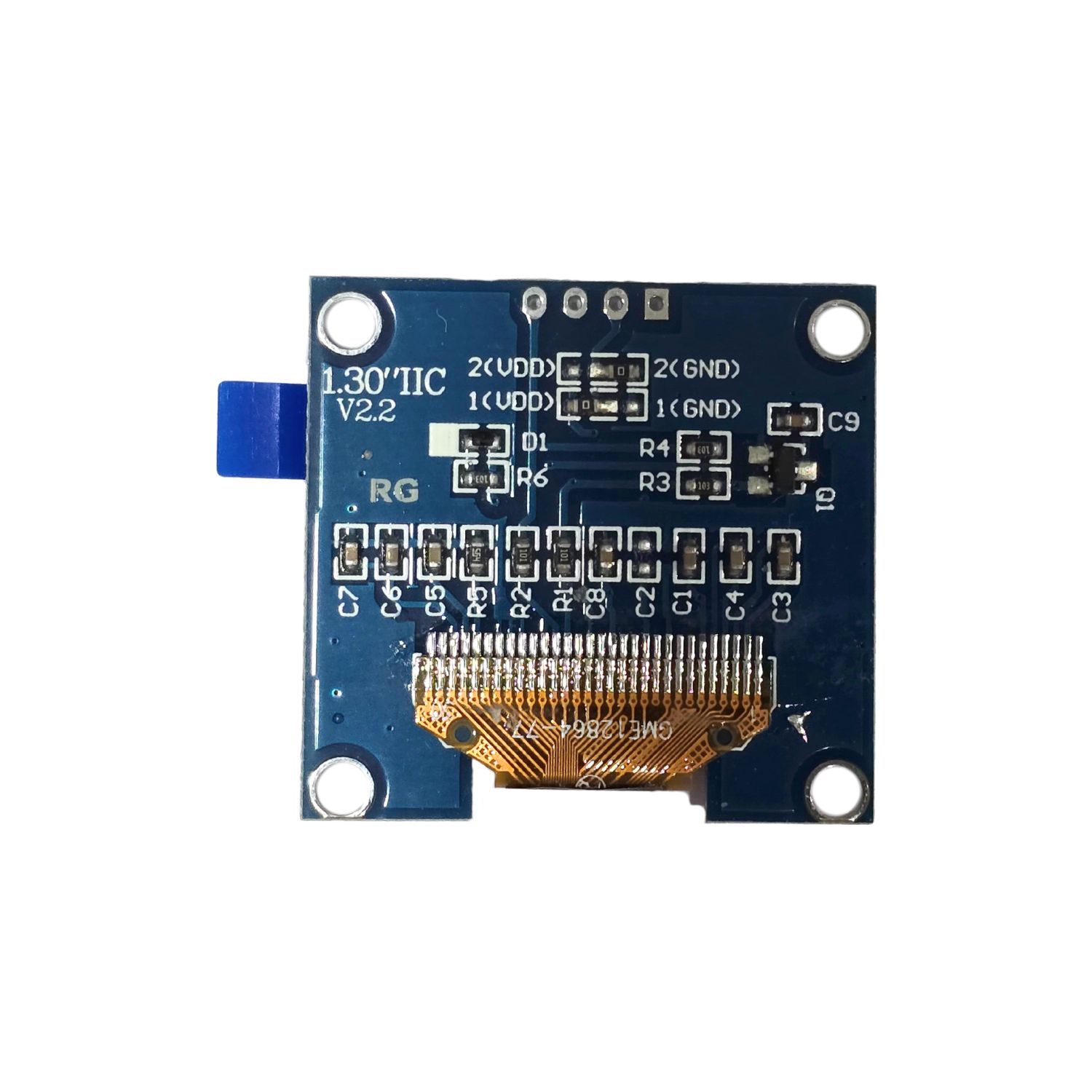

OLED 1.3 inch 4pin RG128x64 Display White Image 2

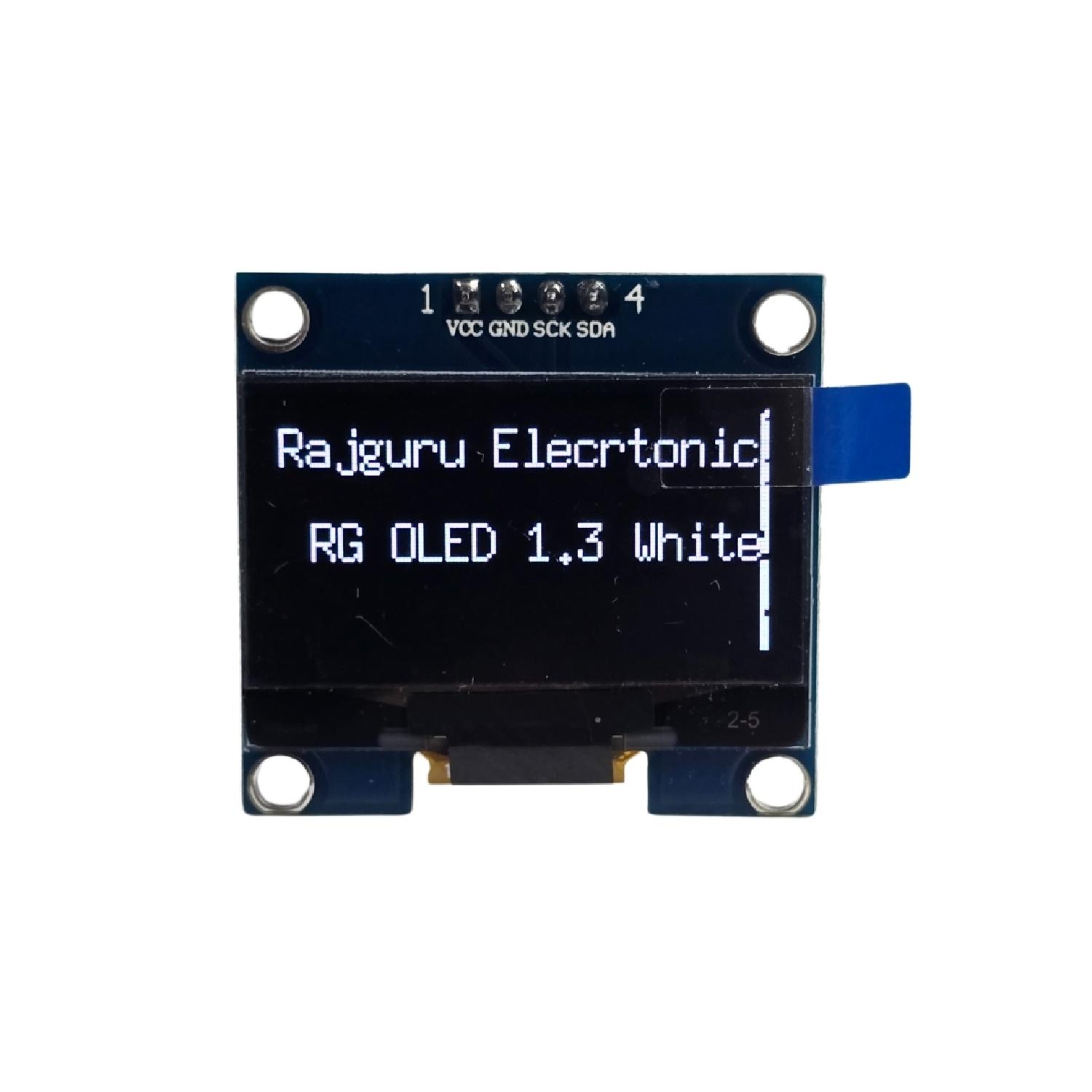

OLED 1.3 inch 4pin RG128x64 Display White

This 1.3in OLED Display is an OLED monochrome 128×64 dot matrix display module with I2C Interface. It is perfect when you need an ultra-small display. Comparing to LCD, OLED screens are way more competitive, which has a number of advantages such as high brightness, self-emission, high contrast ratio, slim outline, wide viewing angle, wide temperature range, and low power consumption. It is compatible with any 3.3V-5V microcontroller, such as Arduino.

Price : 196.00 excl. GST

Qty	Price
1 >	196.00
50 >	190.00
200 >	185.00
500 >	183.00
1000 >	180.00
1001 >	180.00

Description
Datasheet

Features/Specs:

Resolution: 128 x 64 Pixels
Driving Voltage: 3 ~ 5.5V
Operating Temperature: -40º~70ºc
Interface Type: I2C
Resolution: 128×64
Power: 0.06W
Wide power supply range: DC 3V ~ 5.5V
Compatible with 3.3V and 5V control chip I / O level
OLED internal drive chip: SSD1306
Display Size: 1.3 inch
Length: 35.5 mm
Width: 35.5 mm
Height: 7 mm
Weight: 8 gm

300924173758.3 Inch.pdf

OLED 1.3 inch 4pin RG128x64 Display White
