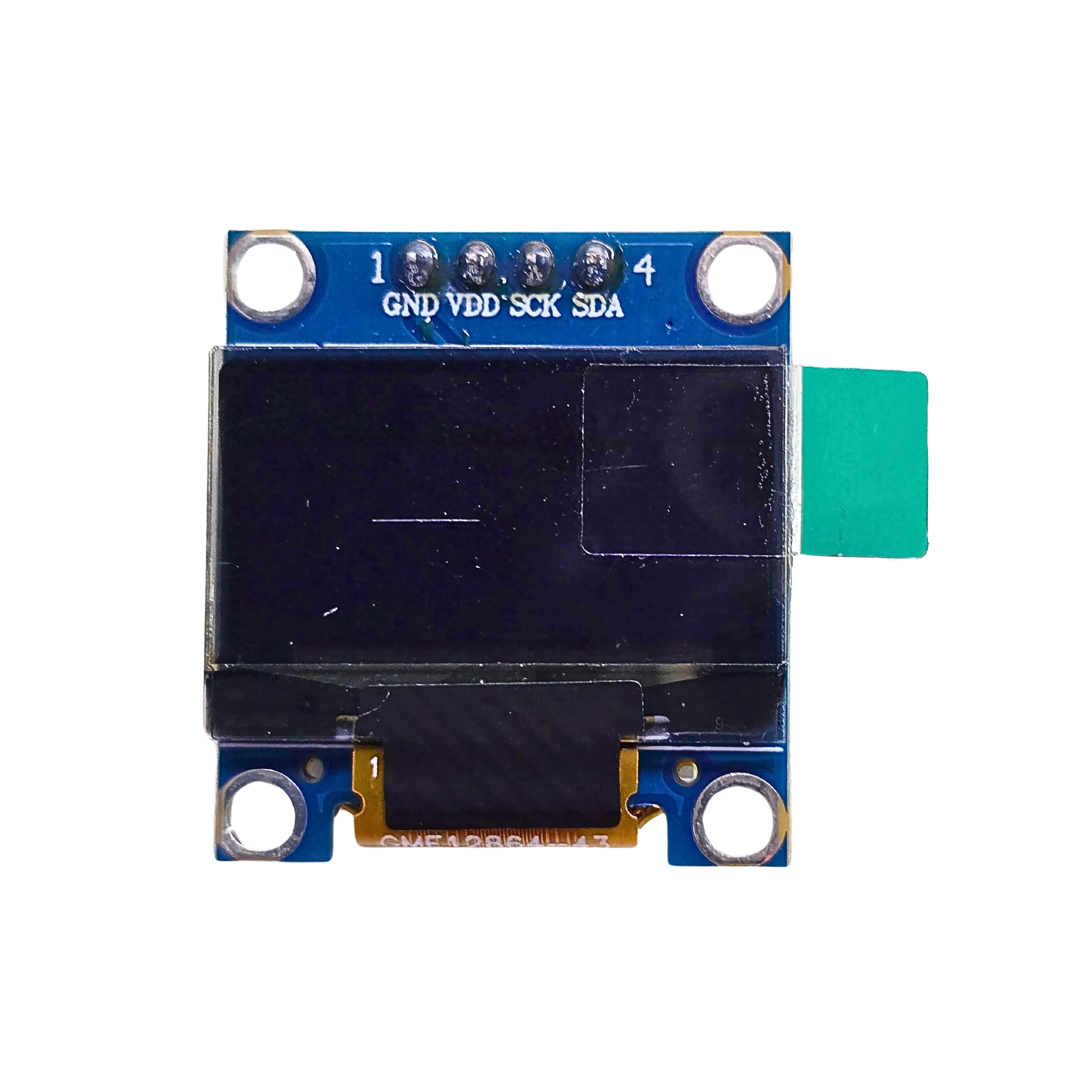

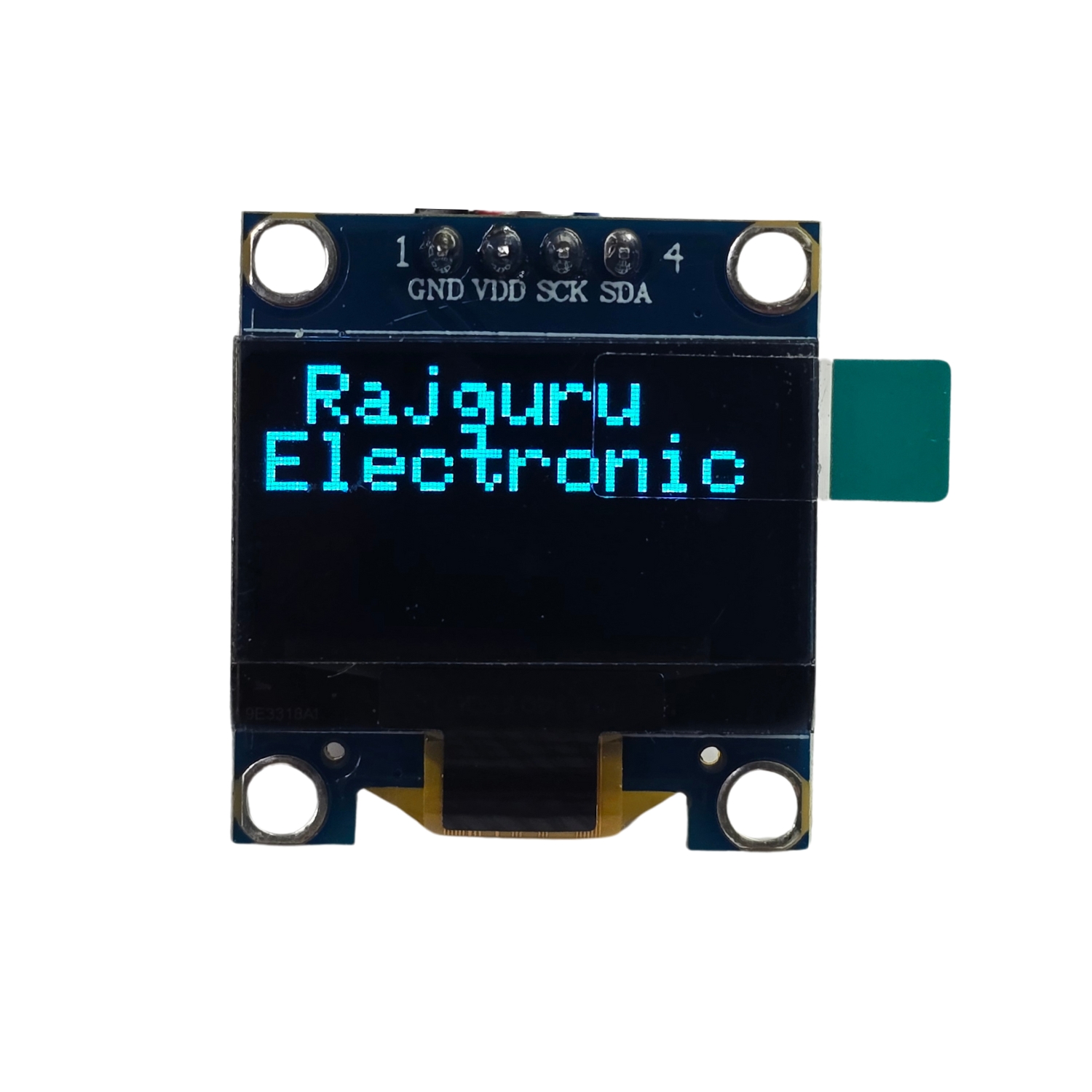

The 0.96 Inch 128×64 Blue OLED Display Module is a high-quality graphic OLED display powered by the SSD1306 driver IC. It features 128×64 individually controlled blue OLED pixels, providing crisp, high-contrast visuals without requiring any backlight.
This OLED module uses the I2C (IIC) communication interface, allowing easy connection using only two data wires besides power. Thanks to its integrated charge pump circuit, the module efficiently converts supply voltage into the required OLED driving voltage, ensuring stable brightness and long display life.
Compared to traditional LCD displays, this OLED module offers better contrast, faster response time, wider viewing angles, and lower power consumption, making it one of the most popular display choices for Arduino, IoT, and embedded system projects.
Key Features
- OLED technology – no backlight required
- 128×64 pixel resolution with blue pixels
- SSD1306 driver IC (widely supported)
- I2C interface (4-pin) for easy wiring
- Only two data wires required (SDA & SCL)
- High contrast & crisp display quality
- Wide viewing angle
- Built-in charge pump circuit
- Low power consumption
- RoHS compliant
Technical Specifications
- Display Size: 0.96 inch
- Resolution: 128 × 64 pixels
- Display Color: Blue
- Interface: I2C (IIC)
- Driver IC: SSD1306
- Driving Scheme: 1/64 Duty
- Viewing Direction: 6 O’clock
- Power Supply Voltage: 3.0V
- VCC: 12.0V (internal OLED driving voltage via charge pump)
- Compliance: RoHS
(Refer to datasheet for detailed pin configuration and electrical characteristics.)
Applications
- Digital watches
- Head-mounted displays
- Electronic meters
- Intelligent instruments
- Arduino & Raspberry Pi projects
- IoT display panels
- Embedded system user interfaces
Package Includes
-
1 × 0.96 Inch 128×64 I2C OLED Display Module (Blue)
