Features:
- High signal-to-noise ratio (SNR)
- Back-illuminated and stacked CMOS 12-megapixel image sensor (Sony IMX708)
- Built-in 2D Dynamic Defect Pixel Correction (DPC)
- Phase Detection Autofocus (PDAF) for rapid autofocus
- QBC Re-mosaic function
- HDR mode (up to 3-megapixel output)
- CSI-2 serial data output
- 2-wire serial communication (supports I2C fast mode and fast-mode plus)
- 2-wire serial control of focus mechanism
- Improved low-light sensitivity.
- High dynamic range (HDR) support.
- Sony IMX708 12MP sensor with 12C-controlled focus actuator
- Large 7.4mm diagonal sensor
- Resolution: 12 Megapixel
- Diagonal Viewing Angle: 76º
- Compatible with all models of Raspberry Pi*
Specifications:
- Item Type: Camera
- Model Type: NoIR Camera
- Compatibility: Pi 3

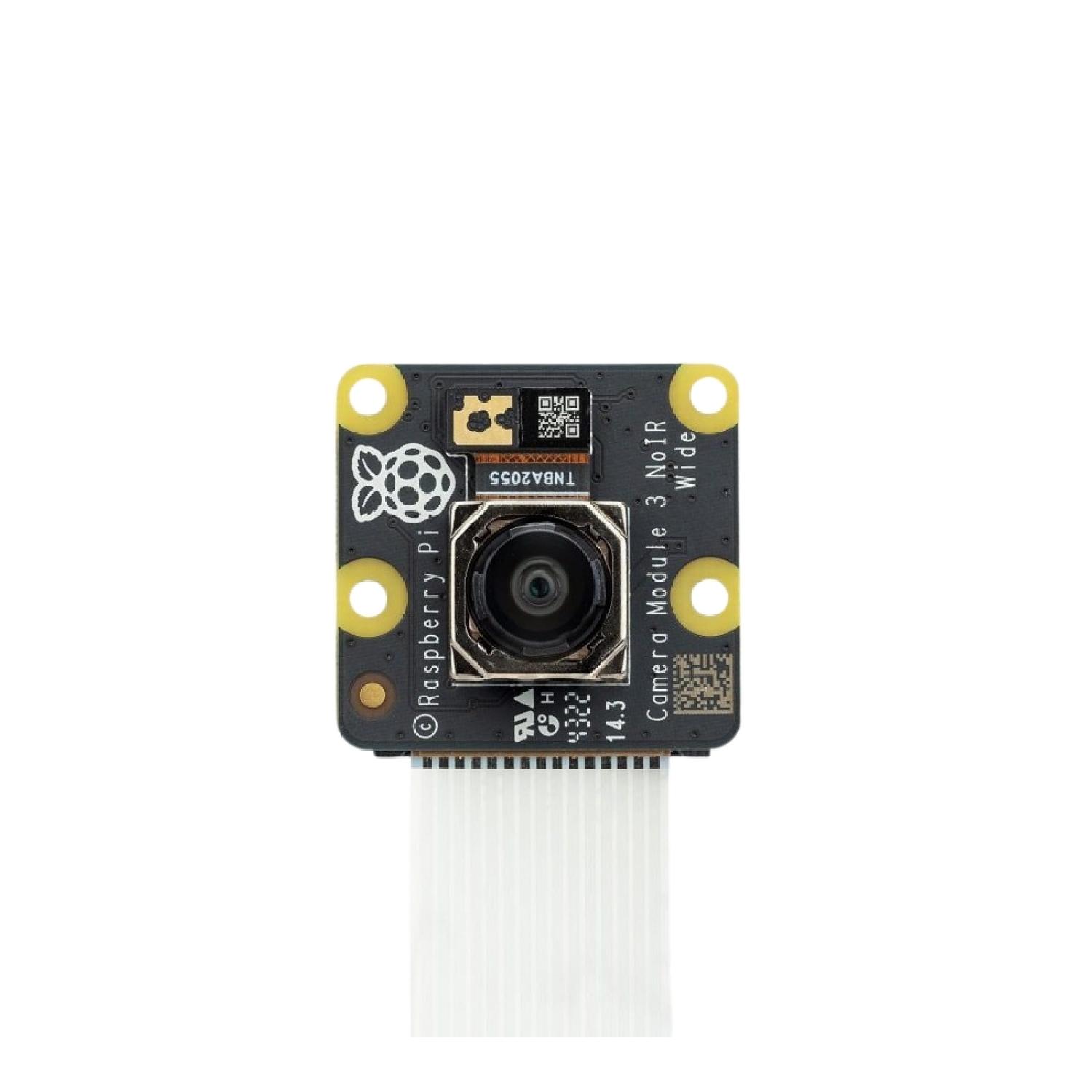

- Model Name: Camera Module 3 (NoIR-Wide)
- Sensor: SONY IMX708
- Viewing Angle: 120º
- Supported: All models of Raspberry Pi*
- Resolution: 11.9 Megapixel
- Sensor size: 7.4mm sensor diagonal
- Pixel Size: 1.4μm × 1.4μm
- Horizontal/Vertical: 4608 × 2592 pixels
- Common Video Modes: 1080p50, 720p100, 480p120
- Output: RAW10
- IR Cut Filter: Integrated in standard variants; not present in NoIR variants
- Autofocus System: Phase Detection Autofocus
- Dimensions (L x W x H) mm: 25 × 24 × 11.5mm (12.4mm height for Wide variants)

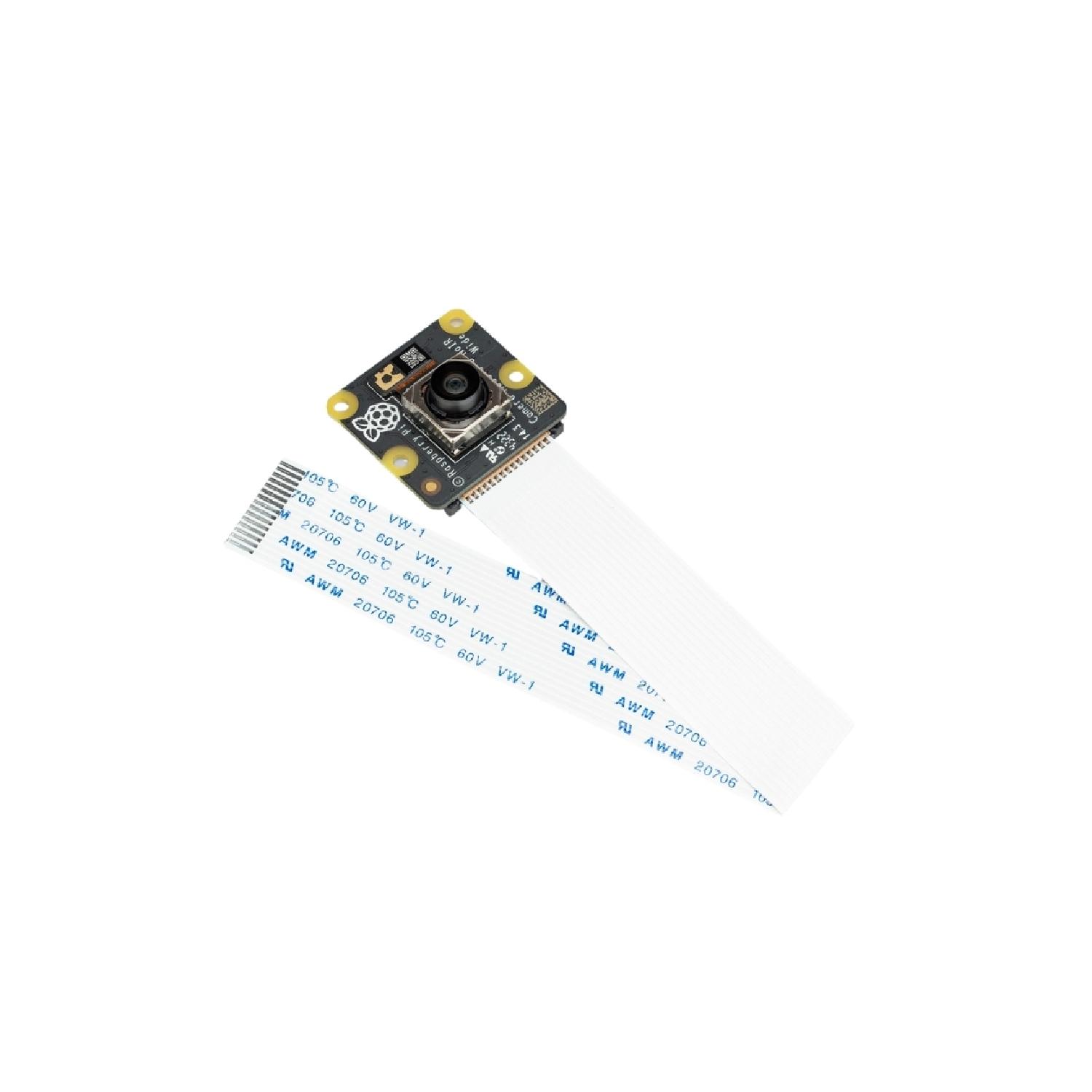

- Ribbon cable Length: 200mm
- Cable Connector: 15 × 1mm FPC
- Shipping Weight: 0.03 kg
- Shipping Dimensions: 10 × 6 × 1 cm
