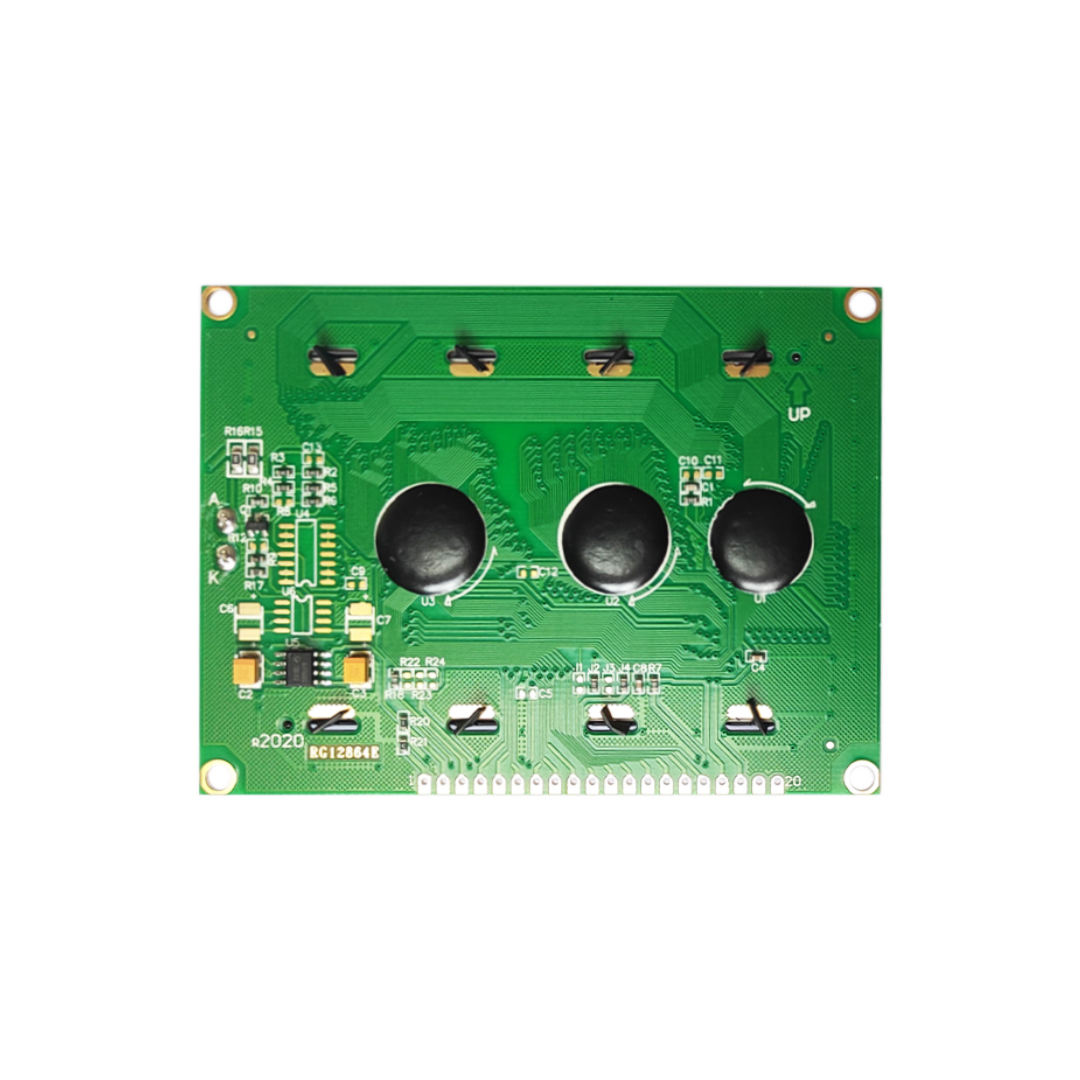

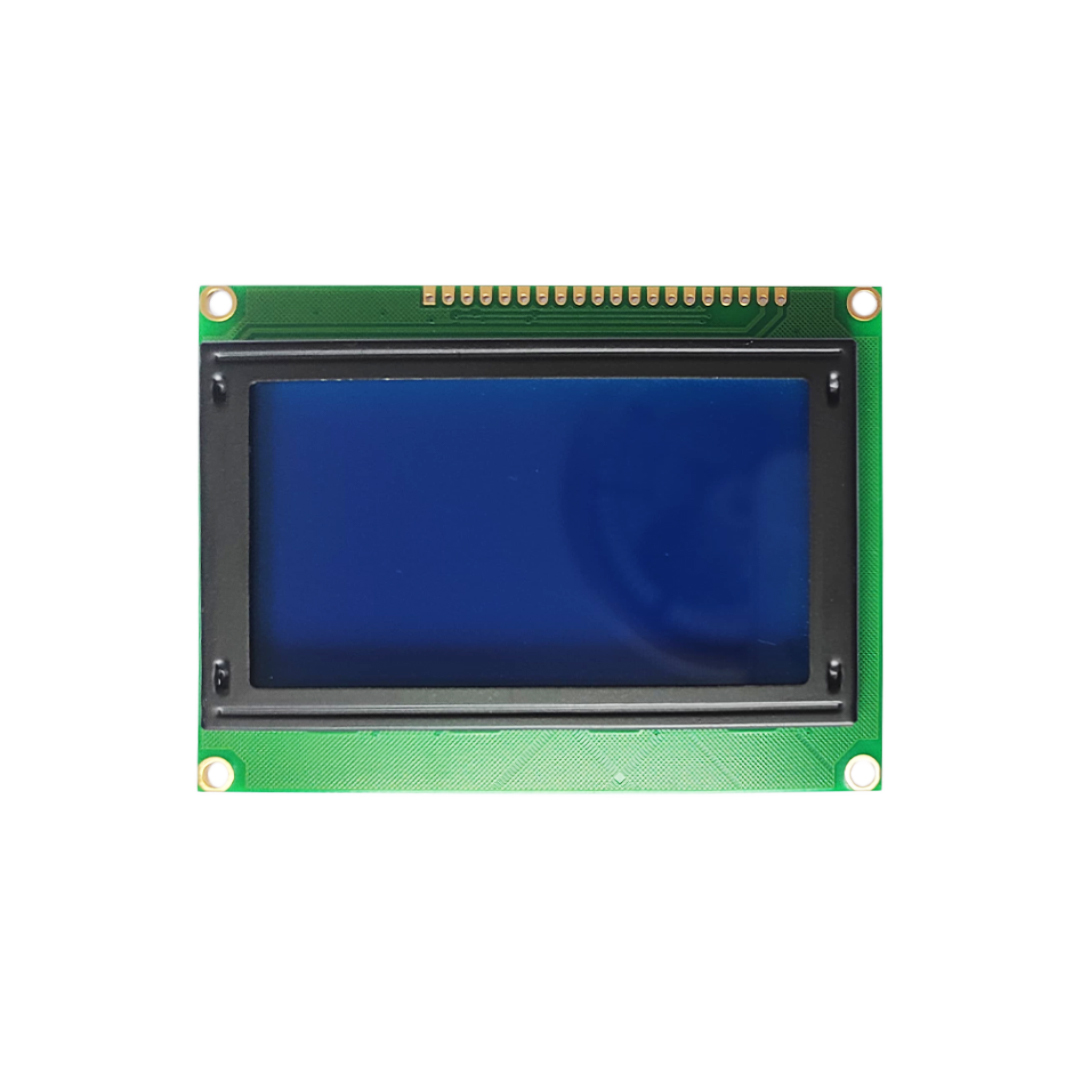

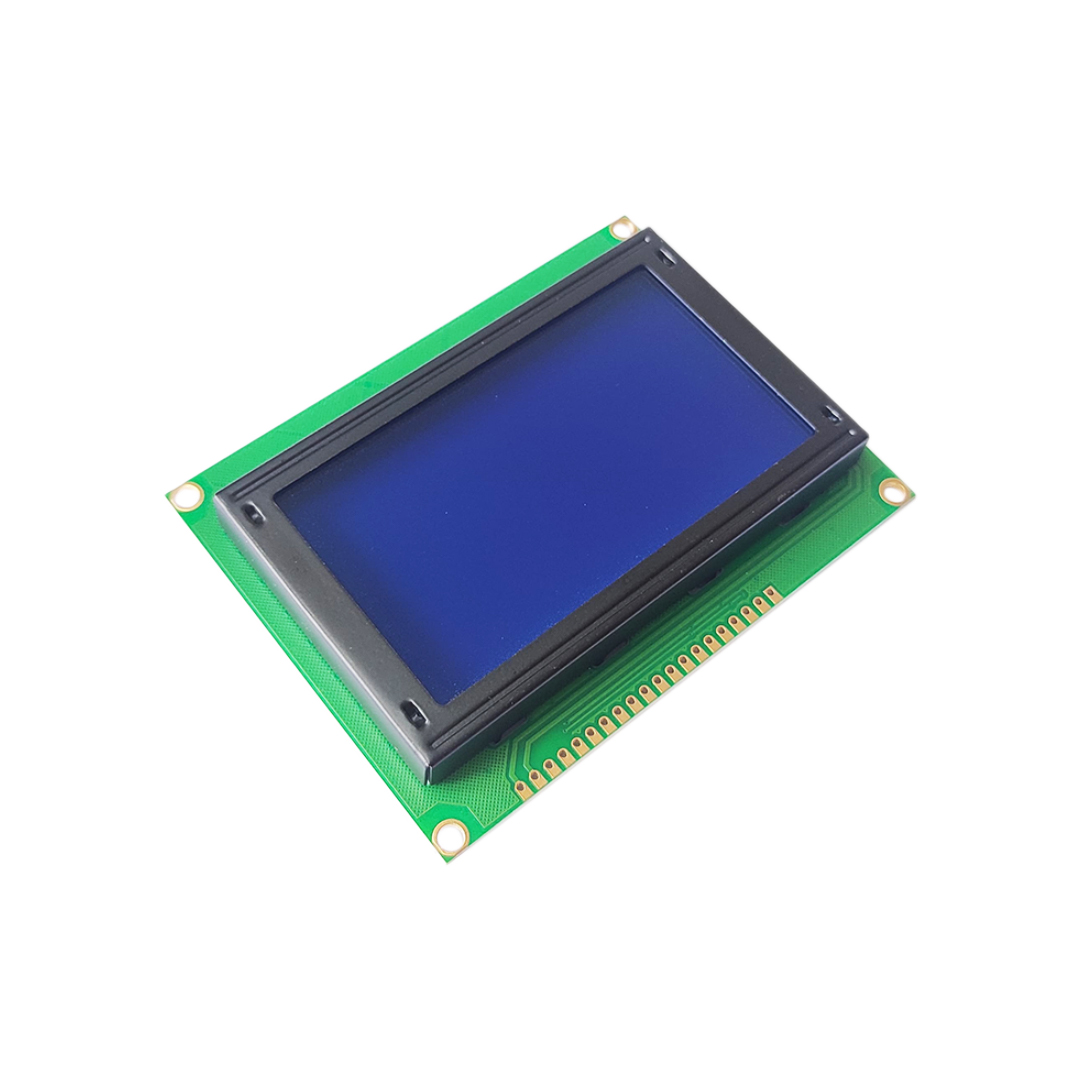

128x64 Blue LCD Display Module - (75x52mm) - RG12864 D1 Small is a 128x64 dot matrix monochrome graphic LCD display with a blue backlight. It features a built-in controller known as the NT7108.
The display's key features are as follows:
- Resolution: 128x64 pixels
- Display Type: Monochrome
- Backlight: Blue
-
5V power supply
-
1/64 duty cycle
-
N.V. Built-in
-
12864-D1S: Chinese built-in
-
12864-D1P1: 3.3V option
- Interface: The RG12864 D1 Small is likely to use a standard interface like parallel or SPI (Serial Peripheral Interface) for communication with external devices.
- Applications: This type of display is commonly used in various applications, including but not limited to industrial instruments, consumer electronics, medical devices, and DIY projects.
- Controller Features: The NT7108 controller likely offers various features such as hardware scrolling, cursor functions, and possibly character generation capabilities.
Mechanical Specifications:128x64 Blue LCD Display Module - Small Size 75x52mm
- Item Standard Value Unit
- Module Dimension 75.0 x 52.7 mm
- Viewing Area 58.8 x 31.4 mm
- Mounting Hole 70.0 x 49.7 mm
- Dot Pitch 0.43 x 0.43 mm
- Dot Size 0.40 x 0.40 mm
Applications: 128x64 Blue LCD Display Module
- Industrial Instruments: These displays can be used in various industrial applications for data monitoring, control systems, and user interfaces.
- Consumer Electronics: Commonly found in small electronic devices, such as digital thermometers, timers, and digital multimeters.
- Medical Devices: Used in medical equipment like blood glucose meters, pulse oximeters, and medical monitoring devices.
- DIY Projects: Enthusiasts often use these displays in Arduino or Raspberry Pi-based projects for creating custom digital displays.
