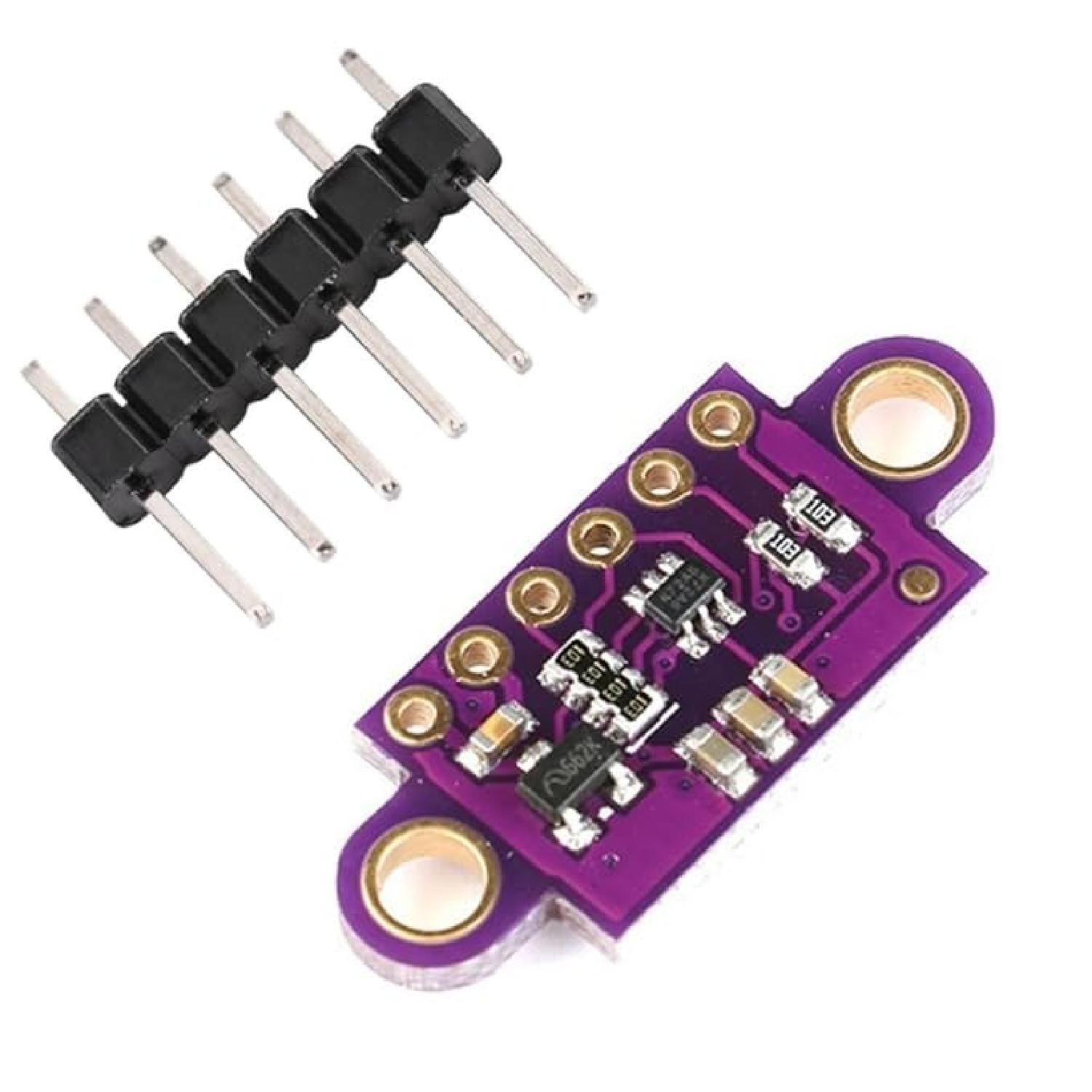

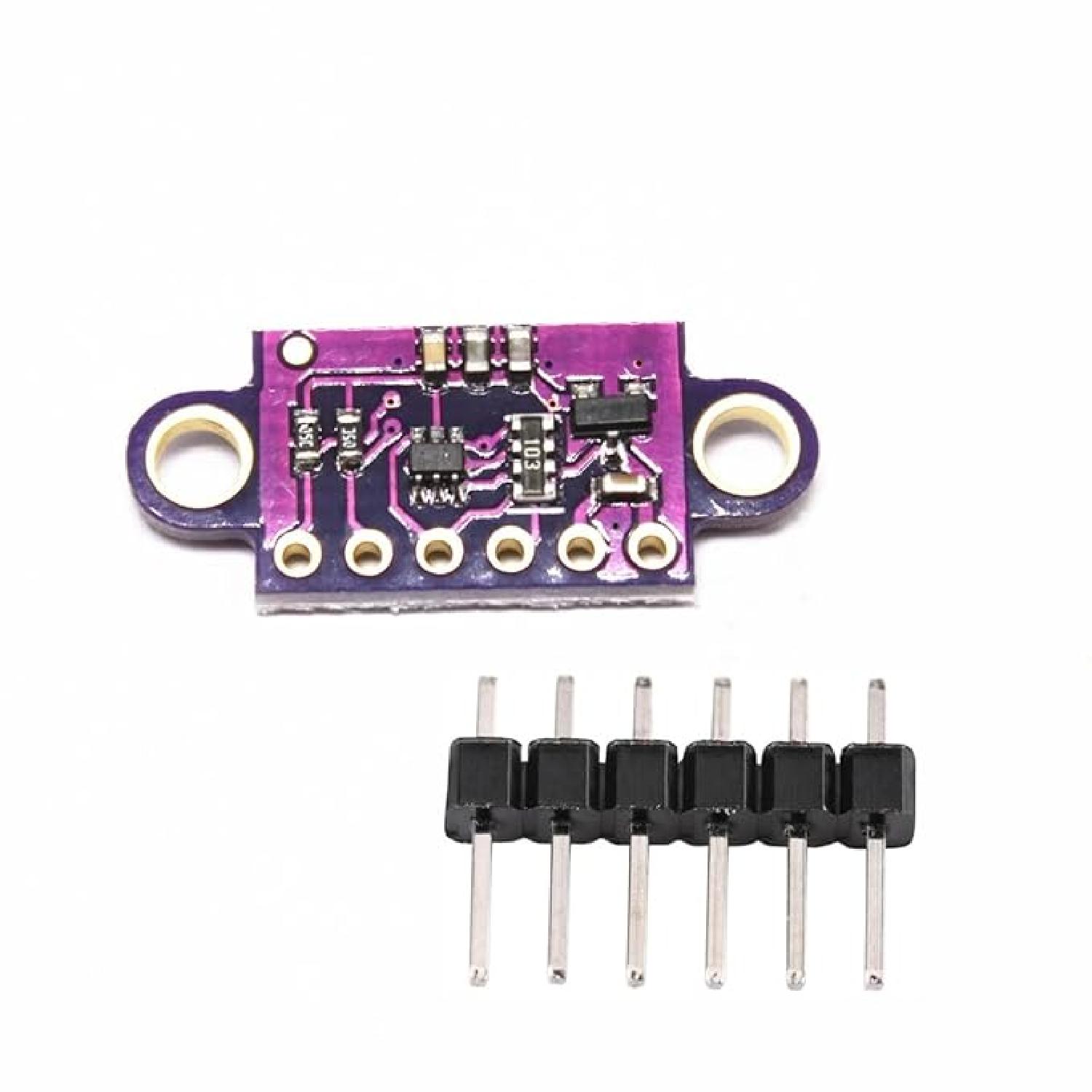

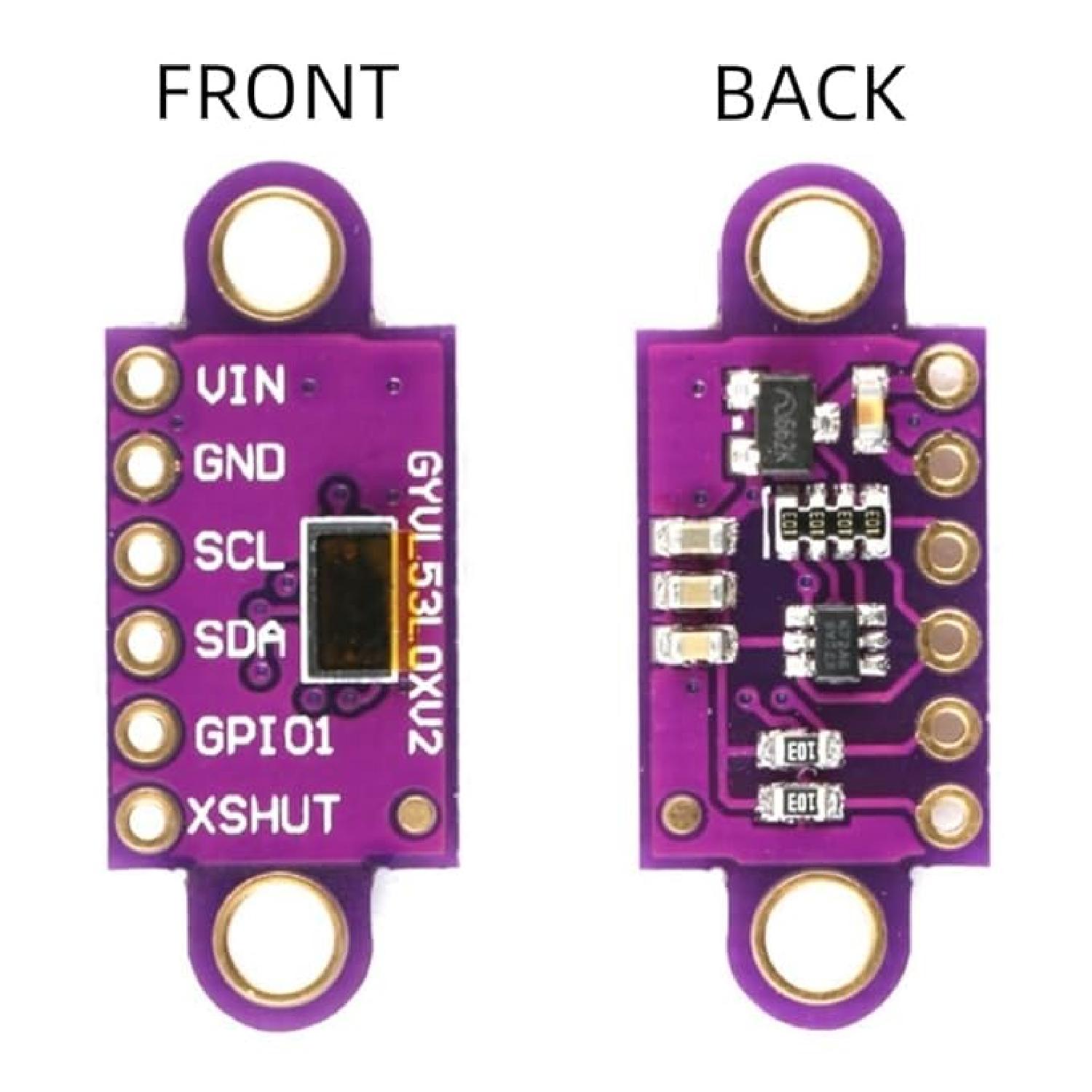

VL53L0X TOF Based LIDAR Distance Sensor


The VL53L0X is a Time-of-Flight (ToF) laser distance sensor from STMicroelectronics that measures absolute distances up to 2 meters with high accuracy. Key features include its compact size, Class 1 laser (eye-safe), I2C communication, and performance independent of target color or reflectance.


Price :  excl. GST
Qty Price
1 > 98.00
50 > 95.00
200 > 91.00
500 > 90.00
1000 > 89.00
1001 > 89.00

Features:-

1. Technology: Time-of-Flight (ToF) using a 940 nm VCSEL (vertical cavity surface-emitting laser).

2. Measurement Range: Up to 2 meters.

3. Accuracy: ±3%.

4. Communication: I2C interface for control and data transfer, with a programmable I2C address.

5. Power: Can be powered by a 2.6V to 5.5V source and uses an onboard regulator to provide power to the sensor.

6. Dimensions: 4.4 mm x 2.4 mm x 1.0 mm.

7. Eye Safety: Class 1 laser device, compliant with IEC 60825-1:2014.
