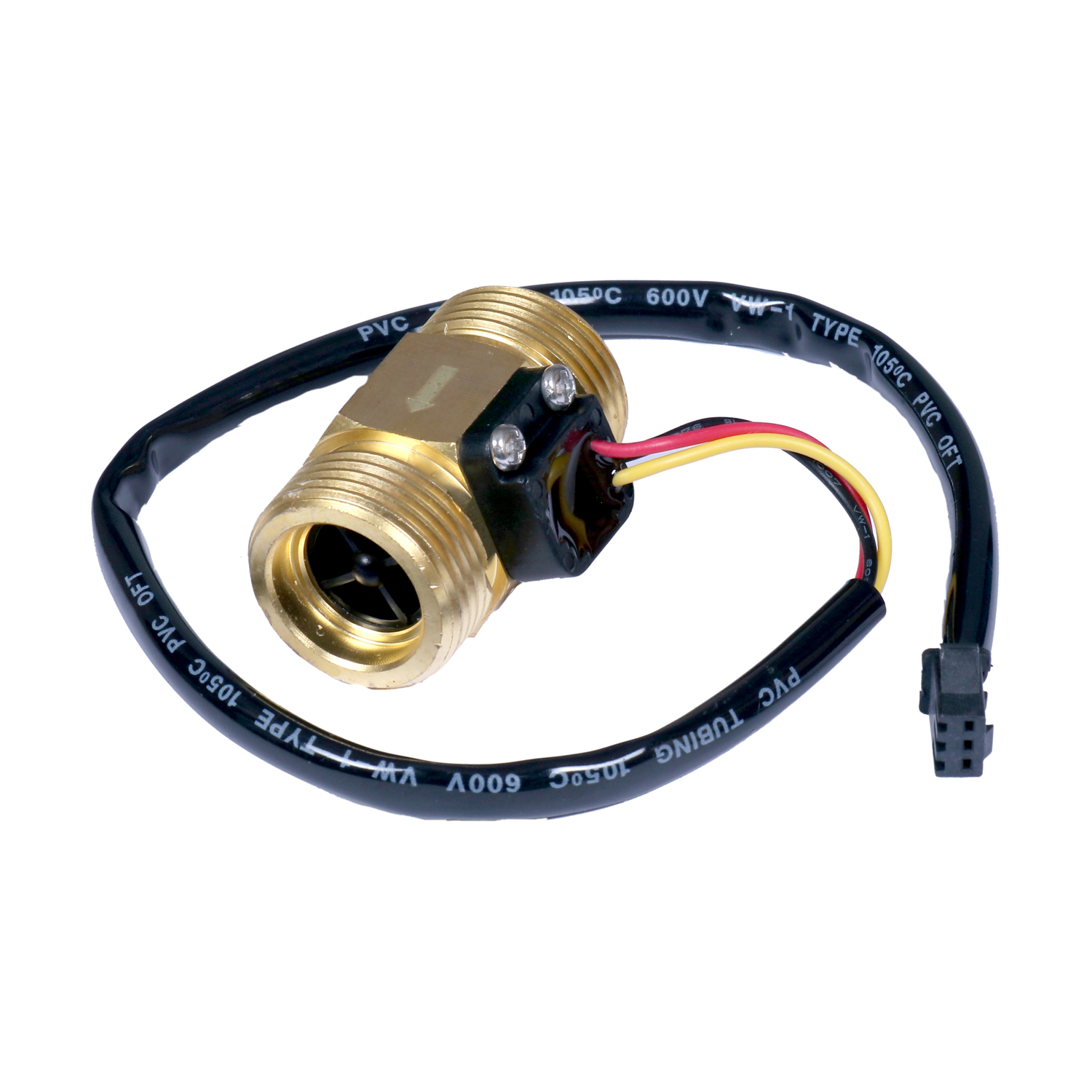

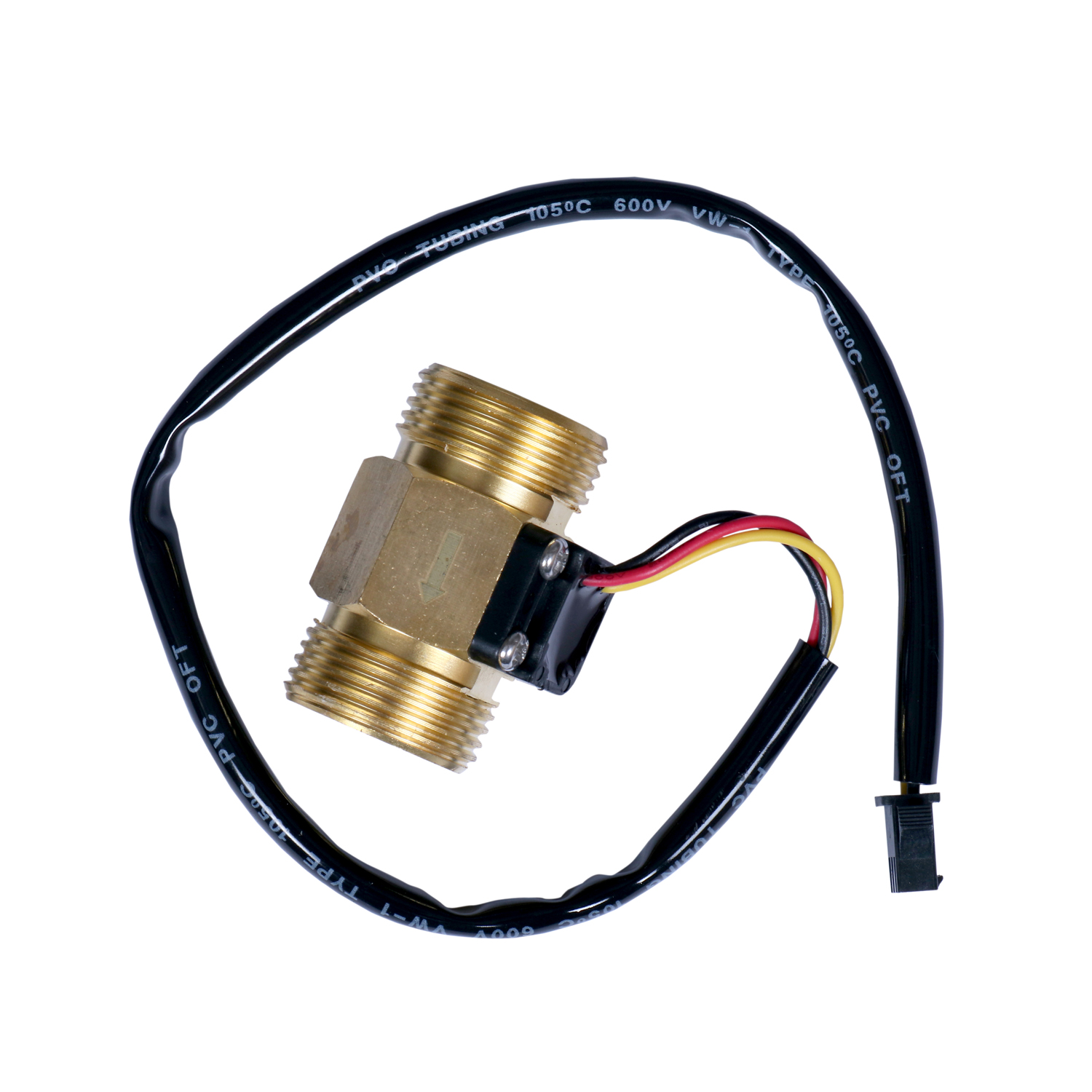

Brass material, apply to solar energy pump ,gas hot water heater, water control machine,intelligent water meter etc.
- Water quality requirement: Drinking water health standards
- Withstand hydraulic pressure: ≤1.75 MPa
- Voltage/electric current: DC4.5 to 18V, ≤15mA, can be customized 24V
- Insulation resistance: >100MΩ
- Electrical strength: AC500V, 50HZ
- Output level: Rated voltage DC5V, high level ≥4.5V, low level ≤0.5V
- Pulse duty cycle: 50%
- Flow characteristic: F=8.1Q-3, F:HZ, Q:L/min ±10%
- Cumulative flow conversion: 1L water=477pulse, accuracy: 10%
Product Details:
| Diameter | 0.75 inch ( 3/4 inch) |
| Flow Range | 2 to 45 L/min |
| Media | Water |
| Model Name/Number | SEN-HZ43WB |
| Brand | SAIER |
| Operating Temperature | 0 to 80 deg C |
| Voltage | DC 4.5 to 18 V |
| Material | Brass |
