FT232RL/CH343G USB TO RS232/485/TTL Interface Converter, Industrial Isolation
Features:
- Adopt original FT232RL or CH343G inside, fast communicating, stable and reliable, better compatibility
- Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
- Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
- Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection
- Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance
- Fully automatic transceiver circuit with no delay, ensures the USB port communicates with different interfaces fastly and stably, without interfering each other

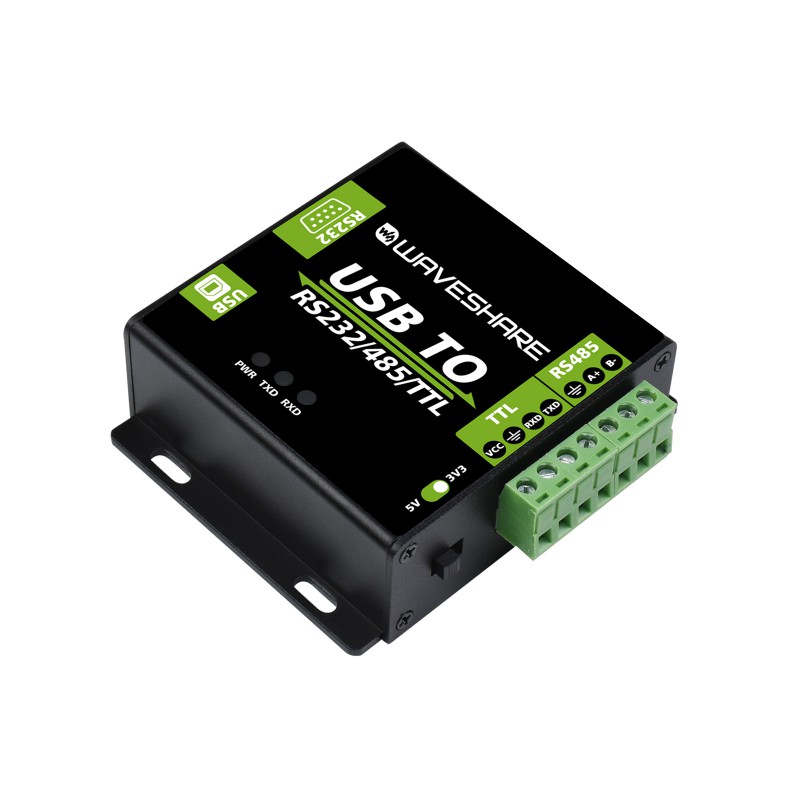

- Onboard TTL serial 3.3V/5V voltage translator, config the TTL level via switch
- Aluminium alloy enclosure with sand blasting and anodic oxidation, CNC process opening, solid and durable
- 3 LEDs for indicating the power and transceiver status

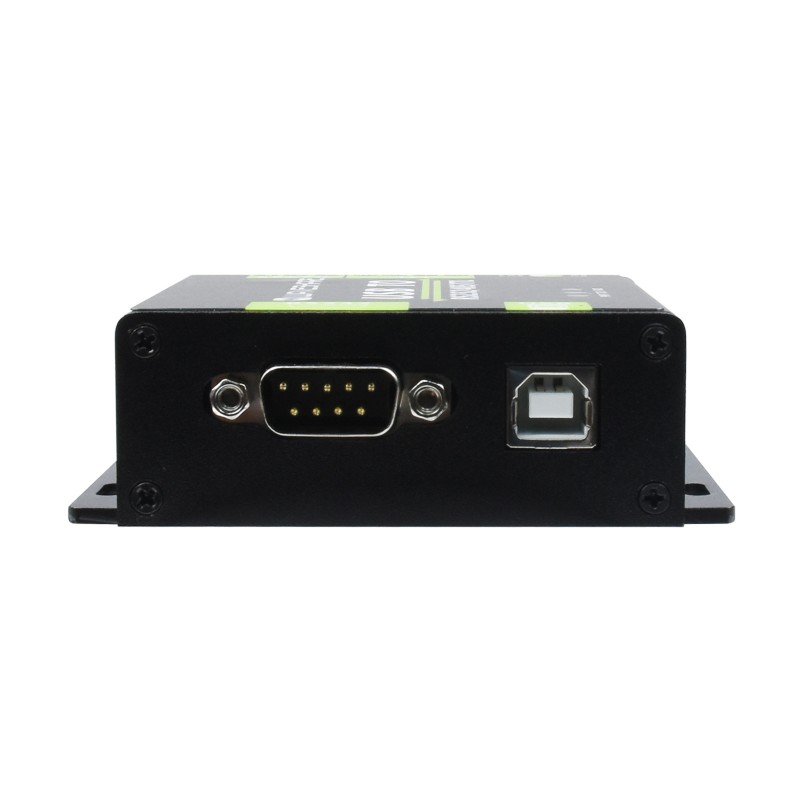

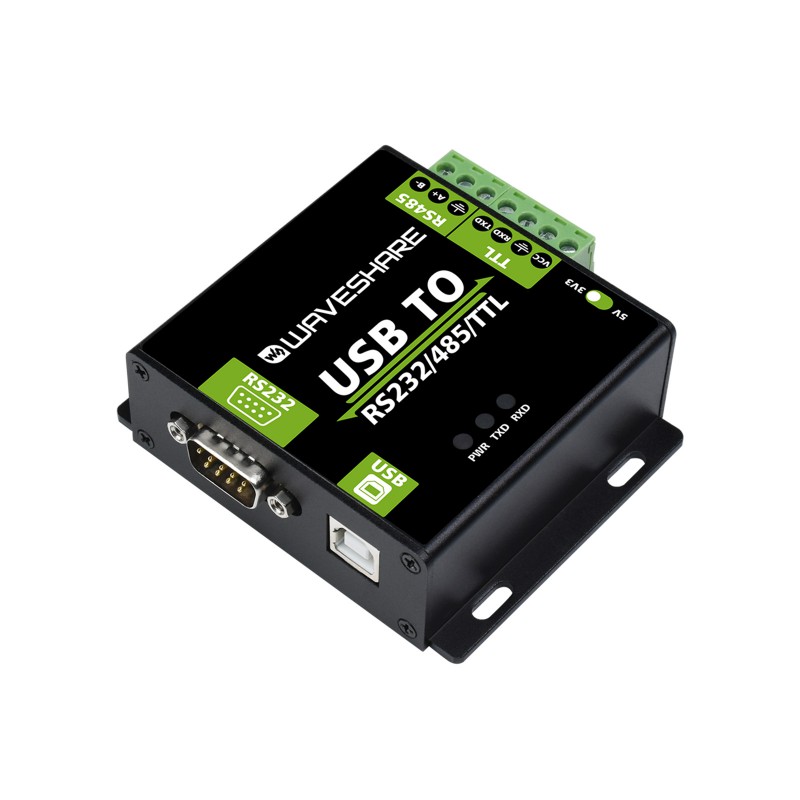

- High quality USB-B and RS232 connectors, smoothly plug/pull
Specifications:
- PRODUCT TYPE: Industrial grade digital isolated converter
-
USB:
- Operating voltage: 5V
- Connector: USB-B
- Protection: 200mA self-recovery fuse, ESD protection -
RS232:
- Connector: DB9 male
- Protection: TVS diode, surge protection & ESD protection
- Transmission mode: Point-to-point
- Baud rate:
-- FT232RL: 300bps ~ 921600 bps
-- CH343G: up to 600000 bps (not full band) -
RS485:
- Connector: Screw terminal
- Pins: A+, B-, GND
- Direction control: Hardware automatically discriminates and controls the direction of data transmission
- Protection: 600W lightningproof and surge-suppress, 15KV ESD protection (reserved 120R balancing resistor solder pads
- Transmission mode: Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
- Baud rate:
-- FT232RL: 300bps ~ 2 Mbps
-- CH343G: up to 2 Mbps (not full band) -
LED INDICATORS:
- PWR: Red power indicator, light up when there is USB connection and voltage is detected
- TXD: Red TX indicator, light up when the USB port sends data
- RXD: Red RX indicator, light up when the device ports send data back -
OPERATING ENVIRONMENT:
- Temperature: -15 ~ 70 Degree C
- Humidity: 5%RH ~ 95%RH - OPERATING SYSTEM: Mac, Linux, Android, WinCE, Windows 11 / 10 / 8.1 / 8 / 7
