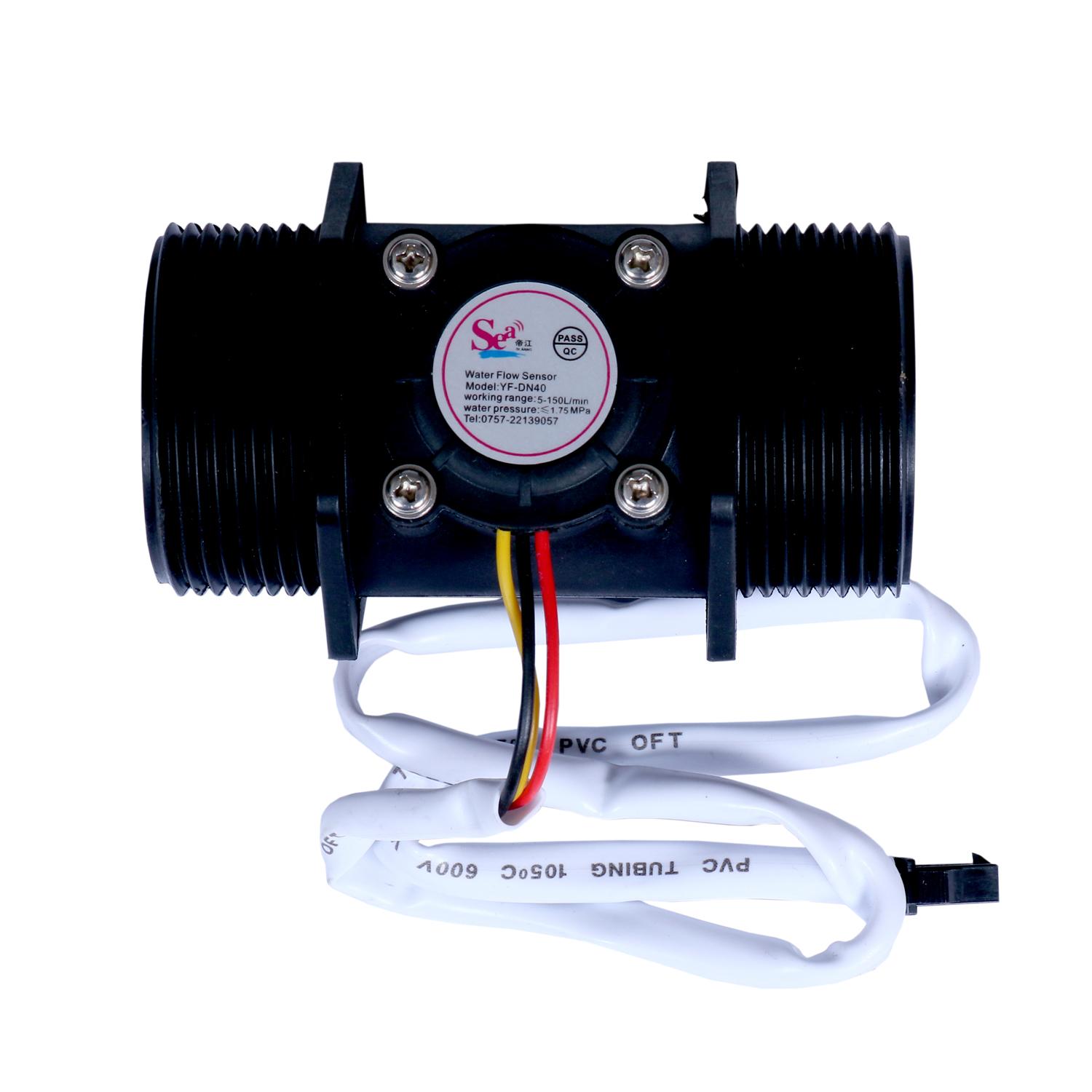

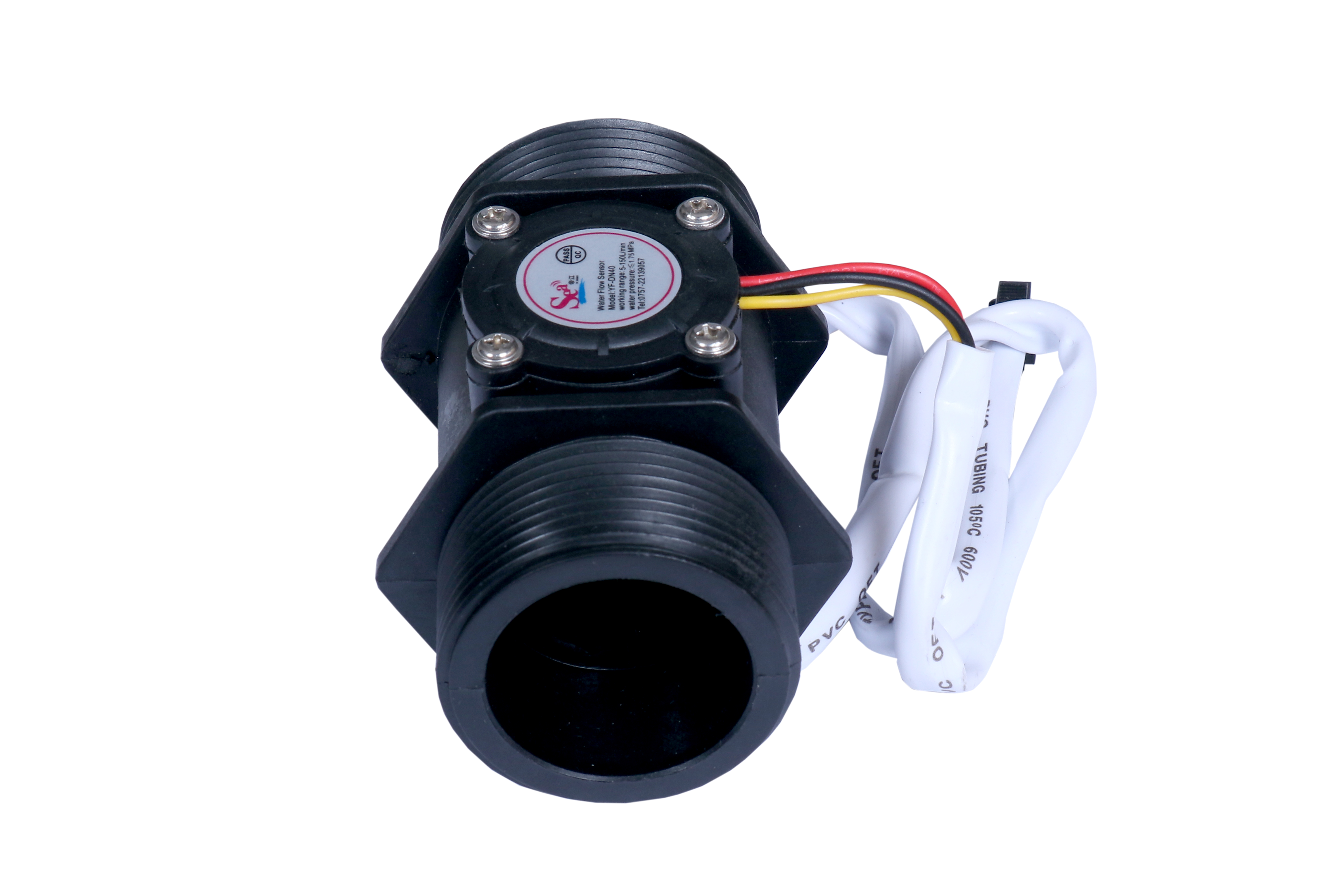

Water flow sensor is mainly composed of plastic valve body, flow of rotor components and hall sensor. It is installed in the water heater inlet, used to detect water flow, when the water through flow rotor components, Magnetic rotor rotation and speed changes with the flow, hall sensor output pulse accordingly Signal feedback to the controller by the controller to judge the size of the water flow, adjust and control.
Features:
- Light weight, easy to install
- Inlaid with stainless steel impeller shaft, durable wearable.
- Seal Ring with the upper and lower force structure never leaks.
- Suitable for automatic gas water heaters
- Waterproof, Heat resistance, pressure resistance, cold resistance
Specification:
- The lowest rated working voltage: DC 5V-24V
- Maximum operating current: 15 mA (DC 5V).
- Working voltage range: DC 5~18 v.
- Load capacity: ≤ 10 mA (DC 5V).
- Work temperature: ≤ 80℃
- Work humidity range: 35%~90%RH (no frost)
- Allowing pressure: pressure 2Mpa or less
- Storage temperature: -25 ~ +80 ° c
- Save humidity: 25%～95%RH
- Flow Range: 5-200L/min ± 3 %
- The output pulse duty cycle 50 ± 10%
- The output rise time 0.04 μ S
- The output decline time 0.18 μ S
- Flow - pulse characteristics Horizontal test pulse frequency (Hz) = [ 0.45 * Q] ± 3 % (level test) (Q is flow rate L / min)
- Insulation resistance The insulation resistance between the Hall sensor and the copper body is 100 M Ω or more. (DC 500V)
- Heat resistance In the 8 0 ± 30C environment for 48 h, return to normal temperature 1-2h no exception , and parts without cracks, relaxation, expansion, deformation and other phenomena, the accuracy of 10 % or less.
- Cold resistance In the -20 ± 30C environment for 48 h, return to normal temperature 1-2h no exception , and parts without cracks, relaxation, expansion, deformation and other phenomena, the accuracy of 10 % or less.
- Moisture resistance In the 40 ± 20C , relative humidity 90% ~ 95% RH environment placed 72h after removal , the insulation resistance of 1M Ω or more.
- Diameter: Approx. 4.5cm / 1.77inch
- Total Length: Approx. 9.2cm/3.62inch 3-Pin cable length: Approx. 50cm/19.69inch
- Color: Black
