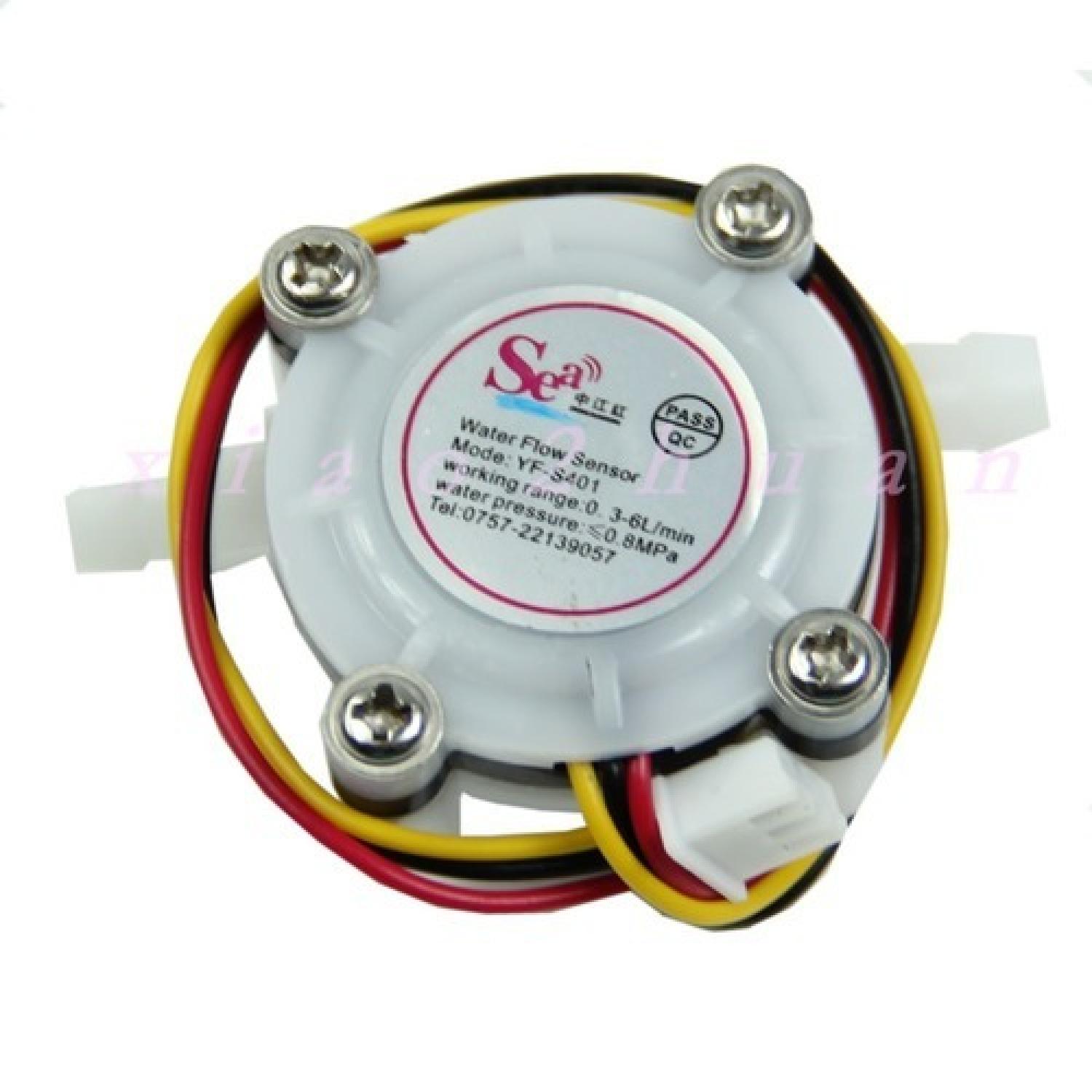

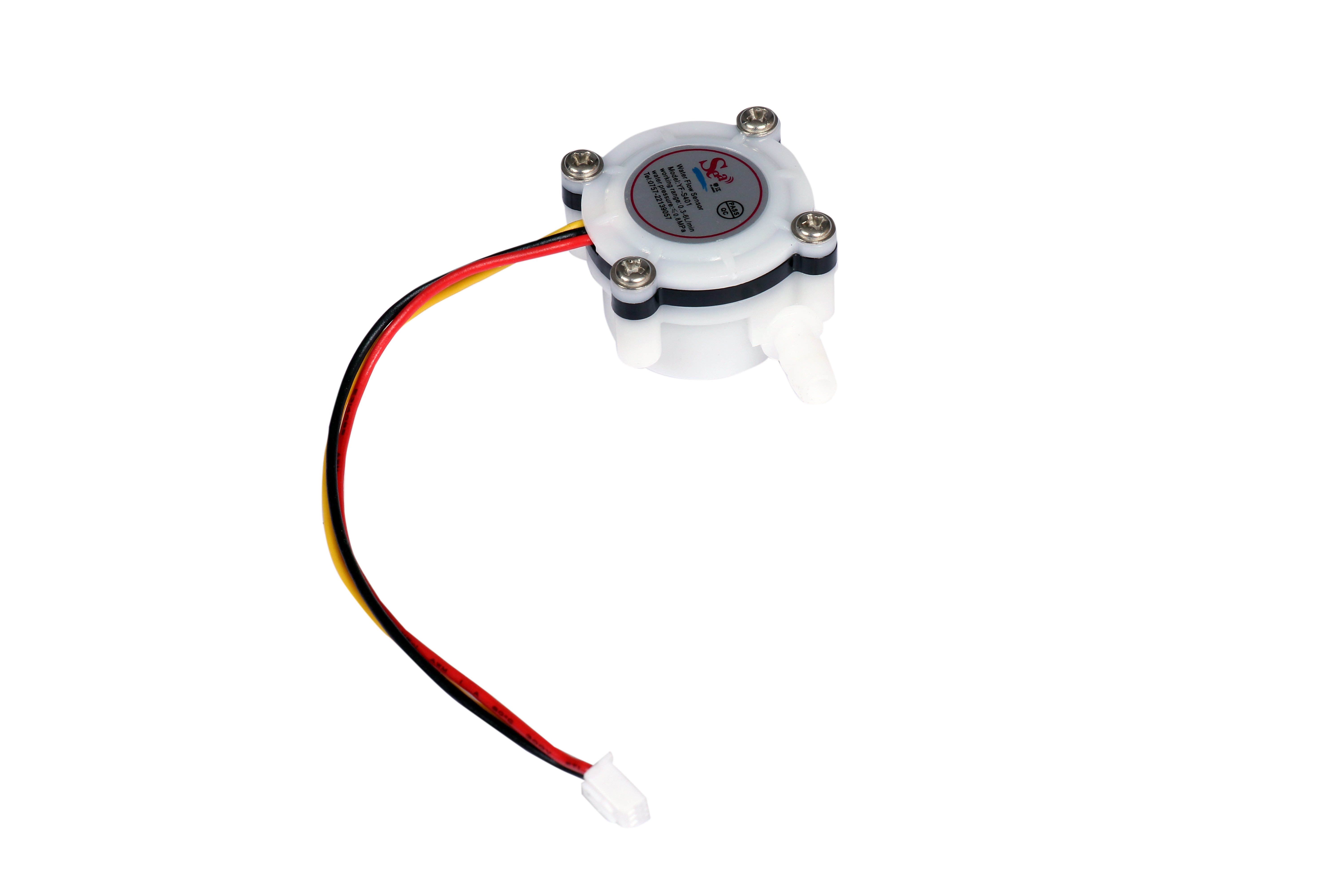

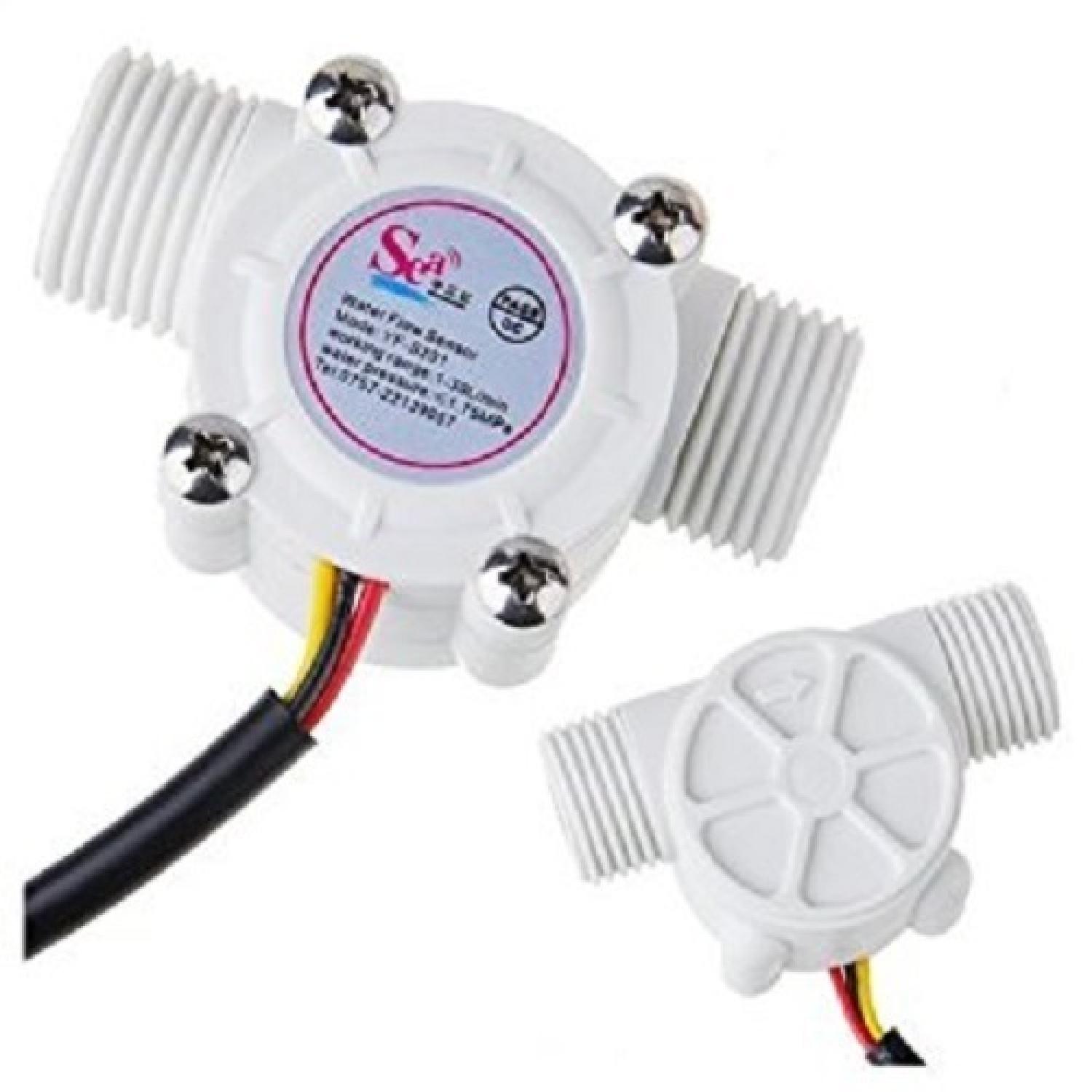

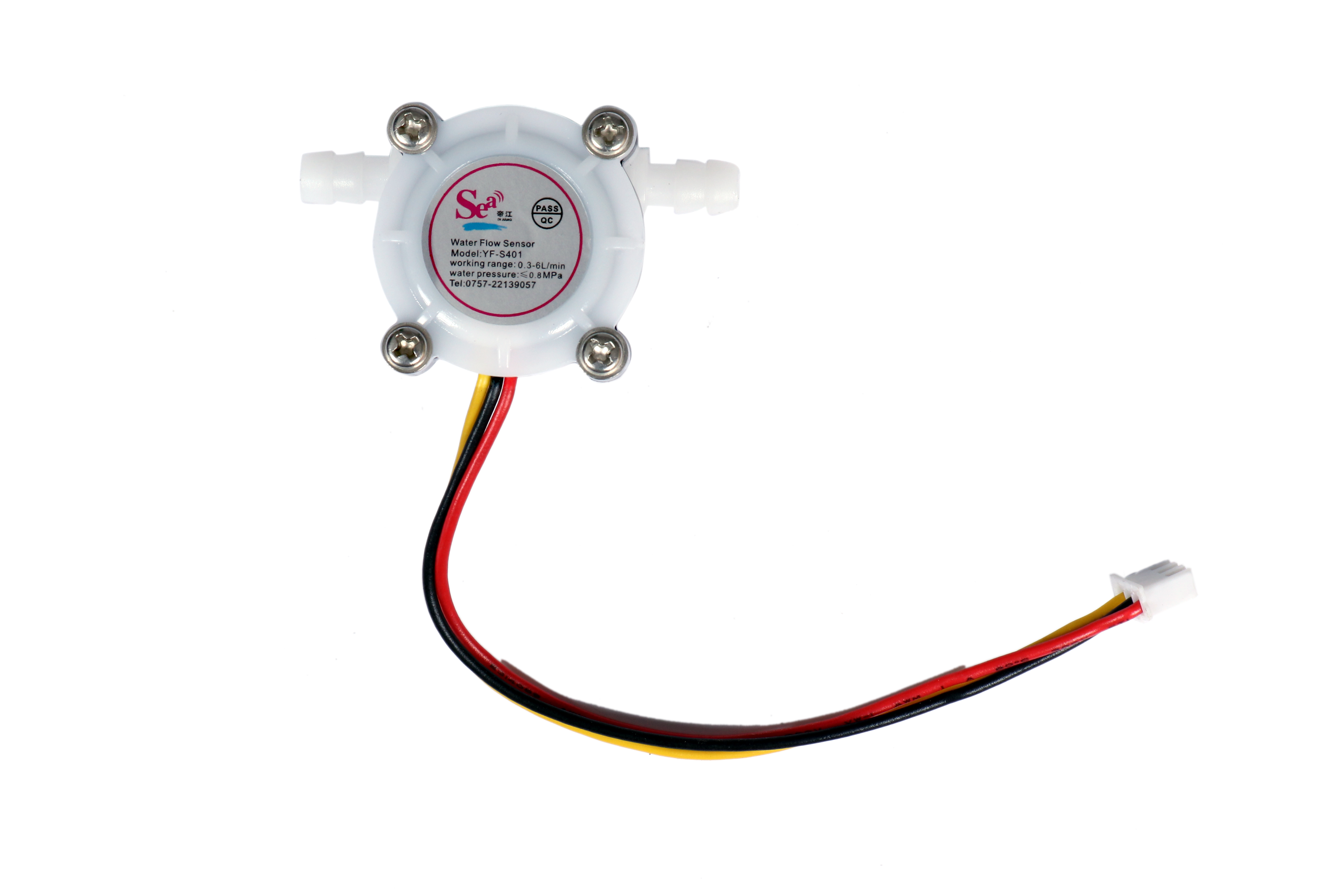

Water flow sensor consists of a PVC body, a water rotor, and a hall-effect sensor. When water flows through the rotor, rotor rolls. Its speed changes with different rate of flow. The hall-effect sensor outputs the corresponding pulse signal. This one is suitable to detect flow in water dispenser or coffee machine.
Features:
- Compact, Easy to Install
- High Sealing Performance
- High Quality Hall Effect Sensor
- RoHS Compliant
Specifications:
- Mini. Working Voltage: DC 4.5V
- Max. Working Current: 15mA (DC 5V)
- Working Voltage: DC 5V~24V
- Water resistant 0.35MPa
- Flow Rate Range: 0.1~ 5L/min
- Load Capacity: ≤10mA (DC 5V)
- Operating Temperature: ≤80℃
- Liquid Temperature: ≤120℃
- Operating Humidity: 35%～90%RH
- Water Pressure: ≤0.8MPa
- Storage Temperature: -25～+ 80℃
- Storage Humidity: 25%～95%RH
- Internal diameter: 1.2mm;
- Error: +/-2L/min;
- Insulation resistance > 100MΩ
- Output pulse duty cycle 50% ± 10%
- Output pulse high level > DC 4.7V (input voltage DC 5V)
- Flow pulse characteristics F = (98 * Q) ± 2% Q = L / MIN
