The Hi-Link HLK-LD6001 is an advanced 60GHz millimeter-wave (mmWave) radar sensor module engineered for indoor human movement and trajectory tracking. Built on FMCW (Frequency Modulated Continuous Wave) radar technology, the HLK-LD6001 delivers high spatial resolution and precise motion analysis, enabling accurate detection of human presence, movement paths, and behavior patterns.
Unlike traditional motion sensors, the HLK-LD6001 can track multiple individuals simultaneously and detect subtle micro-motions such as standing, sitting, or waving. Its performance remains stable across varying environmental conditions, making it ideal for smart buildings, people counting, robotics, and advanced occupancy analytics. Configuration via serial interface allows customization of detection range and operating modes to suit diverse application needs.
Key Features
- 60GHz FMCW radar technology for high-resolution movement tracking
- Multi-target detection: Track up to 10 individuals simultaneously
- Human trajectory tracking for movement path analysis
- Micro-motion sensitivity: Detects subtle actions (standing, sitting, waving)
- Robust indoor performance: Unaffected by light, temperature, or humidity
- Flexible configuration via serial port for range & mode selection
- High precision & responsiveness for real-time analytics
- Designed for continuous operation in smart environments
Technical Specifications
- Operating Frequency: 60GHz mmWave band
- Radar Technology: FMCW (Frequency Modulated Continuous Wave)
- Detection Capability: Human presence, movement & trajectory
- Multi-Target Tracking: Up to 10 people simultaneously
- Micro-Motion Detection: Yes
- Configuration Interface: Serial (UART)
- Application Environment: Indoor
- Performance Stability: High resistance to environmental variations
(Refer to the datasheet for detailed electrical, mechanical, and configuration parameters.)
Applications
- Smart home automation (lighting, HVAC, security)
- Occupancy monitoring & space utilization analytics
- People counting in retail & public transport hubs
- Smart offices & commercial buildings
- Robotics & automated systems for human interaction
- Advanced indoor tracking & behavior analysis systems
Package Includes
-

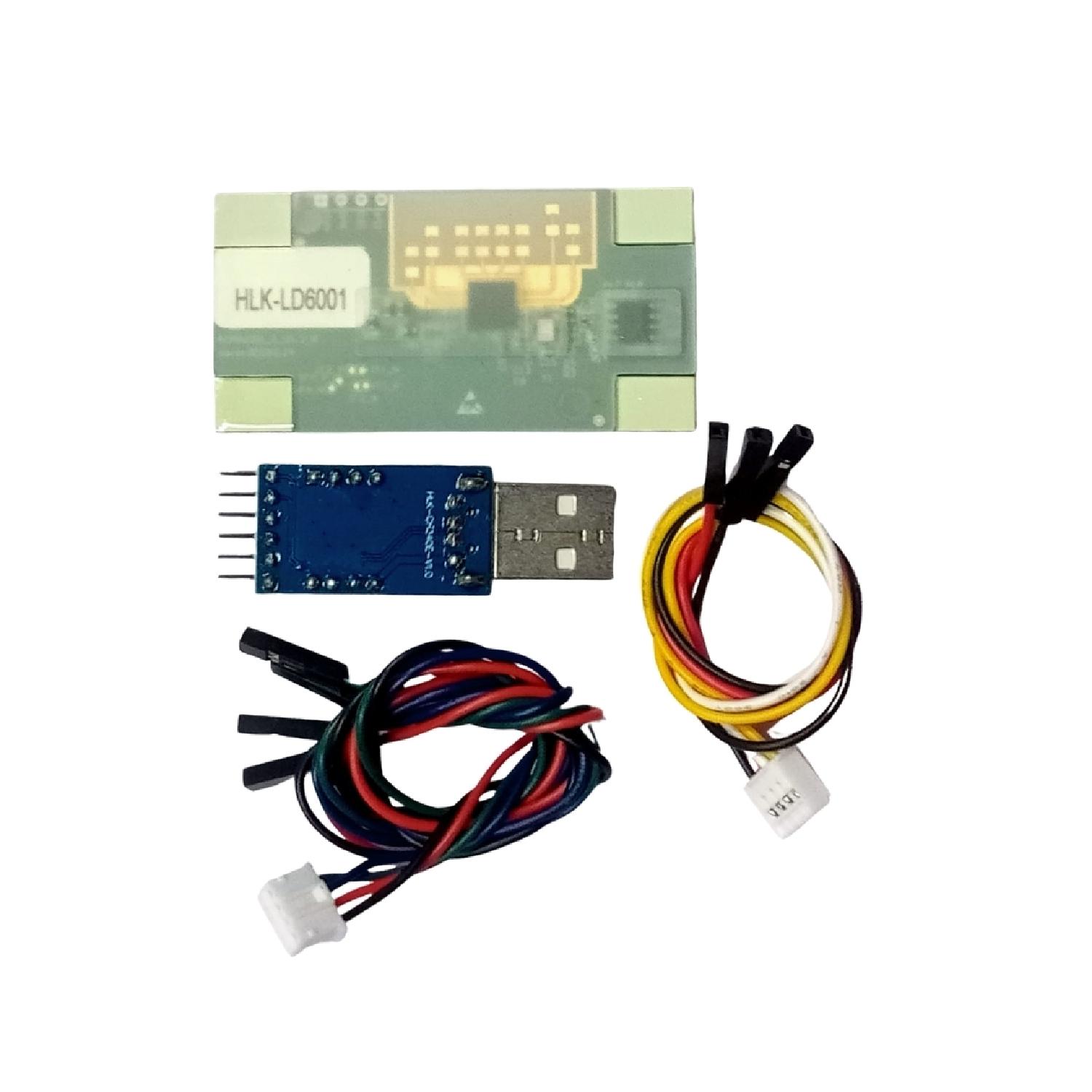

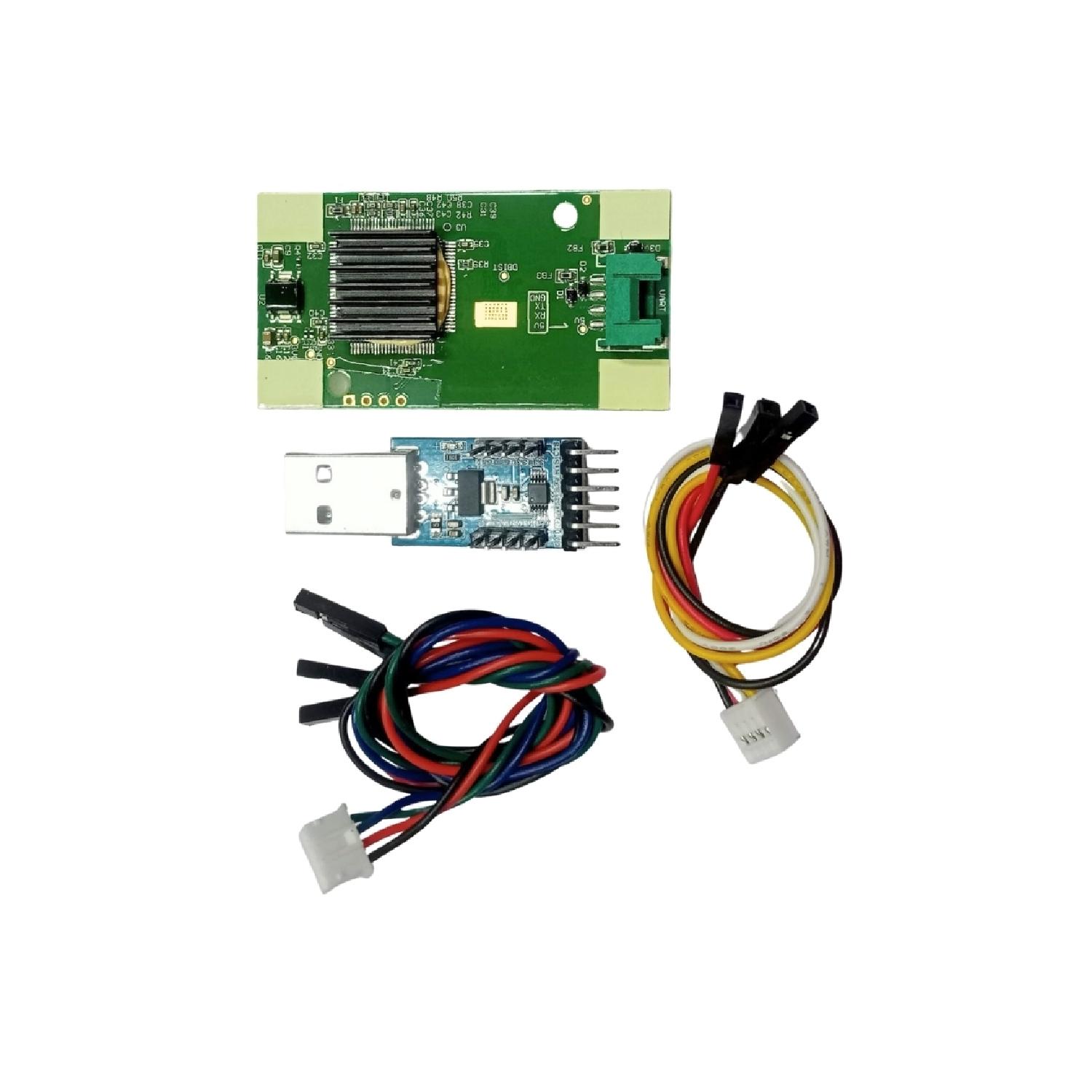

1 × Hi-Link HLK-LD6001 60GHz Human Movement Trajectory Radar Sensor Module
