FEATURES:
• Serial UART Interface
• It run LWIP • 802.11 bgn
• WIFI Direct (P2P), SOFT-AP
• Built-in TCP/IP
• The AT command is perfect, efficient, concise
• Support three modes: AP, STA and AP+STA coexistence mode
• UFL Antenna Connector
• Berg strip connectable • Breadboard Compatible.
SPECIFICATIONS:
• WIFI Direct (P2P), SOFT-AP
• The AT command is perfect, efficient, concise
• Support three modes: AP, STA and AP+STA coexistence mode the TCP/IP protocol suit
• Integrated TCP/IP protocol stack
• Integrated TR switch, balun, LNA, power amplifier and matching network
• Integrated PLLs, regulators, DCXO and power management units
• +19.5dBm output power in 802.11b mode
• Power down leakage current of <10uA
• Integrated low power 32-bit CPU could be used as application processor
• SDIO 1.1/2.0, SPI, UART
• STBC, 1×1 MIMO, 2×1 MIMO
• A-MPDU & A-MSDU aggregation & 0.4ms guard interva
• Wake up and transmit packets in < 2ms
• Standby power consumption of < 1.0mW (DTIM3)
• ESP-05 SMD package, only leads to serial and RST pin, small external antenna.

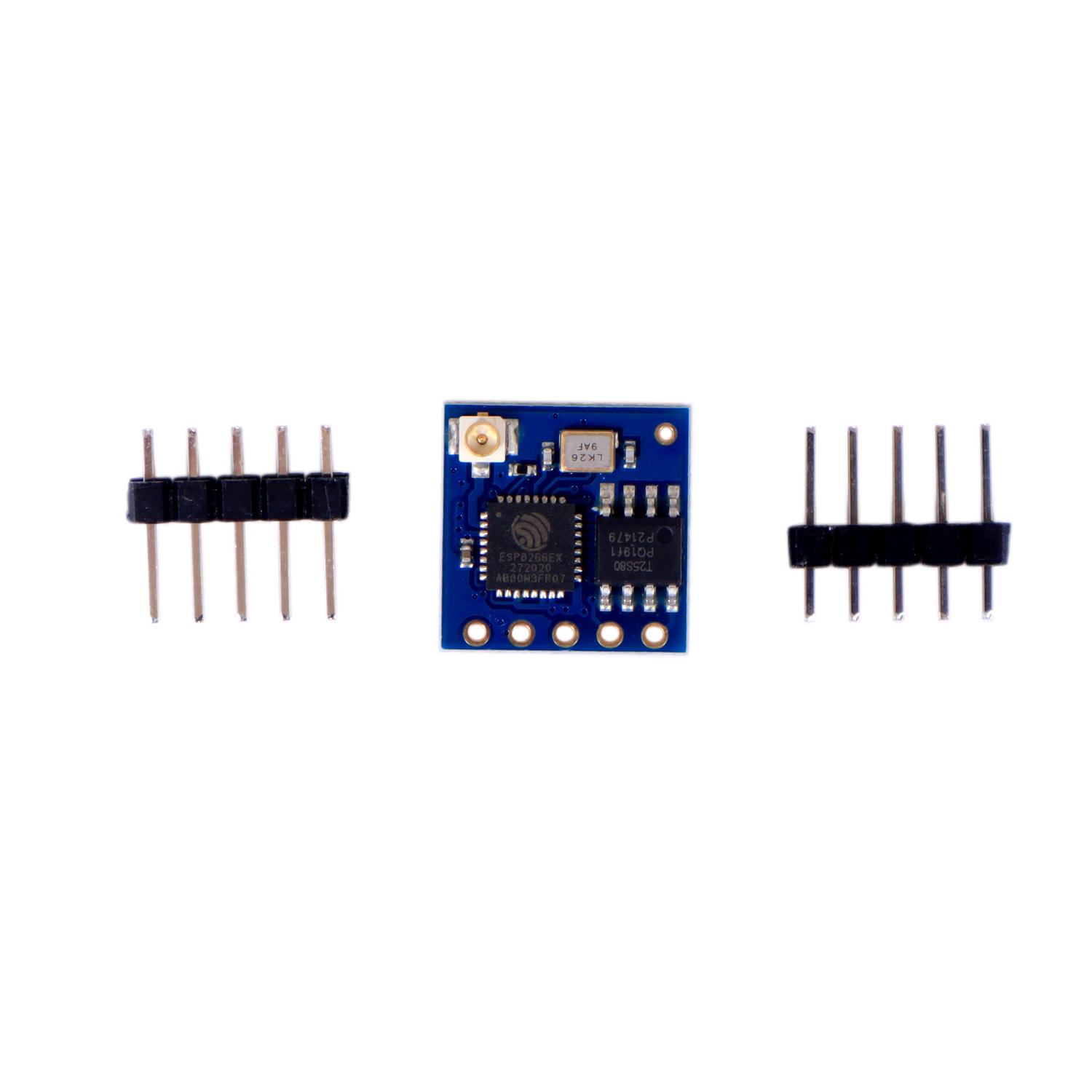

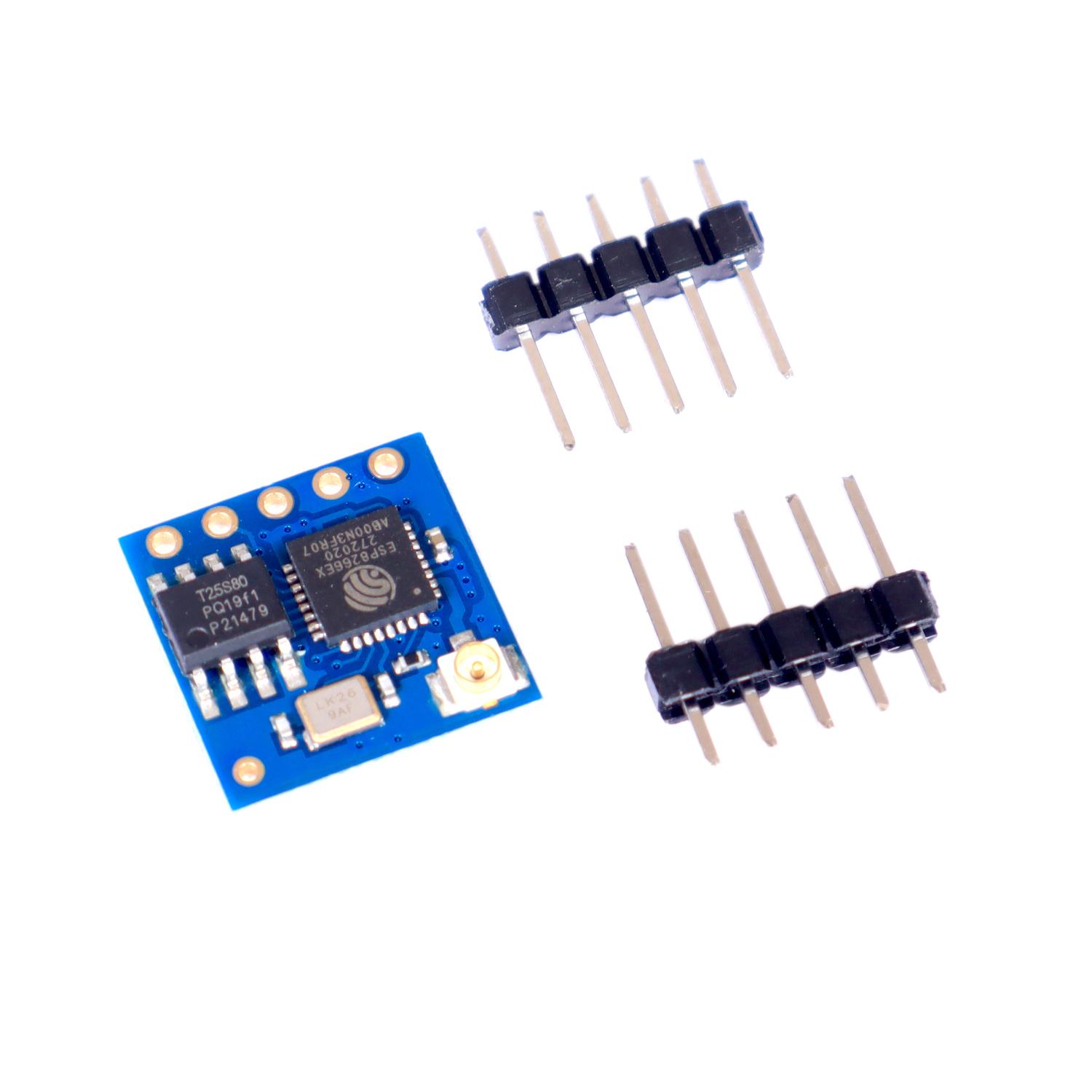

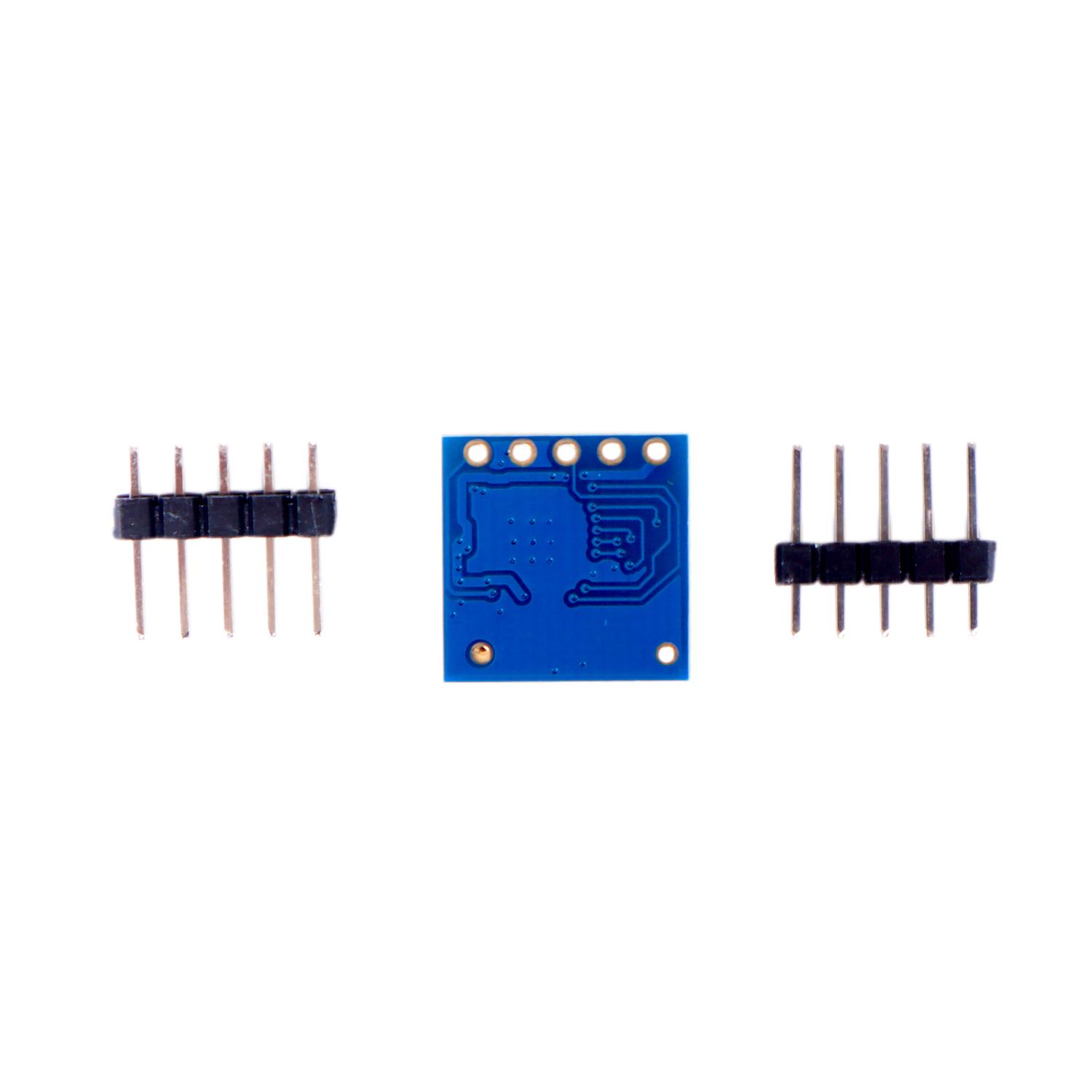

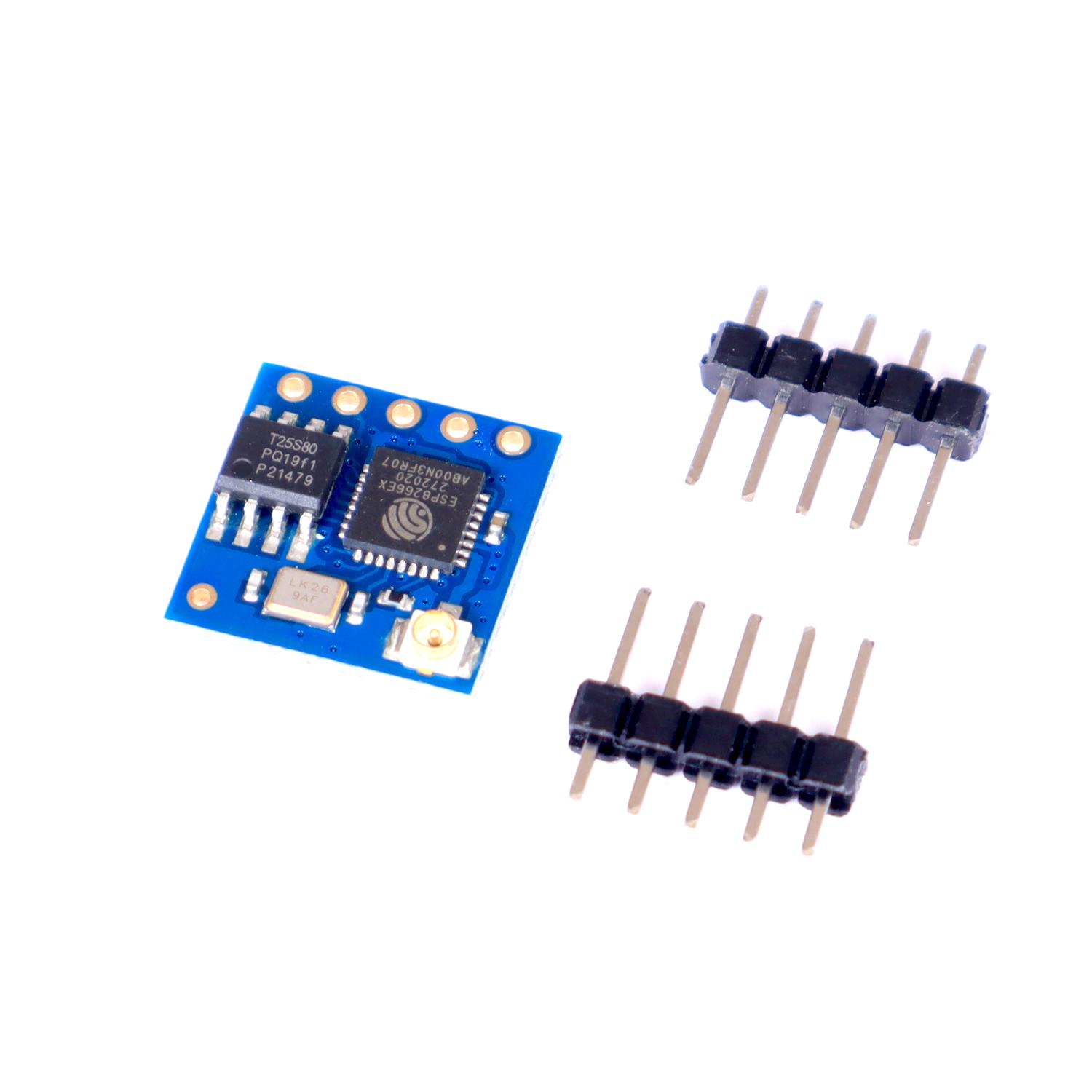

ESP8266 Serial WiFi Transceiver Module (ESP-05) is addressable over SPI and UART, making this an exceptionally easy choice for anyone wanting to build an Internet of Things thing. You can use AT commands to connect to WiFi networks and open TCP connections without need to have TCP/IP stack running in your own micro controller: You can simply connect any micro controller to this module and start pushing data up to the Internet.
