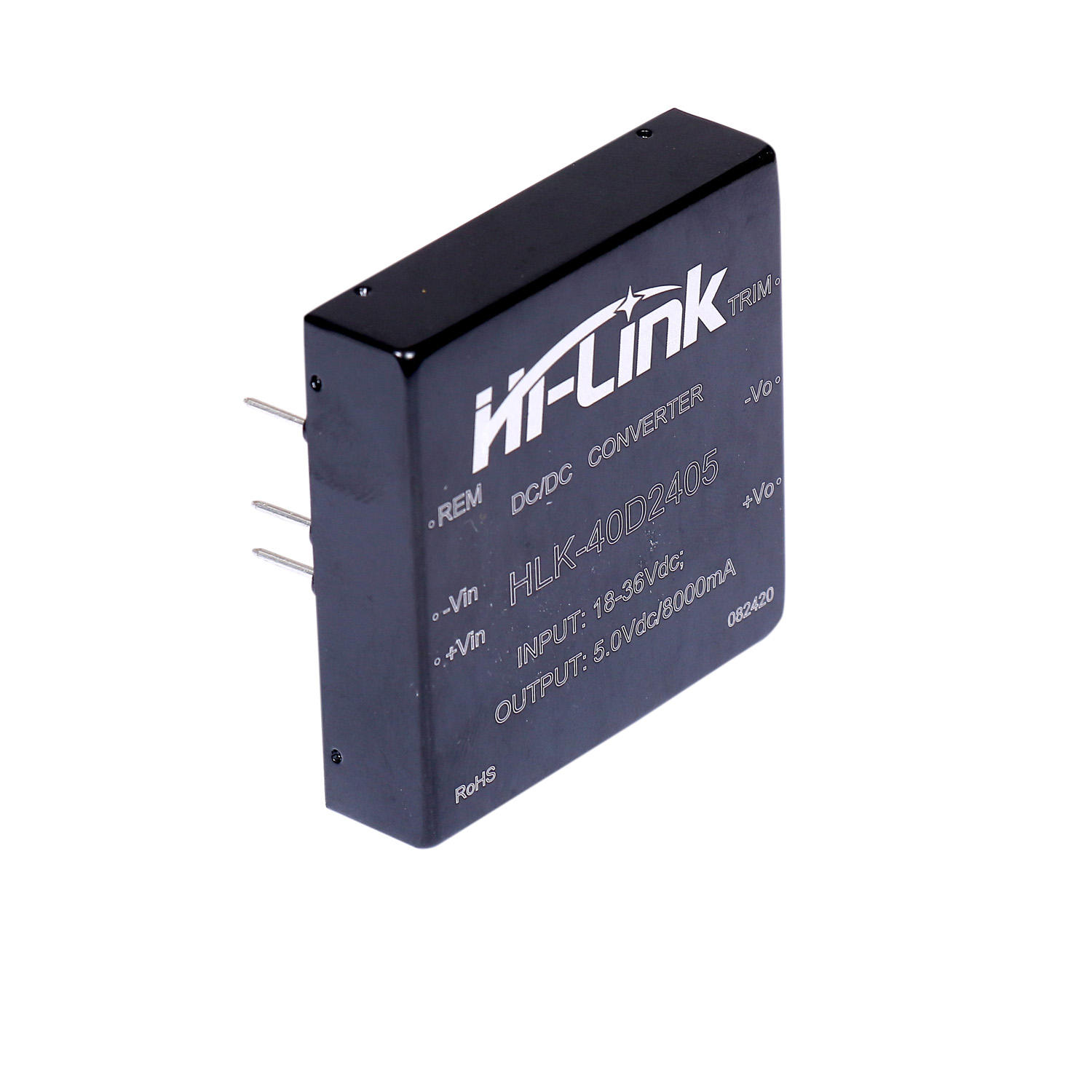

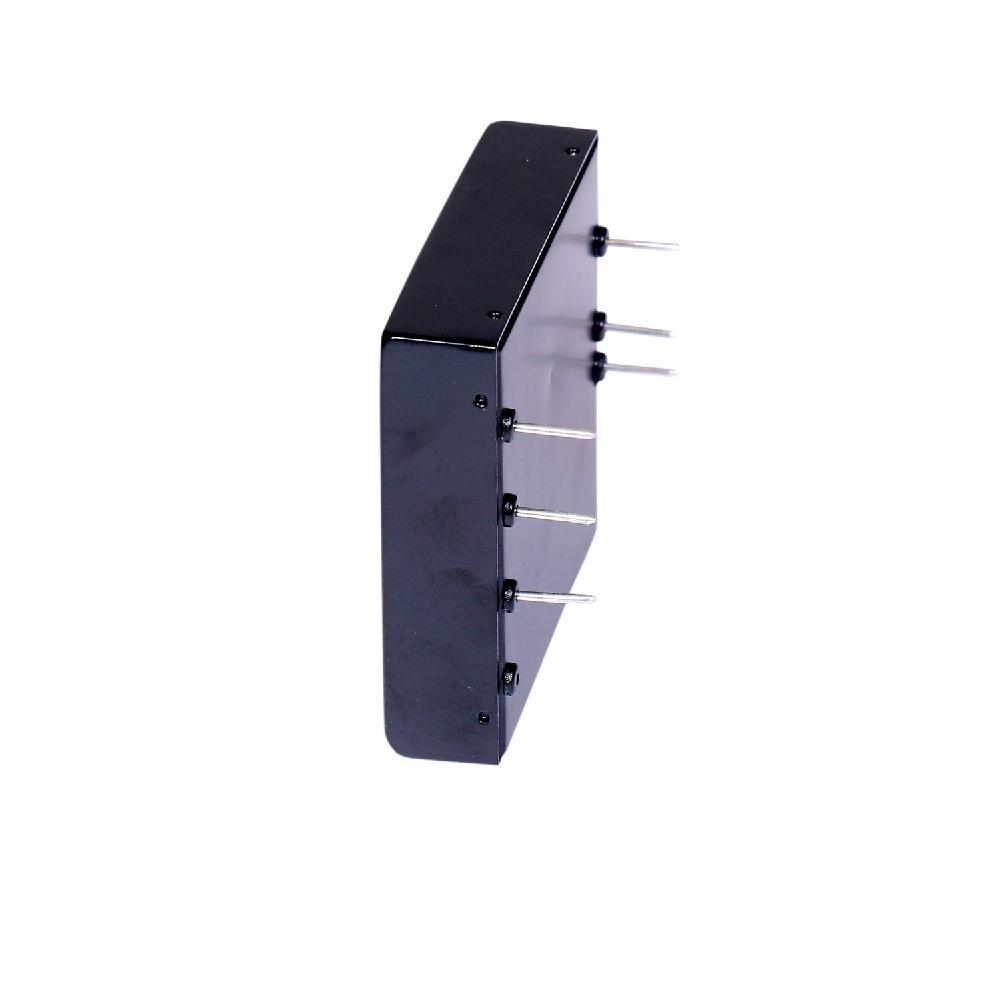

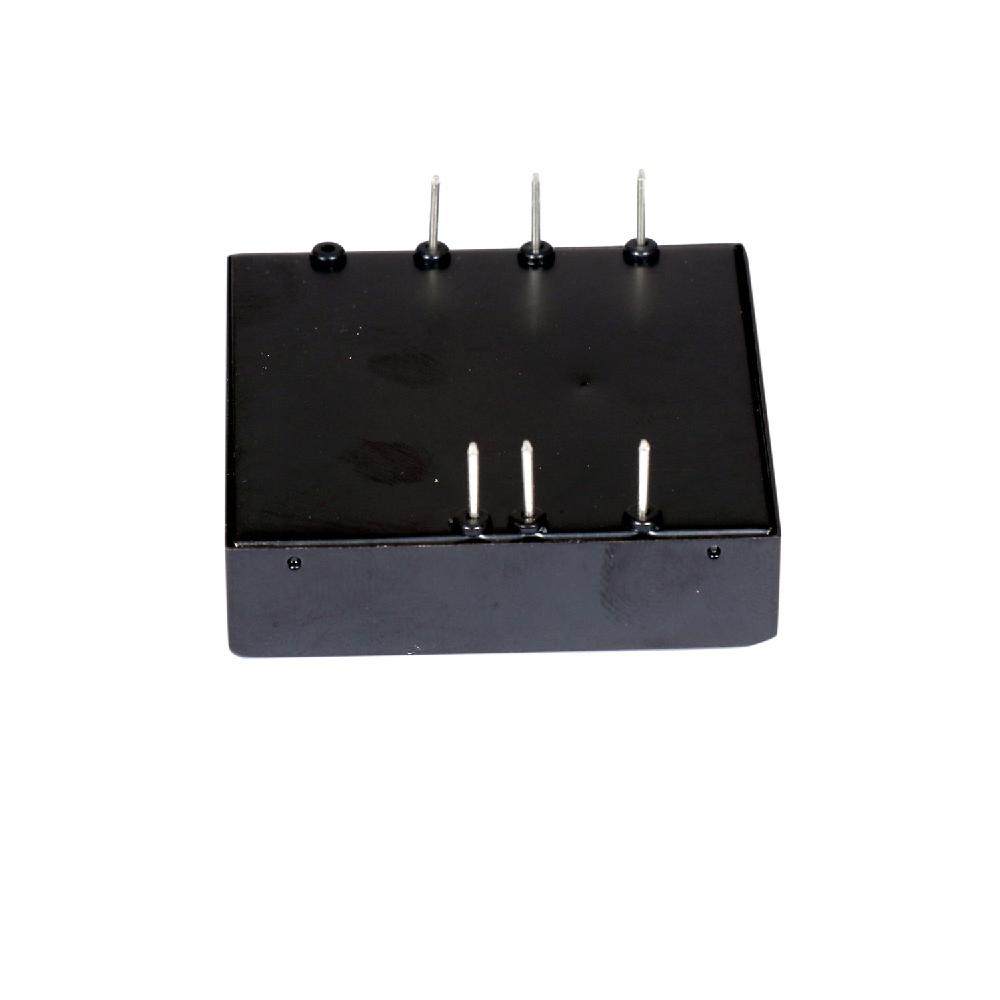

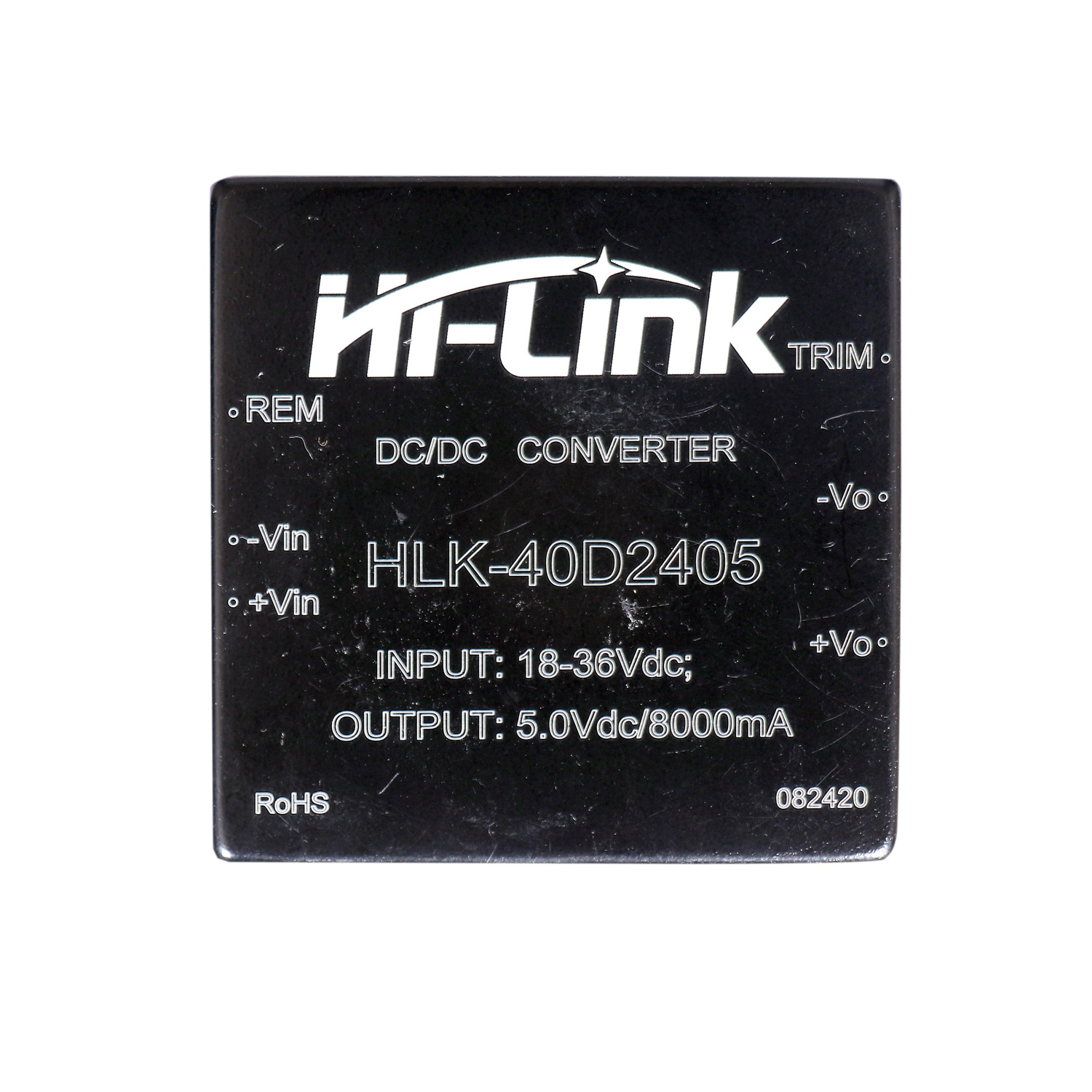

Hi-Link 40D2405 High Power Converter Module
The output power of 40W DC / DC module power supply series is 40W, 2: 1 wide voltage input range, efficiency up to 91%, 1500VDC conventional isolation voltage, allowable operating temperature -40 ºC to + 85 ºC, with input undervoltage protection, output Overvoltage, overcurrent and short circuit protection functions, bare metal meets CISPR32 / EN55032 CLASS A,40W DC / DC power module 24V series is a small size converter, 20W output power, 4: 1 wide voltage input range, efficiency up to 91%, 1500VDC conventional isolation voltage, allowable operating temperature -40 ºC to +85 ºC, with input under-voltage protection, the output over-voltage, over-current, and short-circuit protection functions. Bare metal meets CISPR32 / EN55032 CLASS A, widely used in medical, industrial control, electric power, instrumentation, communications, railway and other fields.
Product features - Hi-Link 40D2405 High Power Converter Module
- Ultra wide range input (2: 1), output 40W
- Conversion efficiency 91% (Typ)
- Isolation voltage 1500Vdc
- Ultra-low standby power consumption: 0.1W (typical value)
- Super fast start: 1mS (typical value)
- Operating temperature range: -40 ° C ~ + 85 ° C
- Input undervoltage protection, output short circuit, overcurrent, overvoltage protection
- Metal shell, low output ripple
- International standard pins, PCB board straight plug installation
- Adopting high-quality environmentally-friendly waterproof and thermally conductive adhesive potting, moisture-proof, vibration-proof, meet the waterproof and dustproof IP65 standard
- High reliability, long life design, long continuous working time
Basic characteristics Hi-Link 40D2405 High Power Converter Module
- Ultra wide range input (4:1), output 40W
- Conversion efficiency: 91% (Typ)
- Isolation voltage: 1500Vdc
- Ultra low standby power consumption: 0.036W (typical)
- Ultra fast start: 1mS (typical)
- Operating temperature range: -40 ° C ~ +85 ° C
- Output protection: short circuit protection, over current protection, over voltage protection
- Metal case, low output ripple
- International standard pin, PCB board in-line installation
- It is sealed with high quality environmental protection waterproof and thermal conductive glue, moisture proof and vibration proof, and meets the requirements of waterproof and dustproof IP65.
- High reliability, long life design, long continuous working time
Input characteristic -Hi-Link 40D2405 High Power Converter Module
Environment conditions:
10W DC to DC series
| Items | Working conditions | Unit | Remarks | ||
| Rated input voltage | 24 | Vdc | |||
| Input voltage range | 18-36 | Vdc | |||
| Max input current | ≤2.5 | A | |||
| Reflected ripple current | 40 | mA | DC24V rated input voltage series | ||
| Impulse voltage | ≤50 | Vdc | |||
| Starting voltage | 18 | Vdc | |||
| Input undervoltage protection | --- | Vdc | |||
| Start delay time | 1 | ms | Rated input voltage and constant resistance load | ||
| Input filter type | --- | PI version | |||
| Hot plug | --- | No-support | |||
| Remote end(Ctrl)* | Module open | Ctrl is floating or connected to TTL high level (3.5-12VDC) | |||
| Module closed | Ctrl connected to GND or low level (0-1.2VDC) | ||||
| Input current when turned off | mA | -- | 1 | 0 | |
Environment conditions:
| Items | Technical parameters | Unit | Remarks |
| Working temperature | -40~+85 | ºC | |
| Storage temperature | -40~+80 | ºC | |
| Relative humidity | 5~95 | % | |
| Heat dissipation method | Natural cooling | ||
| Atmospheric pressure | 80~106 | Kpa | |
| Vibration | Vibration coefficient 10~500Hz, 2G10min./1cycle, 60min.each along X,Y,Z axes | Meet secondary road transport requirements |
10W DC to DC series
| Model No. |
Size (mm) |
Output power (W) |
Output voltage (V) |
Output current (mA) |
| HLK-40D2405 | 50.8*50.8*12.7 | 40 | 5 | 8000 |
| HLK-40D2412 | 12 | 3333 | ||
| HLK-40D2415 | 15 | 2666 | ||
| HLK-40D2424 | 24 | 1666 |
