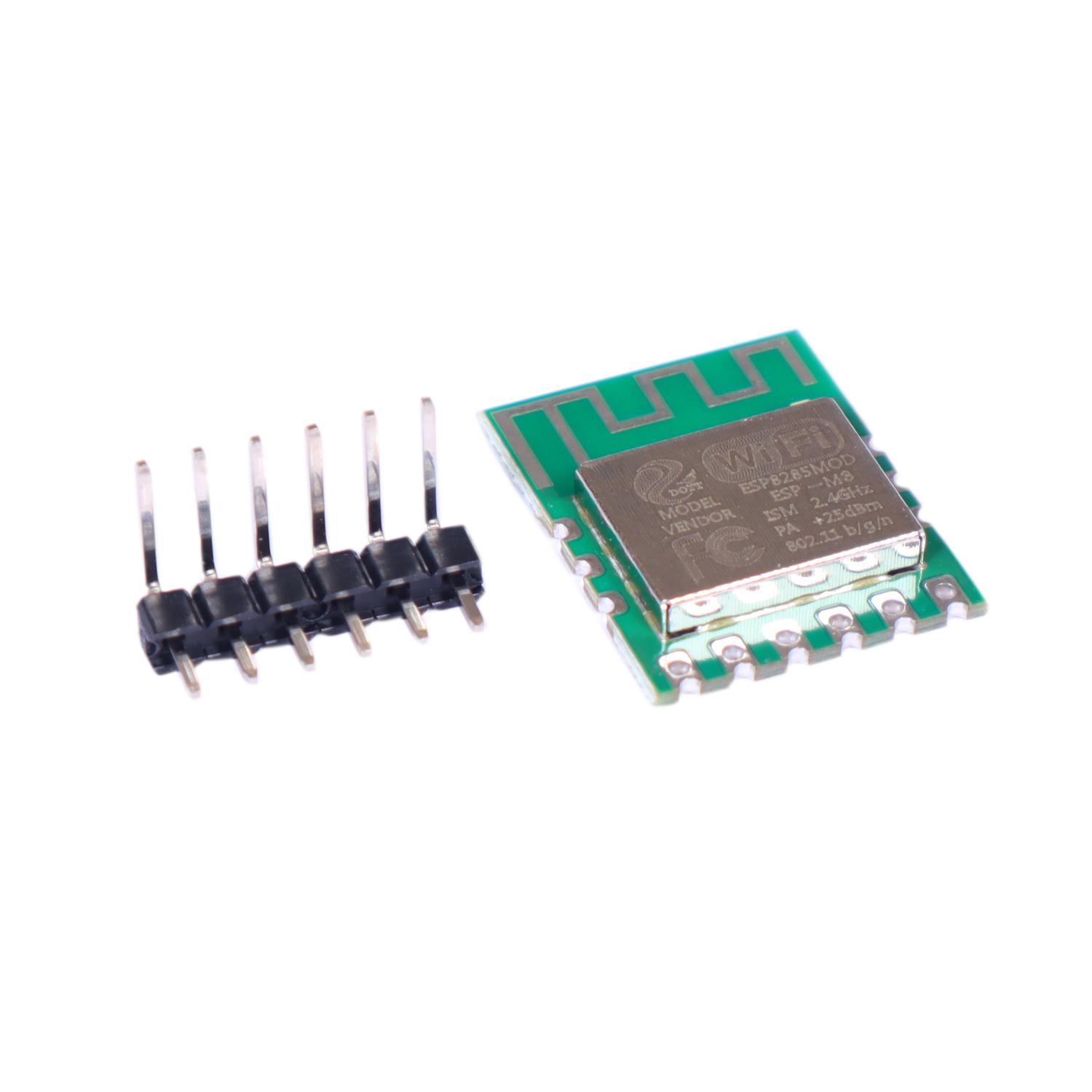

Product Details:

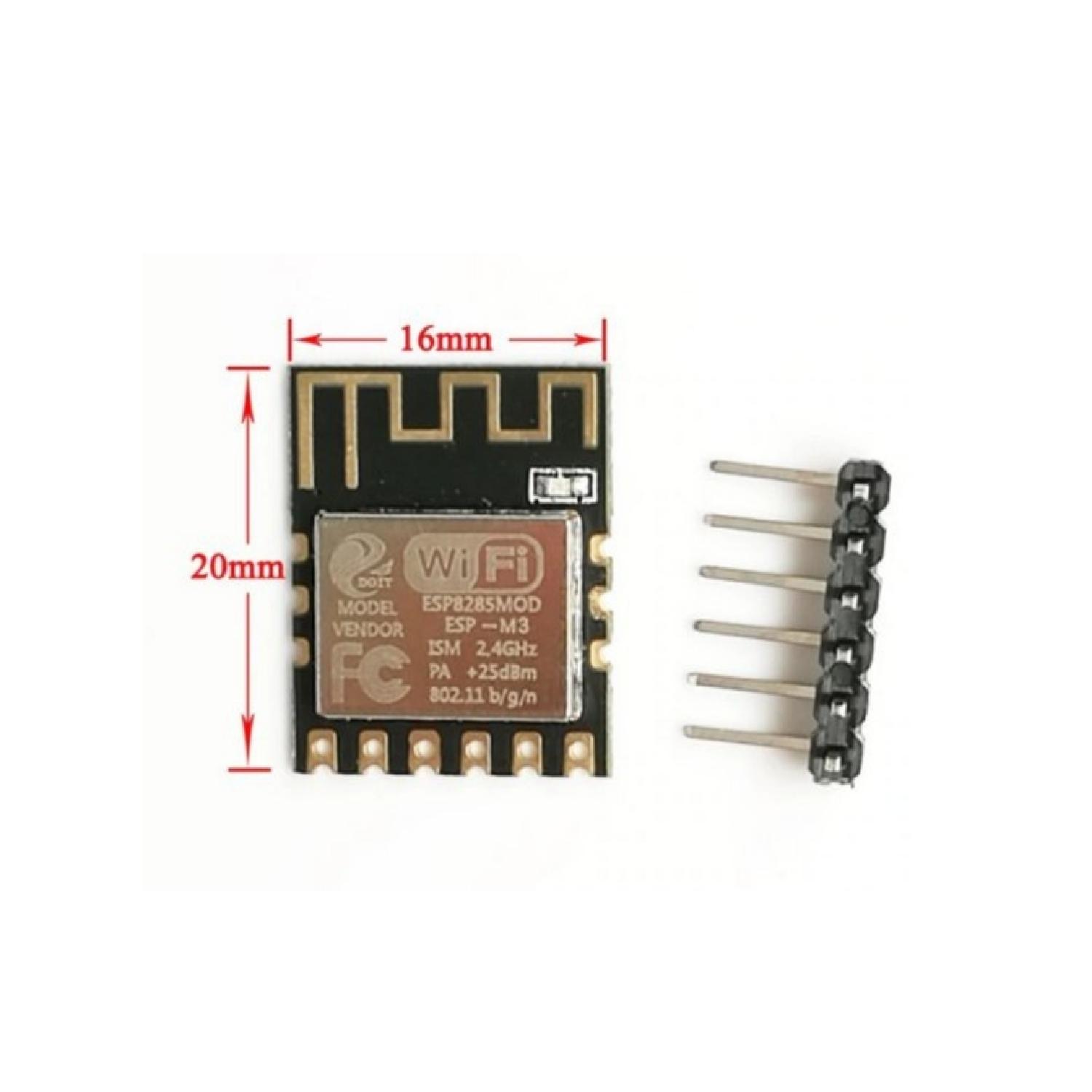

| Model Name/Number | ESP 8285 M3 |
| Brand | DOIT |
| Working temperature | -40 deg C+125 deg C |
| Module size | 26.8mm x 16mm |
| Packaging Type | Box |
SOC characteristics
- Built-in Tensilica L106 ultra-low power 32-bit CPU, main frequency supports 80MHz and160MHz, and RTOS
- Built-in TCP/IP protocol
- Built-in one-channel 10-bit high precision ADC
- Outboard interface: HSPI, UART, I2C, I2S, IR Remote Controk, PWM, GPIO
- Deep sleep current is 10uA, the cut-off current is smaller than 5uA
- Wake,connect and transmission data package within 2ms
- The consume power is smaller 1.0Mw (DTIM3) when at stand by status
- Built in 1M byte for SPI Flash
WiFi characteristics
- Support 802.11 b/g/n/e/I
- Support Station, Soft AP, Soft AP+STA mode
- Support WiFi Direct (P2P)
- Support CCMP (CBC-MAC, computation mode), TKIP (MIC, RC4), WAPI (SMS4), WEP (RC4), CRC etc., for hardware acceleration.
- P2P finding, P2P GO mode/ GC mode and P2P power manage
- WPA/PA2PSK and WPS
- 802.11 securitycertification: pre-certification and TSN
- Support 802.11n (2.4GHz)
- 802.1h/RFC1042 frame encapsulation
- Support seam less roaming
- Support AT remote update and cloud update (OTA)
- Support Smart Config function (including Android and Ios device)

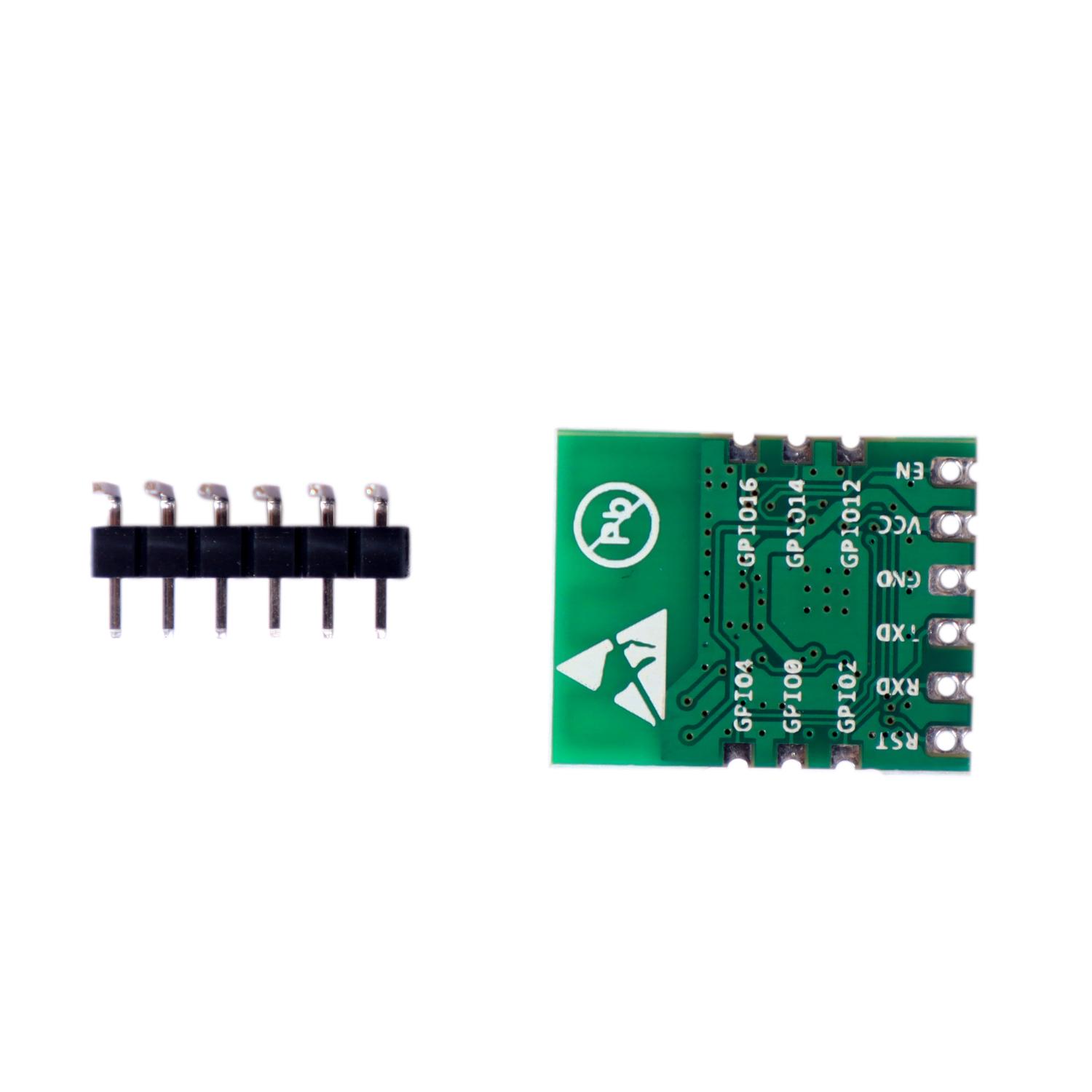

Module interface
- 2* UART
- 1*ADC
- 1*En
- 1*wakeup pin
- 1*HSPI
- 1*I2C
- 1*I2S
- More than 10*GPIOs

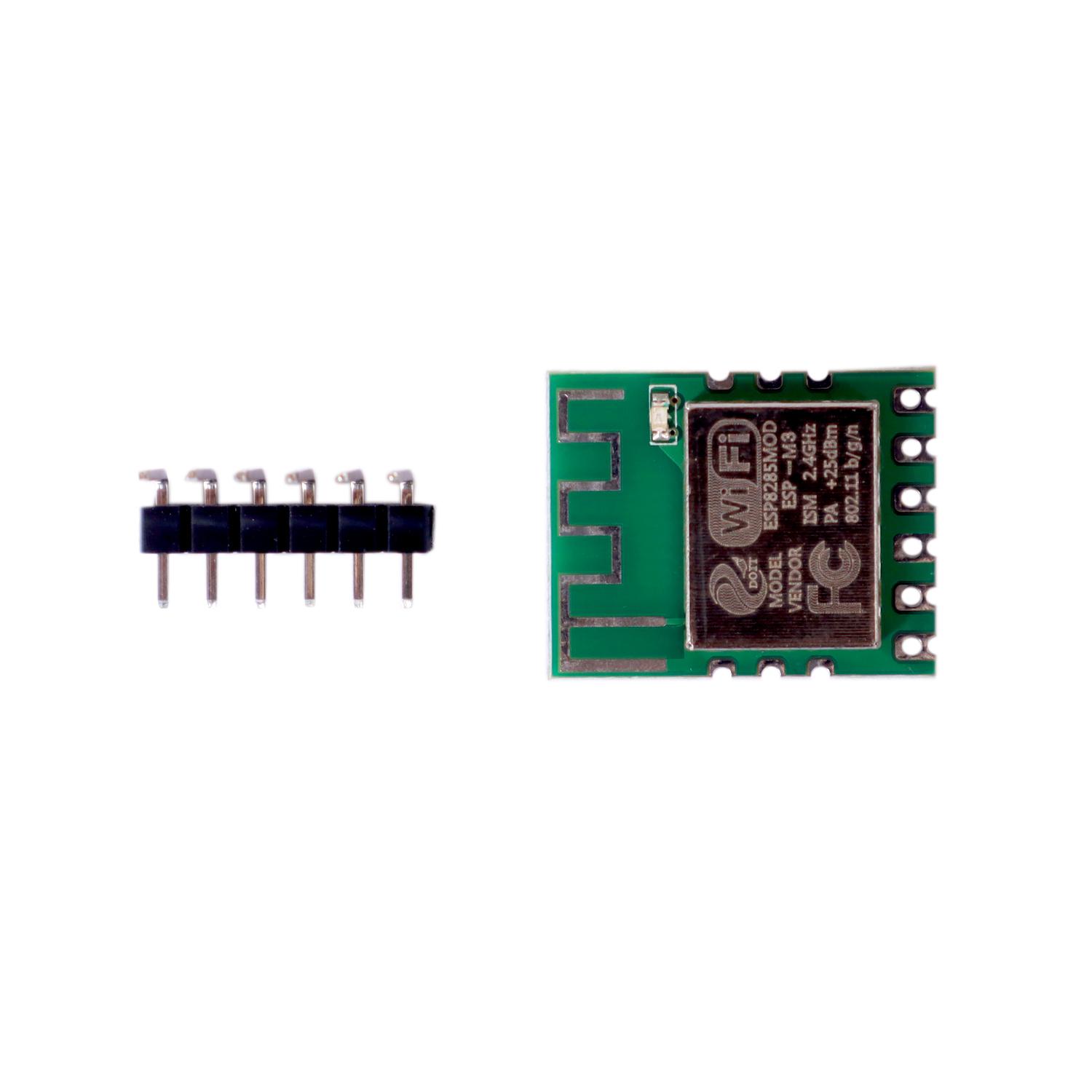

ESP-M3 is encapsulated by the high performance chip ESP8285, which is adequate to ESP8266 chip plus 1M Flash. The chip ESP825 is encapsulated an advanced Tensilica’s L106 32-bit CPU, alongside SRAM. ESP825 has the complete and complete WiFi function, which may used independently and alsoused as a slaver with other Hoster MCU, which may start directly from the out-built Flash. In addition, the built-in high-speed buffer is benefit for the system performance. Especially, ESP8285 are often used as a WiFi adapter by SPI/SDIO and/or I2C/UART interface, when it's applied to the opposite MCU design.
Features: Ultra-small size, Support serial to WiFi, Wireless transparent transmission, Long-distance transmission with ultra-low power, Support outboard antenna. Bearing high temperature to 125oC, compared to the 85oC for ESP8266.
ESP8285=ESP8266+1M Flash, chip feature1) size is ultra-small2) serial to WiFi3) wireless transmission4) long-range ultra-low-power consumption5) high temperature, up to 125oC) fully compatible with ESP8266, the esp8266 source code can be used for esp8285
SOC Features:
Built-in Tensilica L106 ultra-low power 32-bit microprocessor, clocked at 80MHz and 160MHz support RTOS
Built-in TCP / IP protocol stack, Built-in 1 channel 10 bit precision ADC. Peripheral Interface HSPI, UART, I2C, I2S, IR remote, PWM, GPIO. The deep sleep hold current is 10uA and therefore the shutdown current is a smaller amount than 5uA, awaken within 2 ms, connect and pass the packet, Standby power consumption less than 1.0mW (DTIM3)
Wi-Fi features:
Supports 802.11 b / g / n / e / i, Support Station, SoftAP, SoftAP + STA mode, Support for Wi-Fi Direct (P2P), Supports CCMP (CBC-MAC, counter mode), TKIP (MIC, RC4), WAPI (SMS4), WEP, (RC4), CRC hardware acceleration, P2P discovery, P2P GO mode / GC mode and P2P power management. WPA / PA2 PSK and WPS, 802.11 i security features: pre-authentication and TSN, Supports 802.11n (2.4 GHz), 802.1h / RFC1042 frame encapsulation. Seamless roaming support, Support AT remote upgrade and cloud OTA upgrade, Support for Smart Config features (including Android and iOS devices).
