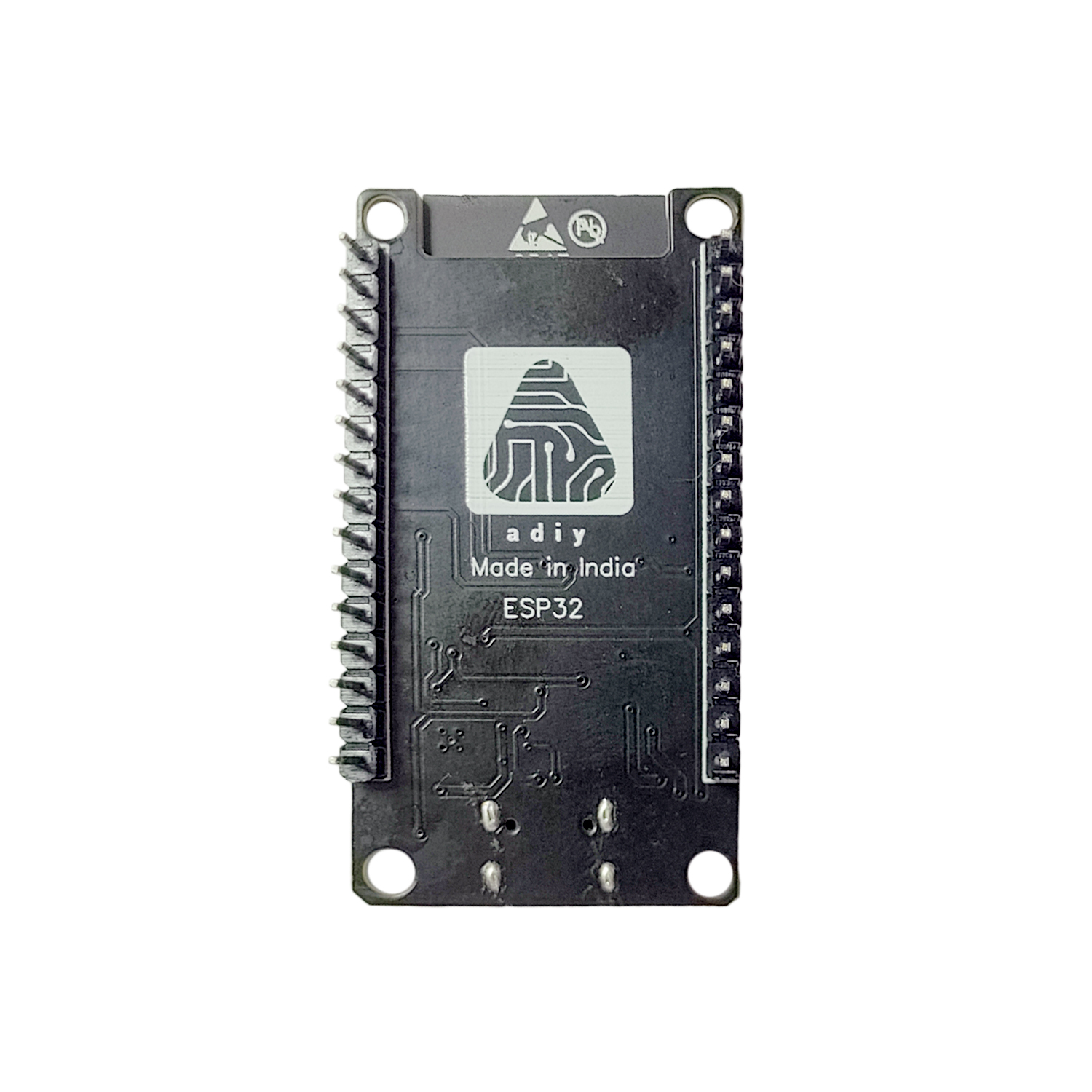

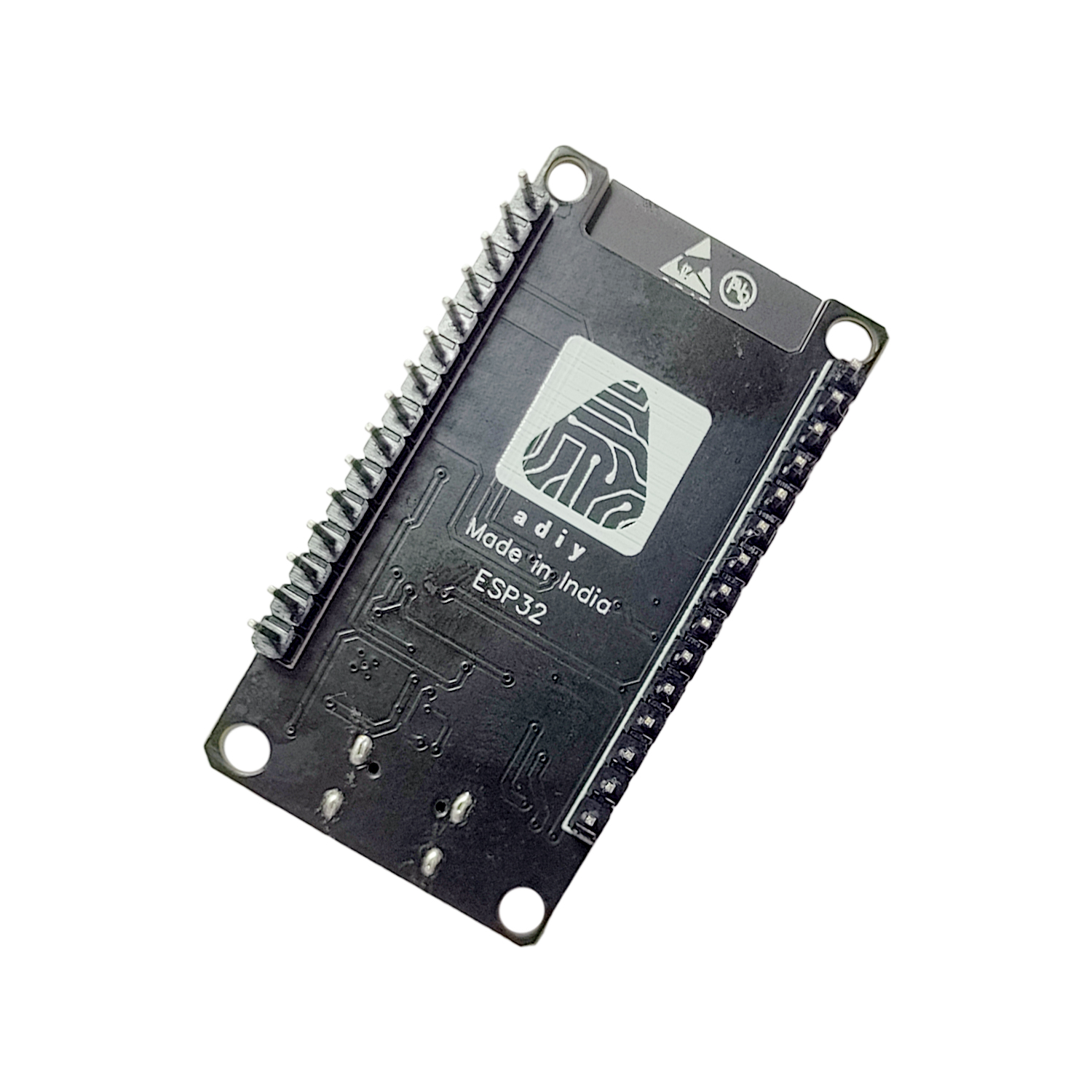

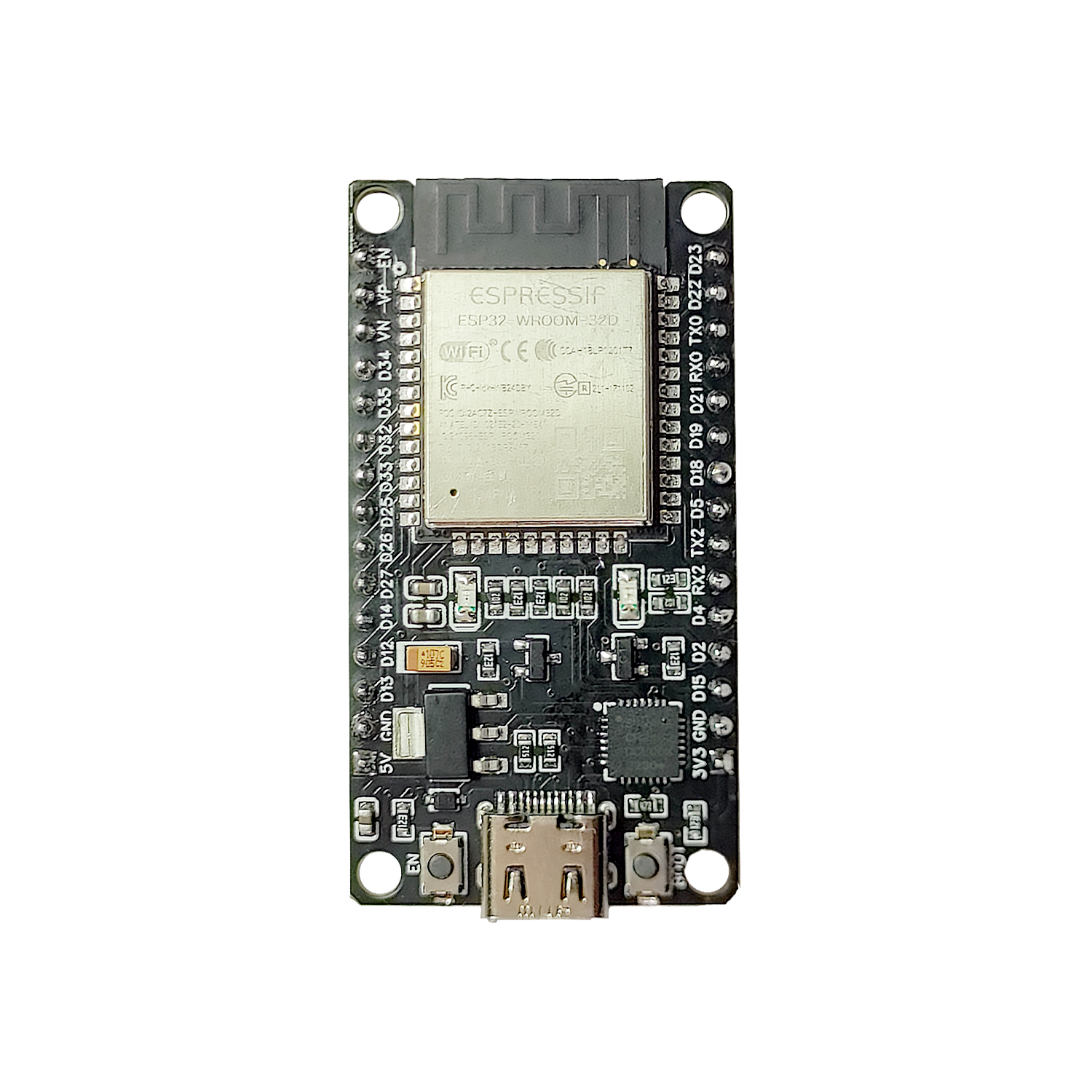

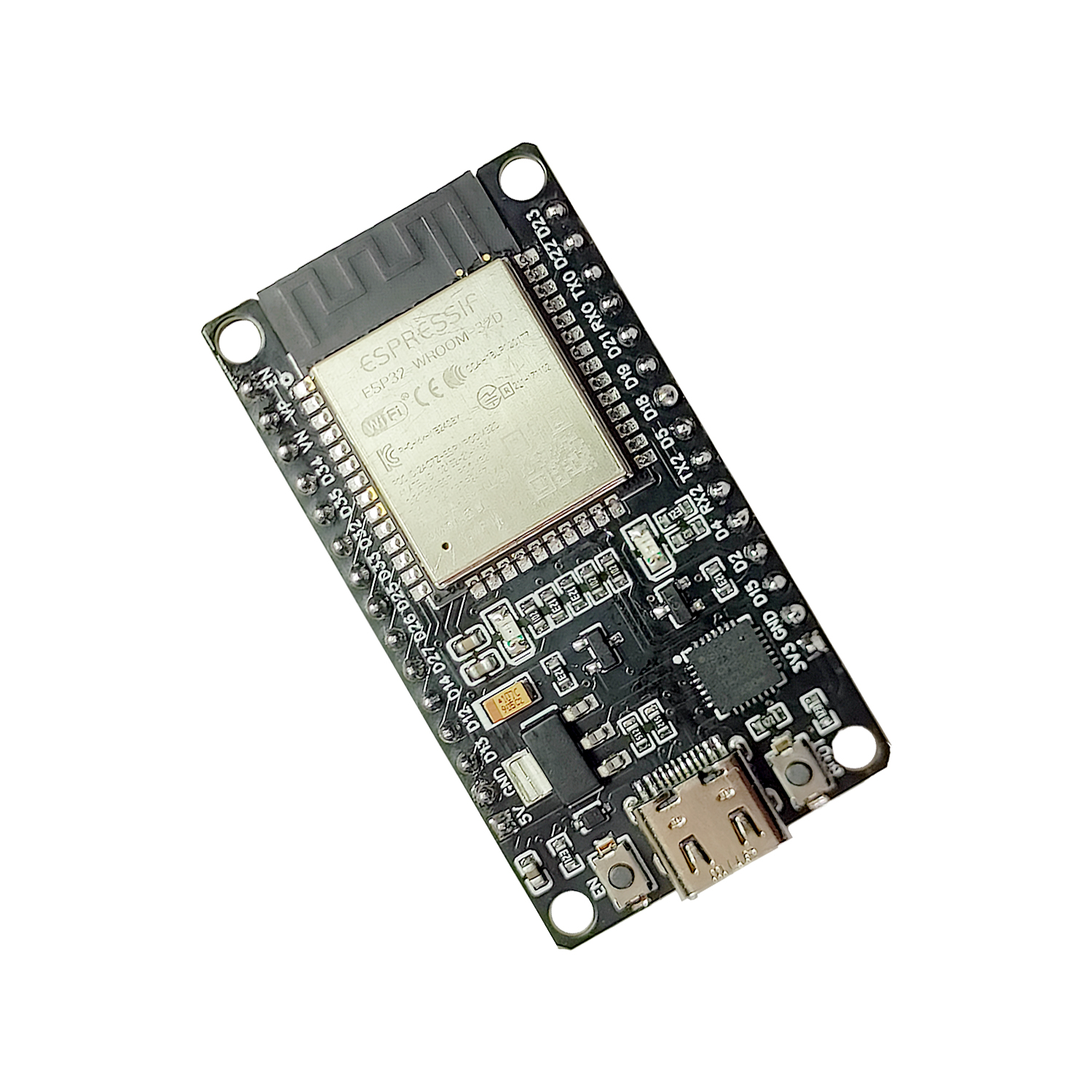

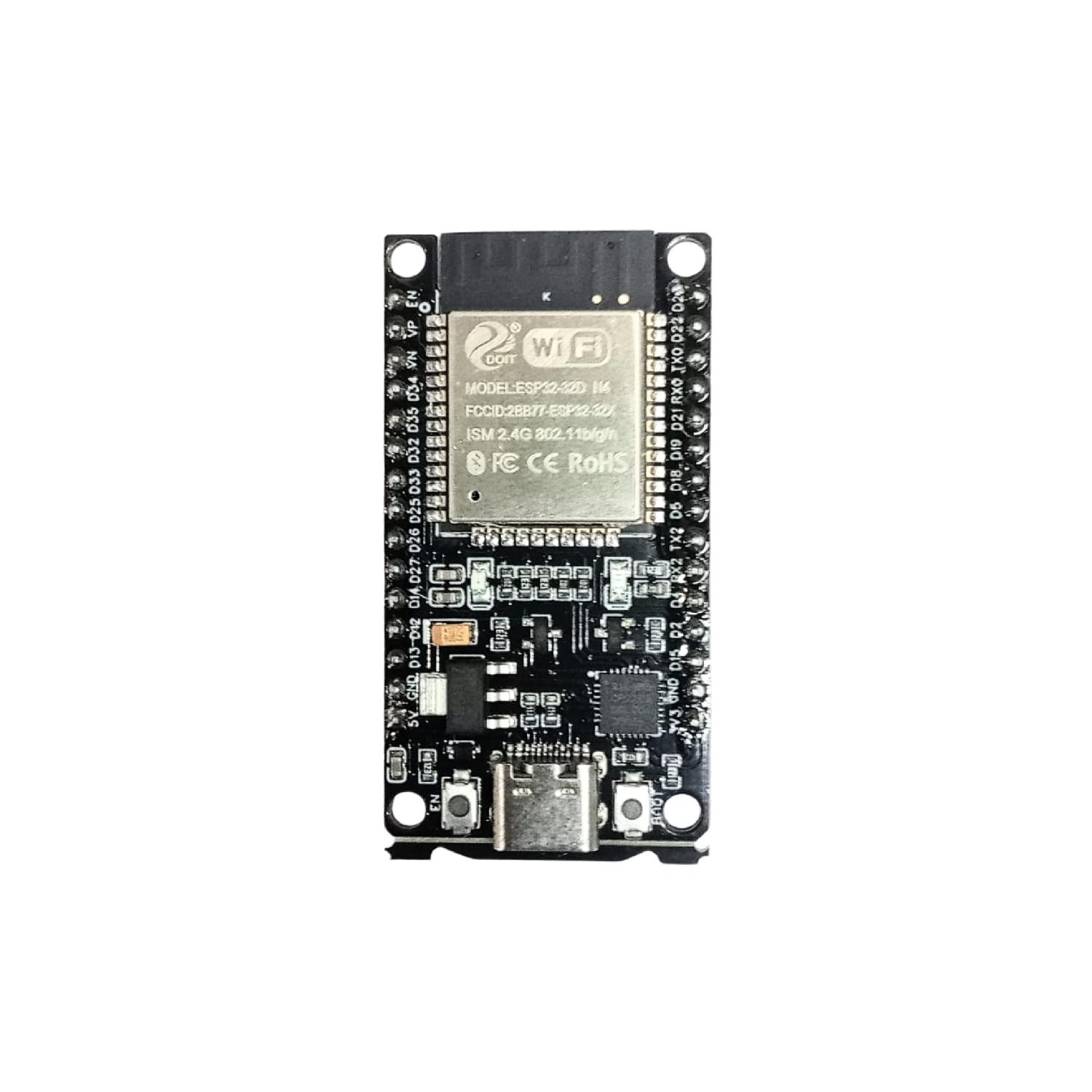

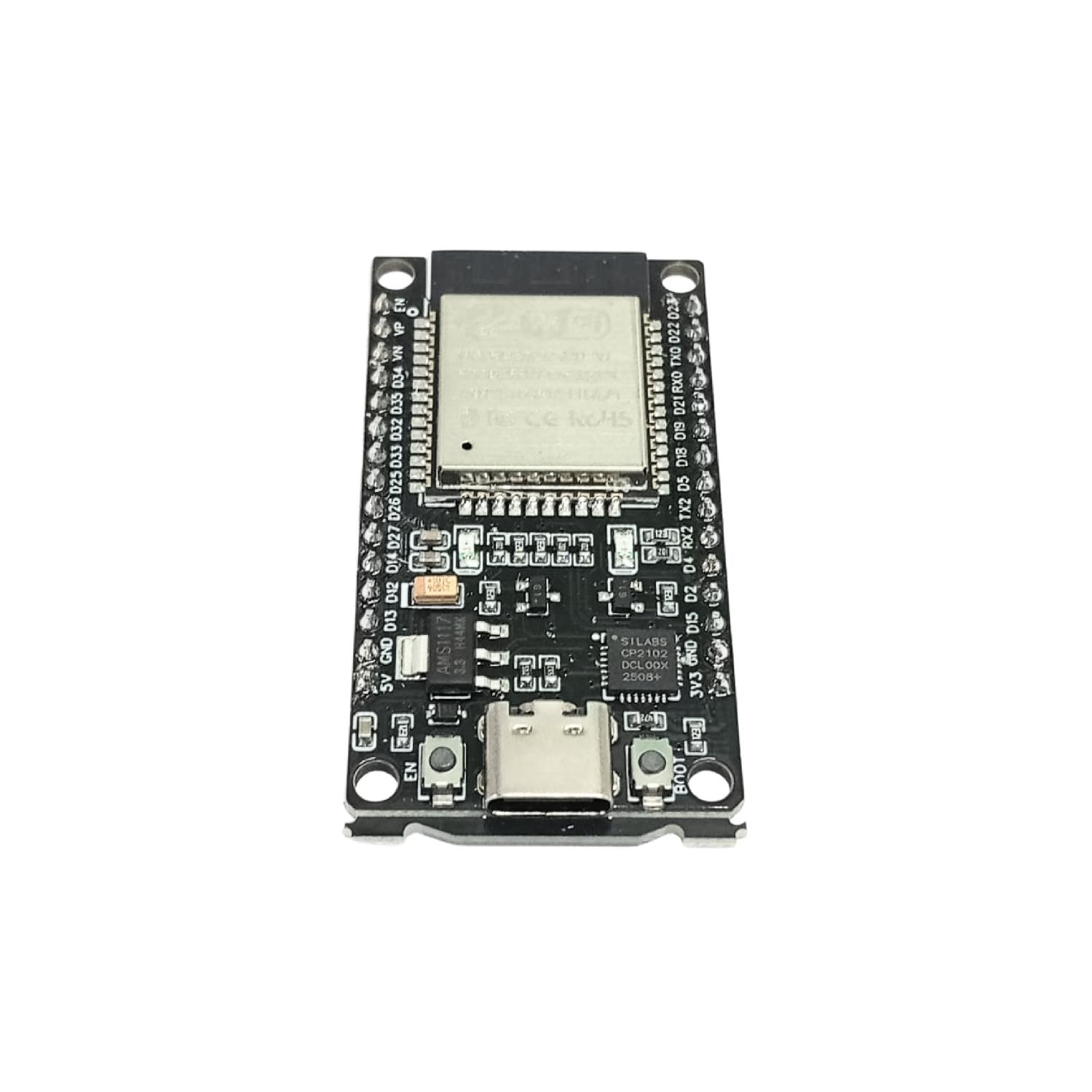

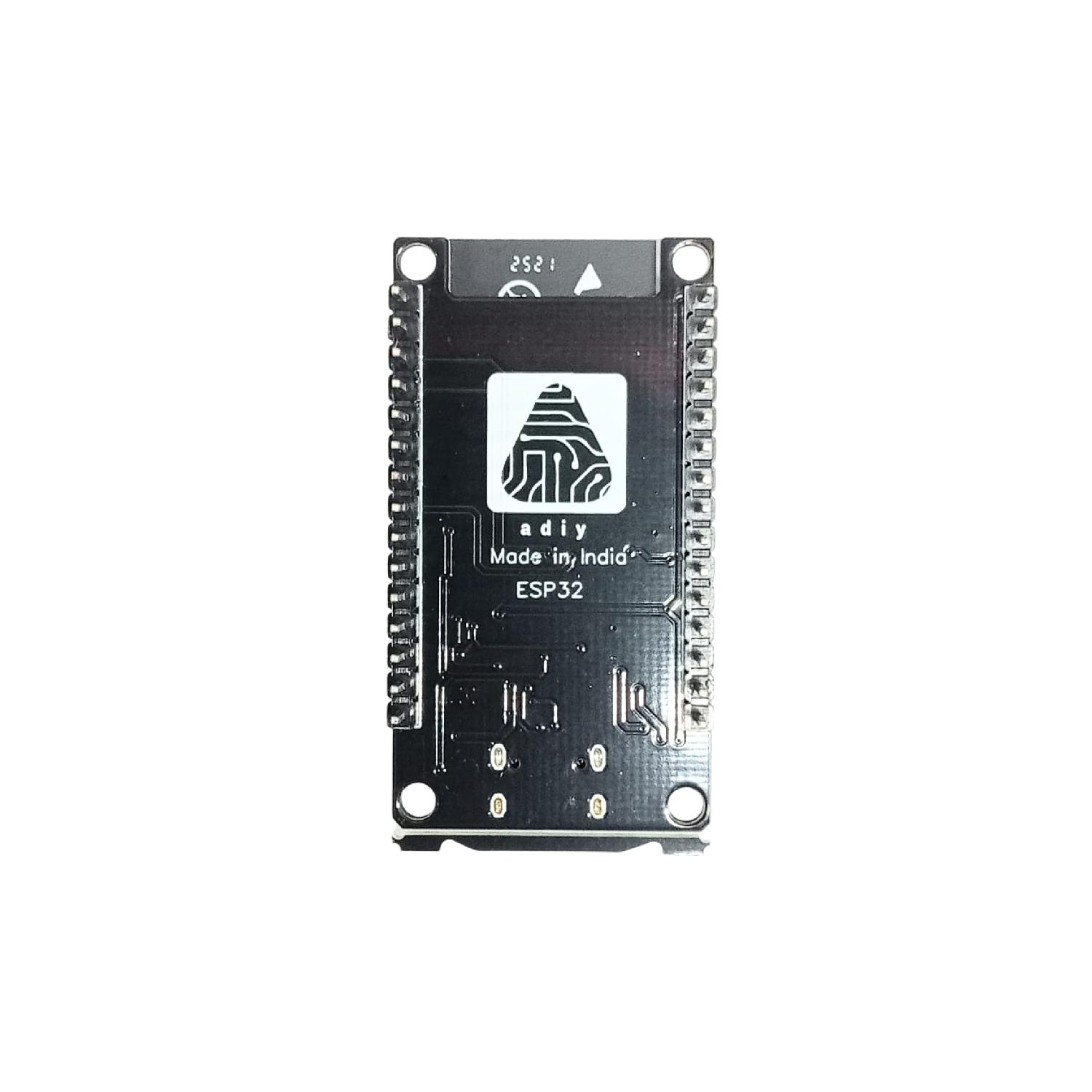

The ADIY NodeMCU ESP32D CP2102 Development Board is built around the powerful ESP32-WROOM-32 module, combining Wi-Fi, Bluetooth, and BLE connectivity into a compact and easy-to-use development platform. Powered by a 32-bit dual-core ESP32 MCU, manufactured on 40nm ultra-low-power technology, the board delivers high performance while maintaining energy efficiency.
This 30-pin ESP32 development board exposes most of the important GPIOs and interfaces, making it suitable for rapid prototyping and product development. It includes a Micro-USB connector, CP2102 USB-to-UART bridge, reset and boot buttons, and an onboard LDO regulator, ensuring stable operation and easy programming.
Supporting Arduino IDE, Lua scripting, and ESP-IDF environments, the ADIY ESP32D board allows developers to quickly add high-capacity Wi-Fi, Bluetooth, or BLE functionality to existing or new projects.
Key Features
-
ESP32-WROOM-32 based development board
-
Dual-core 32-bit MCU running up to 240 MHz
-
Wi-Fi 802.11 b/g/n (up to 150 Mbps)
-
Bluetooth v4.2 BR/EDR + BLE support
-
CP2102 USB-to-UART interface for easy programming
-
30-pin layout with accessible GPIOs
-
On-board PCB antenna
-
Low power consumption design
-
Supports Arduino, ESP-IDF & Lua scripting
-
Wide operating temperature range
Technical Specifications
-
Operating Voltage: 3.0V – 3.6V (Typical 3.3V)
-
Average Operating Current: 80 mA
-
Processor: 32-bit Dual-Core ESP32 MCU
-
Maximum Clock Frequency: Up to 240 MHz
-
Wi-Fi Protocol: 802.11 b/g/n
-
Bluetooth: v4.2 BR/EDR & BLE
-
ROM: 448 KB
-
SRAM: 520 KB
-
Crystal Oscillator: 40 MHz
-
SPI Flash: 4 MB / 8 MB / 16 MB
-
Operating Temperature: –40°C to +85°C
Supported Interfaces:
SD Card, UART, SPI, SDIO, I2C, LED PWM, Motor PWM, I2S, IR, Pulse Counter, GPIO, Capacitive Touch Sensor, ADC, DAC
Applications
-
IoT and smart home solutions
-
Wireless sensor networks
-
Industrial automation systems
-
Robotics and motor control
-
Bluetooth & Wi-Fi gateways
-
Embedded system development
-
DIY electronics and education projects
Package Includes
-
1 × ADIY NodeMCU ESP32D CP2102 Development Board
