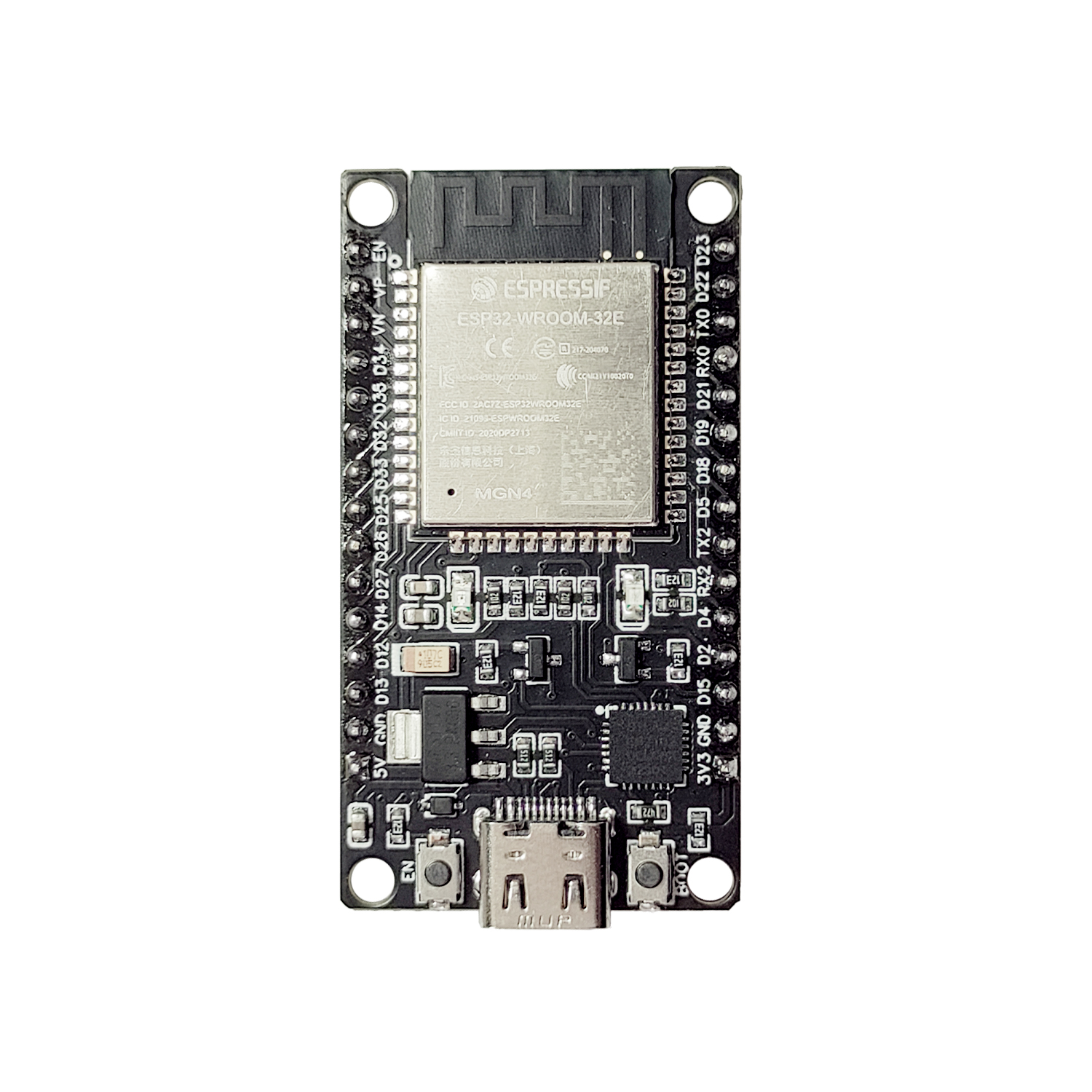

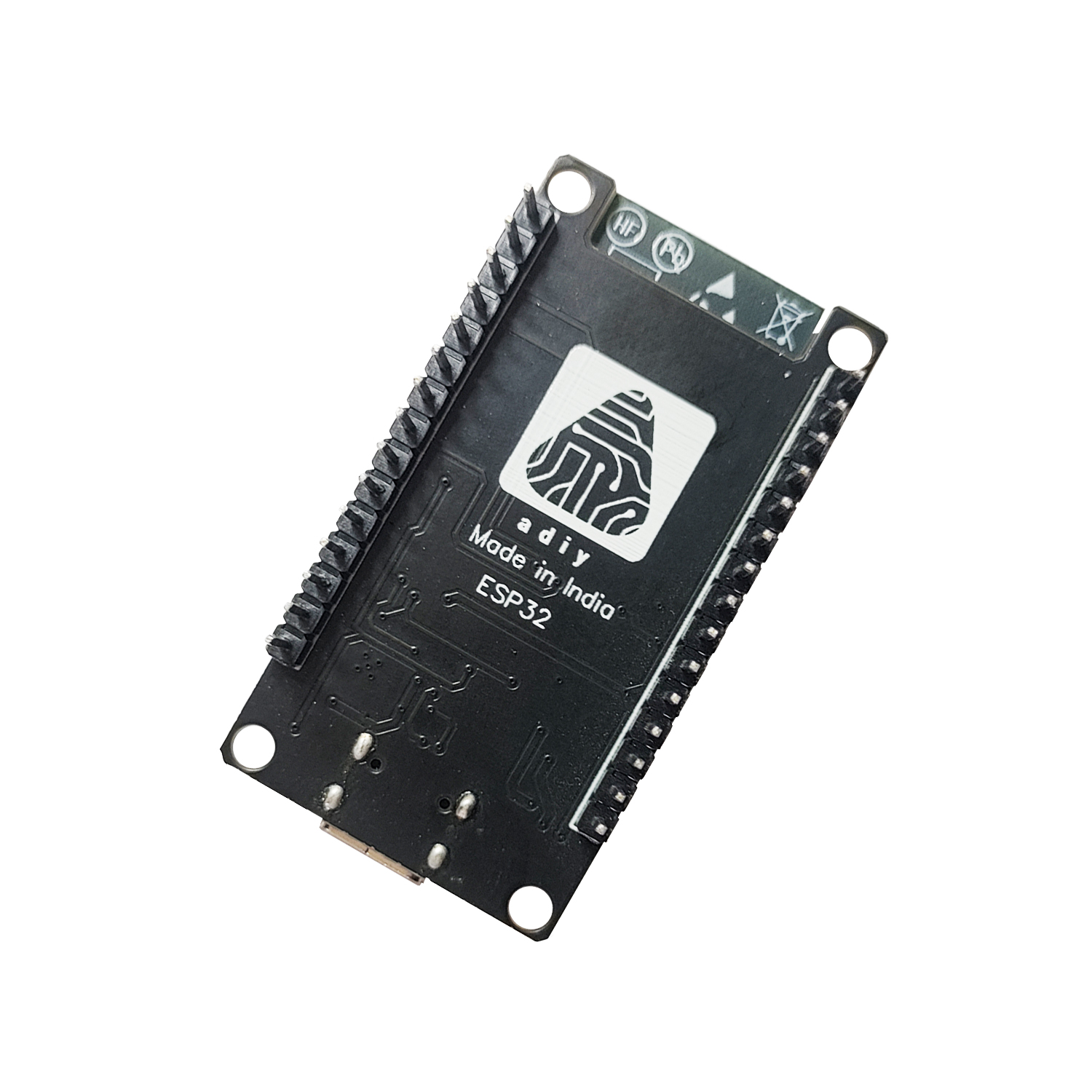

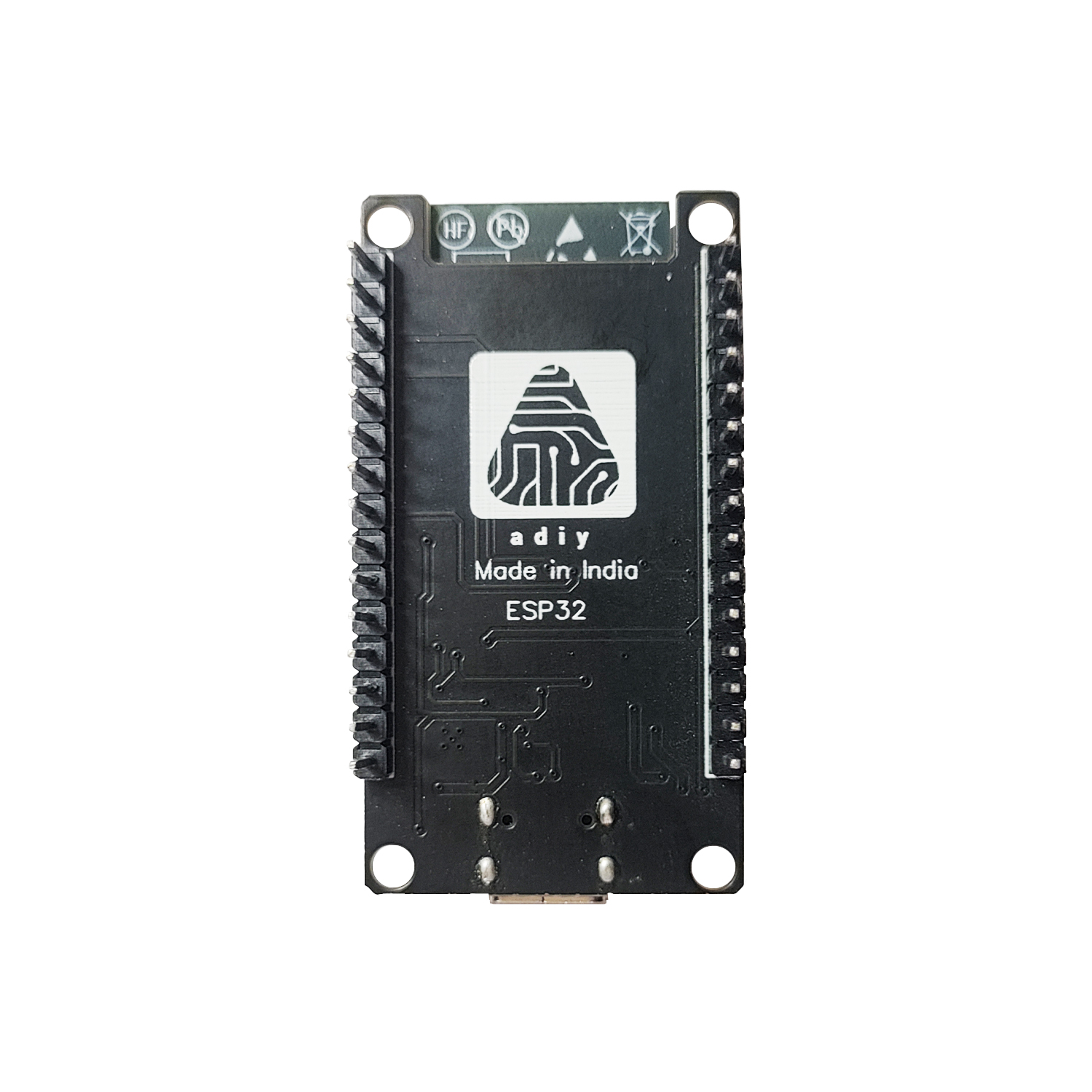

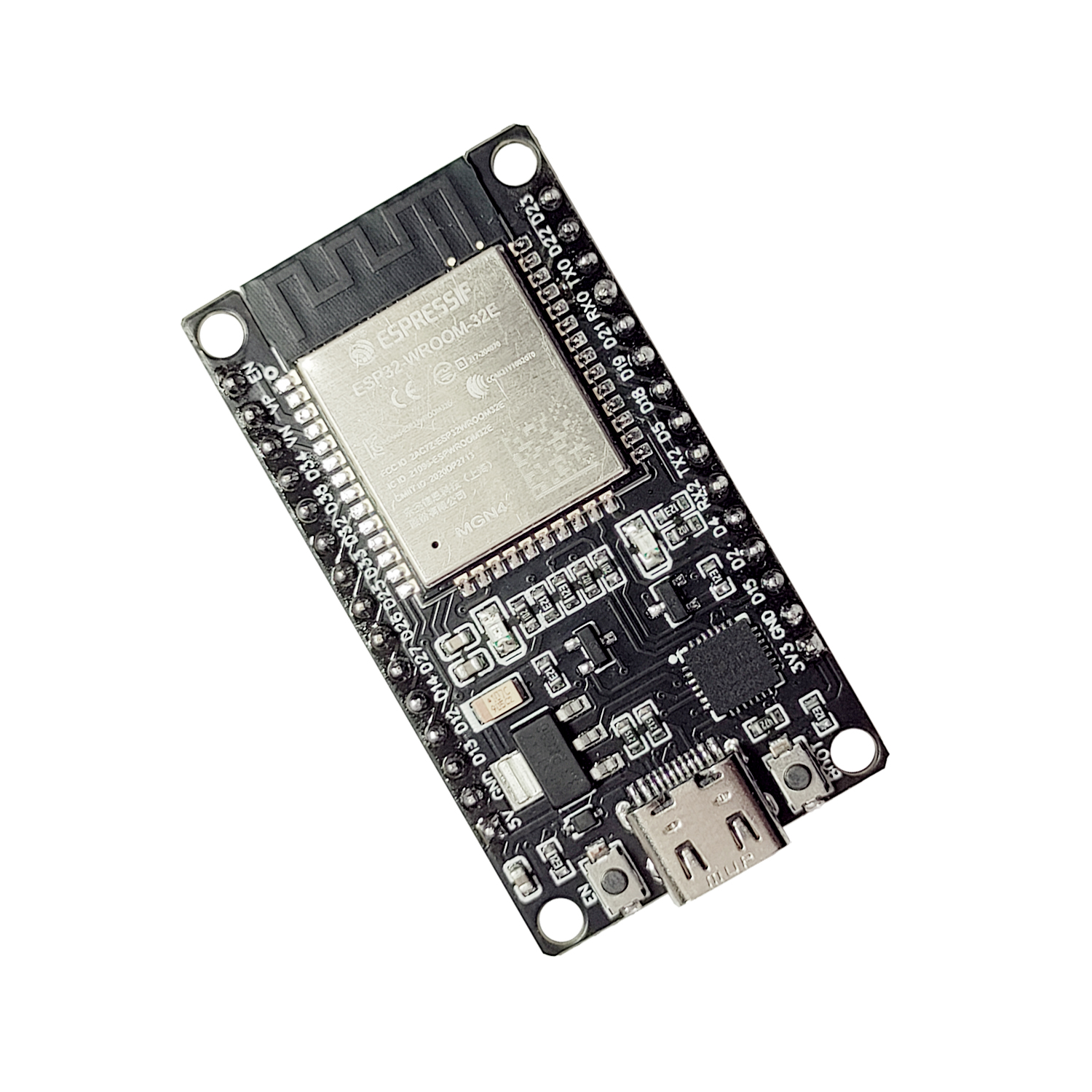

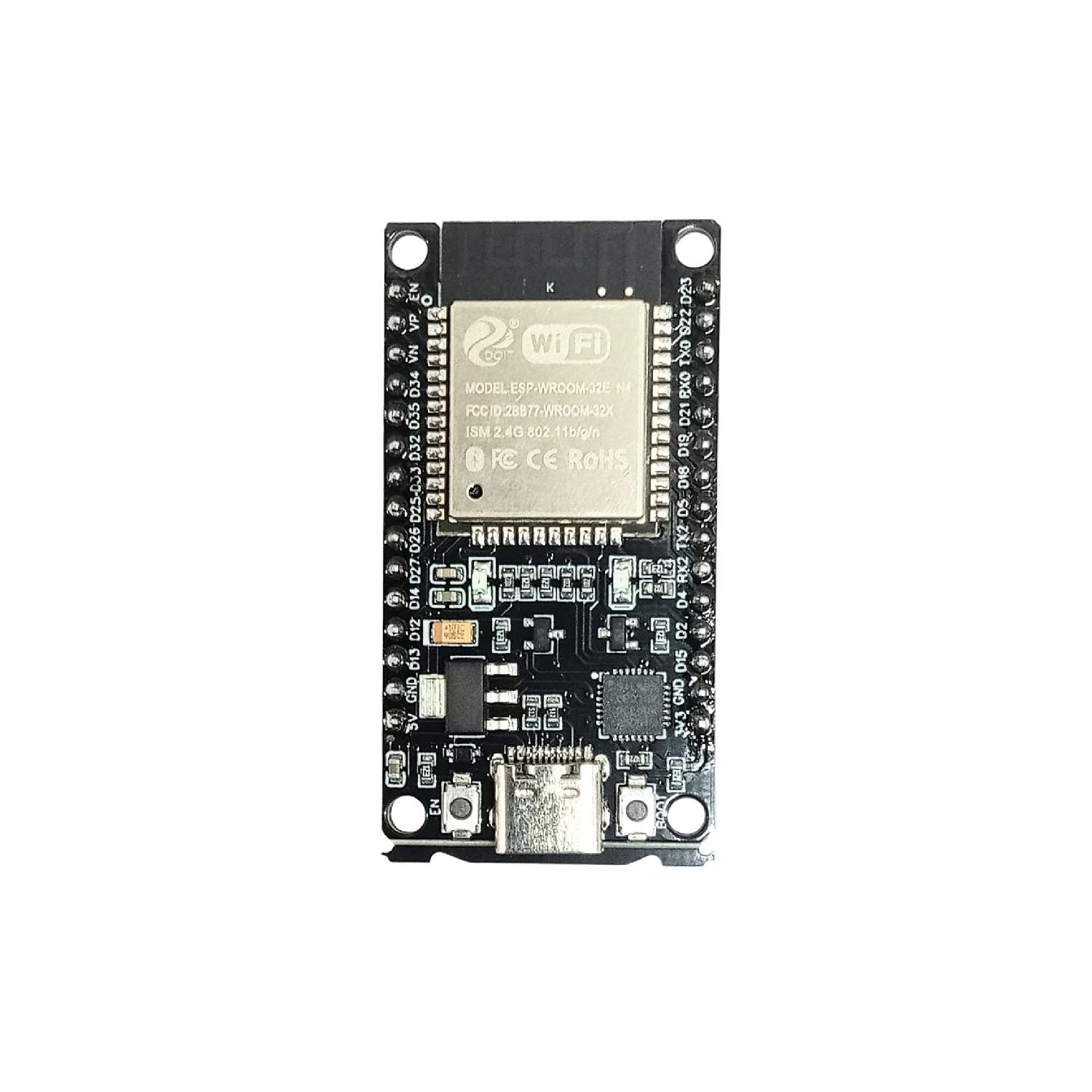

This 30-pin ESP32 board exposes all essential GPIOs and interfaces, making it ideal for rapid prototyping and product development. It features a Type-C USB connector, CP2102 USB-to-UART bridge, reset and boot buttons, and an onboard LDO regulator, ensuring stable power delivery and hassle-free programming.
Supporting Arduino IDE, ESP-IDF, and Lua scripting, the ADIY ESP32E board allows developers to quickly integrate high-capacity Wi-Fi, Bluetooth, or BLE functionality into new or existing projects.
Key Features
-
ESP32-WROOM-32E based development board
-
32-bit dual-core MCU with clock speeds up to 240 MHz
-
Wi-Fi 802.11 b/g/n (up to 150 Mbps)
-
Bluetooth v4.2 BR/EDR + BLE support
-
Type-C USB connector for modern connectivity
-
CP2102 USB-to-UART interface
-
30-pin layout with accessible GPIOs
-
Onboard PCB antenna
-
Low-power, high-performance design
-
Supports Arduino, ESP-IDF & Lua scripting
-
Wide operating temperature range
Technical Specifications
-
Operating Voltage: 3.0 V – 3.6 V (Typical 3.3 V)
-
Average Operating Current: 80 mA
-
Processor: 32-bit Dual-Core ESP32 MCU
-
Maximum Clock Frequency: Up to 240 MHz
-
Wi-Fi Protocol: 802.11 b/g/n
-
Bluetooth: v4.2 BR/EDR & BLE
-
ROM: 448 KB
-
SRAM: 520 KB
-
Crystal Oscillator: 40 MHz
-
SPI Flash: 4 MB / 8 MB / 16 MB
-
Operating Temperature: –40 °C to +85 °C
Supported Interfaces:
SD card, UART, SPI, SDIO, I2C, LED PWM, Motor PWM, I2S, IR, Pulse Counter, GPIO, Capacitive Touch Sensor, ADC, DAC
Applications
-
IoT and smart home solutions
-
Wireless sensor networks
-
Industrial automation systems
-
Robotics and motor control
-
Bluetooth & Wi-Fi communication devices
-
Embedded system development
-
DIY electronics and educational projects
Package Includes
-
1 × ADIY NodeMCU ESP32E CP2102 Development Board
